TE Connectivity’s KILOVAC Contactors
Driving the electrification of vehicles!
Introduction
TE Connectivity’s (TE) KILOVAC DC contactors deliver the switching performance demanded by Electric Vehicle applications. These lightweight contractors offer continuous current ratings up to 1000A at 1000VDC in very compact packages. Their hermetically sealed designs ensure high levels of performance and rugged reliability.
Standard KILOVAC and customized individual contractors are available, as well as custom-designed main power and high voltage distribution assemblies, designed and qualified to customer requirements. In addition to our contractors and panels, TE also offers a standard line of 100A and 500A remote power controllers for use in 12 to 600VDC applications.
Key features
Hermetically sealed
- Designed for application in harsh and explosive environments
- Reduced contact oxidation over periods of non-use Space and weight savings
- Choose from a full range of compact, lightweight DC contactors
High performance
- Operating temperature ranges from -40°C to +125°C
- Continuous current ratings up to 1000A at 1000VDC
Versatile
- Bidirectional switching
- Not position sensitive; mount in a variety of orientations
- Standard and customized contractors are available
KOVAC DC Contactors
Applications
Electric Vehicle Types
- Agricultural equipment
- Automated guided vehicles
- Boats & ferries
- Buses & mini-buses
- Construction machines
- Forklifts
- Lift platforms
- Material handling equipment
- Mining equipment
- Trucks
Charging Equipment
- Fast charging stations
– DC public use - Charging posts
– AC public use
Vehicle sub-systems
- Power distribution units
- DC/DC converters
- Battery packs
- Inverters

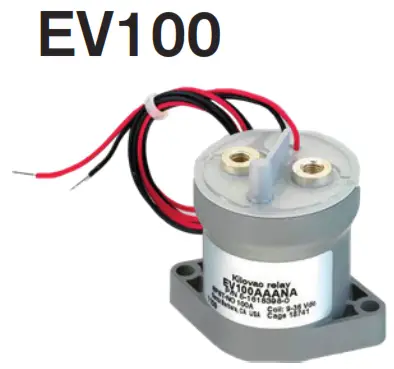

KOVAC – High Voltage – DC Contactors
| • Contact Rating 100 amps • Max. Contact Voltage 12-600VDC | • Auxiliary Contacts None • Coil Volt. Options 9-36VDC | • Coil Economizer PWM • Sealing Hermetic | • Primary Contact Configuration SPST-NO |

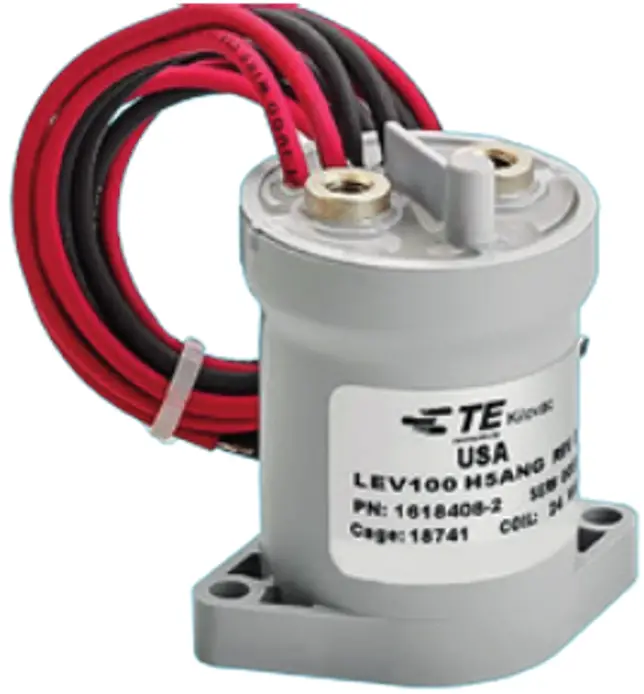

LEV100
| • Contact Rating 100 amps • Max. Contact Voltage 12-900VDC | • Auxiliary Contacts Optional • Coil Volt. Options 12, 24 & 48VDC | • Coil Economizer No • Sealing Hermetic | • Primary Contact Configuration SPST-NO |
KCS01X
| • Contact Rating 100 amps • Max. Contact Voltage 12-600VDC | • Auxiliary Contacts None • Coil Volt. Options 12 & 24/28VDC | • Coil Economizer Two-coil Electronic • Sealing Hermetic | • Primary Contact Configuration SPST-NO Current Sense & Trip |

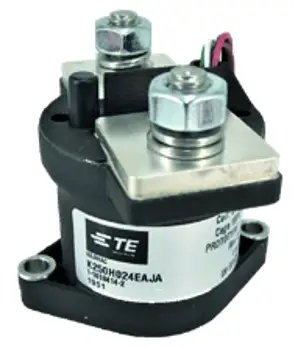

K250
| • Contact Rating 250 amps • Max. Contact Voltage 12-1000VDC | • Auxiliary Contacts SPDT • Coil Volt. Options 12-36VDC | • Coil Economizer PWM • Sealing Hermetic | • Primary Contact Configuration SPST-NO (form X) |

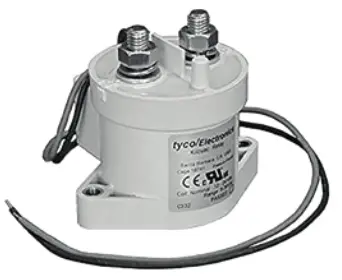

EV200 & EV200 PCB MOUNT
| • Contact Rating 500 amps • Max. Contact Voltage 12-900VDC | • Auxiliary Contacts Optional • Coil Volt. Options 9-36VDC | • Coil Economizer PWM or Mechanical • Sealing Hermetic | • Primary Contact Configuration SPST-NO; SPST-NC; Latching |

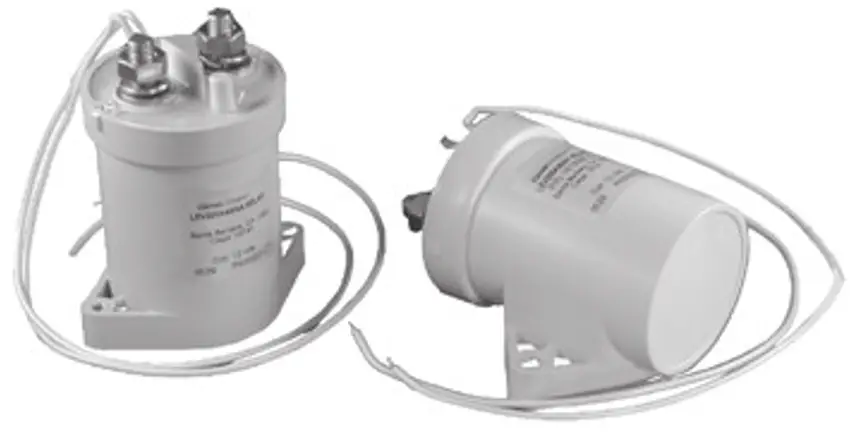

LEV200
| • Contact Rating 500 amps • Max. Contact Voltage 12-900VDC | • Auxiliary Contacts Optional • Coil Volt. Options Various AC & DC | • Coil Economizer No • Sealing Hermetic | • Primary Contact Configuration SPST-NO |
KCS03X
| • Contact Rating 500 amps • Max. Contact Voltage 12-900VDC | • Auxiliary Contacts Optional • Coil Volt. Options 12 & 24/28VDC | • Coil Economizer Two-coil Electronic • Sealing Hermetic | • Primary Contact Configuration SPST-NO Current Sense & Trip |

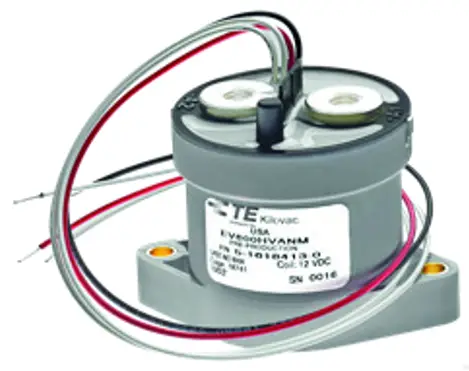

EV600
| • Contact Rating 600 amps •• Primary Contact Configuration SPST-NO | • Coil Volt. Options 12 & 24/28VDC | • Coil Economizer Two-coil Electronic • Sealing Hermetic | • Primary Contact Configuration SPST-NO |

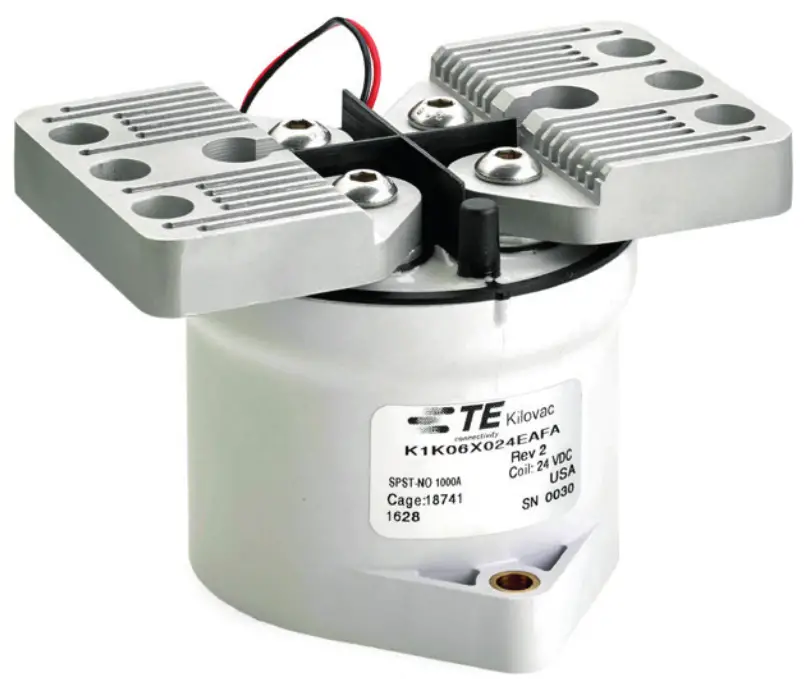

K1K
| • Contact Rating 1.000 amps • Max. Contact Voltage 12-1,000VDC | • Auxiliary Contacts Optional • Coil Volt. Options 12 & 24/28VDC | • Coil Economizer Two-coil Electronic • Sealing Hermetic | • Primary Contact Configuration SPST-NO |
To view TTI‘s full line of TE Connectivity‘s (TE) KILOVAC product line, go to www.ttieurope.com
