Inspiron 3505
Setup and Specifications
Regulatory Model: P90F
Regulatory Type: P90F004
August 2021
Rev. A03

Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better use of your product.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Set up your Inspiron 3505

NOTE: The images in this document may differ from your computer depending on the configuration you ordered.

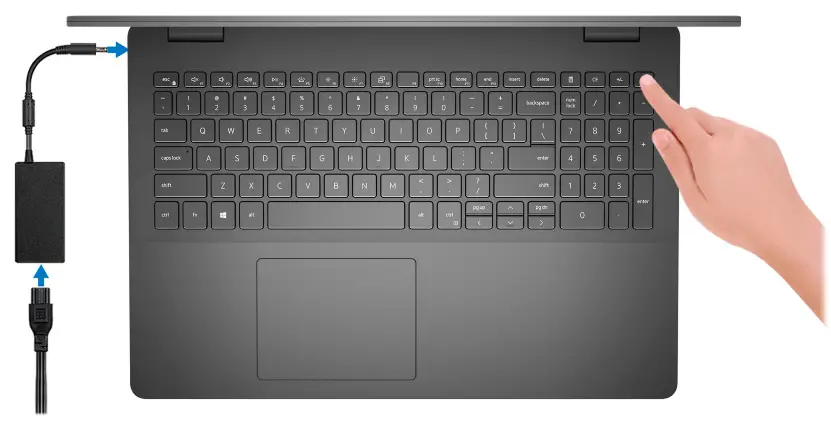

1. Connect the power adapter and press the power button.
   NOTE: The battery may go into a power-saving mode during shipment to conserve charge on the battery. Ensure that the power adapter is connected to your computer when it is turned on for the first time.
2. Finish Windows setup.
   Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you:
   ● Connect to a network for Windows updates.
   NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted.
   ● If connected to the Internet, sign in with or create a Microsoft account. If not connected to the Internet, create an offline account.
   ● On the Support and Protection screen, enter your contact details.
3. Locate and use Dell apps from the Windows Start menu—Recommended.

Table 1. Locate Dell apps

Resources	Description
	My Dell Centralized location for key Dell applications, help articles, and other important information about your computer. It also notifies you about the warranty status, recommended accessories, and software updates if available.
	SupportAssist SupportAssist proactively and predictively identifies hardware and software issues on your computer and automates the engagement process with Dell Technical support. It addresses performance and stabilization issues, prevents security threats, monitors, and detects hardware

Table 1. Locate Dell apps (continued)

Resources	Description
	failures. For more information, see SupportAssist for Home PCs User’s Guide at www.dell.com/ serviceabilitytools. Click SupportAssist and then, click SupportAssist for Home PCs. NOTE: In SupportAssist, click the warranty expiry date to renew or upgrade your warranty.
	Dell Update Updates your computer with critical fixes and the latest device drivers as they become available. For more information about using Dell Update, see the knowledge base article 000149088 at www.dell.com/support.
	Dell Digital Delivery Download software applications, which are purchased but not preinstalled on your computer. For more information about using Dell Digital Delivery, see the knowledge base article 000129837 at www.dell.com/support.

Views of Inspiron 3505

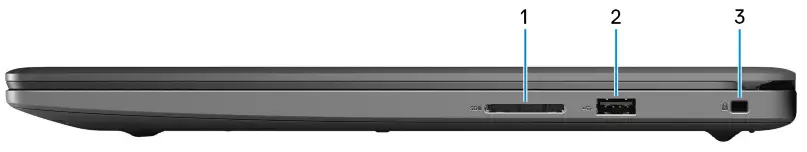

Right

1. SD-card slot
   Reads from and writes to the SD card. The computer supports the following card types:
   ● Secure Digital (SD)
   ● Secure Digital High Capacity (SDHC)
   ● Secure Digital Extended Capacity (SDXC)
2. USB 2.0 port
   Connect devices such as external storage devices and printers. Provides data transfer speeds up to 480 Mb
3. Security-cable slot (wedge-shaped)
   Connect a security cable to prevent unauthorized movement of your computer.

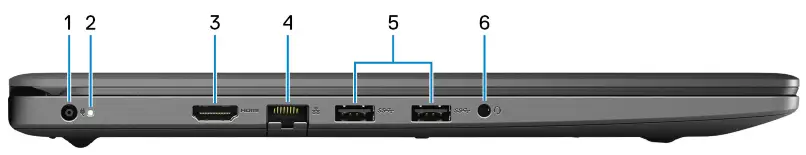

Left

1. Power-adapter port
   Connect a power adapter to provide power to your computer and charge the battery.
2. Power and battery-status light/hard-drive activity light
   Indicates the battery-charge status or the hard-drive activity.
   NOTE: Press Fn+H to switch between the power and battery-status light, and hard-drive activity light.
   Hard-drive activity light
   Turns on when the computer reads from or writes to the hard drive.
   Power and battery-status light
   Indicates the power and battery-charge status.
   Solid white—The power adapter is connected and the battery has more than 5% charge.
   Amber—The computer is running on battery and the battery has less than 5% charge.
   Off
   ● Power adapter is connected, and the battery is fully charged.
   ● Computer is running on battery, and the battery has more than 5% charge.
   ● Computer is in sleep state, hibernation, or turned off.
3. HDMI port
   Connect to a TV, external display or another HDMI-in-enabled device. Provides video and audio output.
   NOTE: The maximum resolution supported by the HDMI port is 1920 x 1080 at 60 Hz (24-bit).
4. Network port
   Connect an Ethernet (RJ45) cable from a router or a broadband modem for network or Internet access.
5. USB 3.2 Gen 1 ports (2)
   Connect devices such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps.
6. Headset jack
   Connect headphones or a headset (headphone and microphone combo).

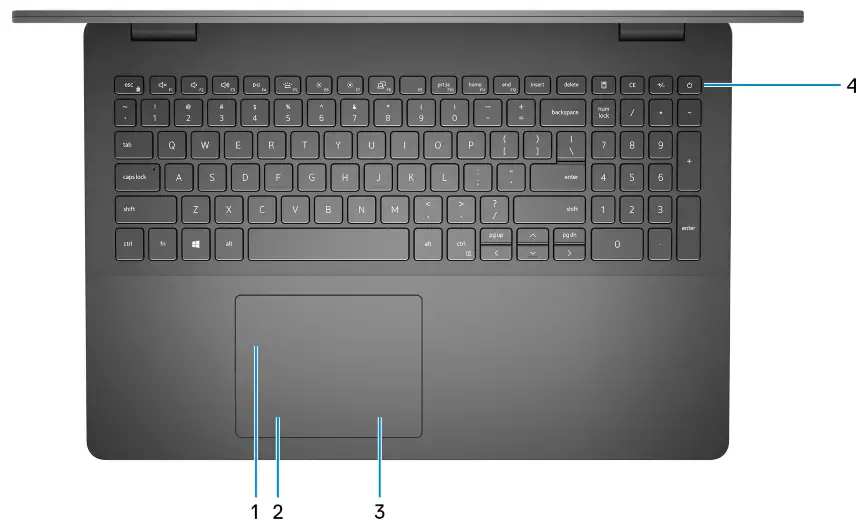

Top

1. Touchpad
   Move your finger on the touchpad to move the mouse pointer. Tap to left-click and two fingers tap to right-click.
2. Left-click area
   Press to left-click.
3. Right-click the area
   Press to right-click.
4. Power button with optional fingerprint reader
   Press to turn on the computer if it is turned off, in a sleep state, or in hibernate state.
   When the computer is turned on, press the power button to put the computer into a sleep state; press and hold the power button for 10 seconds to force shut down the computer.

If the power button has a fingerprint reader, place your finger on the power button to log in.
NOTE: You can customize power-button behavior in Windows. For more information, see Me and My Dell at www.dell.com/support/manuals.
NOTE: The power-status light on the power button is available only on computers without fingerprint readers. Computers that are shipped with the fingerprint reader that is integrated into the power button will not have the power-status light on the power button.
NOTE: To reset the battery, press and hold the power button for 25 seconds.

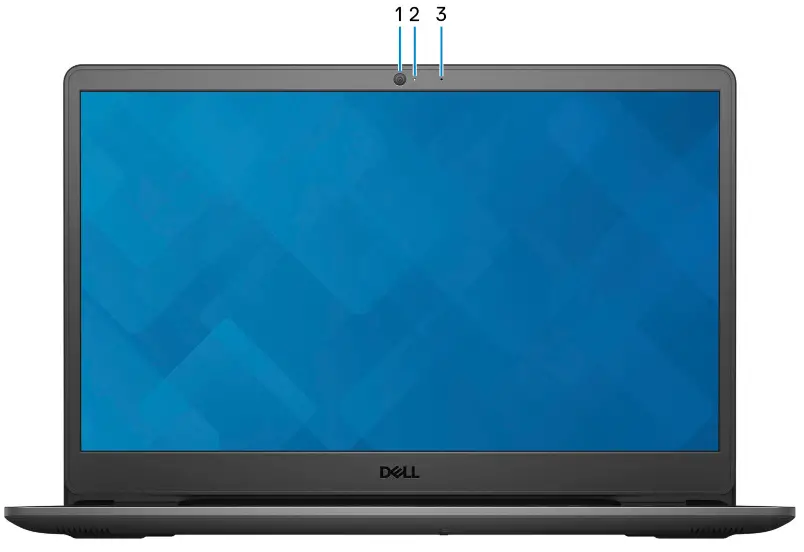

Front

1. Camera
   Enables you to video chat, capture photos, and record videos.
2. Camera-status light
   Turns on when the camera is in use.
3. Microphone
   Provides digital sound input for audio recording, voice calls, and so on.

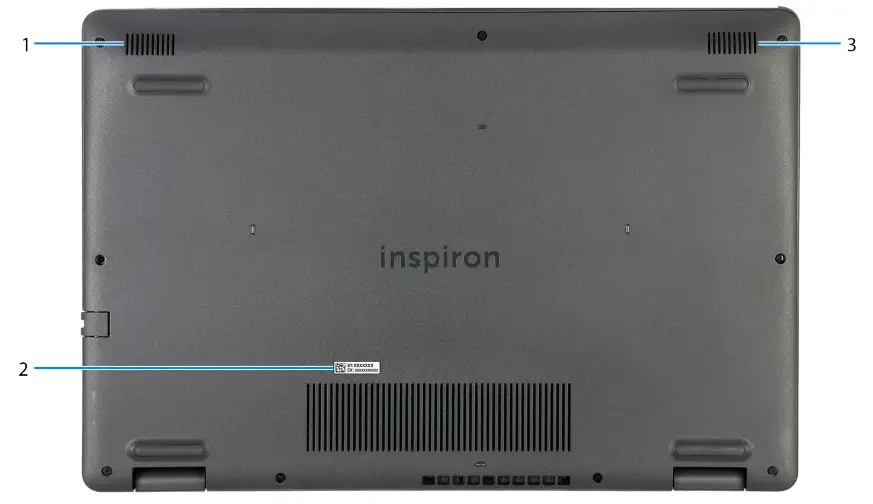

Bottom

1. Left speaker
   Provides audio output.
2. Service Tag label
   The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information.
3. Right speaker
   Provides audio output.

Specifications of Inspiron 3505

Dimensions and weight
The following table lists the height, width, depth, and weight of your Inspiron 3505.
Table 2. Dimensions and weight

Processor
The following table lists the details of the processors supported by your Inspiron 3505.
Table 3. Processor

Chipset
The following table lists the details of the chipset supported by your Inspiron 3505.
Table 4. Chipset

Operating system
Your Inspiron 3505 supports the following operating systems:

• Windows 11 Home, 64-bit
• Windows 11 Home National Academic, 64-bit
• Windows 11 Home in S-mode, 64-bit
• Windows 11 Pro, 64-bit
• Windows 11 Pro National Academic, 64-bit
• Windows 10 Pro, 64-bit
• Windows 10 Home, 64-bit
• Windows 10 Home in S-mode, 64-bit

Memory
The following table lists the memory specifications of your Inspiron 3505.
Table 5. Memory specifications

Table 5. Memory specifications (continued)

External ports
The following table lists the external ports of your Inspiron 3505.
Table 6. External ports

Description	Values
Network port	One RJ-45 port
USB ports	●      One USB 2.0 port ●      Two USB 3.2 Gen 1 ports
Audio port	One headset jack NOTE: The 3.5 mm headset jack functionality varies by model configuration. For best results, use Dell-recommended audio accessories.
Video port	One HDMI 1.4 port NOTE: The maximum resolution supported by the HDMI port is 1920 x 1080 at 60 Hz (24-bit).
Media-card reader	One SD-card slot
Power-adapter port	One 4.5 mm x 2.9 mm DC-in
Security-cable slot	One security-cable slot (wedge-shaped)

Internal slots
The following table lists the internal slots of your Inspiron 3505.
Table 7. Internal slots

Description	Values
M.2	●      One M.2 2230 slot for WiFi and Bluetooth combo card ●      One M.2 2230/2280 slot for a solid-state drive NOTE: To learn more about the features of different types of M.2 cards, see the knowledge base article 000144170 at www.dell.com/support.

Ethernet
The following table lists the wired Ethernet Local Area Network (LAN) specifications of your Inspiron 3505.
Table 8. Ethernet specifications

Table 8. Ethernet specifications (continued)

Wireless module
The following table lists the Wireless Local Area Network (WLAN) modules supported on your Inspiron 3505.
Table 9. Wireless module specifications

Audio
The following table lists the audio specifications of your Inspiron 3505.
Table 10. Audio specifications

Description		Values
Audio controller		●      Realtek ALC3204 ●      Cirrus Logic CS8409 (CS42L42+SN005825)
Stereo conversion		Supported
Internal audio interface		High definition audio
External audio interface		Headset jack NOTE: The 3.5 mm headset jack functionality varies by model configuration. For best results, use Dell-recommended audio accessories.
Number of speakers		Two
Internal-speaker amplifier		Supported
External volume controls		Keyboard shortcut controls
Speaker output:
	Average speaker output	2 W

Table 10. Audio specifications (continued)

Storage
This section lists the storage options on your Inspiron 3505.
Your Inspiron 3505 supports one of the following storage configurations:

• One 2.5-inch hard-drive
• One M.2 2230/2280 solid-state drive
• One 2.5-inch hard drive and one M.2 2230/2280 solid-state drive The primary drive of your Inspiron 3505 varies with the storage configuration. For computers:
• with an M.2 drive, the M.2 drive is the primary drive
• without an M.2 drive, the 2.5-inch hard drive is the primary drive

Table 11. Storage specifications

Media-card reader
The following table lists the media cards supported by your Inspiron 3505.
Table 12. Media-card reader specifications

Keyboard
The following table lists the keyboard specifications of your Inspiron 3505.
Table 13. Keyboard specifications

Description	Values
Keyboard type	●      Standard keyboard ●      Standard backlit keyboard
Keyboard layout	QWERTY
Number of keys	● the United States and Canada: 101 keys ●      United Kingdom: 102 keys ●      Japan: 105 keys
Keyboard size	X=18.7 mm key pitch Y=18.05 mm key pitch
Keyboard shortcuts	Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key. NOTE: You can define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in the BIOS setup program. For more information, see Keyboard shortcuts.

Camera
The following table lists the camera specifications of your Inspiron 3505.
Table 14. Camera specifications

Touchpad
The following table lists the touchpad specifications of your Inspiron 3505.
Table 15. Touchpad specifications

Power adapter
The following table lists the power adapter specifications of your Inspiron 3505.
Table 16. Power adapter specifications

Description		Values
Type		45 W
Connector dimensions:
	External diameter	4.50 mm
	Internal diameter	2.90 mm
Input voltage		100 VAC–240 VAC
Input frequency		50 Hz–60 Hz
Input current (maximum)		1.30 A
Output current (continuous)		2.31 A
Rated output voltage		19.50 VDC
Temperature range:
	Operating	0°C to 40°C (32°F to 104°F)
	Storage	-40°C to 70°C (-40°F to 158°F)
CAUTION: Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

Battery
The following table lists the battery specifications of your Inspiron 3505.
Table 17. Battery specifications

Description			Values
Battery	type		3-cell polymer, 42 WHr
Battery	voltage		11.40 VDC
Battery weight (maximum)			0.20 kg (0.44 lb)
Battery	dimensions:
		Height	184.15 mm (7.25 in.)
		Width	97.15 mm (3.82 in.)
		Depth	5.90 mm (0.23 in.)
Temperature range:
		Operating	0°C to 35°C (32°F to 95°F)
		Storage	-40°C to 65°C (-40°F to 149°F)
Battery	operating time		Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
Battery charging time (approximate) NOTE: Control the charging time, duration, start and end time, and so on using the Dell Power Manager application. For more information on the Dell Power Manager see Me and My Dell on www.dell.com.			3 hours (when the computer is off) NOTE: Control the charging time, duration, start and end time, and so on using the Dell Power Manager application. For more information on the Dell Power Manager see, Me and My Dell on www.dell.com/
Coin-cell battery			CR2032
CAUTION: Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

Display
The following table lists the display specifications of your Inspiron 3505.
Table 18. Display specifications

Table 18. Display specifications (continued)

Fingerprint reader (optional)
The following table lists the specifications of the optional fingerprint-reader of your Inspiron 3505.
Table 19. Fingerprint reader specifications

GPU—Integrated
The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Inspiron 3505.
Table 20. GPU—Integrated

Table 20. GPU—Integrated (continued)

Operating and storage environment
This table lists the operating and storage specifications of your Inspiron 3505.
Airborne contaminant level: G1 as defined by ISA-S71.04-1985
Table 21. Computer environment

Description	Operating	Storage
Temperature range	0°C to 35°C (32°F to 95°F)	-40°C to 65°C (-40°F to 149°F)
Relative humidity (maximum)	10% to 90% (non-condensing)	0% to 95% (non-condensing)
Vibration (maximum)*	0.66 GRMS	1.30 GRMS
Shock (maximum)	110 G†	160 G†
Altitude range	-15.2 m to 3048 m (-49.87 ft to 10000 ft)	-15.2 m to 10668 m (-49.87 ft to 35000 ft)
CAUTION: Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

* Measured using a random vibration spectrum that simulates the user environment.
† Measured using a 2 ms half-sine pulse when the hard drive is in use.

Keyboard shortcuts

NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations.
Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. The symbol shown on the lower part of the key refers to the character that is typed out when the key is pressed. If you press shift and the key, the symbol shown on the upper part of the key is typed out. For example, if you press 2, 2 is typed out; if you press Shift + 2, @ is typed out.
The keys F1-F12 at the top row of the keyboard are function keys for multi-media control, as indicated by the icon at the bottom of the key. Press the function key to invoke the task represented by the icon. For example, pressing F1 mutes the audio (refer to the table below).
However, if the function keys F1-F12 are needed for specific software applications, multi-media functionality can be disabled by pressing fn + Esc. Subsequently, multi-media control can be invoked by pressing fn and the respective function key. For example, mute audio by pressing fn + F1.
NOTE: You can also define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in the BIOS setup program.
Table 22. List of keyboard shortcuts

		Mute audio
		Decrease volume
		Increase volume
		Play/Pause
		Toggle keyboard backlight (optional) NOTE: Non-backlight keyboards have an F5 function key without the backlight icon and do not support the toggle keyboard backlight function.
		Decrease brightness

Table 22. List of keyboard shortcuts (continued)

Function key	Redefined key (for multimedia control)	Behavior
		Increase brightness
		Switch to an external display
		Print screen
		Home
		End

The fn key is also used with selected keys on the keyboard to invoke other secondary functions.
Table 23. List of keyboard shortcuts

Function key	Behavior
	Pause/Break
	Toggle scroll lock
	System request
	Open application menu
	Toggle fn-key lock
	Emoji
	Page up

Table 23. List of keyboard shortcuts (continued)

Function key	Behavior
	Page down

Getting help and contacting Dell
Self-help resources
You can get information and help on Dell products and services using these self-help resources:
Table 24. Self-help resources

Self-help resources	Resource location
Information about Dell products and services	www.dell.com
My Dell app
Tips
Contact Support	In Windows search, type Contact Support, and press Enter.
Online help for operating system	www.dell.com/support/windows
Access to solutions, diagnostics, drivers, and downloads, and learn more about your computer through videos, manuals, and documents.	Your Dell computer is uniquely identified by a Service Tag or Express Service Code. To view relevant support resources for your Dell computer, enter the Service Tag or Express Service Code at www.dell.com/support. For more information on how to find the Service Tag for your computer, see Locate the Service Tag on your computer.
Dell knowledge base articles for a variety of computer concerns	1.      Go to www.dell.com/support. 2.      On the menu bar at the top of the Support page, select Support > Knowledge Base. 3.      In the Search field on the Knowledge Base page, type the keyword, topic, or model number, and then click or tap the search icon to view the related articles.

Contacting Dell
To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell.
NOTE: Availability varies by country/region and product, and some services may not be available in your country/region.
NOTE: If you do not have an active Internet connection, you can find contact information about your purchase invoice, packing slip, bill, or Dell product catalog.

© 2020-2021 Dell Inc. or its subsidiaries.
All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries.
Other trademarks may be trademarks of their respective owners.
