DELL Inspiron 3505

NOTE: A NOTE indicates important information that helps you make better use of your product.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

© 2020 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.

Set up your Inspiron 3505

NOTE: The images in this document may differ from your computer depending on the configuration you ordered.

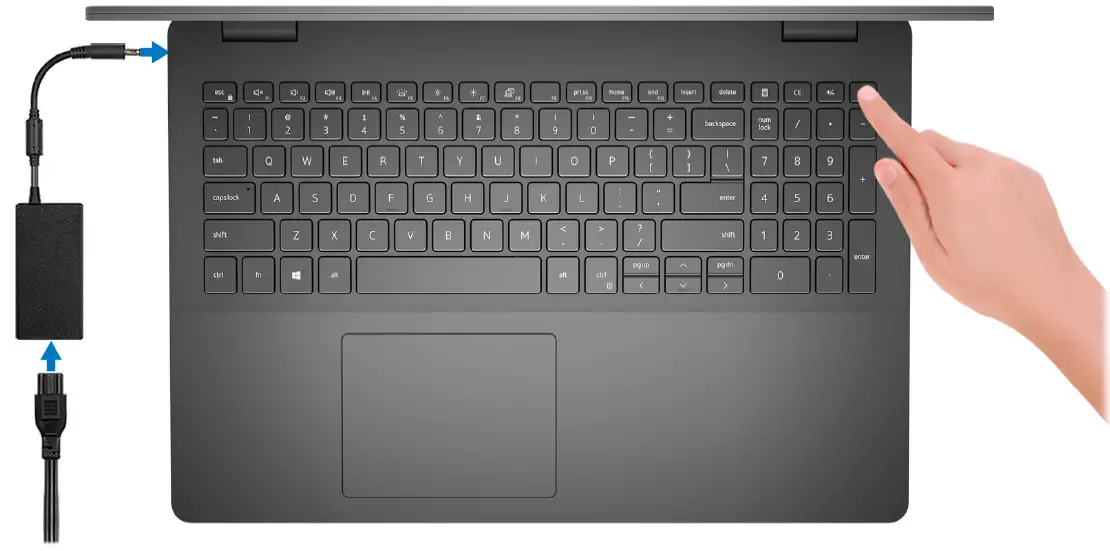

Connect the power adapter and press the power button.NOTE: The battery may go into power-saving mode during shipment to conserve charge on the battery. Ensure that the power adapter is connected to your computer when it is turned on for the first time.
Finish Windows setup.
Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you:
- Connect to a network for Windows updates.
  NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted.
- If connected to the Internet, sign in with or create a Microsoft account. If not connected to the Internet, create an offline account.
- On the Support and Protection screen, enter your contact details.
Locate and use Dell apps from the Windows Start menu—Recommended.

Table 1. Locate Dell apps

Resources	Description
	My Dell Centralized location for key Dell applications, help articles, and other important information about your computer. It also notifies you about the warranty status, recommended accessories, and software updates if available.
	SupportAssist Proactively checks the health of your computer’s hardware and software. The SupportAssist OS Recovery tool troubleshoots issues with the operating system. For more information, see the SupportAssist documentation at www.dell.com/support.

Resources	Description
	NOTE: In SupportAssist, click the warranty expiry date to renew or upgrade your warranty.
	Dell Update Updates your computer with critical fixes and latest device drivers as they become available. For more information about using Dell Update, see the knowledge base article SLN305843 at www.dell.com/support.
	Dell Digital Delivery Download software applications, which are purchased but not pre-installed on your computer. For more information about using Dell Digital Delivery, see the knowledge base article 153764 at www.dell.com/support.

Views of Inspiron 3505

Right

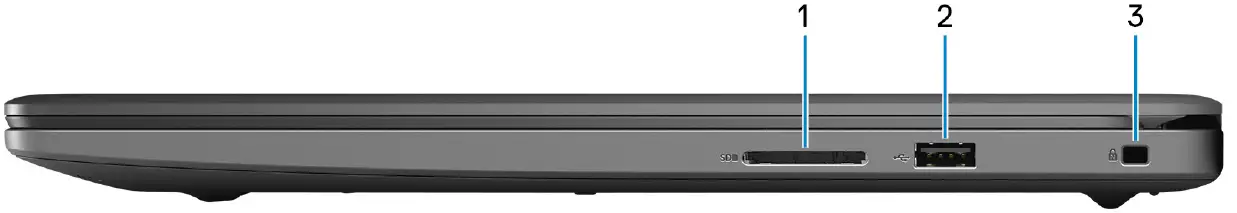

SD-card slot
Reads from and writes to the SD card. The computer supports the following card types:
- Secure Digital (SD)
- Secure Digital High Capacity (SDHC)
- Secure Digital Extended Capacity (SDXC)
USB 2.0 port
Connect devices such as external storage devices and printers. Provides data transfer speeds up to 480 Mbps.
Security-cable slot (wedge-shaped)
Connect a security cable to prevent unauthorized movement of your computer.

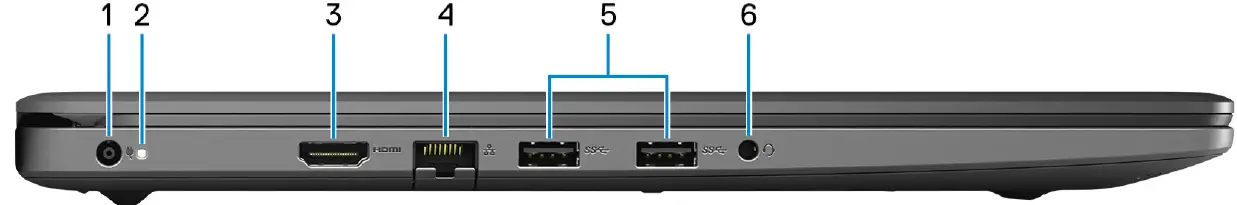

Left

Power-adapter port
Connect a power adapter to provide power to your computer and charge the battery.
Power and battery-status light/hard-drive activity light
Indicates the battery-charge status or the hard-drive activity.
NOTE: Press Fn+H to switch between the power and battery-status light, and hard-drive activity light.
Hard-drive activity light
Turns on when the computer reads from or writes to the hard drive.
Power and battery status light
Indicates the power and battery-charge status.
Solid white — Power adapter is connected and the battery has more than 5% charge.
Amber — Computer is running on battery and the battery has less than 5% charge.
Off
- Power adapter is connected and the battery is fully charged.
- Computer is running on battery and the battery has more than 5% charge.
- Computer is in sleep state, hibernation, or turned off.
HDMI port
Connect to a TV or another HDMI-in enabled device. Provides video and audio output.
Network port
Connect an Ethernet (RJ45) cable from a router or a broadband modem for network or Internet access.
USB 3.2 Gen 1 ports (2)
Connect devices such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps.
Headset port
Connect headphones or a headset (headphone and microphone combo).

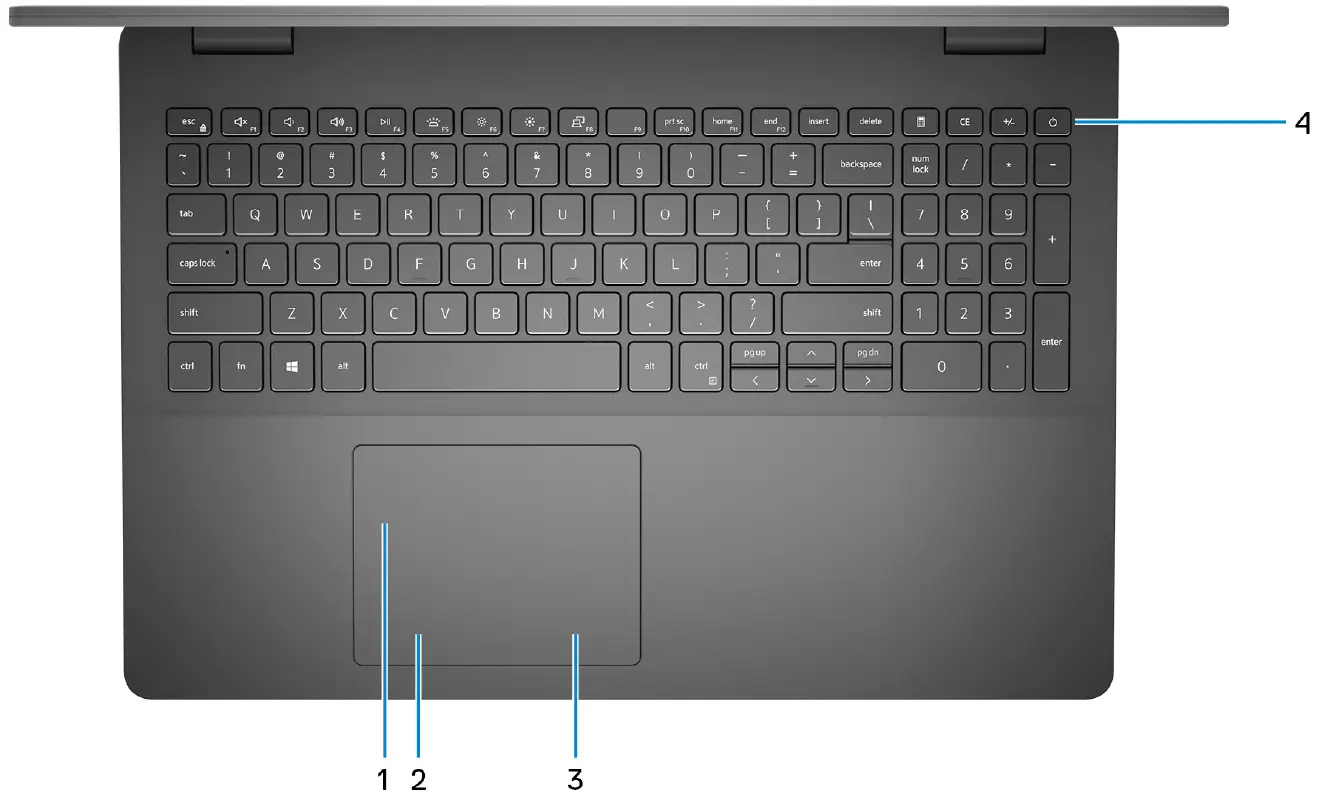

Base

Touchpad
Move your finger on the touchpad to move the mouse pointer. Tap to left-click and two finger tap to right-click.
Left-click area
Press to left-click.
Right-click area
Press to right-click.
Power button with optional fingerprint reader
Press to turn on the computer if it is turned off, in sleep state, or in hibernate state.
When the computer is turned on, press the power button to put the computer into sleep state; press and hold the power button for 10 seconds to force shut-down the computer.
If the power button has a fingerprint reader, place your finger on the power button to log in.

NOTE:

You can customize power-button behavior in Windows. For more information, see Me and My Dell at www.dell.com/support/manuals
The power-status light on the power button is available only on computers without the fingerprint reader. Computers shipped with the fingerprint reader integrated on the power button will not have the power-status light on the power button.
To reset the battery, press and hold the power button for 25 seconds.

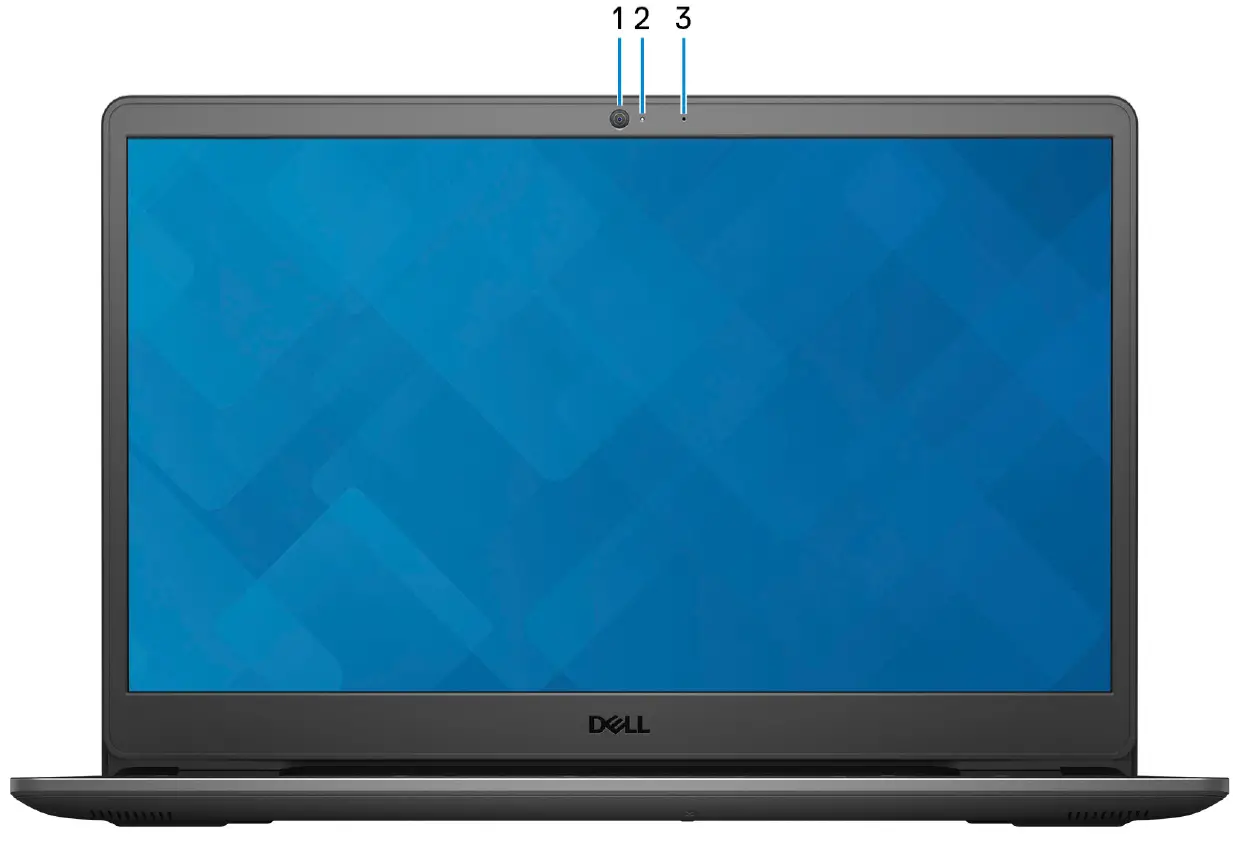

Display

Camera
Enables you to video chat, capture photos, and record videos.
Camera-status light
Turns on when the camera is in use.
Microphone
Provides digital sound input for audio recording, voice calls, and so on.

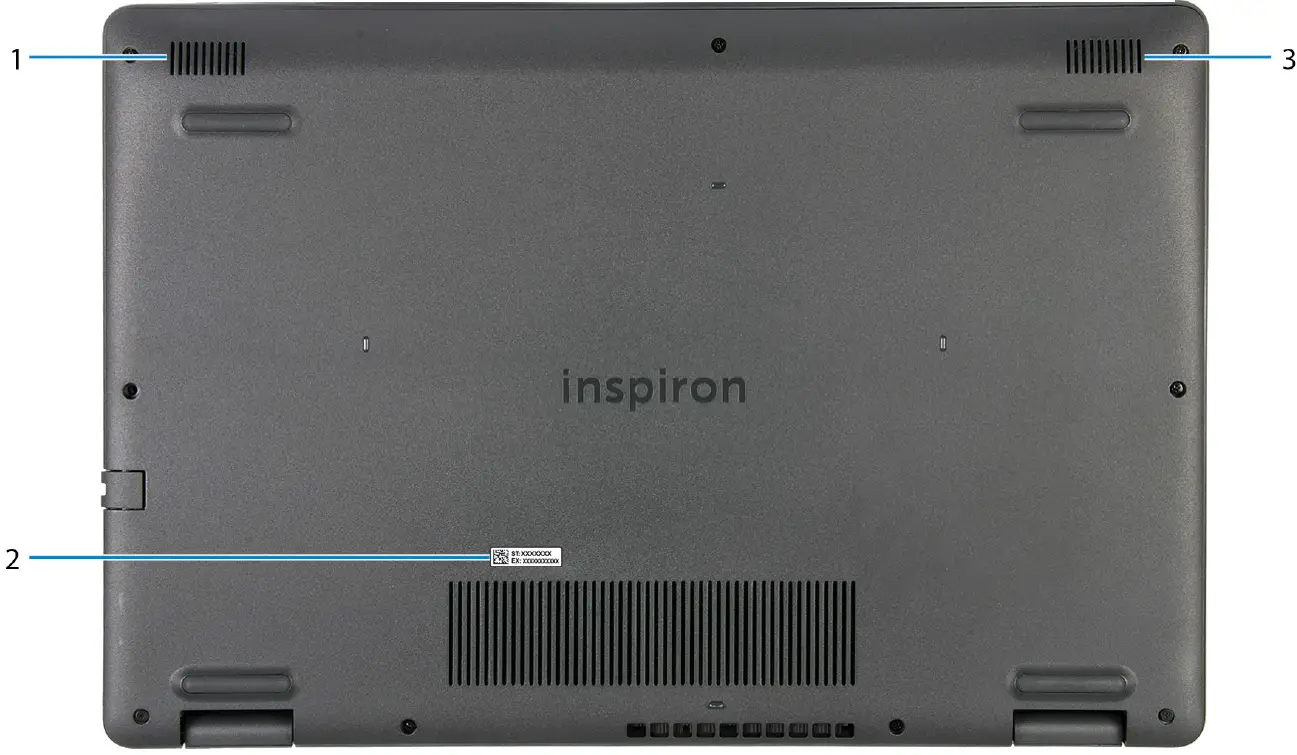

Bottom

Left speaker
Provides audio output.
Service Tag label
The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information.
Right speaker
Provides audio output.

Specifications of Inspiron 3505

Dimensions and weight
The following table lists the height, width, depth, and weight of your Inspiron 3505.

Table 2. Dimensions and weight

Description		Values
Height:
	Front height	18 mm (0.71 in.)
	Rear height	19.89 mm (0.78 in.)
Width		363.96 mm (14.33 in.)
Depth		249 mm (9.80 in.)
Weight (maximum)		● Touchscreen: 1.98 kg (4.36 lb) ● Non-touchscreen: 1.96 kg (4.32 lb) NOTE: The weight of your computer depends on the configuration ordered and manufacturing variability.

Processor
The following table lists the height, width, depth, and weight of your Inspiron 3505.

Table 2. Dimensions and weight

Description	Option one	Option two	Option three	Option Four	Option Five	Option Six
Processor type	AMD Ryzen 3 3250U	AMD Ryzen 5 3450U	AMD Ryzen 5 3500U	AMD Ryzen 7 3700U	AMD Athlon Silver 3050U	AMD Athlon Gold 3150U
Processor wattage	15 W	15 W	15 W	15 W	15 W	15 W
Processor core count	2	4	4	4	2	2
Processor thread count	4	8	8	8	2	4
Processor speed	Up to 3.5 GHz	Up to 3.5 GHz	Up to 3.7 GHz	Up to 4 GHz	Up to 3.2 GHz	Up to 3.3 GHz
Processor cache	4 MB	4 MB	4 MB	4 MB	4 MB	4 MB
Integrated graphics	AMD Radeon Graphics	AMD Radeon Vega 8 Graphics	AMD Radeon Vega 8 Graphics	AMD Radeon RX Vega 10 Graphics	AMD Radeon Graphics	AMD Radeon Graphics

Chipset
The following table lists the details of the chipset supported by your Inspiron 3505.

Table 4. Chipset

Description	Values
Chipset	Integrated
Processor	● AMD Ryzen 3/5/7 ● AMD Athlon Gold/Silver
DRAM bus width	64-bit
Flash EPROM	16 MB
PCIe bus	Up to Gen3.0

Operating system

Your Inspiron 3505 supports the following operating systems:

Windows 10 Home, 64-bit
Windows 10 Pro, 64-bit
Windows 10 S-mode, 64-bit

Memory
The following table lists the memory specifications of your Inspiron 3505.

Table 5. Memory specifications

Description			Values
Memory	slots		Two-SODIMM slots
Memory	type		DDR4
Memory	speed		2400 MHz
Maximum memory configuration			4 GB
Minimum memory configuration			16 GB
Memory	size per	slot	4 GB, 8 GB, 12 GB, 16 GB
Memory configurations supported			●	4 GB, 1 x 4 GB, DDR4, 2400 MHz
			●	8 GB, 1 x 8 GB, DDR4, 2400 MHz
			●	16 GB, 1 x 16 GB, DDR4, 2400 MHz
			●	8 GB, 2 x 4 GB, DDR4, 2400 MHz
			●	12 GB, 1 x 8 GB + 1 x 4 GB, DDR4, 2400 MHz
			●	16 GB, 2 x 8 GB, DDR4, 2400 MHz

External ports
The following table lists the external ports of your Inspiron 3505.

Table 6. External ports

Description	Values
Network port	One RJ-45 port
USB ports	● One USB 2.0 port ● Two USB 3.2 Gen 1 ports
Audio port	One headset (headphone and microphone combo) port
Video port	One HDMI 1.4 port
Media-card reader	One SD-card slot
Power-adapter port	One 4.5 mm x 2.9 mm DC-in
Security	One security-cable slot (wedge-shaped)

Internal slots
The following table lists the internal slots of your Inspiron 3505.

Table 7. Internal slots

Description

Values

M.2

● One M.2 2230 slot for WiFi and Bluetooth combo card

● One M.2 2230/2280 slot for solid-state drive

NOTE: To learn more about the features of different types of M.2 cards, see the knowledge base article SLN301626 at www.dell.com/support.

Ethernet
The following table lists the wired Ethernet Local Area Network (LAN) specifications of your Inspiron 3505.

Table 8. Ethernet specifications

Description	Values
Model number	Realtek RTL 8106E, PCI-e ethernet controller
Transfer rate	10/100 Mbps

Wireless module
The following table lists the Wireless Local Area Network (WLAN) modules supported on your Inspiron 3505.

Table 9. Wireless module specifications

Description	Option one	Option two
Model number	Realtek RTL8723DE	Qualcomm QCA9377 (DW1810)
Transfer rate	Up to 150 Mbps	Up to 433 Mbps
Frequency bands supported	2.4 GHz	2.4 GHz/5 GHz
Wireless standards	● Wi-Fi 802.11 a/b/g ● Wi-Fi 4 (WiFi 802.11n)	● Wi-Fi 802.11 a/b/g ● Wi-Fi 4 (WiFi 802.11n) ● Wi-Fi 5 (WiFi 802.11ac)
Encryption	● 64-bit/128-bit WEP ● AES-CCMP ● TKIP	● 64-bit/128-bit WEP ● AES-CCMP ● TKIP
Bluetooth	Bluetooth 4.2	Bluetooth 5.0

Audio
The following table lists the audio specifications of your Inspiron 3505.

Table 10. Audio specifications

Description		Values
Audio controller		Realtek ALC3204
Stereo conversion		Supported
Internal audio interface		High definition audio
External audio interface		Universal Audio Jack
Number of speakers		Two
Internal-speaker amplifier		Supported
External volume controls		Keyboard shortcut controls
Speaker output:
	Average speaker output	2 W
	Peak speaker output	2.5 W
Subwoofer output		Not supported
Microphone		Single digital microphone

Storage

This section lists the storage options on your Inspiron 3505.
Your Inspiron 3505 supports one of the following storage configurations:

One 2.5-inch hard-drive
One M.2 2230/2280 solid-state drive
One 2.5-inch hard-drive and one M.2 2230/2280 solid-state drive

The primary drive of your Inspiron 3505 varies with the storage configuration. For computers:

with a M.2 drive, the M.2 drive is the primary drive
without a M.2 drive, the 2.5-inch hard drive is the primary drive

Table 11. Storage specifications

Storage type	Interface type	Capacity
2.5-inch hard-disk drive	SATA AHCI, up to 6 Gbps	Up to 2 TB
M.2 2230 solid-state drive	PCIe Gen3.0x4 NVMe, up to 32 Gbps	Up to 512 GB
M.2 2280 solid-state drive	PCIe Gen3.0x4 NVMe, up to 32 Gbps	Up to 1 TB

Media-card reader

The following table lists the media cards supported by your Inspiron 3505.
Table 12. Media-card reader specifications

Description	Values
Media-card type	One SD card slot
Media-cards supported	● Secure Digital (SD) ● Secure Digital High Capacity (SDHC) ● Secure Digital Extended Capacity (SDXC)
NOTE: The maximum capacity supported by the media-card reader varies depending on the standard of the media card installed in your computer.

Keyboard

The following table lists the keyboard specifications of your Inspiron 3505.
Table 13. Keyboard specifications

Description	Values
Keyboard type	● Standard keyboard ● Standard backlit keyboard
Keyboard layout	QWERTY
Number of keys	● United States and Canada: 101 keys ● United Kingdom: 102 keys ● Japan: 105 keys
Keyboard size	X=18.7 mm key pitch

Description

Values

Y=18.05 mm key pitch

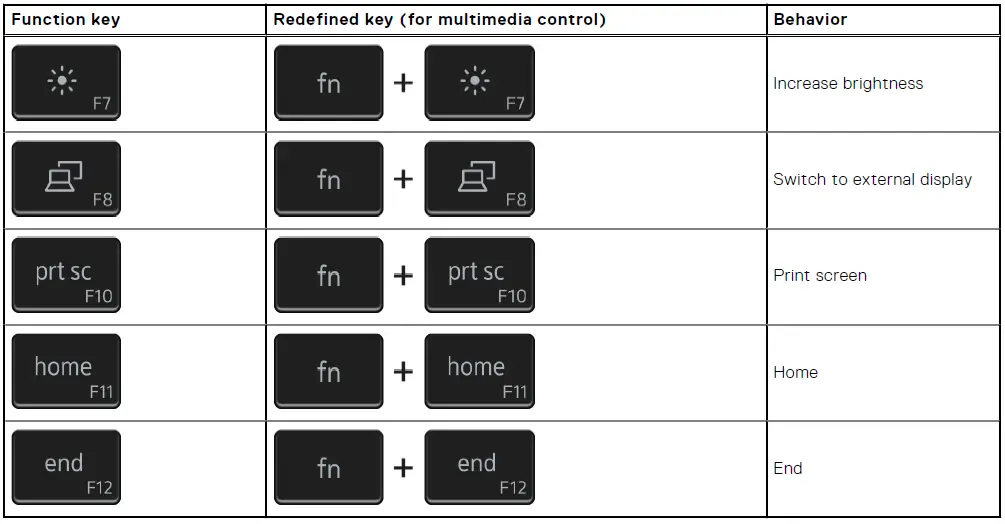

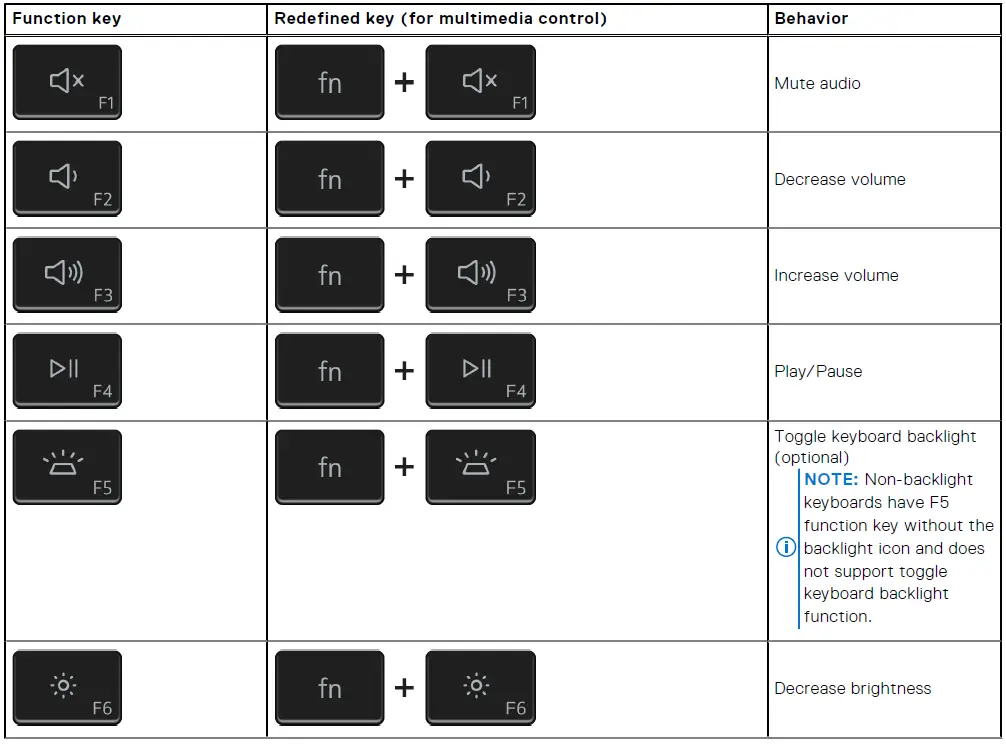

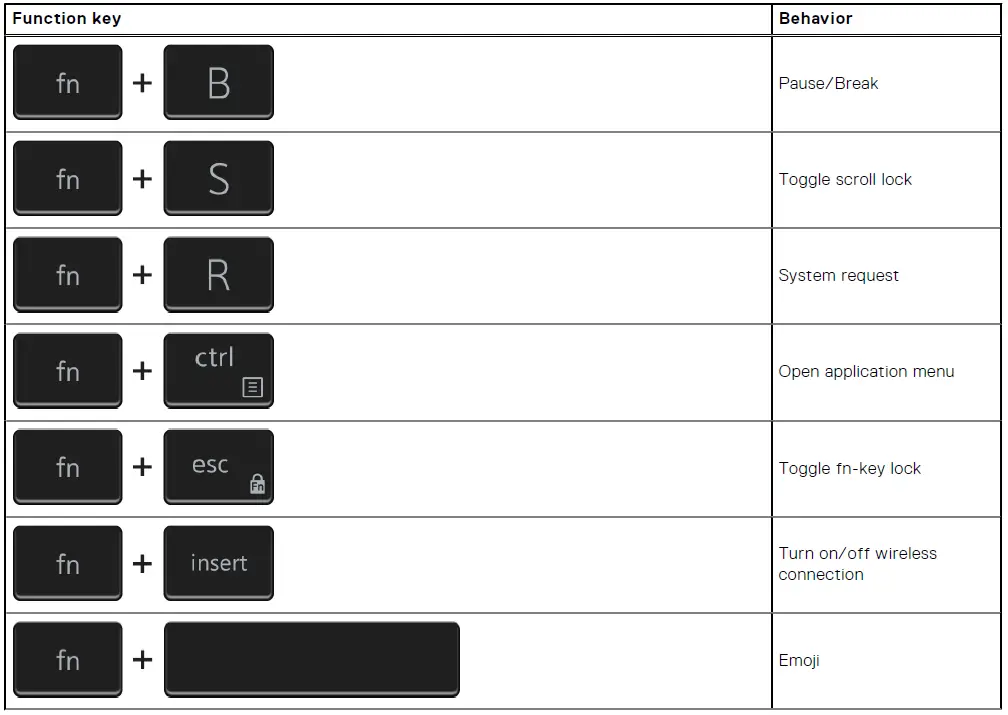

Keyboard shortcuts

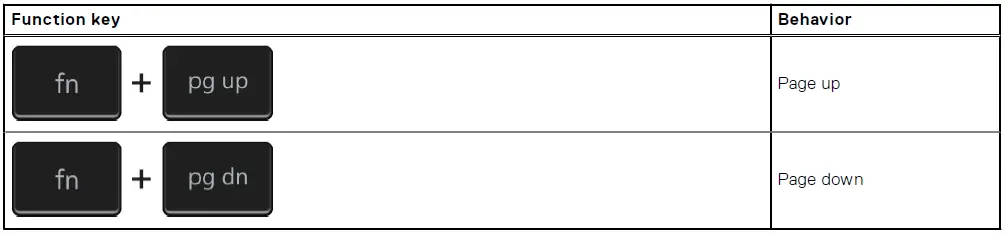

Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key.

NOTE: You can define the primary behavior of the function keys (F1–F12) changing Function Key Behavior in BIOS setup program.

For more information, see Keyboard shortcuts.

Camera

The following table lists the camera specifications of your Inspiron 3505.
Table 14. Camera specifications

Description		Values
Number of cameras		One
Camera type		HD RGB camera
Camera location		Front camera
Camera sensor type		CMOS sensor technology
Camera resolution:
	Still image	0.92 megapixel
	Video	1280 x 720 (HD) at 30 fps
Diagonal viewing angle:		78.6 degrees

Touchpad

The following table lists the touchpad specifications of your Inspiron 3505.
Table 15. Touchpad specifications

Description		Values
Touchpad resolution:
	Horizontal	1230
	Vertical	750
Touchpad dimensions:
	Horizontal	104.40 mm
	Vertical	64.40 mm

Description	Values
Touchpad gestures	For more information about touchpad gestures available on Windows 10, see the Microsoft knowledge base article 4027871 at support.microsoft.com.

Power adapter
The following table lists the power adapter specifications of your Inspiron 3505.

Table 16. Power adapter specifications

Description		Values
Type		45 W
Connector dimensions:
	External diameter	4.50 mm
	Internal diameter	2.90 mm
Input voltage		100 VAC–240 VAC
Input frequency		50 Hz–60 Hz
Input current (maximum)		1.30 A
Output current (continuous)		2.31 A
Rated output voltage		19.50 VDC
Temperature range:
	Operating	0°C to 40°C (32°F to 104°F)
	Storage	-40°C to 70°C (-40°F to 158°F)

Battery

The following table lists the battery specifications of your Inspiron 3505.
Table 17. Battery specifications

Description		Values
Battery type		3-cell polymer, 42 WHr
Battery voltage		11.40 VDC
Battery weight (maximum)		0.20 kg (0.44 lb)
Battery dimensions:
	Height	184.15 mm (7.25 in.)
	Width	97.15 mm (3.82 in.)
	Depth	5.90 mm (0.23 in.)

Description		Values
Temperature range:
	Operating	0°C to 35°C (32°F to 95°F)
	Storage	-40°C to 65°C (-40°F to 149°F)
Battery operating time		Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
Battery charging time (approximate) NOTE: Control the charging time, duration, start and end time, and so on using the Dell Power Manager application. For more information on the Dell Power Manager see, Me and My Dell on www.dell.com.		3 hours (when the computer is off) NOTE: Control the charging time, duration, start and end time, and so on using the Dell Power Manager application. For more information on the Dell Power Manager see, Me and My Dell on www.dell.com/
Coin-cell battery		CR2032

Display

The following table lists the display specifications of your Inspiron 3505.
Table 18. Display specifications

Description		Option one	Option two	Option three
Display type		High Definition (HD)	Full High Definition (FHD)	Full High Definition (FHD)
Display-panel technology		Twisted Nematic (TN)	Wide-Viewing Angle (WVA)	Wide-Viewing Angle (WVA)
Display-panel dimensions (active area):
	Height	193.54 mm (7.62 in.)	193.54 mm (7.62 in.)	193.54 mm (7.62 in.)
	Width	344.23 mm (13.55 in.)	344.23 mm (13.55 in.)	344.23 mm (13.55 in.)
	Diagonal	394.90 mm (15.55 in.)	394.90 mm (15.55 in.)	394.90 mm (15.55 in.)
Display-panel native resolution		1366 x 768	1920 x 1080	1920 x 1080
Luminance (typical)		220 nits	220 nits	220 nits
Megapixels		1.05	2.07	2.07
Color gamut		45% (NTSC)	45% (NTSC)	45% (NTSC)
Pixels Per Inch (PPI)		100	141	141
Contrast ratio (typ)		400:1	400:1	600:1
Response time (max)		25 ms	35 ms	35 ms
Refresh rate		60 Hz	60 Hz	60 Hz
Horizontal view angle		40 +/- degrees	80 +/- degrees	80 +/- degrees
Vertical view angle		+10/-30 degrees	80 +/- degrees	80 +/- degrees

Description	Option one	Option two	Option three
Pixel pitch	0.25 mm	0.18 mm	0.18 mm
Power consumption (maximum)	4.20 W	4.2 W	4.6 W
Anti-glare vs glossy finish	Anti-glare	Anti-glare	Anti-glare
Touch options	No	No	Yes

Fingerprint reader (optional)

The following table lists the specifications of the optional fingerprint-reader of your Inspiron 3505.
Table 19. Fingerprint reader specifications

Description	Values
Fingerprint-reader sensor technology	Capacitive
Fingerprint-reader sensor resolution	500 dpi
Fingerprint-reader sensor pixel size	64 x 80

GPU—Integrated

The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Inspiron 3505.
Table 20. GPU—Integrated

Controller	External display support	Memory size	Processor
AMD Radeon Vega 8 Graphics	One HDMI 1.4 port	Shared system memory	AMD Ryzen 5
AMD Radeon RX Vega 10 Graphics	One HDMI 1.4 port	Shared system memory	AMD Ryzen 7
AMD Radeon Graphics	One HDMI 1.4 port	Shared system memory	● AMD Ryzen 3 ● AMD Athlon Gold/Silver

Operating and storage environment

This table lists the operating and storage specifications of your Inspiron 3505.
Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Table 21. Computer environment

Description	Operating	Storage
Temperature range	0°C to 35°C (32°F to 95°F)	-40°C to 65°C (-40°F to 149°F)
Relative humidity (maximum)	10% to 90% (non-condensing)	0% to 95% (non-condensing)
Vibration (maximum)*	0.66 GRMS	1.30 GRMS

Description	Operating	Storage
Shock (maximum)	110 G†	160 G†
Altitude range	-15.2 m to 3048 m (-49.87 ft to 10000 ft)	-15.2 m to 10668 m (-49.87 ft to 35000 ft)

Measured using a random vibration spectrum that simulates user environment.
† Measured using a 2 ms half-sine pulse when the hard drive is in use.

Keyboard shortcuts

NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations.

Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. The symbol shown on the lower part of the key refers to the character that is typed out when the key is pressed. If you press shift and the key, the symbol shown on the upper part of the key is typed out. For example, if you press 2, 2 is typed out; if you press Shift + 2, @ is typed out.

The keys F1-F12 at the top row of the keyboard are function keys for multi-media control, as indicated by the icon at the bottom of the key. Press the function key to invoke the task represented by the icon. For example, pressing F1 mutes the audio (refer to the table below).

However, if the function keys F1-F12 are needed for specific software applications, multi-media functionality can be disabled by pressing fn + Esc. Subsequently, multi-media control can be invoked by pressing fn and the respective function key. For
example, mute audio by pressing fn + F1.

NOTE: You can also define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in BIOS setup program.

Table 22. List of keyboard shortcuts

The fn key is also used with selected keys on the keyboard to invoke other secondary functions.

Table 23. List of keyboard shortcuts

Getting help and contacting Dell

Self-help resources
You can get information and help on Dell products and services using these self-help resources:

Table 24. Self-help resources

Self-help resources	Resource location
Information about Dell products and services	www.dell.com
My Dell app
Tips
Contact Support	In Windows search, type Contact Support, and press Enter.
Online help for operating system	www.dell.com/support/windows
Troubleshooting information, user manuals, set up instructions, product specifications, technical help blogs, drivers, software updates, and so on.	www.dell.com/support
Dell knowledge base articles for a variety of computer concerns	1. Go to www.dell.com/support. 2. On the menu bar at the top of the Support page, select Support > Knowledge Base. 3. In the Search field on the Knowledge Base page, type the keyword, topic, or model number, and then click or tap the search icon to view the related articles.
Learn and know the following information about your product: ● Product specifications ● Operating system ● Setting up and using your product ● Data backup ● Troubleshooting and diagnostics ● Factory and system restore ● BIOS information	See Me and My Dell at www.dell.com/support/manuals. To locate the Me and My Dell relevant to your product, identify your product through one of the following: ● Select Detect Product. ● Locate your product through the drop-down menu under View Products. ● Enter the Service Tag number or Product ID in the search bar.

Contacting Dell
To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell
NOTE: Availability varies by country/region and product, and some services may not be available in your country/region.
NOTE: If you do not have an active Internet connection, you can find contact information about your purchase invoice, packing slip, bill, or Dell product catalog.
