Dell G15 5515 Ryzen Edition Gaming Laptop User Guide

DELL G15 5515 Ryzen Edition Gaming Laptop

Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better use of your product.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
© 2021 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.

Set up your Dell G15 5515

NOTE: The images in this document may differ from your computer depending on the configuration you ordered.

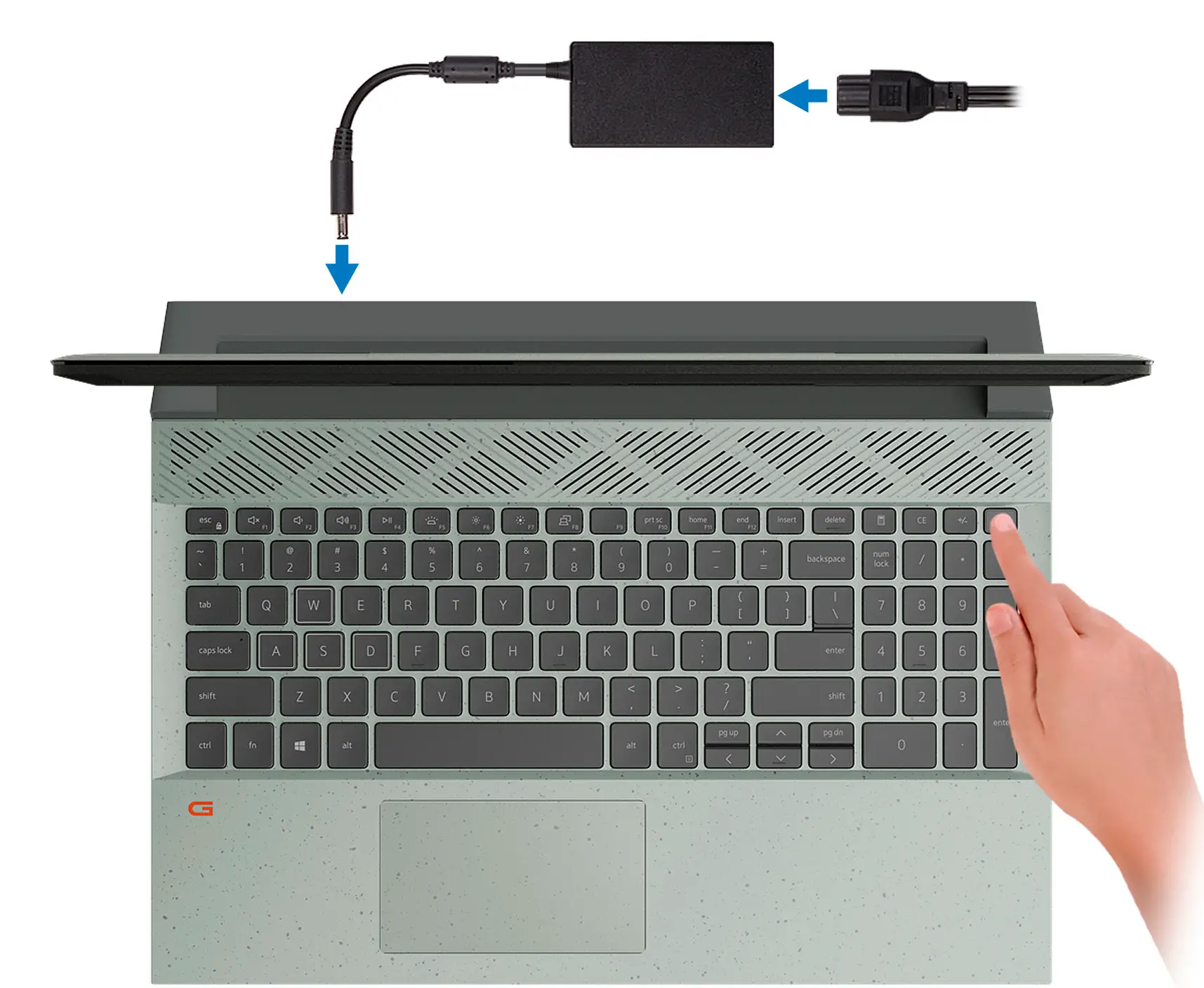

1. Connect the power adapter and press the power button.

   NOTE: The battery may go into power-saving mode during shipment to conserve charge on the battery. Ensure that the power adapter is connected to your computer when it is turned on for the first time.
2. Finish Windows setup. Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you: Connect to a network for Windows updates.
   NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted. If connected to the Internet, sign in with or create a Microsoft account. If not connected to the Internet, create an offline account. On the Support and Protection screen, enter your contact details.
3. Locate and use Dell apps from the Windows Start menu–Recommended.

Table 1. Locate Dell apps

Resources	Description
	My Dell Centralized location for key Dell applications, help articles, and other important information about your computer. It also notifies you about the warranty status, recommended accessories, and software updates if available.
	Support Assist Support Assist proactively and predictively identifies hardware and software issues on your computer and automates the engagement process with Dell Technical support. It addresses performance and stabilization issues, prevents security threats, monitors, and detects hardware failures. For more information, see Support Assist for Home PCs User’s Guide at www.dell.com/ serviceabilitytools. Click Support Assist and then, click Support Assist for Home PCs. NOTE: In Suppor tAssist, click the warranty expiry date to renew or upgrade your warranty.
	Dell Update Updates your computer with critical fixes and latest device drivers as they become available. For more information about using Dell Update, see the knowledge base article 000149088 at www.dell.com/support.
	Dell Digital Delivery Download software applications, which are purchased but not preinstalled on your computer. For more information about using Dell Digital Delivery, see the knowledge base article 000129837 at www.dell.com/support.

Views of Dell G15 5515

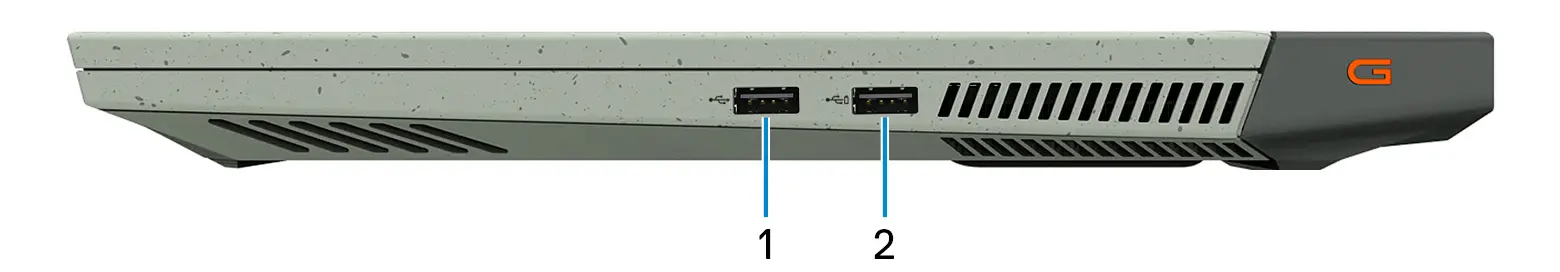

Right

On computers shipped with NVIDIA GeForce RTX 3050, and NVIDIA GeForce RTX 3050 TI

1. USB 2.0 port Connect devices such as external storage devices and printers. Provides data transfer speeds up to 480 Mbps.
2. USB 2.0 port with PowerShare Connect devices such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps. PowerShare enables you to charge your USB devices even when your computer is turned off.
   NOTE: If your computer is turned off or in hibernate state, you must connect the power adapter to charge your devices using the PowerShare port. You must enable this feature in the BIOS setup program.
   NOTE: Certain USB devices may not charge when the computer is turned off or in sleep state. In such cases, turn on the computer to charge the device.

On computers shipped with NVIDIA GeForce RTX 3060

1. USB 3.2 Gen 1 port Connect devices such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps.
2. USB 3.2 Gen 1 port with Power Share Connect devices such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps. Power Share enables you to charge your USB devices even when your computer is turned off.
   NOTE: If the charge on your computer’s battery is less than 10 percent, you must connect the power adapter to charge your computer, and USB devices connected to the Power Share port.
   NOTE: If a USB device is connected to the Power Share port before the computer is turned off or in hibernate state, you must disconnect and connect it again to enable charging.
   NOTE: Certain USB devices may not charge when the computer is turned off or in sleep state. In such cases, turn on the computer to charge the device.

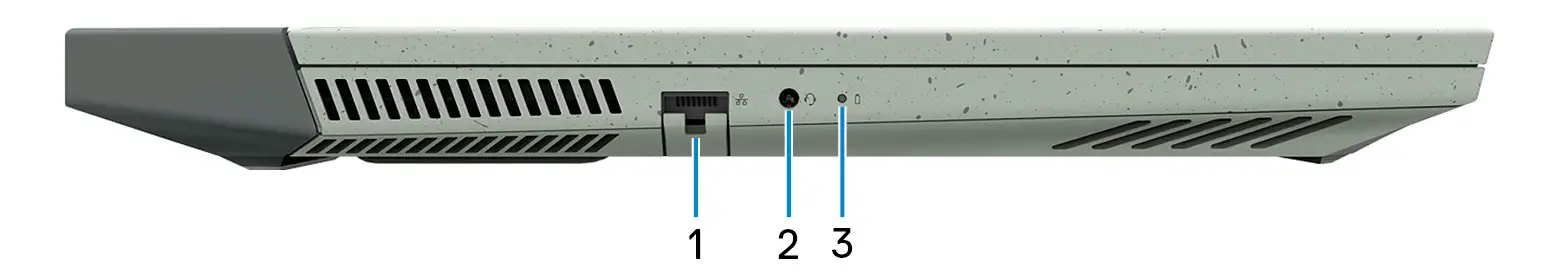

Left

1. Network port Connect an Ethernet (RJ45) cable from a router or a broadband modem for network or Internet access.
2. Headset port Connect headphones or a headset (headphone and microphone combo).
3. Battery-status light Indicates the battery-charge status. Solid amber–Battery charge is low. Blinking amber–Battery charge is critical. Off–Battery is fully charged.

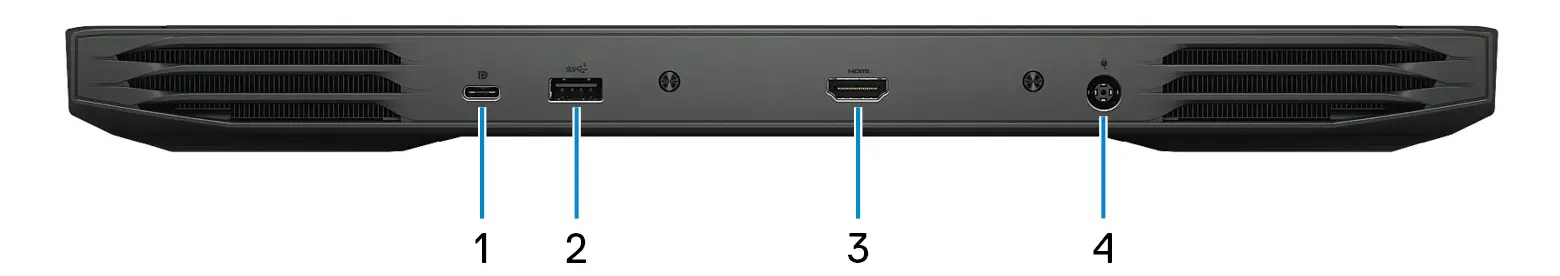

Back

1. USB 3.2 Gen 2 (Type-C) port with DisplayPort Connect devices such as external storage devices, printers, and external displays. Provides data transfer rate of up to 10 Gbps. Supports DisplayPort 1.4 and also enables you to connect an external display using a display adapter. NOTE: A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device.
2. USB 3.2 Gen 1 port Connect devices such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps.
3. HDMI port Connect to a TV, external display or another HDMI-in enabled device. Provides video and audio output.
4. Power-adapter port Connect a power adapter to provide power to your computer and charge the battery.

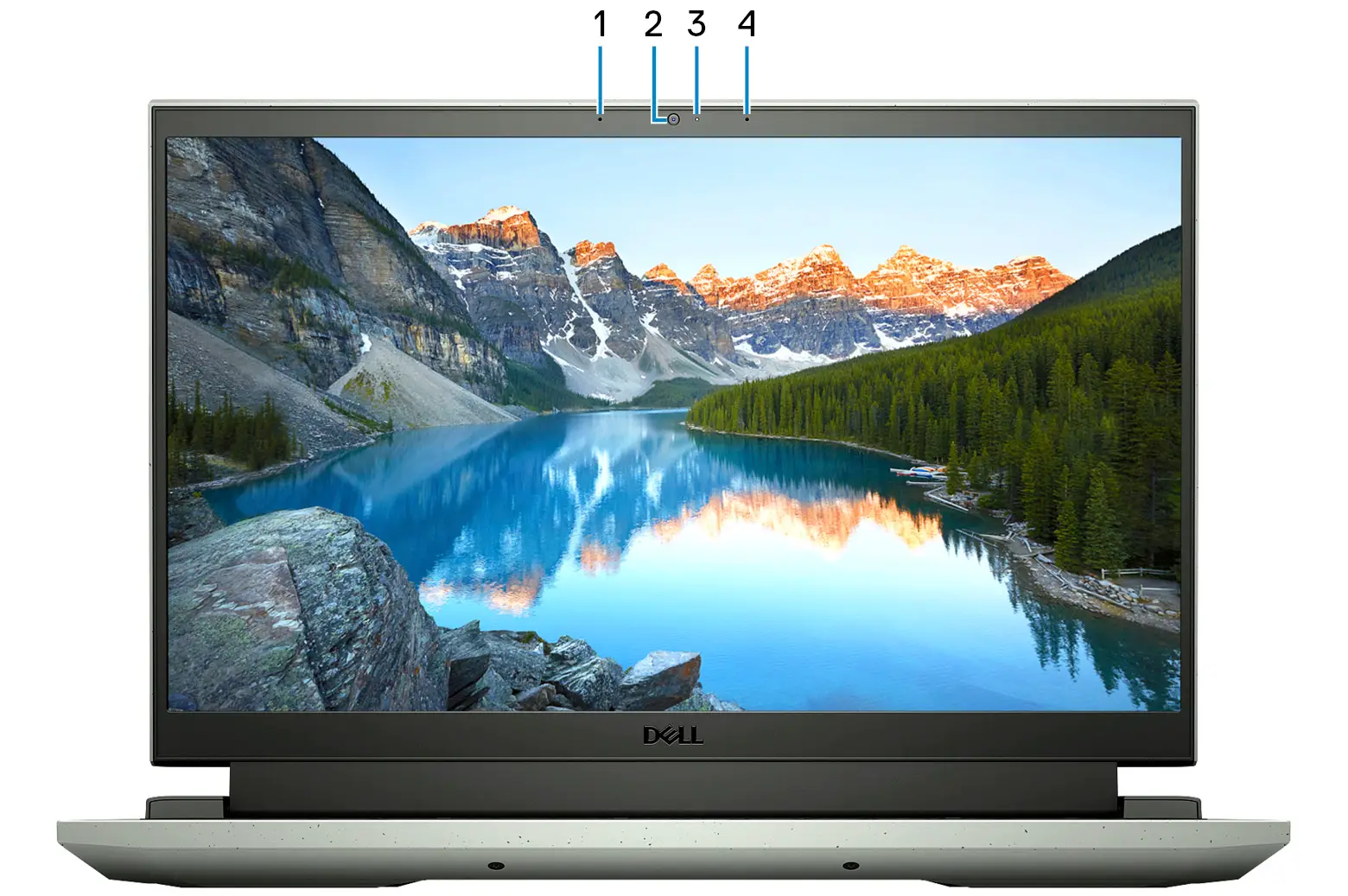

Front

1. Left microphone
   Provides digital sound input for audio recording and voice calls.
2. Camera
   Enables you to video chat, capture photos, and record videos.
3. Camera-status light
   Turns on when the camera is in use.
4. Right microphone
   Provides digital sound input for audio recording and voice calls.

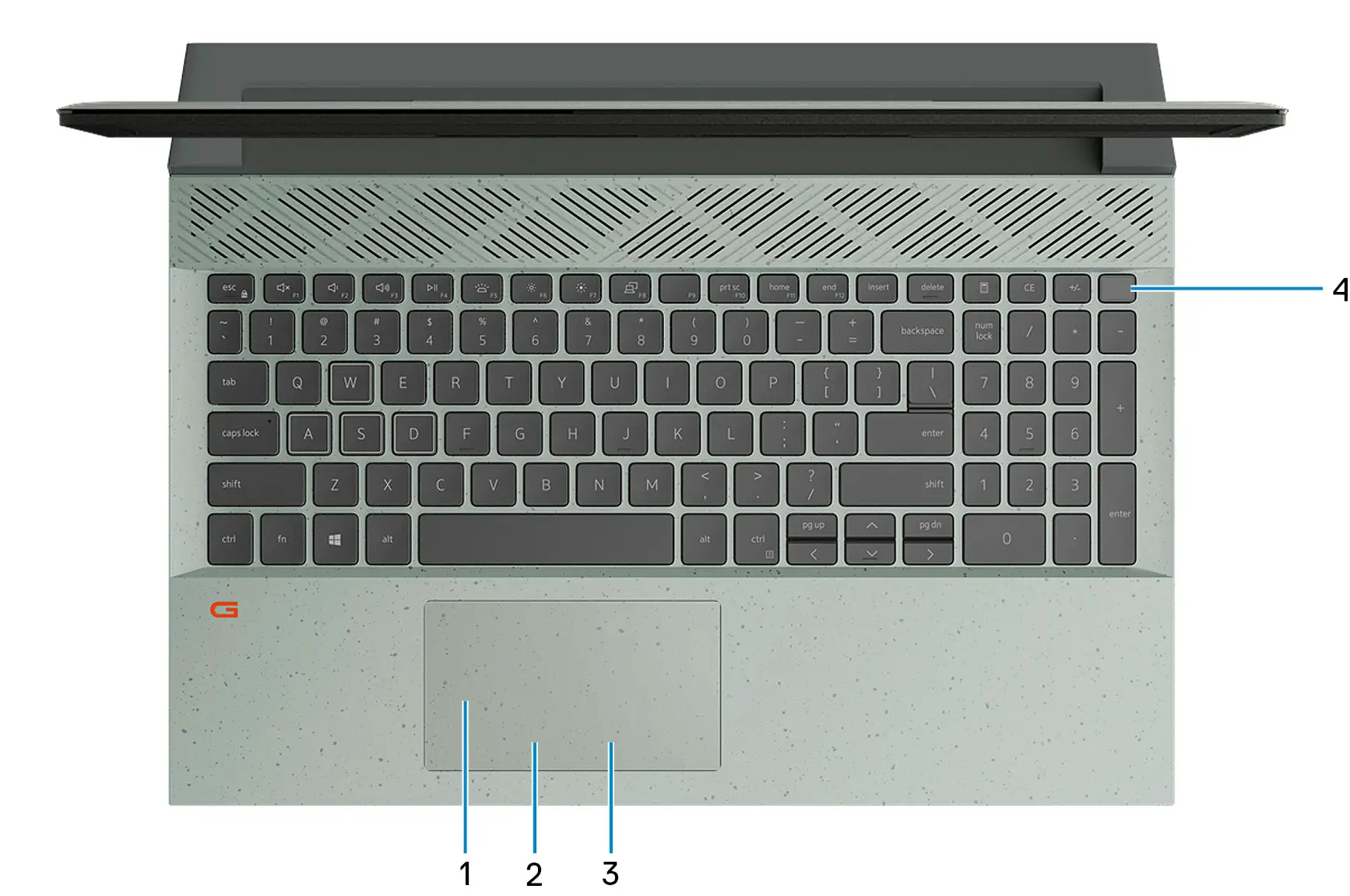

Top

1. Touchpad
   Move your finger on the touchpad to move the mouse pointer. Tap to left-click and two fingers tap to right-click.
2. Left-click area
   Press to left-click.
3. Right-click area
   Press to right-click.
4. Power button
   Press to turn on the computer if it is turned off, in sleep state, or in hibernate state. When the computer is turned on, press the power button to put the computer into sleep state; press and hold the power button for 10 seconds to force shut-down the computer.
   NOTE: You can customize the power-button behavior in Windows. For more information, see Me and My Dell at www.dell.com/support/manuals

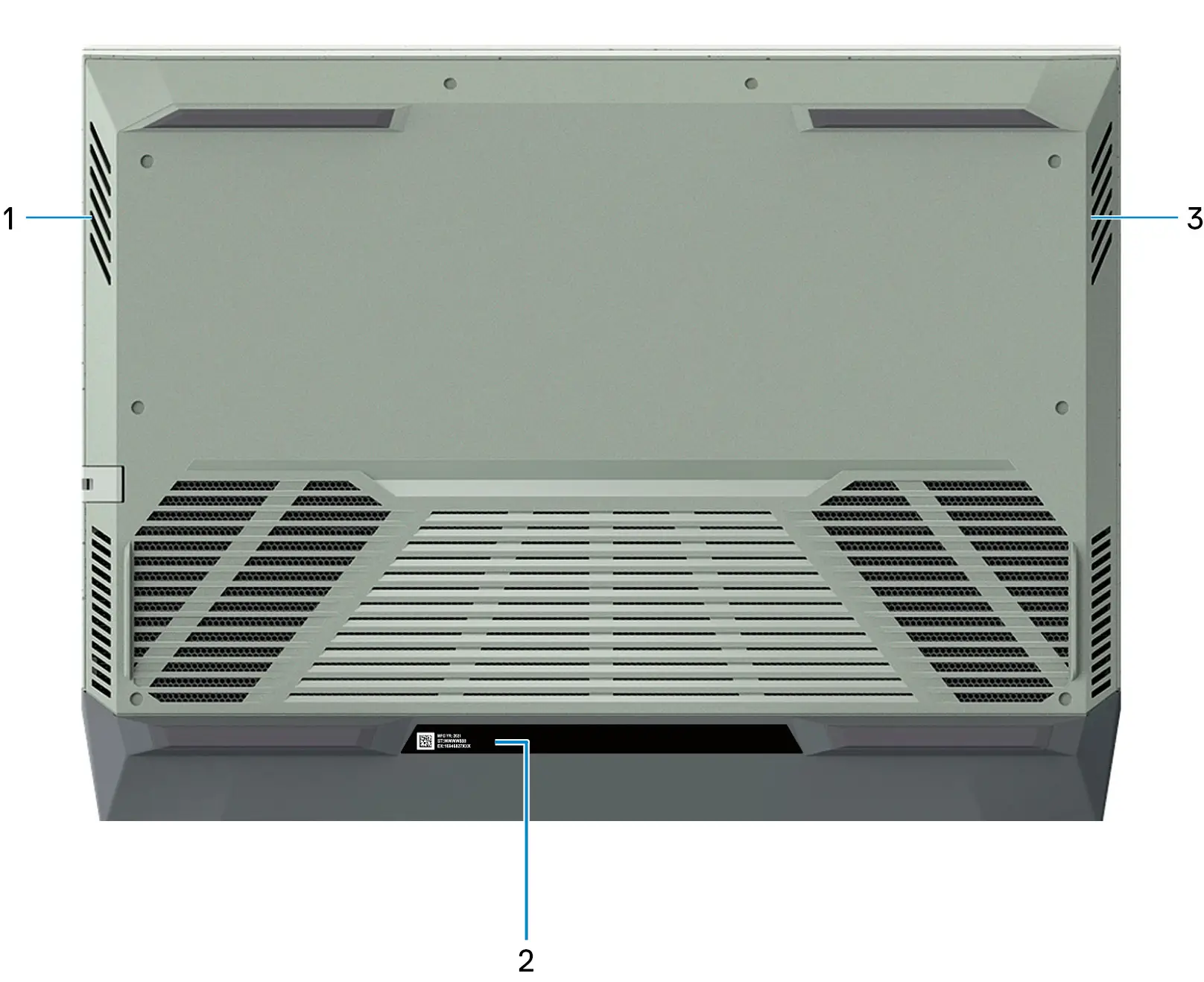

Bottom

1. Left speaker
   Provides audio output.
2. Service Tag label
   The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information.
3. Right speaker
   Provides audio output.

Specifications of Dell G15 5515

Dimensions and weight

The following table lists the height, width, depth, and weight of your Dell G15 5515.
Table 2. Dimensions and weight Description Height:

Processor

The following table lists the details of the processors supported by your Dell G15 5515.

Table 3. Processor

Chipset

The following table lists the details of the chipset supported by your Dell G15 5515.

Table 4. Chipset Description Chipset

Operating system

Your Dell G15 5515 supports the following operating systems:

• Windows 11 Home, 64-bit
• Windows 11 Pro, 64-bit
• Windows 10 Home, 64-bit
• Windows 10 Pro, 64-bit

Memory

The following table lists the memory specifications of your Dell G15 5515.

Table 5. Memory specifications Description Memory slots

External ports

The following table lists the external ports of your Dell G15 5515.

Table 6. External ports Description Network port

Internal slots

The following table lists the internal slots of your Dell G15 5515.
Table 7. Internal slots Description M.2

Ethernet

The following table lists the wired Ethernet Local Area Network (LAN) specifications of your Dell G15 5515.
Table 8. Ethernet specifications Description Model number

Wireless module

The following table lists the Wireless Local Area Network (WLAN) module supported on your Dell G15 5515.

Table 9. Wireless module specifications

Audio

The following table lists the audio specifications of your Dell G15 5515.
Table 10. Audio specifications Description Audio controller

Storage

This section lists the storage options on your Dell G15 5515.
Your Dell G15 5515 supports two M.2 2230/2280 solid-state drive. The M.2 drive is the primary drive of your Dell G15 5515.
NOTE: The solid-state drive is secured to the system board by a solid-state drive bracket that is specific to the form factor of the solid-state drive. If you are replacing a solid-state drive, ensure that the new solid-state drive has the same form factor. For example, replace an M.2 2280 solid-state drive with an M.2 2280 solid-state drive.
NOTE: The solid-state drive is secured to the system board by a solid-state drive bracket that is specific to the form factor of the solid-state drive. If you are replacing a solid-state drive, ensure that the new solid-state drive has the same form factor. For example, replace an M.2 2280 solid-state drive with an M.2 2280 solid-state drive.
NOTE: If you have ordered only one solid-state drive, it can be upgraded to the solid-state drive of the same form factor but an additional solid-state drive is not supported. If you have ordered two solid-state drives, they can be upgraded to the solid-state drives of the same form factor respectively.

Table 11. Storage specifications

Keyboard

The following table lists the keyboard specifications of your Dell G15 5515.

Table 12. Keyboard specifications

Camera

The following table lists the camera specifications of your Dell G15 5515.

Table 13. Camera specifications

Touchpad

The following table lists the touchpad specifications of your Dell G15 5515.
Table 14. Touchpad specifications

Power adapter

The following table lists the power adapter specifications of your Dell G15 5515.
Table 15. Power adapter specifications

Battery

The following table lists the battery specifications of your Dell G15 5515.

Table 16. Battery specifications

Display

The following table lists the display specifications of your Dell G15 5515.

Table 17. Display specifications

GPU–Integrated

The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Dell G15 5515.
Table 18. GPU–Integrated

 GPU—Discrete

The following table lists the specifications of the discrete Graphics Processing Unit (GPU) supported by your Dell G15 5515.
Table 19. GPU—Discrete

 Operating and storage environment

This table lists the operating and storage specifications of your Dell G15 5515.
Airborne contaminant level: G1 as defined by ISA-S71.04-1985
Table 20. Computer environment

Measured using a random vibration spectrum that simulates user environment.
† Measured using a 2 ms half-sine pulse when the hard drive is in use.

Keyboard shortcuts

NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations.
Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. The symbol shown on the lower part of the key refers to the character that is typed out when the key is pressed. If you press Shift and the key, the symbol shown on the upper part of the key is typed out. For example, if you press 2, 2 is typed out; if you press Shift + 2, @ is typed out.

The keys F1 to F12 at the top row of the keyboard are function keys for multi-media control, as indicated by the icon at the bottom of the key. Press the function key to invoke the task represented by the icon. For example, pressing F1 mutes the audio (refer to the table below).

However, if the function keys F1 to F12 are needed for specific software applications, multi-media functionality can be disabled by pressing fn + Esc. Subsequently, multi-media control can be invoked by pressing fn and the respective function key. For example, mute audio by pressing fn + F1.
NOTE: You can also define the primary behavior of the function keys (F1 to F12) by changing Function Key Behavior in the BIOS setup program.

Table 21. List of keyboard shortcuts

Function key	Redefined key (for multimedia control)	Behavior
	+	Mute audio
	+	Decrease volume
	+	Increase volume
	+	Play/Pause
	+	Toggle keyboard backlight (optional)
	+	Decrease brightness
	+	Increase brightness
	+	Switch to external display
	+	Search/G key (optional)
	+	Print screen
		Home
		End

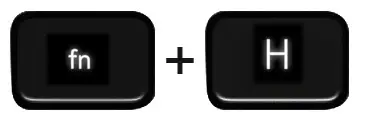

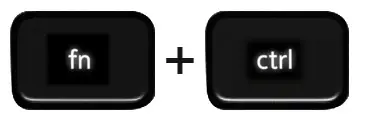

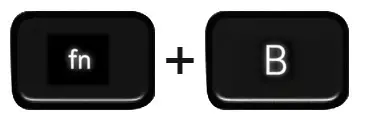

The Fn key is also used with selected keys on the keyboard to invoke other secondary functions.

Table 22. List of keyboard shortcuts Function key

Function key	Behavior
	Turn off/on wireless
	Pause/Break
	Insert
	Sleep
	Toggle between power and battery-status light/hard-drive activity light
	System request
	Open application menu
	Toggle fn-key lock
	Page up
	Page down
	Home
	End

Low blue light

WARNING: Prolonged exposure to blue light from the display may lead to long-term effects such as eye strain, eye fatigue, or damage to the eyes.
Blue light is a color in the light spectrum which has a short wavelength and high energy. Chronic exposure to blue light, particularly from digital sources, may disrupt sleep patterns and cause long-term effects such as eye strain, eye fatigue, or damage to the eyes. The display on this computer is designed to minimize blue light and complies with TÜV Rheinland’s requirement for low blue light displays. Low blue light mode is enabled at the factory, so no further configuration is necessary. To reduce the risk of eye strain, it is also recommended that you:

• Position the display at a comfortable viewing distance between 20 and 28 inches (50 and 70 cm) from your eyes.
• Blink frequently to moisten your eyes, wet your eyes with water, or apply suitable eye drops. Look away from your display, and gaze at a distant object at 20 ft (609.60 cm) away for at least 20 seconds during each break.
• Take an extended break for 20 minutes every two hours.

Getting help and contacting Dell

Self-help resources

You can get information and help on Dell products and services using these self-help resources:

Table 23. Self-help resources

Self-help resources	Resource location
Information about Dell products and services	www.dell.com
My Dell app
Tips
Contact Support	In Windows search, type Contact Support, and press Enter.
Online help for operating system	www.dell.com/support/windows
Access top solutions, diagnostics, drivers and downloads, and learn more about your computer through videos, manuals and documents.	Your Dell computer is uniquely identified by a Service Tag or Express Service Code. To view relevant support resources for your Dell computer, enter the Service Tag or Express Service Code at www.dell.com/support. For more information on how to find the Service Tag for your computer, see Locate the Service Tag on your computer.
Dell knowledge base articles for a variety of computer concerns	Go to www.dell.com/support. On the menu bar at the top of the Support page, select Support > Knowledge Base.  In the Search field on the Knowledge Base page, type the keyword, topic, or model number, and then click or tap the search icon to view the related articles.

Contacting Dell
To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell.
NOTE: Availability varies by country/region and product, and some services may not be available in your country/region.
NOTE: If you do not have an active Internet connection, you can find contact information about your purchase invoice, packing slip, bill, or Dell product catalog.
