Latitude 3520 I5.6 Inches Core i5 Laptop
User Guide

Latitude 3520 I5.6 Inches Core i5 Laptop

Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better use of your product.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

© 2021-2022 Dell Inc. or its subsidiaries. All rights reserved. Dell Technologies, Dell, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.

About this task
NOTE: The images in this document may differ from your computer depending on the configuration you ordered.

Steps

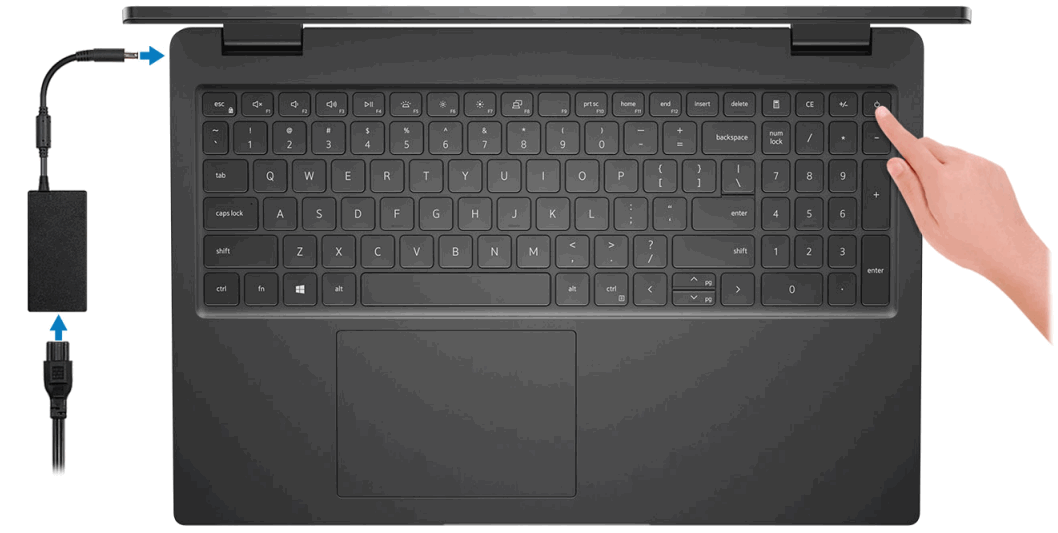

Connect the power adapter and press the power button. NOTE: To conserve battery power, the battery might enter power saving mode. Connect the power adapter and press the power button to turn on the computer.
Finish operating system setup.
For Ubuntu:
Follow the on-screen instructions to complete the setup. For more information about installing and configuring Ubuntu, search in the Knowledge Base Resource at www.dell.com/support.
For Windows:
Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you:
Connect to a network for Windows updates.
NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted.
If connected to the internet, sign-in with or create a Microsoft account. If not connected to the internet, create an offline account.
On the Support and Protection screen, enter your contact details.
Locate and use Dell apps from the Windows Start menu—Recommended.
NOTE: The Dell apps are available in a subcategory in the Windows Start menu.

Table 1. Locate Dell apps

Resources	Description
	Dell Product Registration Register your computer with Dell.
	Dell Help & Support Access help and support for your computer.
	SupportAssist SupportAssist is the smart technology that keeps your computer running at its best by optimizing settings, detecting issues, removing viruses and notifies when you need to make system updates. SupportAssist proactively checks the health of your system’s hardware and software. When an issue is detected, the necessary system state information is sent to Dell to begin troubleshooting. SupportAssist is preinstalled on most of the Dell devices running Windows operating system. For more information, see SupportAssist for Home PCs User’s Guide on www.dell.com/serviceabilitytools. NOTE: In SupportAssist, click the warranty expiry date to renew or upgrade your warranty.
	Dell Update Updates your computer with critical fixes and latest device drivers as they become available. For more information on using Dell Update, search in the Knowledge Base Resource at www.dell.com/ support.
	Dell Digital Delivery Download software applications, which are purchased but not preinstalled on your computer. For more information on using Dell Digital Delivery, search in the Knowledge Base Resource at www.dell.com/support.

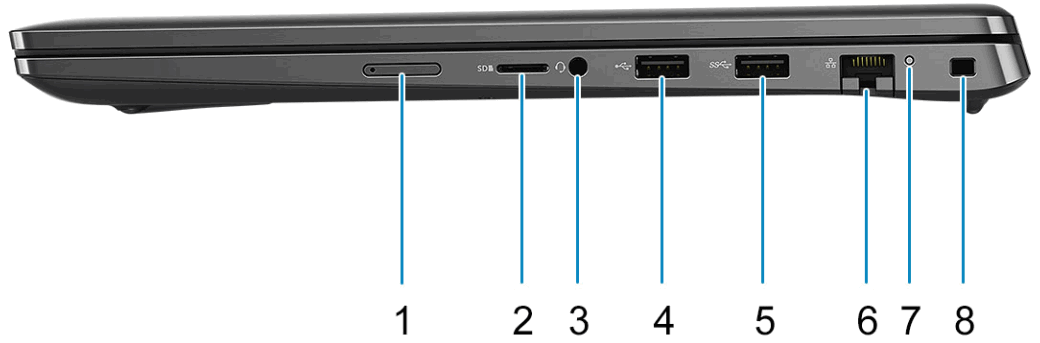

Right

micro-SIM card slot (optional)
microSD-card slot
Universal audio port
USB 2.0 port
USB 3.2 Gen 1 port
Network port
Network activity LED
Wedge-shaped lock slot

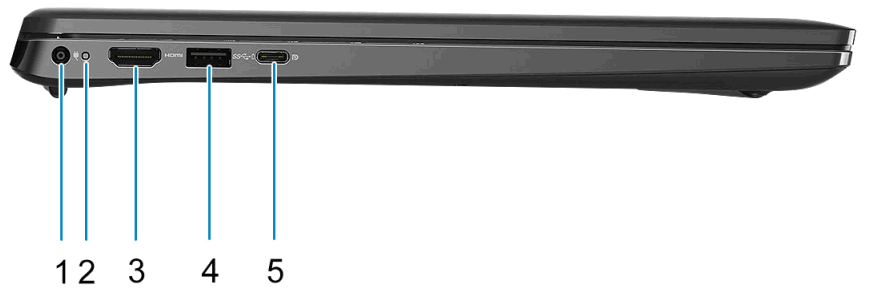

Left

DC-in port
Power LED
HDMI 1.4 port
USB 3.2 Gen 1 with PowerShare
USB 3.2 Gen 2 Type-C port with DisplayPort Alt Mode and Power Delivery (10 th th and 11 Generation Intel processors only)

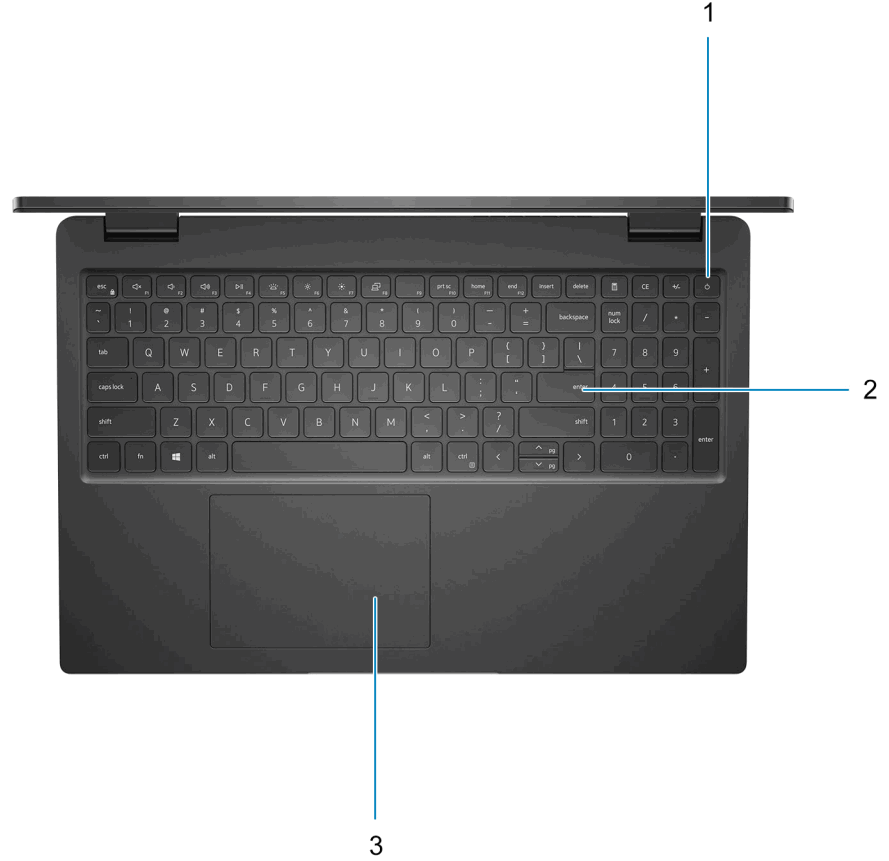

Top

Power button with optional fingerprint reader
Keyboard
Touchpad

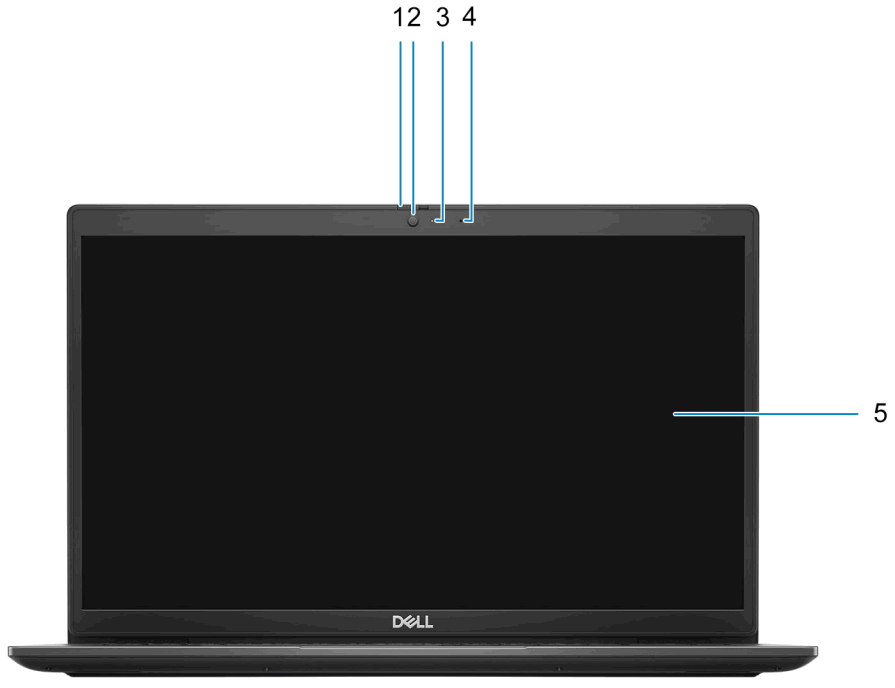

Front

Camera shutter (optional)
Camera
Camera status light
Microphone
Display panel

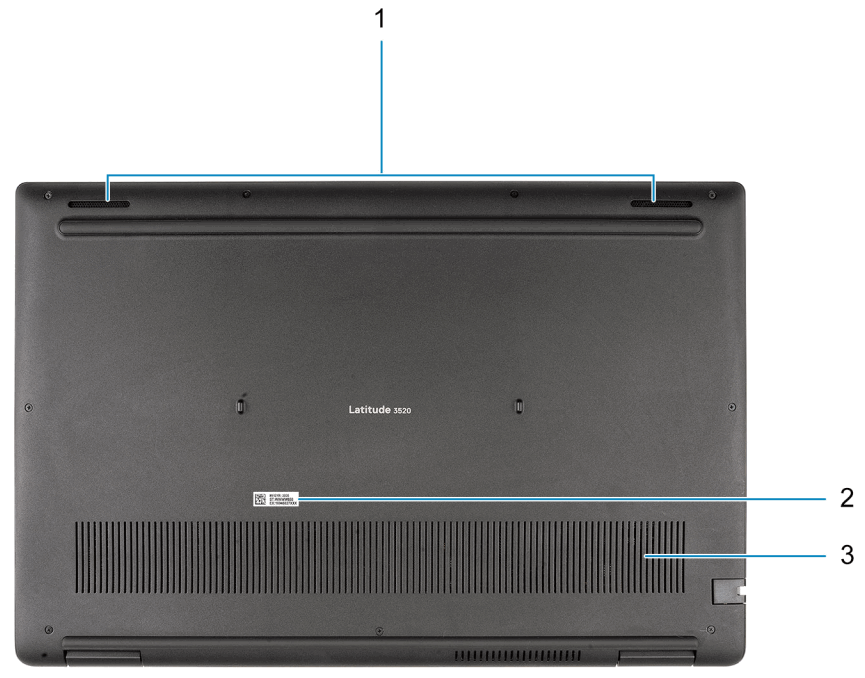

Bottom

Speakers
Service tag label
Air vent

LED Indicators and Characteristics

Battery Charge and Status LED
Table 2. Battery Charge and Status LED Indicator

Power Source	LED Behavior	System Power State	Battery Charge Level
AC Adapter	Off	S0 – S5	Fully Charged
AC Adapter	Solid White	S0 – S5	< Fully Charged
Battery	Off	S0 – S5	11-100%
Battery	Solid Amber (590+/-3 nm)	S0 – S5	< 10%

S0 (ON) – System is turned on.
S4 (Hibernate) – The system consumes the least power compared to all other sleep states. The system is almost at an OFF state, expect for a trickle power. The context data is written to hard drive.
S5 (OFF) – The system is in a shutdown state.

Specifications of Latitude 3520

Dimensions and weight
The following table lists the height, width, depth, and weight of your Latitude 3520.
Table 3. Dimensions and weight

Description		Values
Height:
	Front height	18.06 mm (0.71 in.)
	Rear height	18.06 mm (0.71 in.)
Width		361 mm (14.21 in.)
Depth		240.95 mm (9.48 in.)
Weight NOTE: The weight of your computer depends on the configuration ordered and manufacturing variability.		1.79 kg (3.95 lb)

Processor
The following table lists the details of the processors supported by your Latitude 3520
Table 4. Processor

Description	Option one	Option two	Option three	Option Four	Option Five	Option Six	Option Seven
Processor type	Intel Celeron 6305U	10th Generation	11th Generation	11th Generation	11th Generation	11th Generation	11th Generation Intel Core
		Intel Core	Intel Core	Intel Core	Intel Core	Intel Core	i3-1125G4
		i3-1005G1	i3-1115G4	i5-1135G7	i5-1145G7	i7-1165G7
Processor wattage	15 W	15 W	15 W	15 W	15 W	15 W	15 W
Processor core count	2	2	2	4	4	4	4
Processor thread count	2	4	4	8	8	8	8
Processor speed	Up to 1.80 GHz	2.40 GHz to 3.40 GHz	3.0 GHz to 4.10 GHz	2.40 GHz to 4.20 GHz	2.60 GHz to 4.40 GHz	2.80 GHz to 4.70 GHz	2.0 GHz to 3.70 GHz
Processor cache	4 MB	4 MB	6 MB	8 MB	8 MB	12 MB	8 MB
Integrated graphics	Intel UHD Graphics	Intel UHD Graphics	Intel UHD Graphics	Intel Iris Xe Graphics	Intel Iris Xe Graphics	Intel Iris Xe Graphics	Intel UHD graphics

Chipset

The following table lists the details of the chipset supported by your Latitude 3520
Table 5. Chipset

Description	Option one	Option two
Processors	Intel 10th Generation Core i3	Intel 11th Generation Core i3/i5/i7 and Intel Celeron
Chipset	Intel	Intel
DRAM bus width	64-bit	64-bit
Flash EPROM	32 MB	32 MB
PCIe bus	Up to Gen 3	Up to Gen 3

Operating system

Your Latitude 3520 supports the following operating systems:

Windows 11 Pro
Windows 11 Home
Windows 11 Pro National Academic
Windows 10 Pro, 64-bit
Windows 10 Home, 64-bit
Ubuntu Linux 20.04 LTS, 64-bit
Kylin Linux version 10

Memory
The following table lists the memory specifications of your Latitude 3520.
Table 6. Memory specifications

Description	Values
Memory slots	Two SODIMM slots
Memory type	DDR4
Memory speed	3200 MHz
Maximum memory configuration	64 GB
Minimum memory configuration	4 GB
Memory size per slot	4 GB, 8 GB, 16 GB, 32 GB
Memory configurations supported	● 4 GB, 1 x 4 GB, DDR4, 3200 MHz ● 8 GB, 1 x 8 GB, DDR4, 3200 MHz ● 8 GB, 2 x 4 GB, DDR4, 3200 MHz ● 16 GB, 1 x 16 GB, DDR4, 3200 MHz ● 16 GB, 2 x 8 GB, DDR4, 3200 MHz ● 32 GB, 2 x 16 GB, DDR4, 3200 MHz

Table 6. Memory specifications (continued)

Description	Values
	● 32 GB, 1 x 32 GB, DDR4, 3200 MHz ● 64 GB, 2 x 32 GB, DDR4, 3200 MHz

External ports

The following table lists the external ports of your Latitude 3520.
Table 7. External ports

Description	Values
Network port	One Flip-down RJ 45 10/100/1000 Mbps
USB ports	● One USB 3.2 Gen 2 Type-C port with DisplayPort alt mode/Power Delivery (11th and 10th Generation Intel processors only) ● One USB 3.2 Gen 1 port ● One USB 3.2 Gen 1 port with PowerShare ● One USB 2.0 port
Audio port	One universal audio port
Video port	One HDMI 1.4 port
Media-card reader	One microSD-card slot
Power adapter port	4.5 mm barrel-type
Security-cable slot	One wedge-shaped lock slot
SIM-card slot	One microSIM-card slot (WWAN only)

Internal slots
The following table lists the internal slots of your Latitude 3520.
Table 8. Internal slots

Description	Values
M.2	● One M.2 slot for WWAN (on WWAN I/O board) ● One M.2 2230 slot for Wi-Fi ● One M.2 slot for 2230/2280 solid-state drive NOTE: To learn more about the features of different types of M.2 cards, search in the Knowledge Base Resource at www.dell.com/support.

Ethernet

The following table lists the wired Ethernet Local Area Network (LAN) specifications of your Latitude 3520.
Table 9. Ethernet specifications

Description	Values
Model number	Integrated Realtek RTL8111H
Transfer rate	e.g. 10/100/1000 Mbps

Wireless module

The following table lists the Wireless Local Area Network (WLAN) modules supported on your Latitude 3520.
Wireless module
Table 10. Wireless module specifications

Description	Values
Model number	Intel Wi-Fi 6 AX201	Qualcomm QCA61x4A	Realtek RTL8822CE
Transfer rate	Up to 2400 Mbps	Up to 867 Mbps	Up to 867 Mbps
Frequency bands supported	2.4 GHz/5 GHz	2.4 GHz/5 GHz	2.40 GHz/5 GHz
Wireless standards	● WiFi 802.11a/b/g ● Wi-Fi 4 (Wi-Fi 802.11n) ● Wi-Fi 5 (Wi-Fi 802.11ac) ● Wi-Fi 6 (WiFi 802.11ax)	● WiFi 802.11a/b/g ● Wi-Fi 4 (Wi-Fi 802.11n) ● Wi-Fi 5 (Wi-Fi 802.11ac)	● WiFi 802.11a/b/g ● Wi-Fi 4 (WiFi 802.11n) ● Wi-Fi 5 (WiFi 802.11ac)
Encryption	● 64-bit/128-bit WEP ● AES-CCMP ● TKIP	● 64-bit/128-bit WEP ● AES-CCMP ● TKIP	● 64-bit/128-bit WEP ● AES-CCMP ● TKIP
Bluetooth	Bluetooth 5.1	Bluetooth 5.0	Bluetooth 5.0

Table 11. WWAN module

Feature	Specifications
Model number	Dell DW5820e Intel 7360 LTE-A
Host interface	M.2 3042 form factor
Network standard	LTE FDD/TDD, WCDMA/HSPA+, GNSS/Beidou
Transfer rate	Up to 450 Mbps DL/50 Mbps UL (Cat 9)
Operating Frequency Bands	(1,2,3,4,5,7,8,11,12,13,17,18,19,20,21,26,28,29,30,38,39,40,41,66 ), HSPA+ (1, 2, 4, 5, 8)
Data Rate	● LTE FDD: 450 Mbps DL/50 Mbps UL (Cat 9) ● LTE TDD: 347 Mbps DL/30 Mbps UL (Cat 9) ● UMTS/HSPA+: UMTS 384 kbps DL/384 kbps UL
Power supply	DC 3.135 V to 4.4 V, Typical 3.3 V
Antenna Diversity	Supported

Table 11. WWAN module (continued)

Feature	Specifications
Radio On/Off	Supported
Wake On Wireless	Not supported
Temperature	● Normal operating temperature: -10°C to + 55°C ● Extended Operating temperature: -20°C to +65°C NOTE: Variation in temperature can affect the performance of the WWAN card.
Antenna connector	● WWAN Main Antenna X 1 ● WWAN Diversity Antenna X 1

Audio

The following table lists the audio specifications of your Latitude 3520.
Table 12. Audio specifications

Description		Values
Audio controller		Realtek ALC3204
Stereo conversion		Supported
Internal audio interface		High definition audio
External audio interface		Universal audio port
Number of speakers		Two
Internal-speaker amplifier		Supported (audio codec integrated)
External volume controls		Keyboard shortcut controls
Speaker output:
	Average speaker output	2 W
	Peak speaker output	2.5 W
Subwoofer output		Not supported
Microphone		● Single microphone with HD camera ● Digital-array microphones with IR camera

Storage

This section lists the storage options on your Latitude 3520.
Your computer supports one of the following configurations:

One M.2 2230/2280 for solid-state drive (Class 35 or Class 40)
One M.2 2230/2280 solid-state drive and ne 2.5-inch SATA hard-drive
The primary drive of your computer varies with the storage configuration. For computers:
M.2 2230/2280 for solid-state drive (Class 35 or Class 40)

Table 13. Storage specifications

Storage type	Interface type	Capacity
2.5-in. 5400 rpm, hard drive	SATA	1 TB
2.5-in. 7200 rpm, hard drive	SATA	500 GB
M.2 2230 solid-state drive	PCIe NVMe Gen3 x4	Up to 512 GB
M.2 2280 solid-state drive	PCIe NVMe Gen3 x4	Up to 1 TB
M.2 2280 solid-state drive	PCIe NVMe Gen4 x4	Up to 1 TB

Media-card reader

The following table lists the media cards supported by your Latitude 3520.
Table 14. Media-card reader specifications

Description	Values
Media-card type	One microSD 3.0 card
Media-cards supported	● Micro Secure Digital (mSD) ● Micro Secure Digital High Capacity(mSDHC) ● Micro Secure Digital Extended Capacity(mSDXC)
NOTE: The maximum capacity supported by the media-card reader varies depending on the standard of the media card installed in your computer.

Keyboard

Table 15. Keyboard specifications

Description	Values
Type	● Standard non-backlit keyboard with optional fingerprint reader ● Standard backlit keyboard with optional fingerprint reader
Layout	QWERTY
Number of keys	● United States and Canada: 99 keys ● United Kingdom: 100 keys● Japan: 103 keys
Size	X=18.70 mm key pitch Y=18.05 mm key pitch
Shortcut keys	Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key. NOTE: You can define the primary behavior of the function keys (F1–F12) changing Function Key Behavior in BIOS setup program.

Camera
Table 16. Camera specifications

Standard camera
Description		Values
Number of cameras		One
Type		HD RGB camera
Location		Front Camera
Sensor type		CMOS sensor technology
Resolution:
	Still image	0.92 megapixel
	Video	1280 x 720 (HD) at 30 fps
Diagonal viewing angle		78.60 degrees

Table 17. IR camera specifications

IR camera
Description		Values
Number of cameras		One
Type		HD RGB-IR camera
Location		Front Camera
Sensor type		CMOS sensor technology
Camera resolution:
	Still image	0.92 megapixel
	Video	1280 x 720 (HD) at 30 fps
Infrared camera resolution:
	Still image	0.23 megapixel
	Video	640 x 360 at 30 fps
Diagonal viewing angle:
	Camera	87 degree
	Infrared camera	87 degree

Touchpad

The following table lists the touchpad specifications of your Latitude 3520.
Table 18. Touchpad specifications

Description		Values
Touchpad resolution:
	Horizontal	305

Table 18. Touchpad specifications (continued)

Description		Values
	Vertical	305
Touchpad dimensions:
	Horizontal	115 mm (4.53 in.)
	Vertical	80 mm (3.15 in.)
Touchpad gestures		For more information about touchpad gestures available on Windows, see the Microsoft knowledge base article at support.microsoft.com.

Power adapter

The following table lists the power adapter specifications of your Latitude 3520.
Table 19. Power adapter specifications

Description		Option one	Option two
Type		65 W AC adapter, 4.5 mm barrel	65 W AC adapter, USB-C
Input voltage		100 VAC x 240 VAC	100 VAC x 240 VAC
Input frequency		50 Hz x 60 Hz	50 Hz x 60 Hz
Input current (maximum)		1.60 A / 1.7 A	1.70 A
Output current (continuous)		3.34 A	● 20 V/3.25 A ● 5 V/3 A ● 9 V/3 A ● 5 V/3 A
Rated output voltage		19.50 VDC	20 VDC/15 VDC/9 VDC/5 VDC
Temperature range:
	Operating	0°C to 40°C (32°F to 104°F)	0°C to 40°C (32°F to 104°F)
	Storage	-40°C to 70°C (-40°F to 158°F)	-40°C to 70°C (-40°F to 158°F)
CAUTION: Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

Battery
Table 20. Battery specifications

Description	Values
Type	3-cell, 41 Whr	4-cell, 54 Whr
Voltage	11.25 VDC	15 VDC
Weight (maximum)	0.17 kg (0.37 lb)	0.23 kg (0.50 lb)

Table 20. Battery specifications (continued)

Description		Values
Dimensions:
	Height	206.40 mm (8.12 in.)	271.90 mm (10.70 in.)
	Width	82 mm (3.22 in.)	82 mm (3.22 in.)
	Depth	5.75 mm (0.23 in.)	5.75 mm (0.23 in.)
Temperature range:
	Operating	0°C to 35°C (32°F to 95°F)	0°C to 35°C (32°F to 95°F)
	Storage	-40°C to 65°C (-40°F to 149°F)	-40°C to 65°C (-40°F to 149°F)
Operating time		Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
Charging time (approximate)		4 hours (when the computer is off) NOTE: Control the charging time, duration, start and end time, and so on using the Dell Power Manager application.	4 hours (when the computer is off) NOTE: Control the charging time, duration, start and end time, and so on using the Dell Power Manager application.
Life span (approximate)		300 discharge/charge cycles	300 discharge/charge cycles
Coin-cell battery		CR2032	CR2032
Operating time		Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.

Display

Table 21. Display specifications

Decsription		Values
Type		High Definition (HD)	Full High Definition (FHD)	Full High Definition (FHD)
Panel technology		TN(Twisted Nematic)	WVA(wide view angle)	WVA(wide view angle)
Luminance (typical)		220 nits	250 nits	250 nits
Dimensions (active area):
	Height	193.59 mm (7.62 in.)	193.59 mm (7.62 in.)	193.59 mm (7.62 in.)
	Width	344.16 mm (13.54 in.)	344.16 mm (13.54 in.)	344.16 mm (13.54 in.)
	Diagonal	396.24 mm (15.60 in.)	396.24 mm (15.60 in.)	396.24 mm (15.60 in.)
Native resolution		1366 x 768	1920 x 1080	1920 x 1080
Megapixels		1.05	2.073	2.07
Color gamut		NTSC 45% Typ.	NTSC 45% Typ.	NTSC 45% Typ.

Table 21. Display specifications (continued)

Decsription	Values
Pixels per inch (PPI)	100	141	141
Contrast ratio (min)	500:1	700:1	700:1
Response time (max)	25 ms	25 ms	25 ms
Refresh rate	60 Hz	60 Hz	60 Hz
Horizontal view angle	40 degrees	80 degrees	80 degrees
Vertical view angle	10/30 degrees	80 degrees	80 degrees
Pixel pitch	0.252 mm	0.179 mm	0.179 mm
Power consumption (maximum)	4.20 W	4.60 W	4.50 W
Anti-glare vs glossy finish	Anti-glare	Anti-glare	Anti-glare
Touch options	No	No	Yes

Fingerprint reader
The following table lists the fingerprint-reader specifications of your Latitude 3520.
NOTE: The fingerprint reader is located on the power button.
NOTE: The fingerprint reader is an optional offering.
Table 22. Fingerprint reader specifications

Description	Values
Fingerprint-reader sensor technology	Capacitive
Fingerprint-reader sensor resolution	500 dpi
Fingerprint-reader sensor pixel size	108 x 88

GPU—Integrated
The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Latitude 3520.
Table 23. GPU—Integrated

Controller	Memory size	Processor
Intel UHD Graphics	Shared system memory	● Intel Celeron 6305U processor ● Intel 10th Generation Core i3 processors ● Intel 11th Generation Core i3 processors
Intel Iris Xe Graphics	Shared system memory	● Intel 11th Generation Core i5 / i7 processors

GPU—Discrete
The following table lists the specifications of the discrete Graphics Processing Unit (GPU) supported by your Latitude 3520.
Table 24. GPU—Discrete

Controller	External display support	Memory size	Memory type
NVIDIA GeForce MX350	Not supported	2 GB	GDDR5
NVIDIA GeForce MX450	Not supported	2 GB	GDDR5

Operating and storage environment

This table lists the operating and storage specifications of your Latitude 3520.
Airborne contaminant level: G1 as defined by ISA-S71.04-1985
Table 25. Computer environment

Description	Operating	Storage
Temperature range	0°C to 35°C (32°F to 95°F)	-40°C to 65°C (-40°F to 149°F)
Relative humidity (maximum)	10% to 90% (non-condensing)	0% to 95% (non-condensing)
Vibration (maximum)*	0.66 GRMS	1.30 GRMS
Shock (maximum)	110 G†	160 G†
Altitude range	-15.2 m to 3048 m (4.64 ft to 10000 ft)	-15.2 m to 10668 m (4.64 ft to 35000 ft)
CAUTION: Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

Measured using a random vibration spectrum that simulates user environment.
Measured using a 2 ms half-sine pulse.

Keyboard shortcuts

NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys that are used for shortcuts remain the same across all language configurations.
Table 26. List of keyboard shortcuts

Keys	Primary behavior
Fn + F1	Mute audio
Fn + F2	Decrease volume
Fn + F3	Increase volume
Fn + F4	Play/Pause
Fn + F5	Turn on/off keyboard backlight
Fn + F6	Decrease brightness
Fn + F7	Increase brightness
Fn + F8	Switch to external display
Fn + F10	Print screen
Fn + F11	Home
Fn + 12	End
Fn + Ctrl	Open application menu

Getting help and contacting Dell

Self-help resources
You can get information and help on Dell products and services using these self-help resources:
Table 27. Self-help resources

Self-help resources	Resource location
Information about Dell products and services	www.dell.com
My Dell app
Tips
Contact Support	In Windows search, type Contact Support, and press Enter.
Online help for operating system	www.dell.com/support/windows
Access top solutions, diagnostics, drivers and downloads, and learn more about your computer through videos, manuals and documents.	Your Dell computer is uniquely identified by a Service Tag or Express Service Code. To view relevant support resources for your Dell computer, enter the Service Tag or Express Service Code at www.dell.com/support. For more information on how to find the Service Tag for your computer, see Locate the Service Tag on your computer.
Dell knowledge base articles for a variety of computer concerns	1.Go to www.dell.com/support. 2.On the menu bar at the top of the Support page, select Support > Knowledge Base. 3.In the Search field on the Knowledge Base page, type the keyword, topic, or model number, and then click or tap the search icon to view the related articles.

Contacting Dell
To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell.
NOTE: Availability varies by country/region and product, and some services may not be available in your country/region.
NOTE: If you do not have an active Internet connection, you can find contact information about your purchase invoice, packing slip, bill, or Dell product catalog.
