AX3 LightDrop Accu LED Outdoor Spot Set
User Manual

https://astera-led.com/ax3/

CONTENT

1. AX3 LightDrop BTB (AX3-BTB)
2. 30° Diffuser (two holes) (AX3-DDSK-30)
3. 120° Diffuser (three holes) (AX3-DDSK-120)
4. Charger for AX3 (AX3-CHR)
5. 3 x EyeBolt (AX3-EBLT)
6. 4 x Rubber Feet (AX3-RBF)
7. Charging Socket Cover (AX3-SP)
8. User Manual / Benutzerhandbuch / Manuale utente

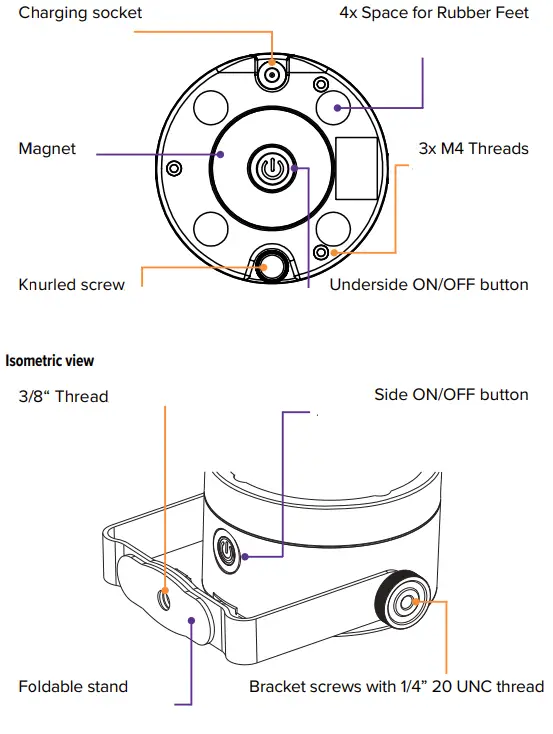

PRODUCT OVERVIEW

Back

USAGE

1. Control options


   	On/Off, Static Colors via „blue mode“
   IR	On/Off, Static Colors, Preprogrammed Effects
   APP	All settings, Complex effects, Talkback+, Updates
   DMX	Control from DMX consoles via CRMX or Wireless DMX

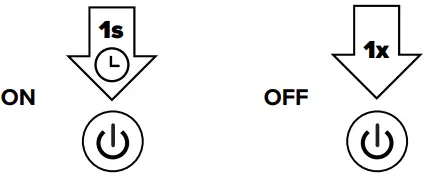

2. Switching On/OfA new AX3 LightDrop BTB needs a few seconds of charge to disable its shipping mode before it can be switched on.
3. Static Colors

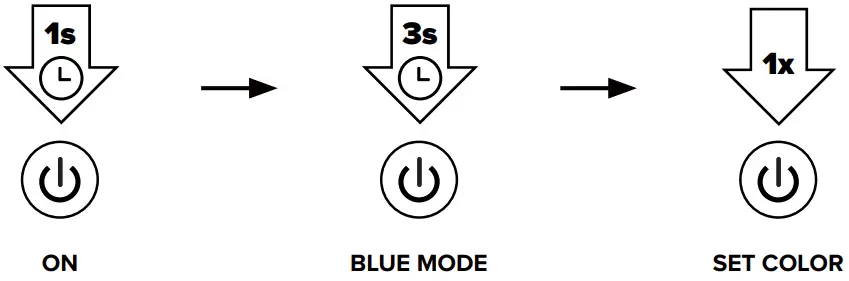

   With a special key combination, static colors can be set directly on the AX3 LightDrop BTB. There are 13 different colors/whites to choose from.
   Power on the light. Then hold down the power button for 3 seconds until the light flashes blue. Release the button. Press the button shortly to cycle between the predefined colors. All previous STANDALONE settings are cleared to default and the INPUT SELECT is latched to STANDALONE.

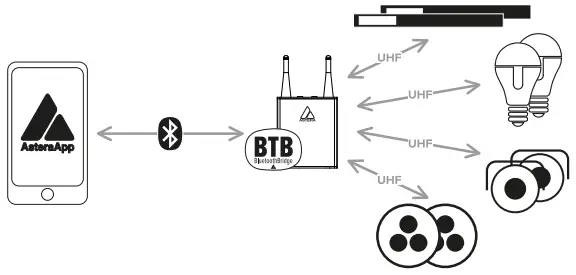

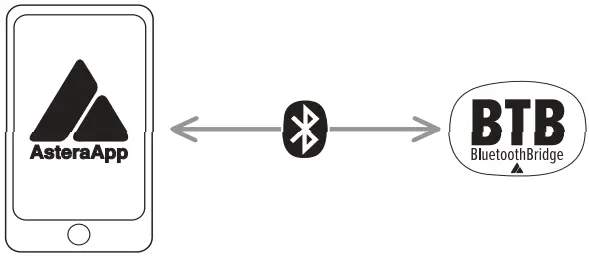

4. Connect BTBTo to control your lights with the AsteraApp, first, connect a Bluetooth Bridge (BTB). It forwards the AsteraApp signal to paired lights. You may use an AsteraBox as BTB or choose a light with built-in BTB, like AX3-BTB, AX9, NYX Bulb, PixelBrick, Titan Tube BTB, and Helios Tube BTB.
   Connect AsteraBox as BTBPlease power on the AsteraBox. Connect the AsteraBox directly from the AsteraApp main menu by following the instructions there.
   Connect light as BTB
   Please note This ONLY works for Astera lights with built-in Bluetooth. For all other Astera lights, please use an AsteraBox as BTB.

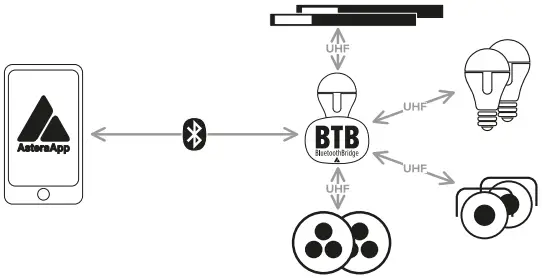

   Please power on the light. Hold down the power button for 3 seconds until the light flashes blue. In the AsteraApp press „Manage Bluetooth Bridges“, then “+” and follow instructions on the screen to connect.
   The light which is connected as BTB shows a small blue Bluetooth Icon next to the lamp icon in the app.

   1. AX3 LightDrop BTB	2. AsteraApp	3. AsteraApp

   To disable the BTB again press UNBOUND BLUETOOTH in the AsteraApp.

5. Pair with lights

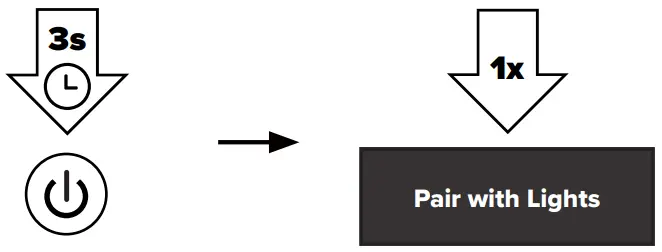

   Power on the light. Then hold down the power button for 3 seconds until the light flashes blue. Go to the “Pair with Lights” dialog in AsteraApp. Then press OK.

   1. AX3 LightDrop BTB	2. AsteraApp

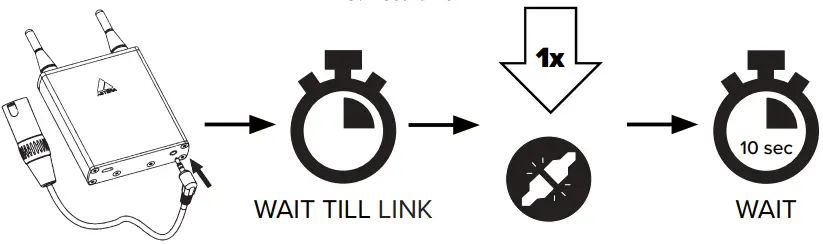

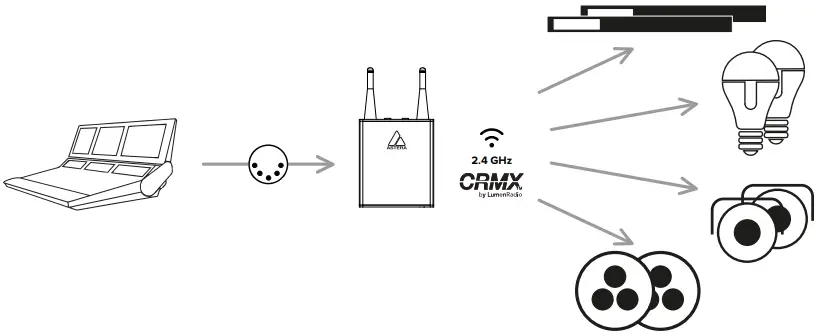

6. Linking to a CRMX transmitter


   1. AX3 LightDrop BTB	2. AX3 LightDrop BTB
   3. AsteraBox

7. Reset

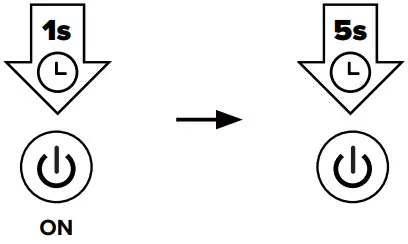

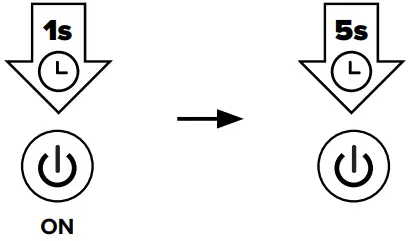

   RESET to unlink CRMX and unbound Bluetooth. Set „Input Select“ to „AUTO“ and runtime to 5h. A reset is recommended before each use and is carried out as follows: hold the button, the light will first turn off, then back on again and it blinks blue. Keep holding the button until the blinking stops and the light comes on red again.

   1. AX3 LightDrop BTB	2. AX3 LightDrop BTB

8. Charging and battery status
   The light main LED is double-used to display the battery status. Charge immediately when the battery is empty. Do not store the unit when the battery is empty. Charging time is approximately 7 hours.
   If the light is powered off and connected to the charger, the main LED either shows the battery status or is dark to indicate that charging has finished and the battery is full.
   If the light is powered on, press the button shortly and the main LED will show the battery- or charging status for two seconds.
   Battery status display

   	Less than 30 min runtime remaining: recharge.
   	Over 30 min runtime has been used.
   	Up to 30 min runtime have been used.

   Charging status display

   	Slow flashing: 0-35° → charging at full current
   	Fast flashing: ≤0 or ≥45° → Charging stopped due to under/overheating
   	Slow flashing: 36°-44° → charging at reduced current
   	Fast flashing: battery error

9. Rigging

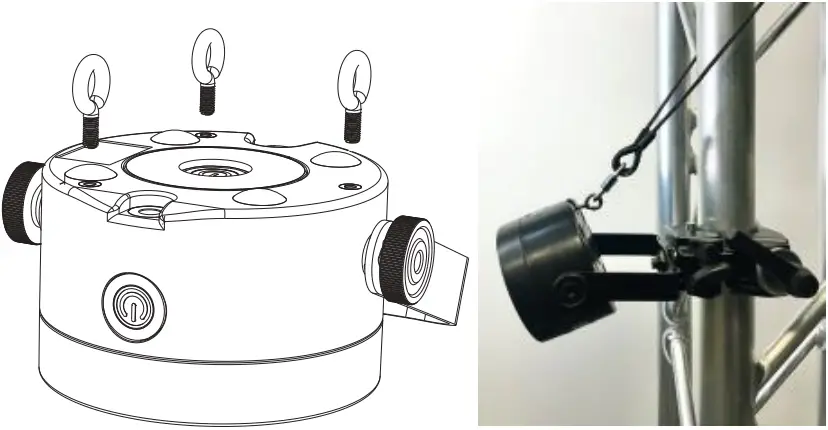

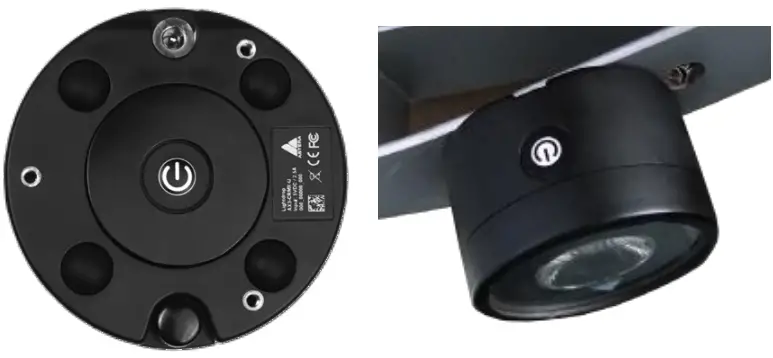

   The AX3 LightDrop BTB has a 3/8“-16 UNC thread in the bracket and 3x M4 threads on the back for easy attachment of the eyebolts for the secondary safety wire.
   When hanging the AX3 LightDrop BTB it is to be secured with a safety wire and carabiner, each able to hold at least 10kg. Make sure the light cannot drop more than 20cm if the primary mounting fails. Optional mounting accessories

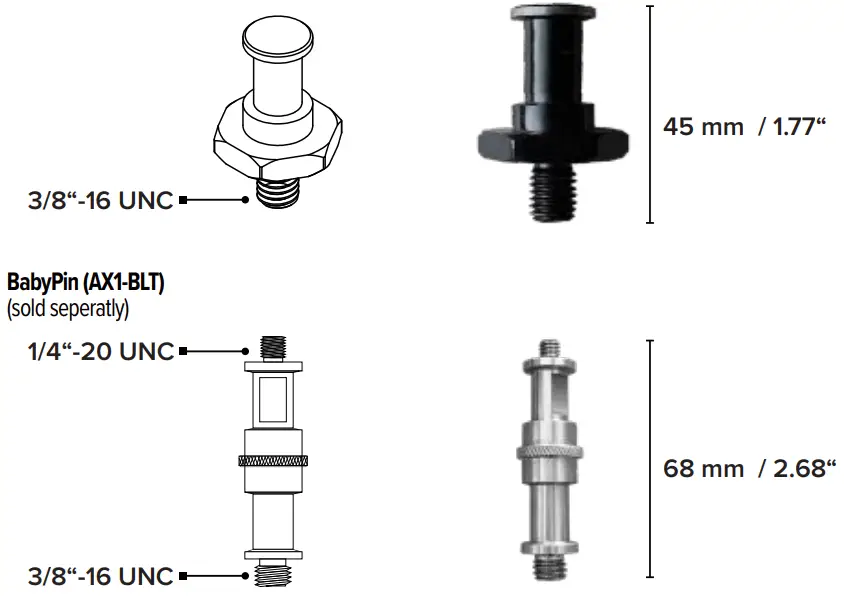

   Bolt (AX5-BLT) (sold separately)
10. MagneThe AX3 LightDrop BTB has a magnet on its backside for special installations.
11. Bracket
    The AX3 LightDrop BTB is fitted with a multi-purpose bracket. This is beneficial for use as an uplight but also for mounting it to a Manfrotto Super Clamp. The main thread of the bracket is a 3/8” 16 UNC. The threads for the brackets are 1/4” 20 UNC, so most camera accessories will fit. Even the bracket screws are equipped with a 1/4” 20 UNC thread at the outside.
12. Tilting
    Rotate the knurled screw for tilting the AX3 LightDrop BTB.
13. Filter options

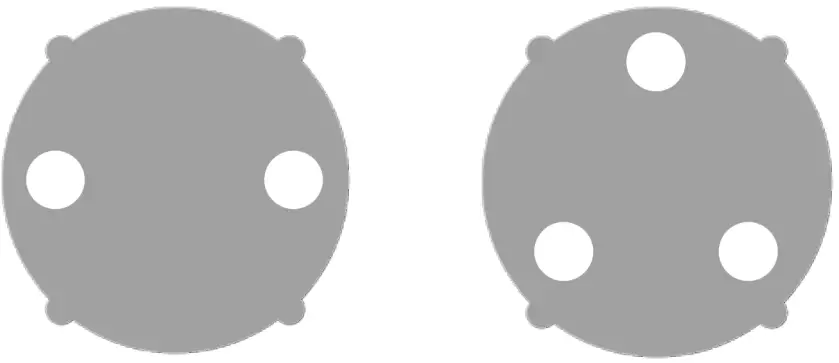

    Flood Diffusor 30° AX3-DDSK-30	Wide-Angle Diffusor AX3-DDSK-120

    In order to attach the diffusor, align the four wings with the four cutouts on the Lightdrop, push them into place, and twist to secure. In order to remove the diffusor, do the opposite, and pull out using the finger holes provided.

INTRODUCTION

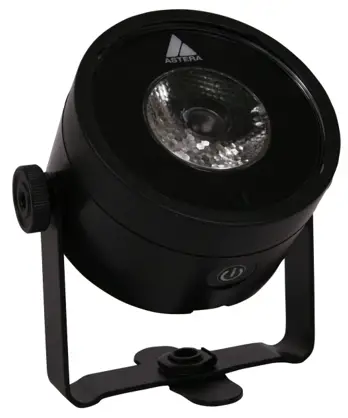

The AX3 LightDrop BTB from ASTRA is a LED spotlight for professional use in the event and film business. The AX3 LightDrop BTB is designed for direct or indirect illumination of objects or sceneries. Due to its built-in, the battery can be quickly set up at places where traditional lights cannot be mounted easily. It can be used as a compact uplight as well as a hanging or standing spotlight and inside translucent objects, truss, etc. The AX3 LightDrop BTB generates white or colored light and the color temperature can be adjusted in many ways. The AX3 LightDrop BTB can be controlled with AsteraApp or wireless CRMX. The device can also be controlled by the integrated button or by infrared remote control. Thanks to its built-in Bluetooth it can be used as BluetoothBridge (BTB).
The AX3 LightDrop BTB can be used standing or hanging. For this purpose, the device is equipped with a magnet, a bracket, and 3 M4 threads. Its removable bracket has a 3/8“ thread to attach the appropriate mounting accessories.
The AX3 LightDrop BTB can be used indoors and outdoors and has an IP65 rating (only with the Charging Socket Cover (AX3-SP) in place).
Do not shake the device. Avoid brute force when installing or operating the device.
When choosing the installation spot, please make sure that the device is not exposed to extreme heat or dust. Avoid direct sunlight for a longer period of time.
The specified ambient temperature must be maintained. Keep away from direct insulation (particularly in cars) and heaters.
Never use the device during thunderstorms connected to the power mains. Overvoltage could destroy the device. Always disconnect the device during thunderstorms.
Make sure that the area below the installation place is blocked when rigging, design,g, or servicing the fixture.
Always fix the fixture with an appropriate safety wire.
Operate the device only after having become familiarized with its functions.
Please consider that unauthorized modifications on the device are not allowed due to safety reasons! If this device will be operated in any way different from the one described in this manual, the product may suffer damages and void the warranty. The disclaimer includes all damages, liability, or injury resulting from failure to follow the instructions in this manual.
Furthermore, any other operation may lead to dangers like short-circuit, burns, electric shock, crash, etc. This device is not for household use and is not suitable for permanent installation.

SAFETY INFORMATION

Before you operate this unit read the manual carefully. Always make sure to include the manual if you pass/ rent/ sell the unit to another user.
Please use your own caution when operating.
This product is for professional use only. It is not for household use.

• Do not operate the unit in areas of high-temperature conditions or under direct sunlight. It may cause abnormal behavior or damage the product. • Always use a suitable safety wire when mounting the light overhead. • Connect the safety wire only to the intended safety mount. • Always follow local safety requirements. • Only authorized personnel may service the battery. • Do not place in fire or heat. • Do not use or charge the light if it is damaged. • Avoid bumping or plunging, it may cause fire or explosion. • Never store the battery when fully drained. Always recharge immediately when empty. Please do not charge unattended. • Make sure to fully charge all units before storing them. • Partially charged batteries will lose capacity. • Fully recharge every 6 months if not used. • The battery may only be replaced with an original spare part from Astera. • It is recommended to charge at a temperature between 15°C and 35°C.

Warning: In extreme cases, abuse or misuse of standard/rechargeable batteries can lead to:

• Explosion
• Fire development
• Heat generation or smoke and gas development.

	• Do not directly look into the light. • lt can cause harm to your eyes. • Do not look at the LEDs with a magnifying glass or any other optical instrument that may concentrate the light output. • Use only Astera-approved accessories to diffuse or modify the light beam.
	• Do not open the product housing. • Do not apply power if the light is damaged. • Do not submerge the light into any liquid. • Do not replace the LED light source. • Caution, risk of electric shock.
	The AX3-BTB shall be installed near the socket outlet which shall be easily accessible. Warning: risk of electric shock – Do not open the device.
	• The exterior surfaces of the light can become hot, up to 70°C (158°F) during normal operation. • Ensure that accidental physical contact with the device is impossible. • install only in ventilated locations. • Do not cover the light. • Allow all lights to cool before touching. • Keep 0.3m (12in) from objects to be illuminated.

CLEANING AND MAINTAINING

Caution: Liquids entering the housing of the device can cause a short circuit and damage the electronics. Do not use any cleaning agents or solvents. Only clean using a soft damp cloth.
SECONDARY SAFETY MOUNTING
The AX3-BTB must always be secured by a safety wire when used in a hanging position. If the primary suspension fails, the device must not fall more than 20cm.
Use a Safety eyelet on the backside. Please check the safety regulations in your region.

TROUBLESHOOTING

DISPOSAL

• The light contains a lithium-ion battery. • Don‘t throw the unit into the garbage at the end of its lifetime. • Make sure to dispose of it according to your local ordinances and/or regulations, to avoid polluting the environment! • The packaging is recyclable and can be disposed of.

MANUFACTURER DECLARATION

Hereby, Astera LED Technology GmbH declares that the type of radio equipment AX3 LightDrop BTB complies with Directive 2014/53 / EU. The full text of the EU Declaration of Conformity is available at the following Internet address: https://astera-led.com/ax3.
Astera LED Technology GmbH declares that this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution:

• Any changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate this equipment.
• This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the product at least 20cm from nearby persons.

SPECIFICATIONS – TECHNICAL DATA

*Typical value

RF CHARACTERISTICS

***General allocation of frequencies for use by short-range radio applications Spectrum usage regulations:

1. The use of adjacent frequency bands within this table as a single frequency band is permitted, provided that the specific conditions for each of these adjacent frequency bands are met.
2. „duty cycle“ means the ratio of Σ(Ton)/(Tobs) expressed as a percentage, where ‚Ton‘ is the ‚on-time‘ of a single transmitting device and ‚Tobs‘ is the observation period Ton is measured in an observation frequency band (Fobs). Unless otherwise specified in this general allocation, Tobs is a continuous period of one hour and Fobs is the applicable frequency band in this general allocation (table).
3. Frequency access and interference mitigation techniques shall be used whose performance level at least meets the essential requirements of Directive 2014/53/EU or the Radio Equipment Act (FuAG). Where relevant techniques are described in harmonized standards, the references of which have been published in the Official Journal of the European Union pursuant to Directive 2014/53/EU, or parts thereof, performance shall be ensured which is at least equivalent to those techniques.
