Astera Ax5 Triplepar Led Outdoor Spotlight User Manual

AX5 TriplePar LED Outdoor Spotlight
User Manual

NOTE

Bluetooth Bridge built-in with this logo on the sticker:

CONTENT

1. : AX5 TriplePAR BTB (AX5-BTB)
2. : Flood Filter (32°) for AX5 (AX5-FF)
3. : Wallwash Filter (17°x46°) for AX5 (AX5-WWF)
4. : User Manual

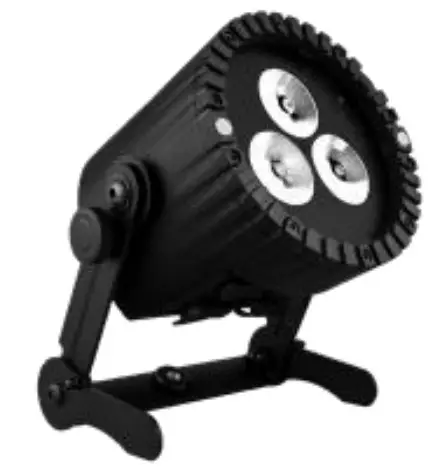

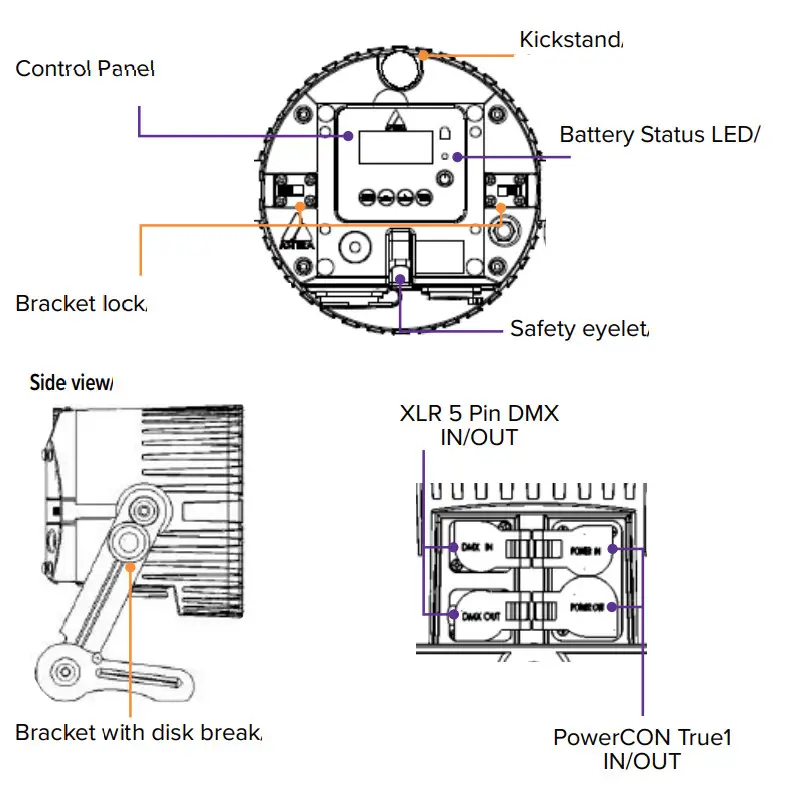

PRODUCT OVERVIEW

USAGE

1. Integrated control panel

Use the menu buttons to navigate through the main menu.

Top navigation	Inside Main Menu	Hold the Button for 2 sec.
ON/OFF
Main Menu	Previous menu	Standalone menu
Reset Settings	Scroll down	Adjust speed
Change Input Select	Scroll up	Adjust brightness
Set DMX Adress	Choose	Change program

2. More control options

On/Off, Static Colors, Preprogrammed Effects
All settings, Complex effects, Talkback+, Updates
Control from DMX consoles via CRMX or Wireless DMX
Control from DMX consoles via XLR 5 Pin DMX cable

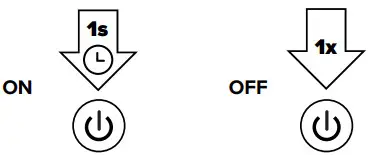

3. Switching On/Off

A new AX5 TriplePAR BTB needs a few seconds of charge to disable its shipping mode before it can be switched on.

4. Charging

While the power cable is connected, the display shows the charging status. Charge immediately when the battery is empty. Do not store the unit when the battery is empty.  Charging time is approximately 5 hours. The LED next to the display shows the battery status:

Less than 30 min runtime remaining: recharge.
Over 30 min runtime has been used.
Up to 30 min runtime has been used.
Connected to AC

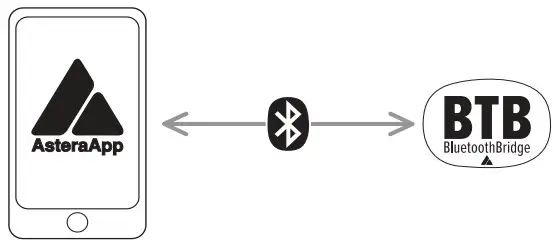

5. Connect BTB

To control your lights with the AsteraApp, first, connect a Bluetooth Bridge (BTB). It forwards the AsteraApp signal to paired lights. You may use an AsteraBox as BTB or choose a light with built-in BTB, like AX5 BTB, AX9, NYX Bulb, PixelBrick, Titan Tube BTB, and Helios Tube BTB.

Connect AsteraBox as BTB

Please power on the AsteraBox. Connect the AsteraBox directly from the AsteraApp main menu by following the instructions there.

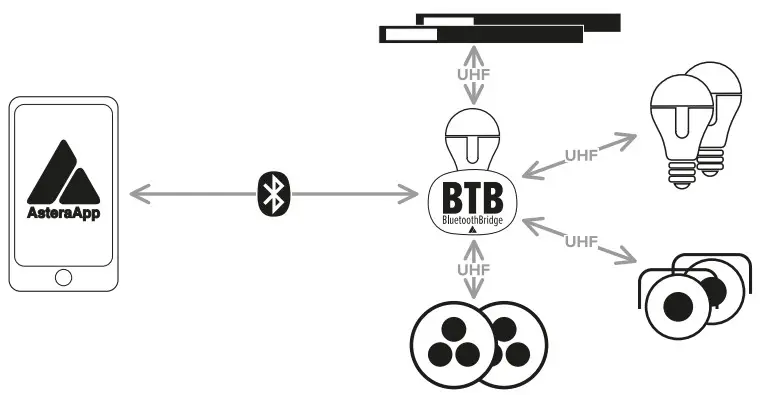

Connect light as BTB

Please note This ONLY works for Astera lights with built-in Bluetooth.
For all other Astera lights, please use an AsteraBox as BTB.

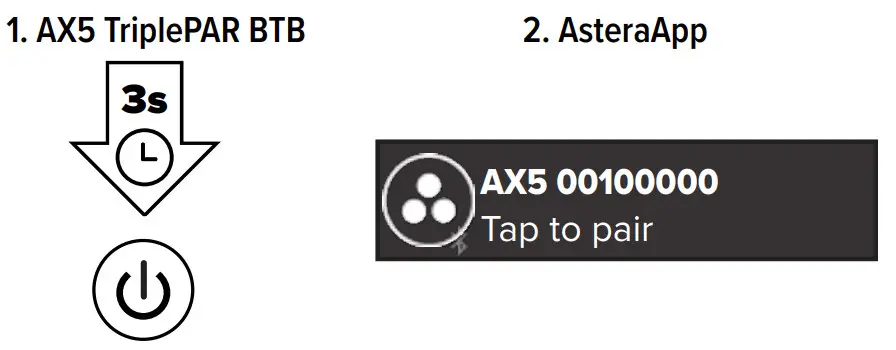

Please power on the light. Hold down the power button for 3 seconds until the light flashes blue. In the AsteraApp press „Manage Bluetooth Bridges“, then “+” and follow the instructions on the screen to connect. The light which is connected as BTB shows a small Bluetooth Icon in the display.

The lights‘ BTB is connected to the AsteraApp

The BTB is enabled and waiting for a connection.

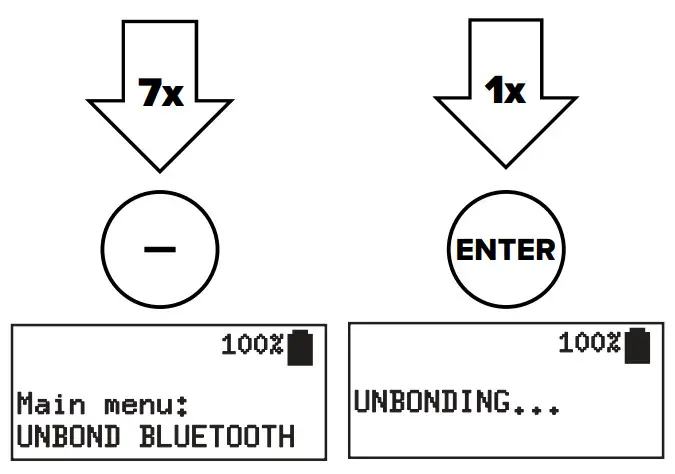

To disable the BTB again press UNBOUND BLUETOOTH.

6. Pair with lights

Power on the light. Then hold down the power button for 3 seconds until the light flashes blue. Go to “Pair with Lights” dialog in AsteraApp. Then press OK.

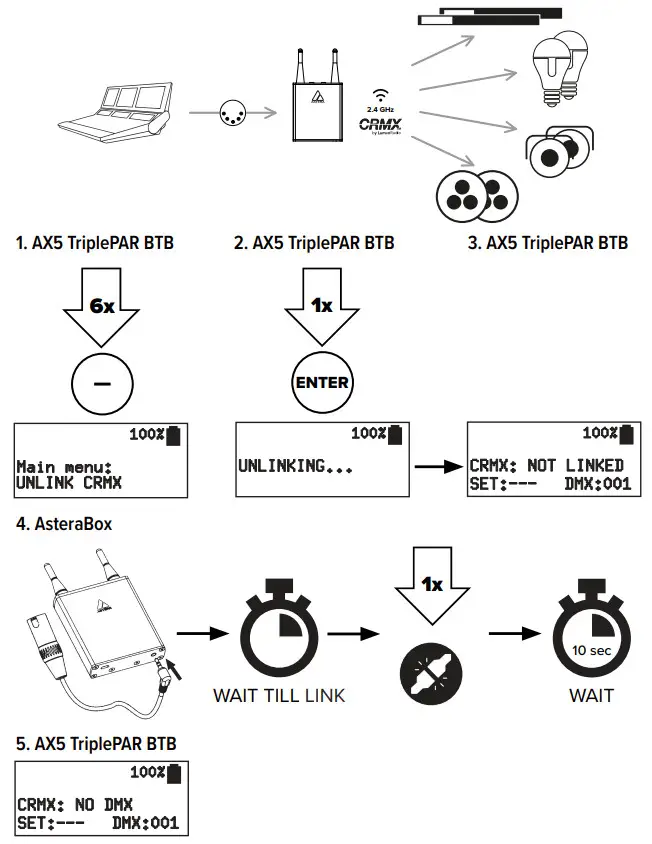

7. Linking to a CRMX transmitter

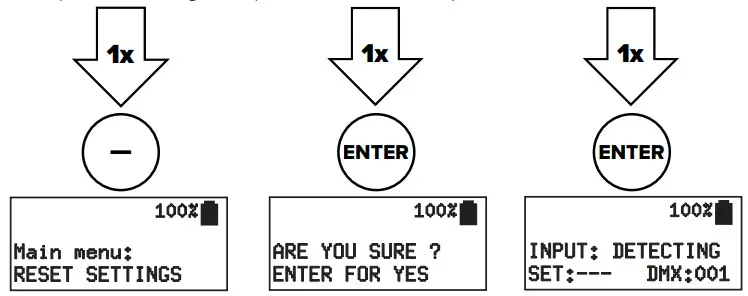

8. Reset

RESET to unlink CRMX and unbind Bluetooth. Sets „Input Select“ to „AUTO“ and runtime to 5h.

9. Rigging

The removable bracket of the AX5 TriplePAR BTB has a 3/8“-16 UNC thread or a 1/2“ hole at the bottom for attaching various mounting accessories such as Superclamps/  GripHeads. When sliding in the bracket, make sure both sides click into place.
When hanging the AX5 TriplePAR BTB it is to be secured with a safety wire and carabiner, each able to hold at least 40kg. Make sure the light cannot drop more than 20cm if the primary mounting fails.

Bottom of the AX5 bracket

There is a 3/8“ thread in the center of the bracket. By loosening two screws, the thread fixing can be removed and turned into a 14.2 mm mounting hole. Super clamps/Grip  Heads can be easily attached with the optional available AX5 Bolt (sold separately).

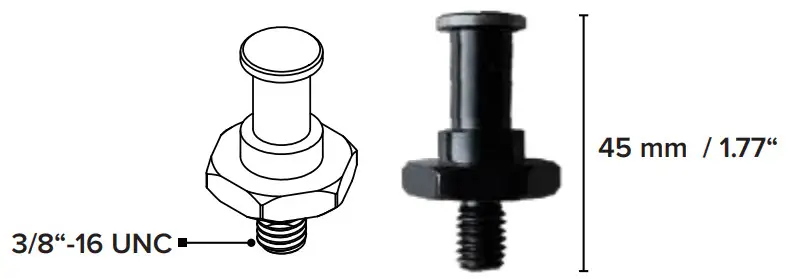

Optional mounting accessories

10. Threads

The AX5 TriplePAR BTB has 4 M6 threads on its backside for special installations. The M6 threads are covered with an M6 bolt that needs to be unscrewed before the threads can be used.

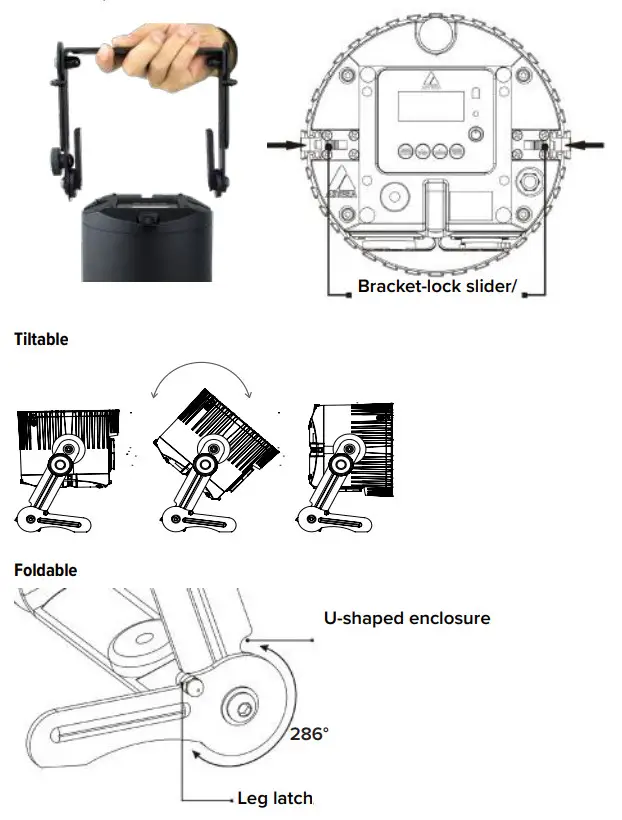

11. Bracket

Removable/ Abnehmbar/ Rimovibile
Push the bracket-lock sliders inwards to remove the bracket. When sliding in the bracket, make sure both sides click into place.

12. Kickstand

Press the button, the kickstand will jump out. Adjust the kickstand while holding the button pressed. Rotate the kickstand for fine-tuning.

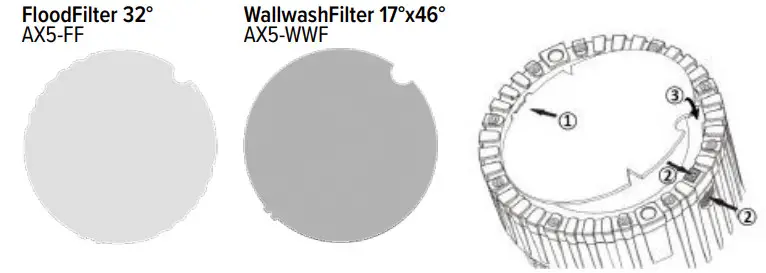

13. Filter options

Slide the filter into the filter slots with the smooth side of the filter to the outside. Press the filter clip in (there are 2 ways to open the filter clip, one from the top and one from the outside of the AX5 housing), and press the filter down firmly, the filter is then clamped under the filter clip. To remove the filter, press the filter clip and put your finger in the filter cutout. Lift the filter sheet out via the filter slots.

INTRODUCTION / INTENDED USE

The AX5 TriplePAR BTB from ASTRA is a LED spotlight for professional use in the event and film business. The AX5 TriplePAR BTB is designed for direct or indirect  illumination of objects or sceneries. Due to its built-in battery it can be quickly set up at places where traditional lights cannot be mounted easily. The AX5 TriplePAR BTB  generates white or colored light and the color temperature can be adjusted in many ways. The AX5 TriplePAR BTB can be controlled with AsteraApp or with wired DMX or wireless CRMX. The device can also be controlled by the integrated display or by infrared remote control. Thanks to its built-in Bluetooth it can be used as BluetoothBridge  (BTB).
The AX5 TriplePAR BTB can be used standing or hanging. For this purpose, the device is equiped with a kickstand and 4 M6 threads. Its removable bracket has a 3/8“ thread  or a 14,2 mm hole to attach the appropriate mounting accessories.
The AX5 TriplePAR BTB can be used indoors and outdoors and has an IP65 rating.
Do not shake the device. Avoid brute force when installing or operating the device.
When choosing the installation spot, please make sure that the device is not exposed to extreme heat or dust. Avoid direct sunlight for a longer period of time.
The specified ambient temperature must be maintained. Keep away from direct insulation (particularly in cars) and heaters.
Never use the device during thunderstorms connected to the power mains. Overvoltage could destroy the device. Always disconnect the device during thunderstorms.
Make sure that the area below the installation place is blocked when rigging, derigging, or servicing the fixture.
Always fix the fixture with an appropriate safety wire.
Operate the device only after having become familiarized with its functions.
Please consider that unauthorized modifications on the device are not allowed due to safety reasons! If this device will be operated in any way different from the one described in this manual, the product may suffer damages and void the warranty. The disclaimer includes all damages, liability, or injury resulting from failure to follow the instructions in this manual.
Furthermore, any other operation may lead to dangers like short-circuit, burns, electric shock, crash, es, etc. This device is not for household use and is not suitable for permanent installation.

SAFETY INFORMATION

Before you operate this unit read the manual carefully. Always make sure to include the manual if you pass/ rent/ sell the unit to another user.
Please use your own caution when operating.
This product is for professional use only. It is not for household use.

• Do not operate the unit in areas of high-temperature conditions or under direct sunlight. It may cause abnormal behavior or damage the product.
• Always use a suitable safety wire when mounting the light overhead.
• Connect the safety wire only to the intended safety mount.
• Always follow local safety requirements.
• Only authorized personnel may service the battery.
• Do not place in fire or heat.
• Do not use or charge the light if it is damaged.
• Avoid bumping or plunging, it may cause fire or explosion.
• Never store the battery when fully drained. Always recharge immediately when empty. Please do not charge unattended.
• Make sure to fully charge all units before storing them.
• Partially charged batteries will lose capacity.
• Fully recharge every 6 months if not used.
• The battery may only be replaced with an original spare part from Astera.
• It is recommended to charge at a temperature between 15°C and 35°C.
  Warning: In extreme cases, abuse or misuse of standard/rechargeable batteries can lead to:
• Explosion
• Fire development
• Heat generation or smoke and gas development.
• Do not directly look into the light.
• lt can cause harm to your eyes.
• Do not look at the LEDs with a magnifying glass or any other optical instrument that may concentrate the light output.
• Use only Astera-approved accessories to diffuse or modify the light beam.
• Do not open the product housing.
• Do not apply power if the light is damaged.
• Do not submerge the light into any liquid.
• Do not replace the LED light source.
• Caution, risk of electric shock.

The AX5 shall be installed near the socket outlet which shall be easily accessible.
Warning: risk of electric shock – Do not open the device.

• The exterior surfaces of the light can become hot, up to 70°C (158°F) during normal operation.
• Ensure that accidental physical contact with the device is impossible.
• install only in ventilated locations.
• Do not cover the light.
• Allow all lights to cool before touching.
• Keep 0.3m (12in) from objects to be illuminated.

CLEANING AND MAINTAINING

Caution: Liquids entering the housing of the device can cause a short circuit and damage the electronics. Do not use any cleaning agents or solvents. Only clean using a soft damp cloth.

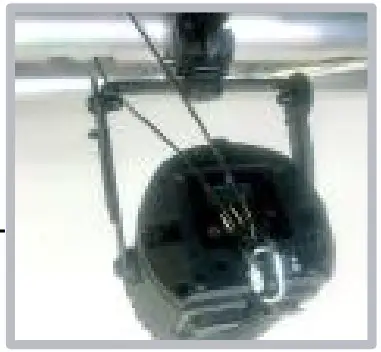

SECONDARY SAFETY MOUNTING

The AX5 TriplePAR BTB must always be secured by a safety wire when used in a hanging position. If the primary suspension fails, the device must not fall more than 20cm.

Use a Safety eyelet on the backside. Please check the safety regulations in your region.

TROUBLESHOOTING

DISPOSAL

• The light contains a lithium-ion battery.
• Don‘t throw the unit into the garbage at the end of its lifetime.
• Make sure to dispose of is according to your local ordinances and/or regulations, to avoid polluting the environment!
• The packaging is recyclable and can be disposed of.

MANUFACTURER DECLARATION

Hereby, Astera LED Technology GmbH declares that the type of radio equipment AX5 complies with Directive 2014/53 / EU. The full text of the EU Declaration of  Conformity is available at the following Internet address:
https://astera-led.com/ax5.
Astera LED Technology GmbH declares that this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC  rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by  turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution:

• Any changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate this equipment.
• This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the product at least 20cm from nearby persons.

SPECIFICATIONS – TECHNICAL DATA

*Typical value

RF CHARACTERISTICS

***General allocation of frequencies for use by short-range radio applications Spectrum usage regulations:

1. The use of adjacent frequency bands within this table as a single frequency band is permitted, provided that the specific conditions for each of these adjacent frequency bands are met.
2. „duty cycle“ means the ratio of Σ(Ton)/(Tobs) expressed as a percentage, where ‚Ton‘ is the ‚on-time‘ of a single transmitting device and ‚Tobs‘ is the observation period Ton is measured in an observation frequency band (Fobs). Unless otherwise specified in this general allocation, Tobs is a continuous period of one hour and Fobs is the applicable frequency band in this general allocation (table).
3. Frequency access and interference mitigation techniques shall be used whose performance level at least meets the essential requirements of Directive 2014/53/EU or the Radio Equipment Act (FuAG). Where relevant techniques are described in harmonized standards, the references of which have been published in the Official Journal of the  European Union pursuant to Directive 2014/53/EU, or parts thereof, performance shall be ensured which is at least equivalent to those techniques.

ORDER CODE:
AX5-BTB
MANUAL VERSION: 1.1
DATE OF ISSUE: 02.28.2022www.astera-led.com/ax5
