Mighty Mule Mmtgb Tube Gate Bracket Instruction Manual

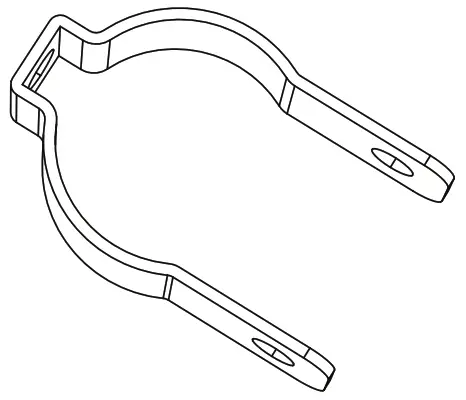

MMTGB Tube Gate Bracket
Instruction Manual

BOX CONTENTS

(2) Tube Gate Brackets	(2) 3/8-16 x 1” Hex Bolts	(2) 3/8-16 x 2.5” Hex Bolts	(4) 3/8-16 Hex Nuts	(2) 375 X .079 Washers

INSTALLING THE MMTGB BRACKET TO THE GATE CONTROLLER AND GATE

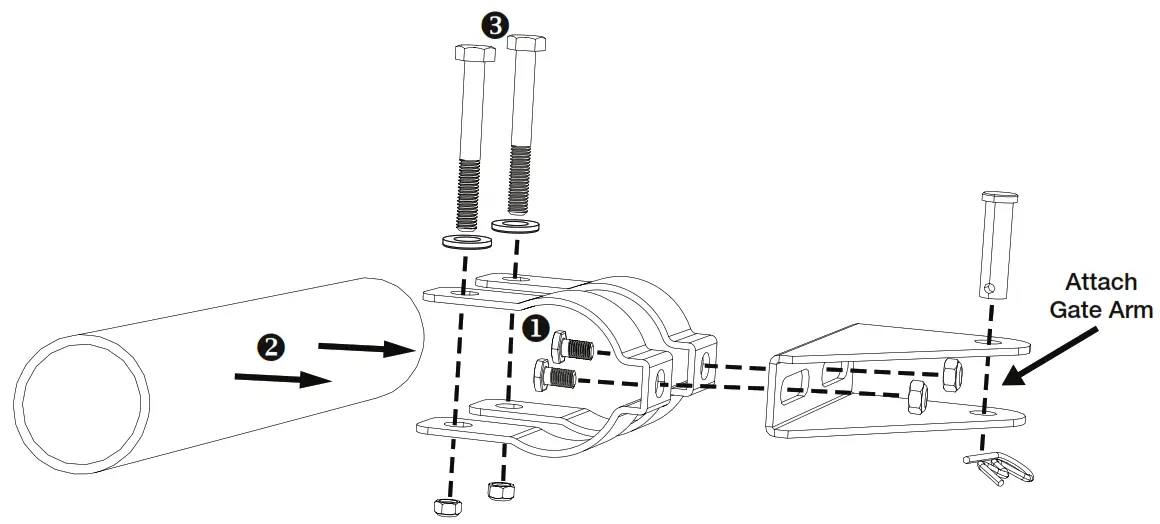

Follow the steps below to attach the MMTGB bracket to the cylindrical gate:

1. Using the 3/4” length bolt and a nut, connect the existing gate arm bracket to the MMTGB bracket. Do not tighten completely.
2. Position the gate arm to slide the MMTGB bracket over the desired section of the gate.
3. Insert the 2 1/2” bolt through the eyes of the MMTGB bracket, then attach the nut. Do not tighten completely.

Finishing Up: With the gate closed and settled in place, tighten the 2 1/2” bolt and nut then tighten the remaining 3/4” bolt and nut. Test the gate opener, and adjust as necessary.

Mighty Mule Sales: 800-543-4283 | Mighty Mule Technical Service 800-543-1236
For more information on Mighty Mule’s full line of Automatic Gate Operators, Gate Openers and Access Controls visit www.mightymule.com

©2021 Nortek Security & Control LLC. All rights reserved.
Mighty Mule is a registered trademark of Nortek Security & Control LLC.
10031653 Rev-A
