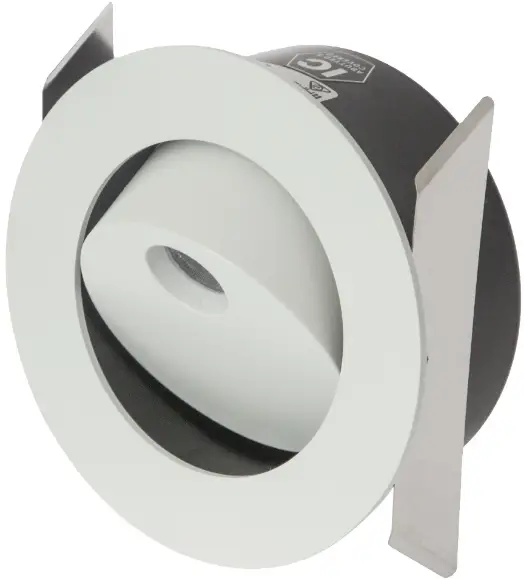

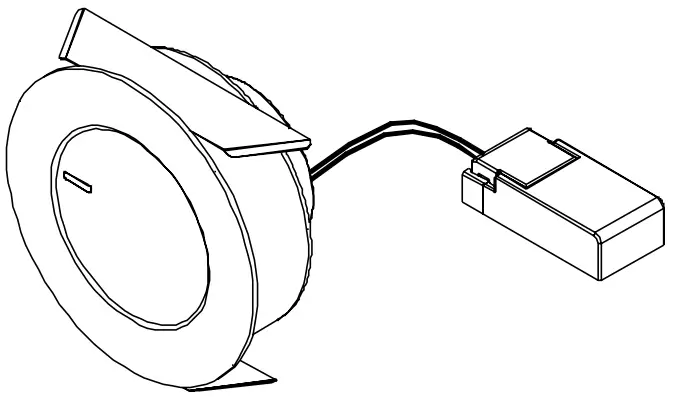

HALCYON R777 3W Reading Spot Instruction Manual
RISK OF FIRE – Required clearance from structural members and building elements.
Side Clearance to building element (eg timber, joist or Batten) (SCB): 0mm
Height Clearance to building element (eg timber, joist or Batten) (HCB): 0mm
Minimum Insulation Clearance to building element (MIC): 0mm
Recessed Luminaire Classification:
IC – building insulation that can safely be continuously exposed to 90°C allowed to abut and cover the luminaire.
For indoor use only.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard. This luminaire must be installed by a qualified Registered Electrician to prevent damage to the luminaire and maintain electrical safety. The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.
DO NOT INSTALL THROUGH JOIST, BEAM, RAFTER OR CEILING BATTEN
Note: Side/Height Clearance is measured from heat sink
Caution, risk of electric shock.

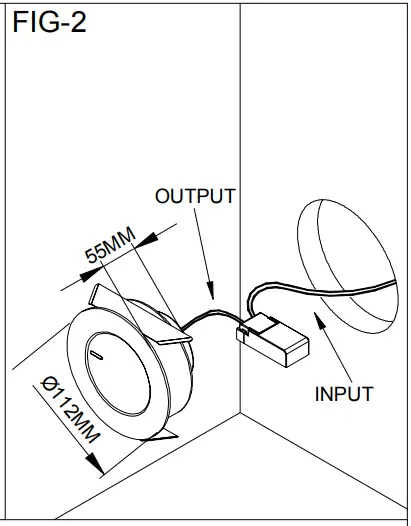

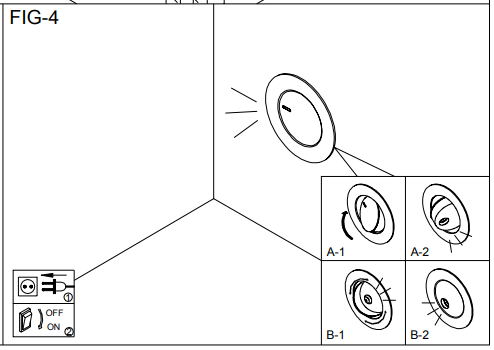

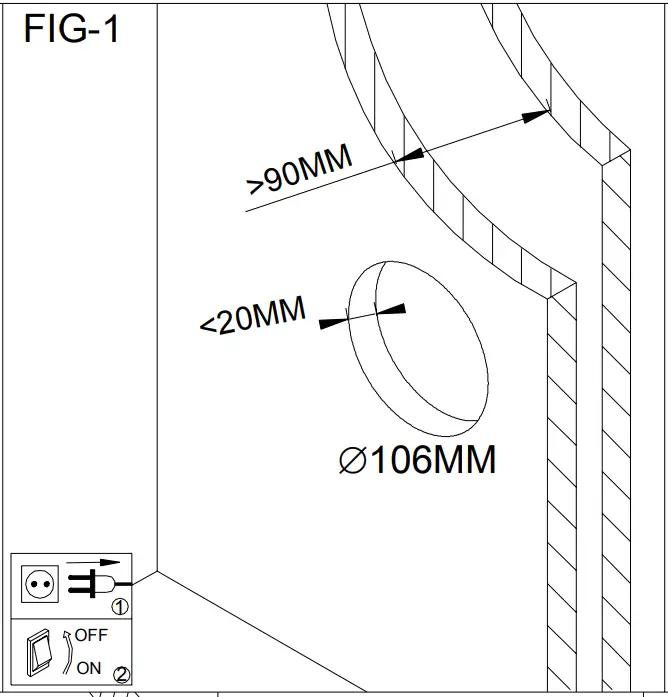

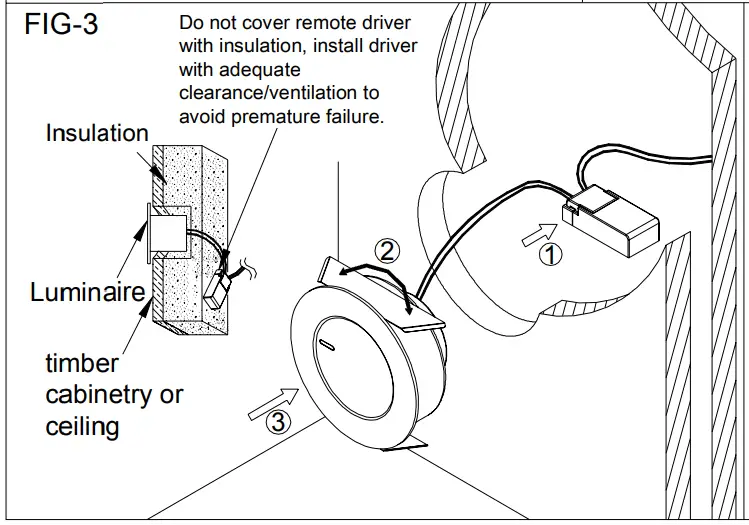

Installation Instruction
This mounting instruction is subject to change without notice. VER:1.0
