Halcyon S217 3 Circuit Track Adaptor Instruction Manual

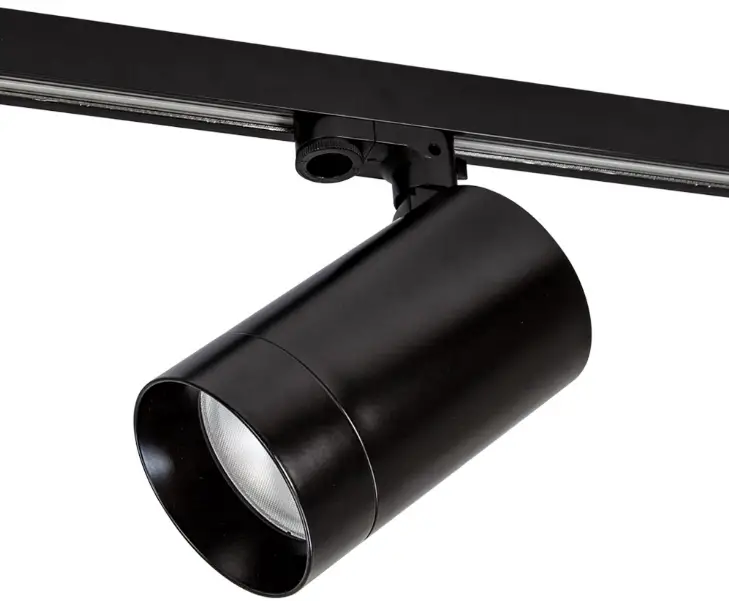

HALCYON S217 3 Circuit Track Adaptor

Product Information

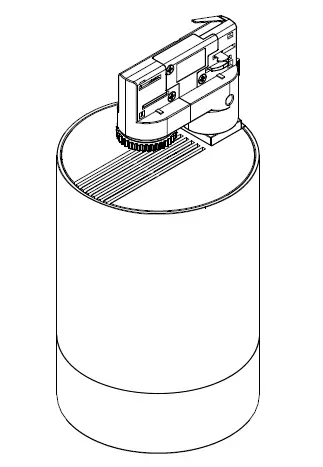

The S217 is an indoor luminaire that is suitable for use with the Halcyon 3 Circuit track. It is recommended to test compatibility prior to installation if retrofitting an alternative manufacturer track. The raised linear lug on the plastic spot track adaptor should fit on the opposite side of the 3-circuit track raised linear guide to ensure the luminaire sits flat and connects to the correct polarity and circuit. This luminaire must be installed by a qualified Registered Electrician to prevent damage to the luminaire and maintain electrical safety.

Product Usage Instructions

1. Ensure that the luminaire is suitable for use with the Halcyon 3 Circuit track.
2. If retrofitting an alternative manufacturer track, test compatibility prior to installation.

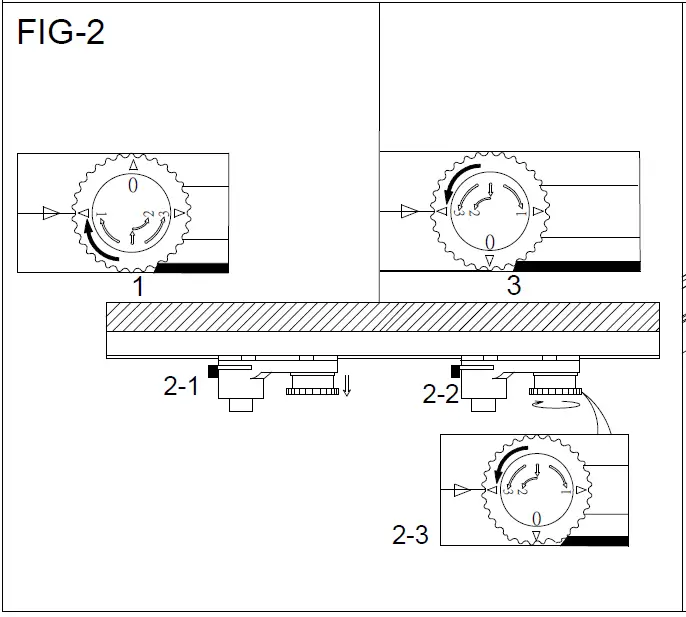

3. Take care to orientate the track adaptor correctly when installing in the track to avoid damage.

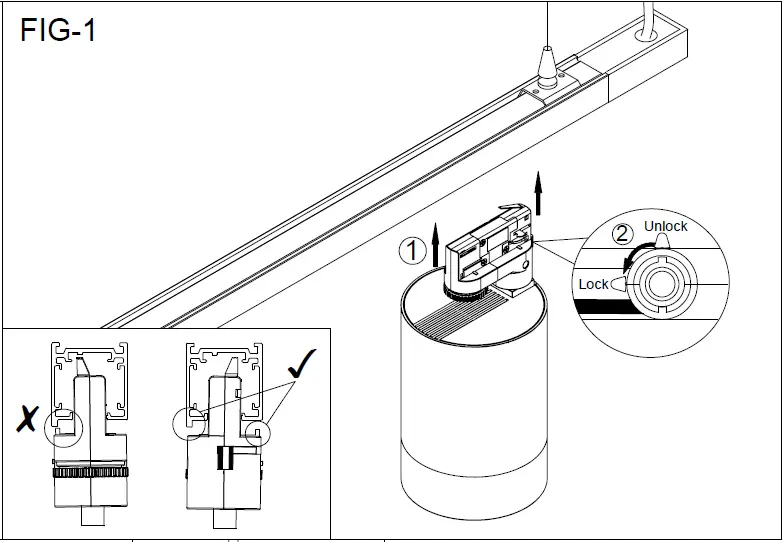

4. Ensure that the raised linear lug on the plastic spot track adaptor fits on the opposite side of the 3-circuit track raised linear guide to ensure the luminaire sits flat and connects to the correct polarity and circuit.
5. This luminaire must be installed by a qualified Registered Electrician to prevent damage to the luminaire and maintain electrical safety.
6. To remove the luminaire, turn it to position 0 and unlock it using the lock/unlock mechanism.

INTRODUCTION

For indoor use only. Suitable for Halcyon 3 Circuit track. Testing is recommended to ensure compatibility prior to installation if retrofitting alternative manufacturer track. Take care track adaptor is orientated correctly when installing in the track to avoid damage. The raised linear lug on the plastic spot track adaptor should fit on the opposite side of the 3-circuit track raised linear guide to ensure the luminaire sits flat and connects to the correct polarity and circuit. This luminaire must be installed by a qualified Registered Electrician to prevent damage to the luminaire and maintain electrical safety.

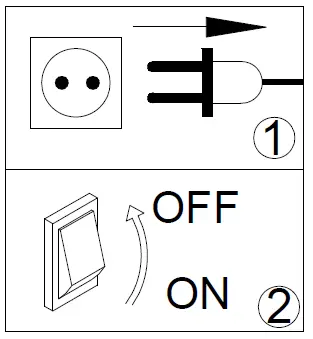

POWER

INSTALLATION INSTRUCTIONS

Removing Luminaires
