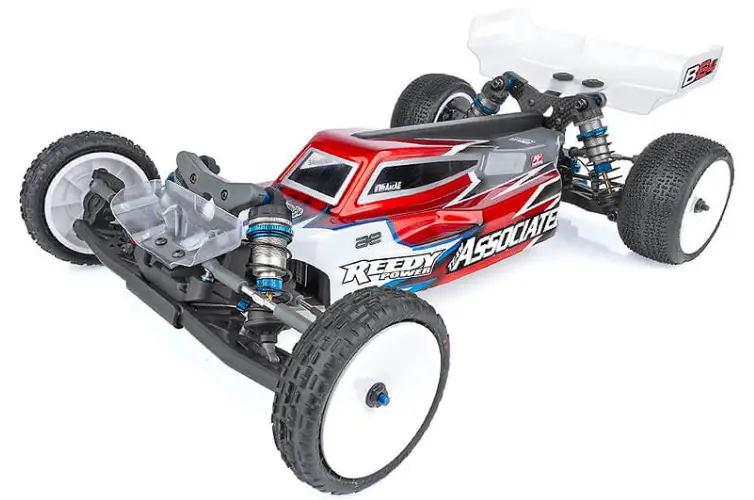

RC10B6.1 Scale 2WD Electric off Road Competition Buggy Kit
Owner’s Manual
RC10B6.1 Scale 2WD Electric off Road Competition Buggy Kit
:: Bag 4 – Step 2
:: Bag 4 – Step 3

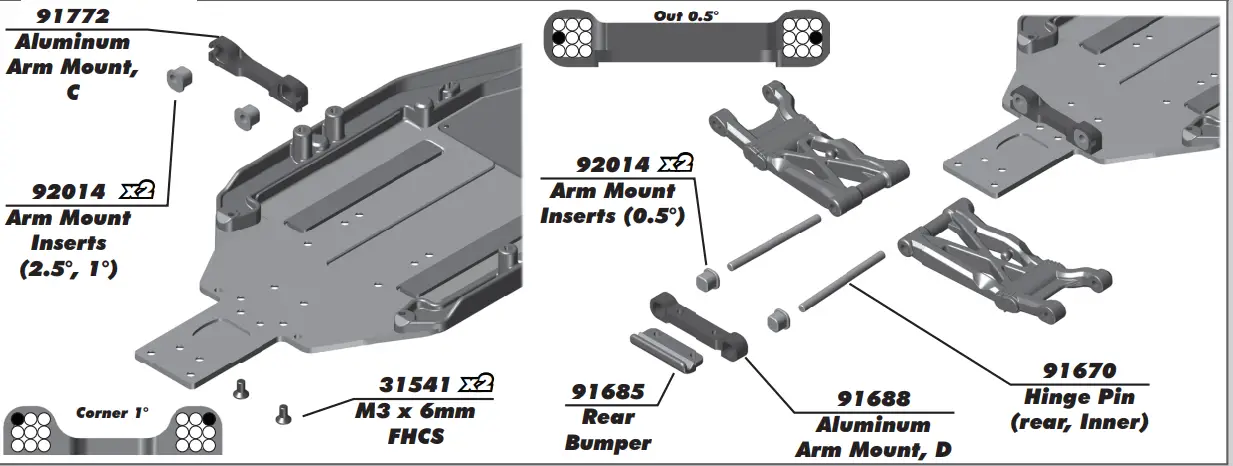

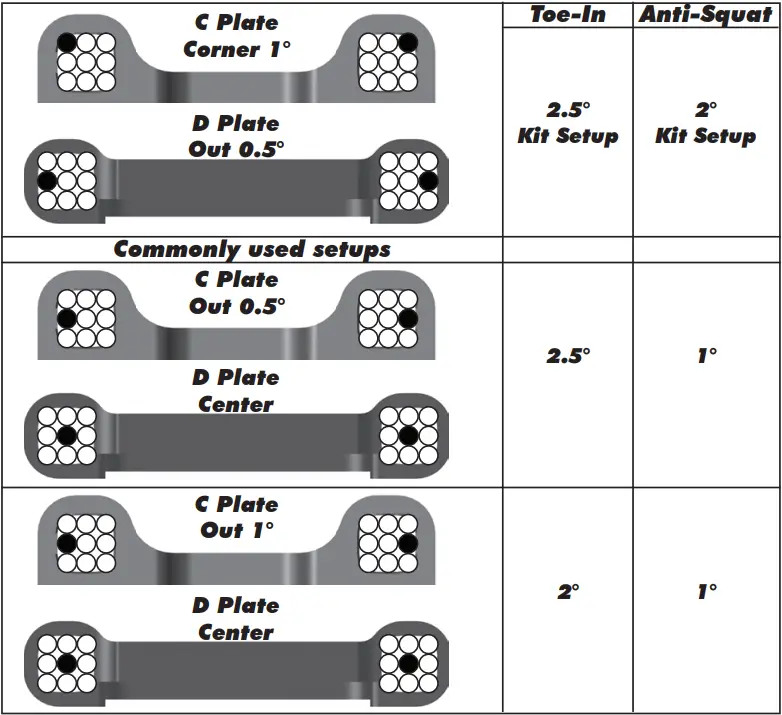

The (#91772) C and (#91688) D aluminum arm mounts allow for a large amount of setup combinations when using the (#92014) 0.5° and 1° arm mount inserts.
For a complete list of pill setup combinations, please visit our website by using the link or QR code below. https://www.teamassociated.com/pdf/cars_and_trucks/RC10B6/B6_B6D_Pill-Chart.pdf
:: Bag 5 – Step 1

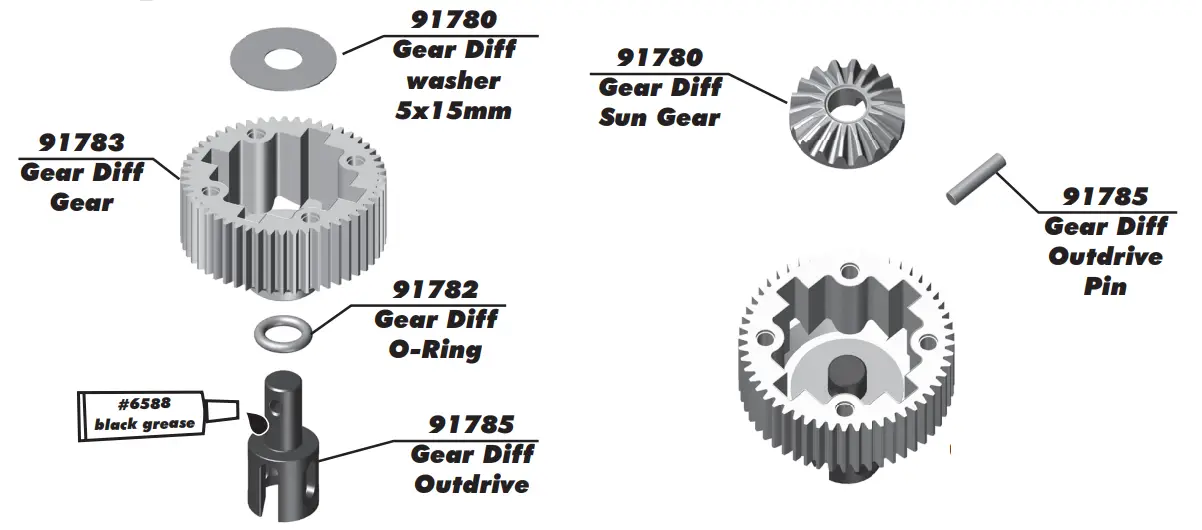

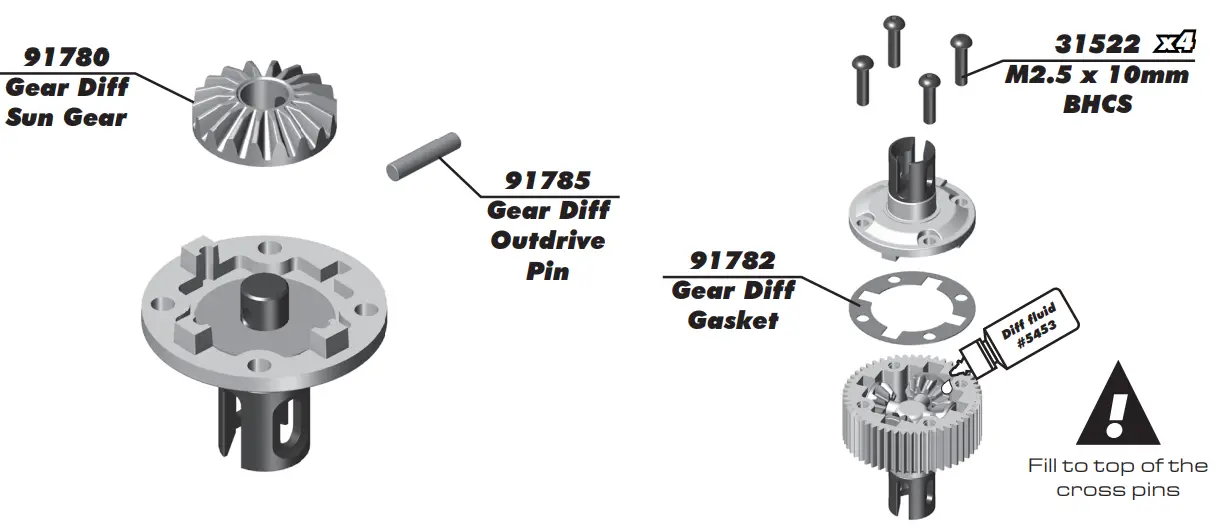

One pocket is flat for inserting the #91785 gear diff outdrive pin.
:: Bag 5 – Step 2

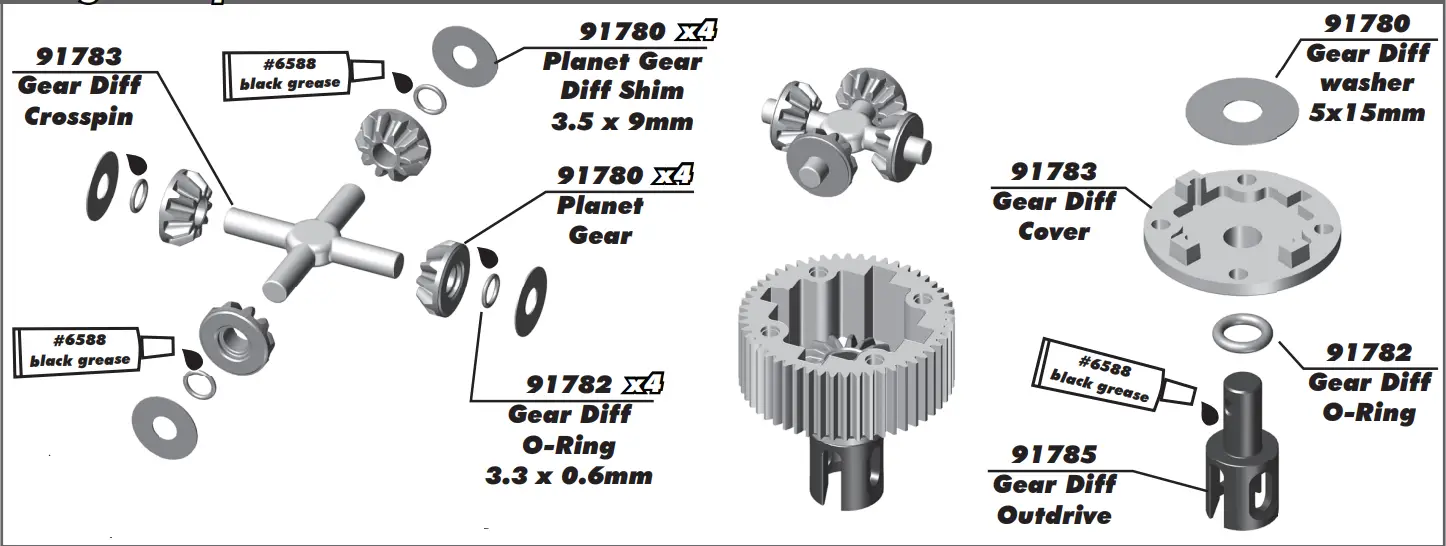

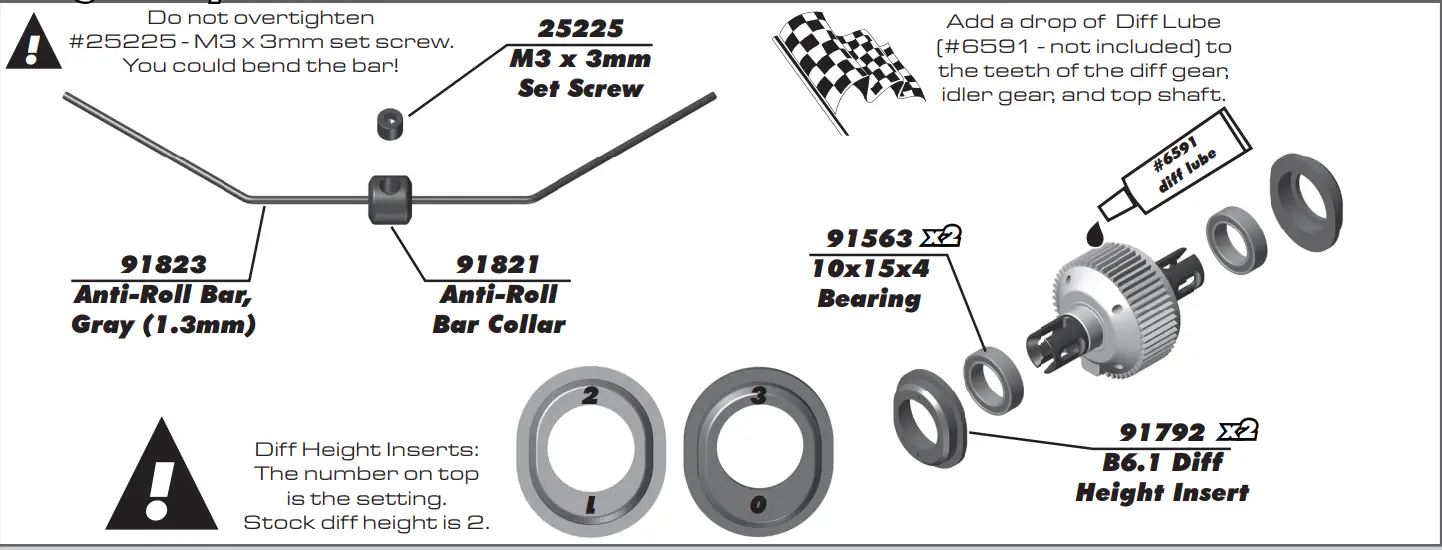

#91782 – Gear Diff O-Rings are a tuning option.
Kit setup is built without O-Rings
:: Bag 5 – Step 3
:: Bag 6 – Step 1
:: Bag 6 – Step 2
:: Bag 6 – Step 3

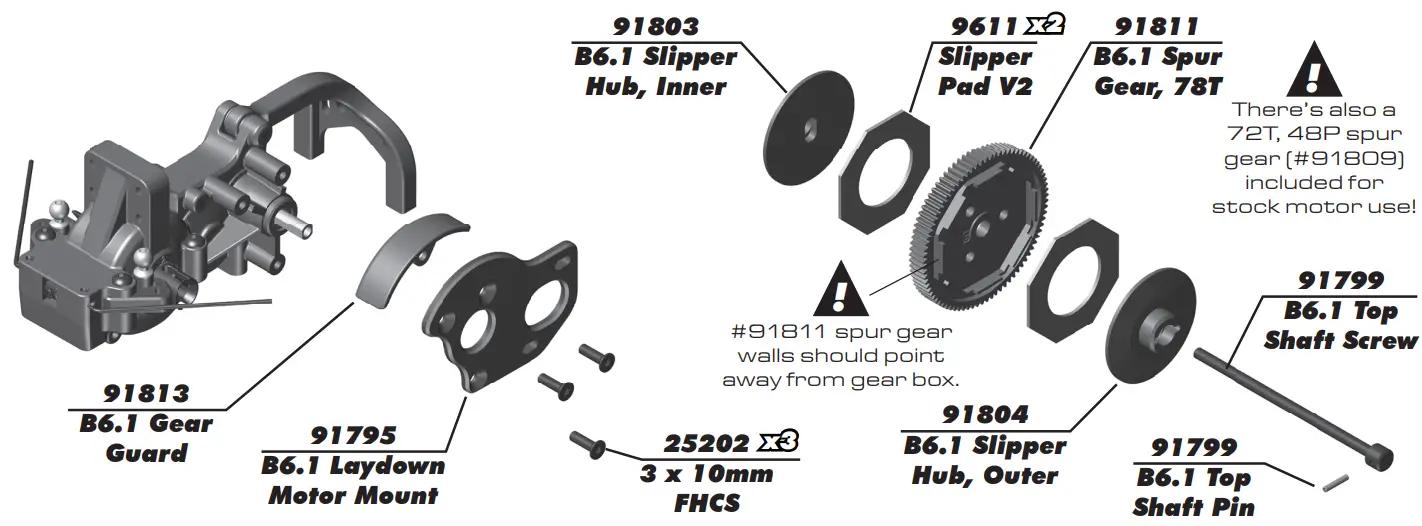

:: Bag 6 – Step 4

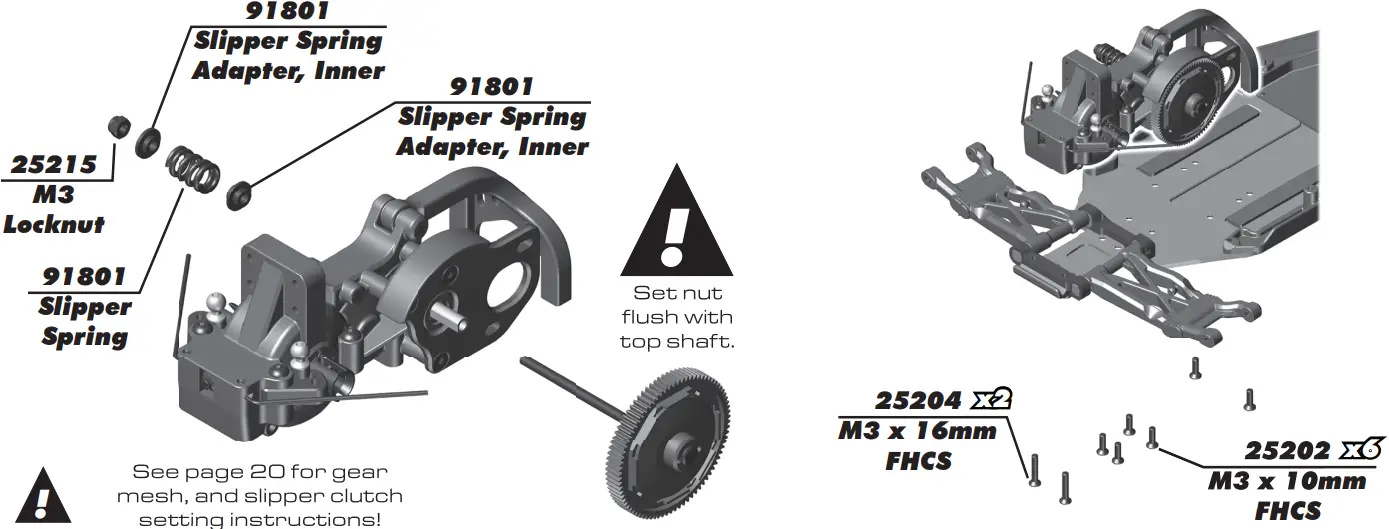

:: Bag 6 – Step 5
:: Bag 6 – Step 6

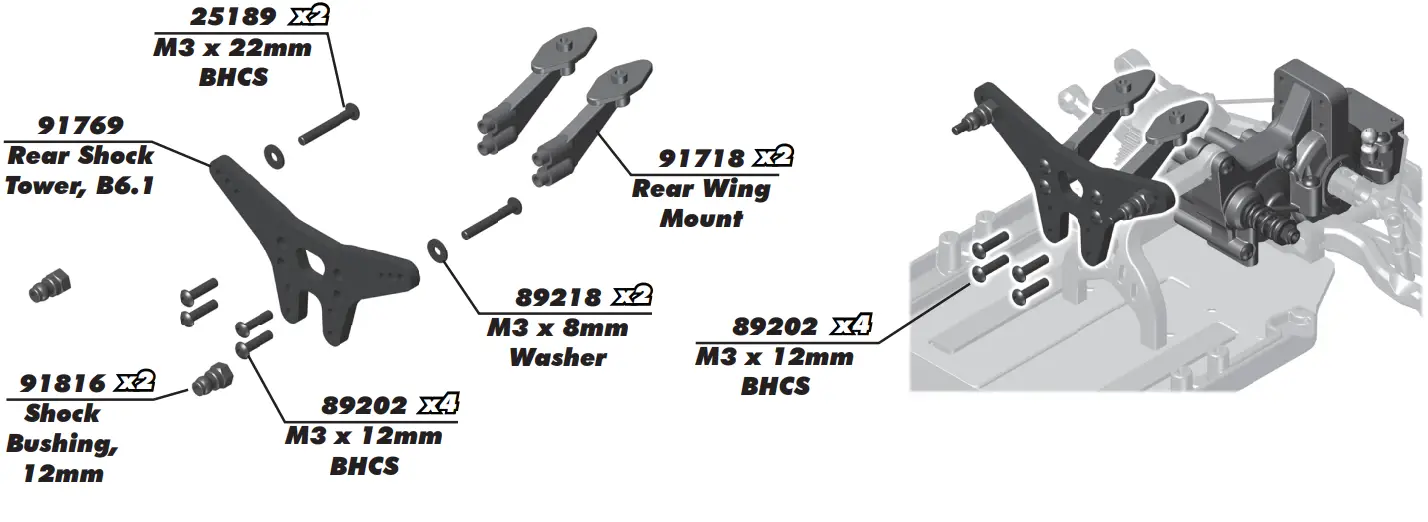

There is an optional wing mount spacer included in your kit. Use the included extra #25188 3 x 20mm BHCS instead of the #89202 3x12mm BHCS

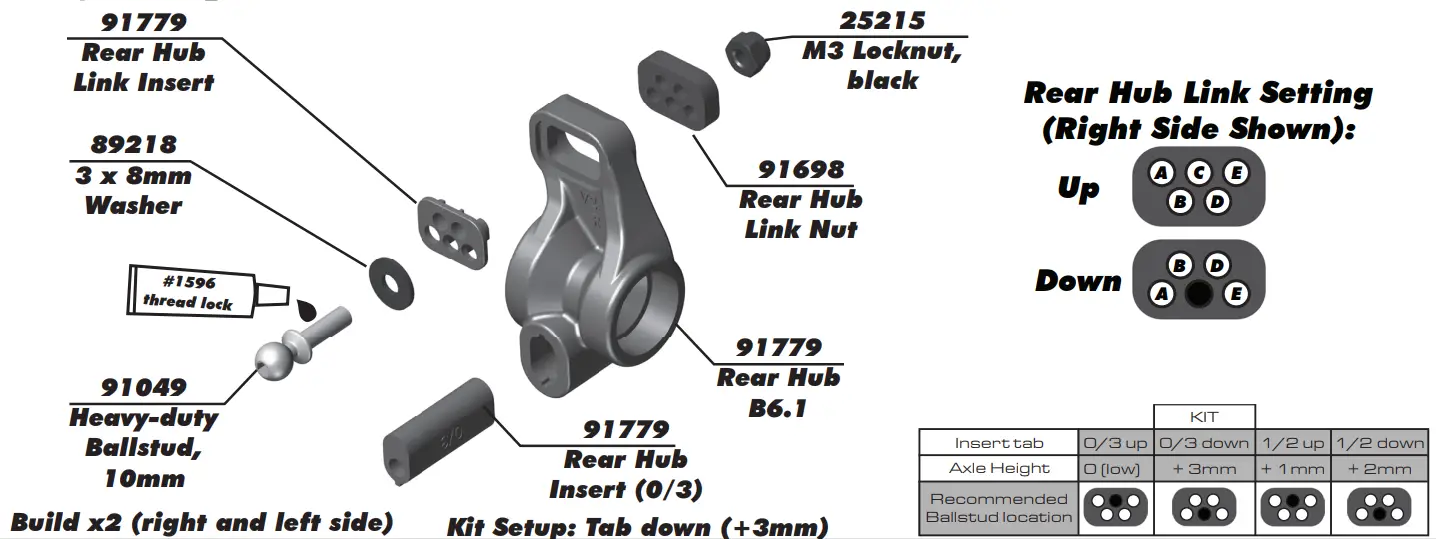

:: Bag 7 – Step 1

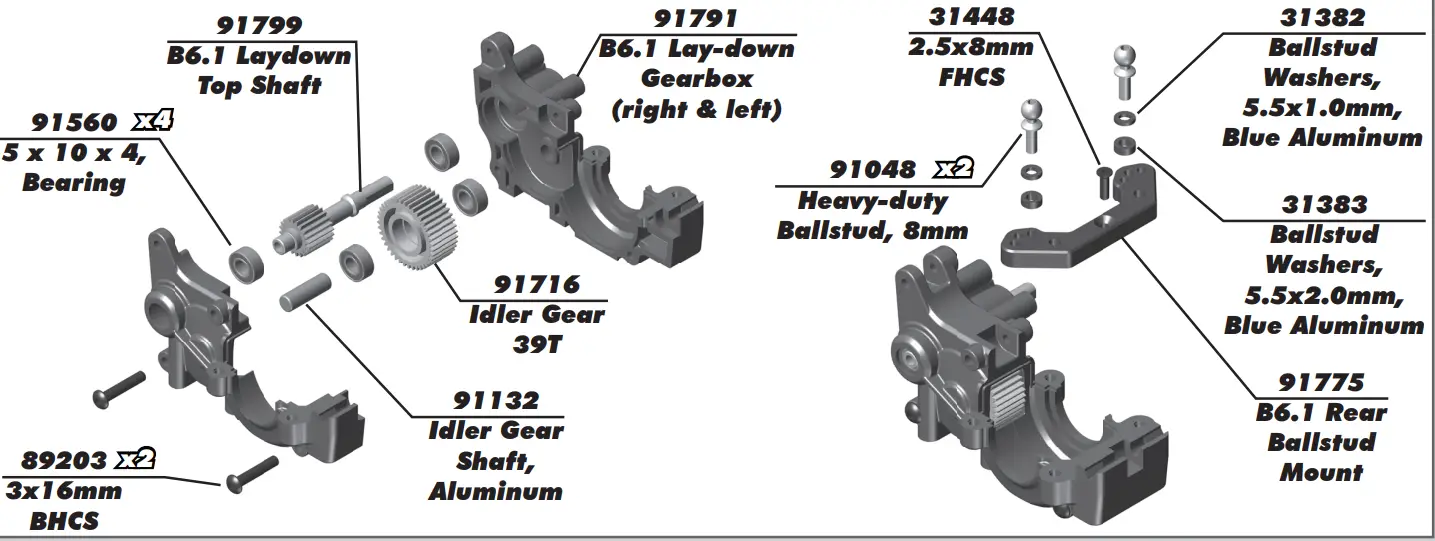

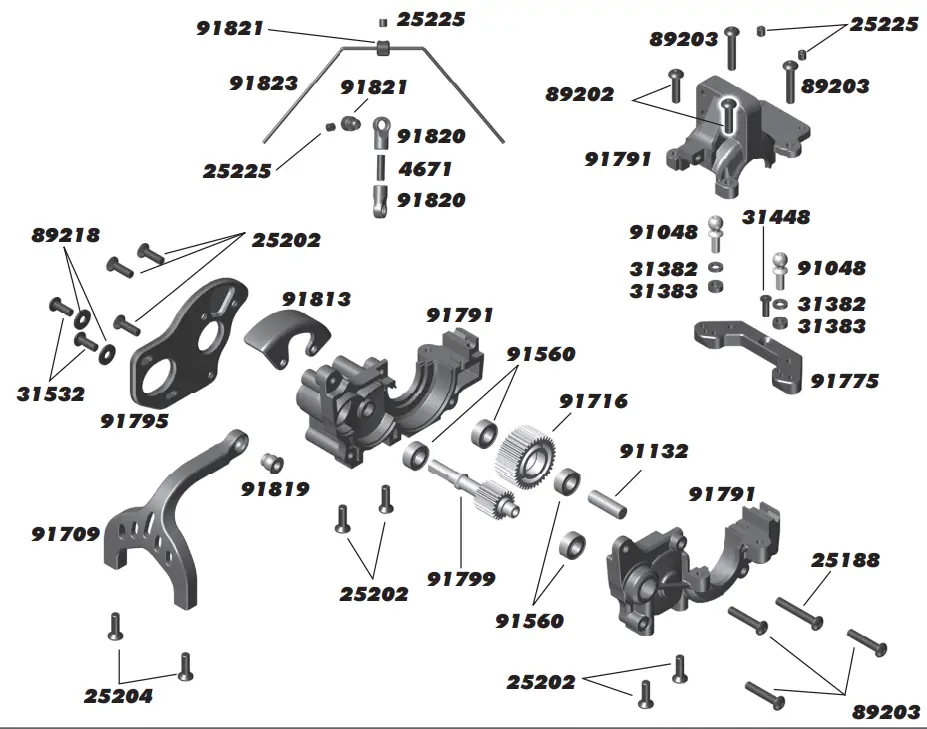

:: Transmission
| 4671 | M3 x 10mm Set Screw | 10 |
| 25188 | M3 x 20mm BHCS | 10 |
| 25202 | M3 x 10mm FHCS | 10 |
| 25204 | M3 x 16mm FHCS | 10 |
| 25225 | M3 x 3mm Set Screw | 10 |
| 31382 | Ballstud Washers, 5.5×1.0 mm, blue aluminum | 10 |
| 31383 | Ballstud Washers, 5.5×2.0 mm, blue aluminum | 10 |
| 31448 | M2.5 x 8mm FHCS | 10 |
| 31532 | M3 x 8mm BHCS | 10 |
| 89202 | M3 x 12mm BHCS | 10 |
| 89203 | M3 x 16mm BHCS | 10 |
| 89218 | M3 x 8mm Washers | 10 |
| 91048 | Heavy-duty Ballstuds, 8 mm | 10 |
| 91132 | 4×4 FT Idler Shafts, aluminum | 2 |
| 91560 | FT Bearings, 5x10x4 mm | 4 |
| 91709 | B6 Chassis Braces | 1 ea. |
| 91716 | B6 Idler Gear, 39T, laydown | 2 |
| 91775 | B6.1 Rear Ballstud Mount | 1 |
| 91791 | B6.1 Laydown Gearbox | 1 |
| 91795 | B6.1 Laydown Motor Plate | 1 |
| 91799 | B6.1 Laydown Top Shaft | 1 |
| 91813 | B6.1 Gear Cover | 1 |
| 91819 | B6.1 Shock Pivot Balls | 4 |
| 91820 | B6.1 Ball Ends | 1 |
| 91821 | B6.1 Anti-Roll Bar Hardware | 1 |
| 91823 | B6.1 Rear Anti-Roll Bar Set | 1 |

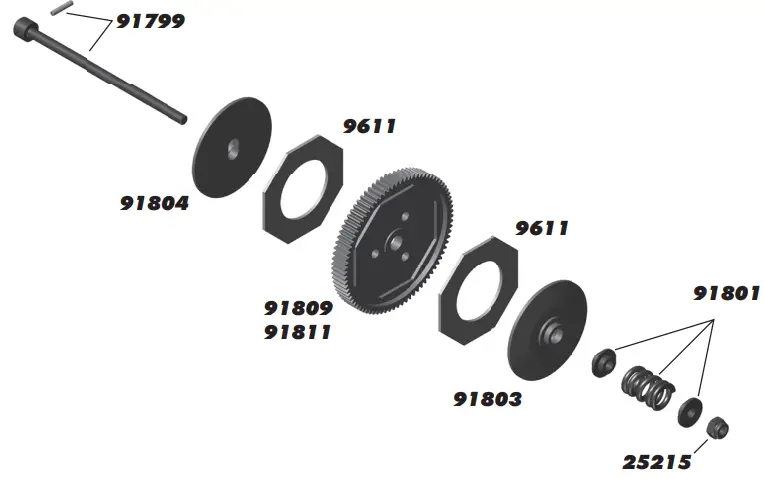

:: Slipper Clutch
| 9611 | Slipper Pad, V2 | 2 |
| 25215 | Locknuts, M3 | 10 |
| 91799 | B6.1 Standup Top Shaft | 1 |
| 91801 | B6.1 Slipper Spring and Adaptors | 1 |
| 91803 | B6.1 Slipper Hub, Inner | 1 |
| 91804 | B6.1 Slipper Hub, Outer | 1 |
| 91805 | B6.1 HTC Slipper Hub Outer | 1 |
| 91808 | B6.1 Spur Gear, 69T – 48P | 1 |
| 91809 | B6.1 Spur Gear, 72T – 48P | 1 |
| 91810 | B6.1 Spur Gear, 75T – 48P | 1 |
| 91811 | B6.1 Spur Gear, 78T – 48P | 1 |
| 91812 | B6.1 Spur Gear, 81T – 48P | 1 |

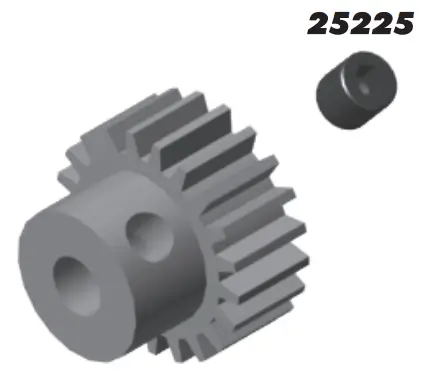

:: Pinion Gears
| 1335 | 17T 48P Aluminum Pinion Gear | 1 |
| 1336 | 18T 48P Aluminum Pinion Gear | 1 |
| 1337 | 19T 48P Aluminum Pinion Gear | 1 |
| 1338 | 20T 48P Aluminum Pinion Gear | 1 |
| 1339 | 21T 48P Aluminum Pinion Gear | 1 |
| 1340 | 22T 48P Aluminum Pinion Gear | 1 |
| 1341 | 23T 48P Aluminum Pinion Gear | 1 |
| 1342 | 24T 48P Aluminum Pinion Gear | 1 |
| 1343 | 25T 48P Aluminum Pinion Gear | 1 |
| 1344 | 26T 48P Aluminum Pinion Gear | 1 |
| 1345 | 27T 48P Aluminum Pinion Gear | 1 |
| 1346 | 28T 48P Aluminum Pinion Gear | 1 |
| 1347 | 29T 48P Aluminum Pinion Gear | 1 |
| 1348 | 30T 48P Aluminum Pinion Gear | 1 |
| 1349 | 31T 48P Aluminum Pinion Gear | 1 |
| 1350 | 32T 48P Aluminum Pinion Gear | 1 |
| 1351 | 33T 48P Aluminum Pinion Gear | 1 |
| 1352 | 34T 48P Aluminum Pinion Gear | 1 |
| 1353 | 35T 48P Aluminum Pinion Gear | 1 |
| 25225 | M3 x 3mm Set Screw | 20 |

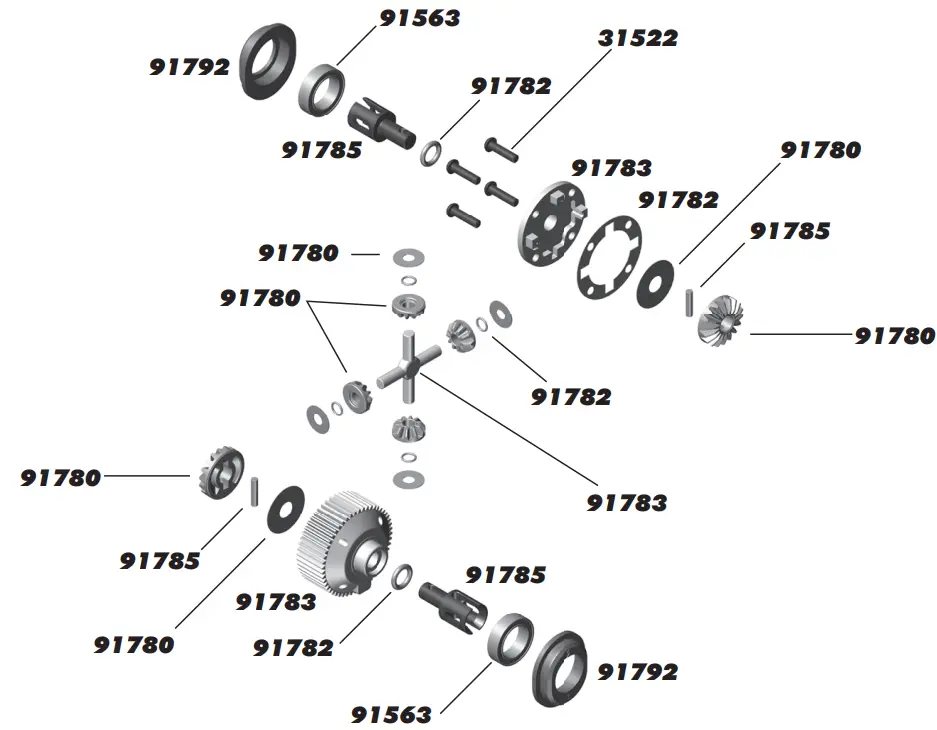

:: Gear Differential
| 31522 | M2.5 x 10mm BHCS | 10 |
| 91563 | FT Bearings, 10x15x4 mm | 4 |
| 91780 | B6.1 Gear Differential Rebuild | 1 |
| 91782 | B6.1 Gear Differential Seals | 1 |
| 91783 | B6.1 Gear Differential Case | 1 |
| 91784 | B6.1 Aluminum Cross Pins | 2 |
| 91785 | B6.1 Gear Differential Outdrives | 2 |
| 91786 | B6.1 Gear Differential | 1 |
| 91792 | B6.1 Differential Height Inserts | 2 ea. |
| 5450 | Silicone Diff Fluid 1,000CST | 1 |
| 5451 | Silicone Diff Fluid 2,000CST | 1 |
| 5452 | Silicone Diff Fluid 3,000CST | 1 |
| 5444 | Silicone Diff Fluid 4,000CST | 1 |
| 5453 | Silicone Diff Fluid 5,000CST | 1 |
| 5446 | Silicone Diff Fluid 6,000CST | 1 |
| 5454 | Silicone Diff Fluid 7,000CST | 1 |
| 5455 | Silicone Diff Fluid 10,000CST | 1 |
| 5466 | Silicone Diff Fluid 15,000CST | 1 |
| 5456 | Silicone Diff Fluid 20,000CST | 1 |
| 5457 | Silicone Diff Fluid 30,000CST | 1 |
| 5458 | Silicone Diff Fluid 60,000CST | 1 |
| 5448 | Silicone Diff Fluid 80,000CST | 1 |
| 5459 | Silicone Diff Fluid 100,000CST | 1 |
| 5461 | Silicone Diff Fluid 200,000CST | 1 |
| 5463 | Silicone Diff Fluid 500,000CST | 1 |
| 5465 | Silicone Diff Fluid 1,000,000CST | 1 |

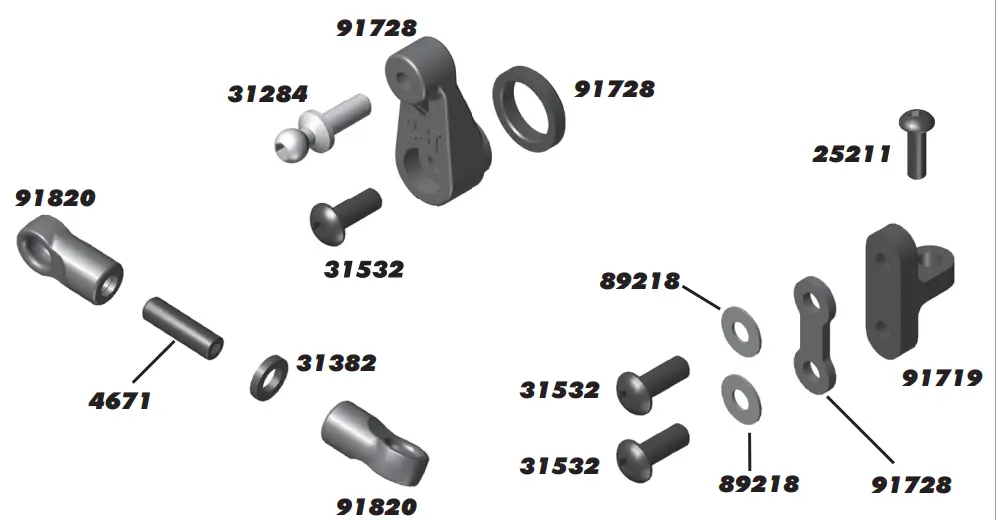

:: Turnbuckles and Servo Mounts

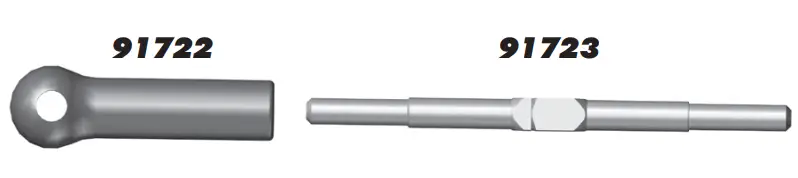

| 4671 | M3 x 10mm Set Screw | 6 |
| 25211 | M3 x 10mm BHCS | 20 |
| 31284 | Ball Studs Long, 8mm | 6 |
| 31382 | FT Ballstud Washer, aluminum1mm | 10 |
| 31532 | M3 x 8mm BHCS | 6 |
| 89218 | M3 x 8mm Washers | 10 |
| 91719 | Servo Mount, B6 | 2 |
| 91722 | Ball Cups, B6 | 12 |
| 91723 | 3 x 48mm Turnbuckle | 2 |
| 91728 | B6 Servo Horns, 15.5 mm | 1 |
| 91820 | B6.1 Ball Ends | 1 |

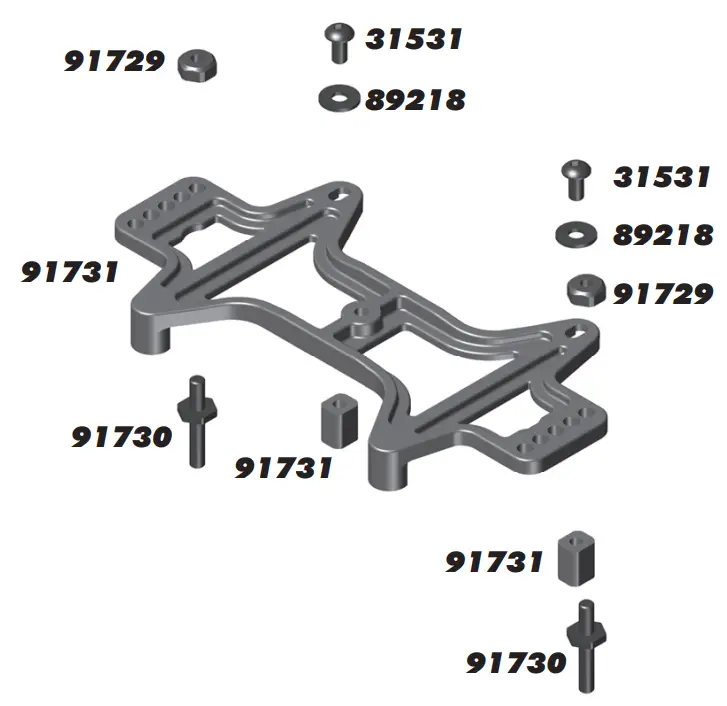

:: Battery Strap
| 31531 | M3 x 6mm BHCS | 20 |
| 89218 | 3 x 8mm Washers | 10 |
| 91729 | Thumb Screw, B6 | 2 |
| 91730 | Battery Strap Shoulder Screw | 2 |
| 91731 | Battery Strap, B6 | 1 |
