Segway E Series E100 Electric Scooter User Manual

Segway eScooter
User Manual
E series

Welcome
Thank you for choosing Segway eScooter. This product can be registered as a Scooter vehicle. Combining advanced wireless positioning technology and smart App control, the Segway scooter promises a brand-new riding experience.

http://app.ninebot.cn/

Please read the user manual carefully to fully understand the vehicle’s usage and maintenance methods. Please note that the pictures shown are for illustration purposes only. The pictures do not refer to a particular model of the product. The actual product may vary due to different models. No legal claims can be made on the basis of data in this manual.

Overview

IMPORTANT
For the purpose of emphasis, the words and symbols of “WARNING” () “CAUTION” () and “NOTE ( * )” have special meanings. Pay extra attention to information highlighted by these signals:
WARNING indicates a potential hazard that could result in death or serious injury. CAUTION g indicates a potential hazard that could result in minor or moderate injury.
NOTE ( ) indicates information that makes installation and maintenance easier.

* NOTE
You must thoroughly understand the user manual before riding the Segway scooter. This manual should be considered as a permanent part of the vehicle and should remain with the vehicle if or when ownership is changed.

* NOTE
Read the Service and Maintenance Record thoroughly so you understand the coverages under which your vehicle is covered, as well as your rights and responsibilities.

WARNING

• Check and obey all local laws or regulations of Lie Scooter driving in your region or country.
• Do not ride through deep water, submerge the vehicle, or wade in the water for a long time. The battery will be damaged and it will cause serious damage to the scooter.
• You must wear a helmet and protective gear when riding at all times.
• Improper decorations and modifications may result in fatal injury. We strongly advise that you do not modify your Segway eScooter or remove any original equipment. Changing its original design or operation will be dangerous and will void the warranty.
• Do not use a high-pressure washer hose directly on the electrical components.

Riding Safety

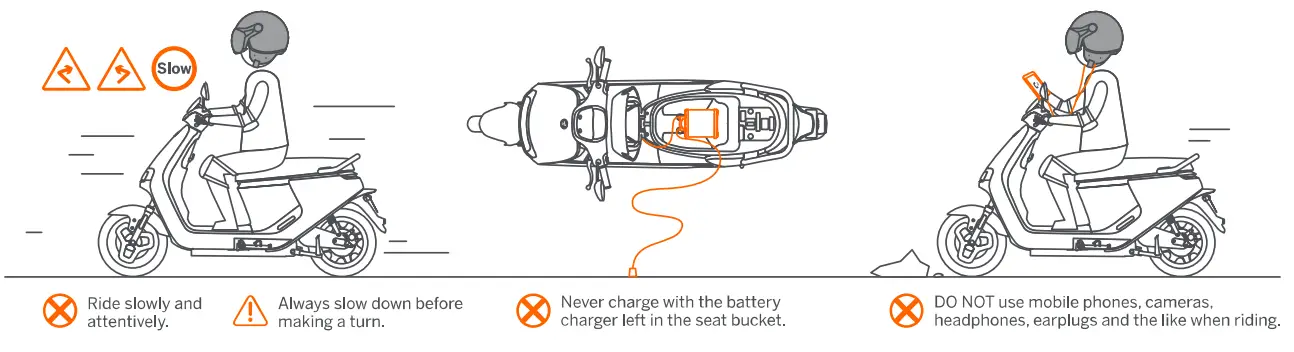

• Remember that whenever you ride this product, you risk injury from loss of control, collisions, and falls.
  To reduce the risk, you must read and follow all “CAUTION” and “WARNING” notices. Please understand that you can reduce the risk by following the instructions and warnings in this manual, but you cannot eliminate all the risks. Please use common sense when riding.
• In order to master riding skills, practice is necessary. Use caution to avoid falls or collisions causing injury to yourself or others. Neither Ninebot Inc., which means Ninebot (Beijing) Tech Co., Ltd. and its subsidiaries and affiliates nor Segway Inc. would be responsible or liable for any injuries, damage, or legal disputes caused by the rider’s inexperience or failure to follow the instructions indicated in this manual.
• When entering public places, always comply with the local laws and regulations.
• In places without laws regarding Scooter, comply with the safety guidelines outlined in this manual.
• Do not modify the scooter or change parts by yourself. Use only Ninebot or Segway-approved parts and accessories. Any modifications to your scooter could interfere with its operations. result in serious injury and/or damage, or void the Limited Warranty. If you need to replace any component, please contact after-sales service or an authorized dealer.
• If the scooter makes abnormal sounds or signals an alarm, stop riding immediately. Contact after-sales service for advice.

Who Should Not Ride:
Those who should not ride Segway eScooter include:
I. Underaged people.
II. Anyone under the influence of alcohol, drugs, or intoxicants.
III. Anyone who suffers from diseases that put them at risk if they engage in strenuous physical activity.
IV. Pregnant women.
V. Those with compromised mental abilities who cannot understand the risks and proper operation of the vehicle.

Riding Surfaces and Environment:

• Do not ride in bad weather.
• Slow down and ride with care on complex road conditions. Segway scooter might lose control if ridden at high speeds to pass obstacles, bumpy roads, and low traction surfaces (including, but not limited to, wet ground, loose sand, loose gravel, and ice) when riding on slopes or making sharp turns.
• When riding in rainy or snowy weather, the traction is reduced and the braking distance is increased. For your safety. please drive slower and brake earlier to reduce the risks of loss of control and falls.

Before Riding:

• Before each ride, inspect the brake system and tire conditions and make sure there are no loose or damaged parts.
• DO NOT allow anyone to ride the scooter on their own unless they have carefully read this manual. The safety of a new rider is your responsibility. Assist new riders until they are comfortable with the basic operations. Make sure each new rider has gone through the New Rider Tutorial and is made fully aware of the safety precautions.
• When the remaining battery is less than 20%, charge the scooter in time with the original charger. Please regularly check the lights, tire pressure, tire tread, brake cable, rear-view mirrors, and other components function properly.

Instructions on Riding and Usage:

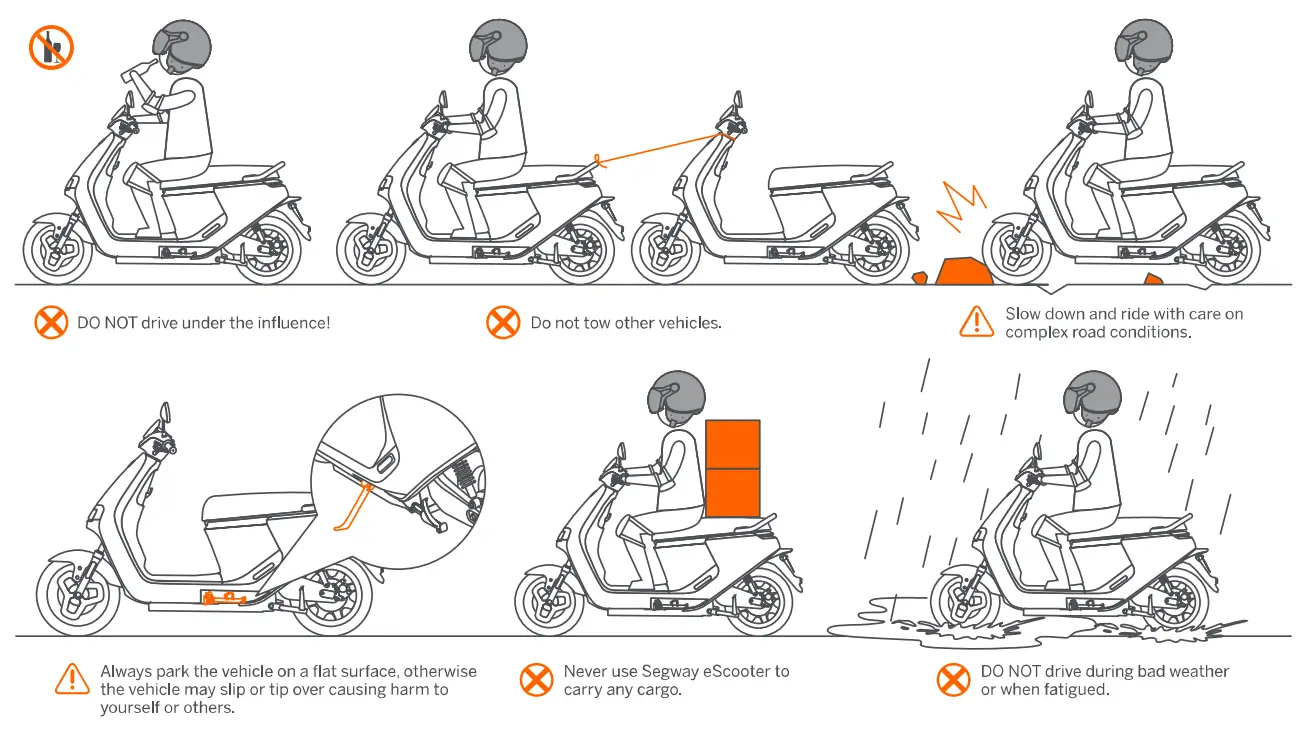

• ONLY ride on flat paved surfaces. DO NOT accelerate or brake abruptly when driving.
• Stay alert when driving and always keep a safe distance from other vehicles. Slow down when entering a new environment.
• Please hold the handlebar with both hands to avoid serious injuries due to loss of balance or falling. DO NOT use a cell phone, camera, headphones, or earbuds, or perform any other activities while riding.
• Slow down when approaching intersections. motorways. corners, doors, etc. Yield the right of way for pedestrians, bicycles, and motor vehicles.
• If any abnormality occurs, stop riding immediately and contact the after-sales service in time. DO NOT ride before the cause of the abnormality is found out and repaired.
• Always park the vehicle on a flat surface after turning it off. Otherwise, the vehicle may slip and cause harm to you or others.

Warnings and Precautions
Potential safety hazards involved.
Avoid all dangerous driving activities!

Package and Functions

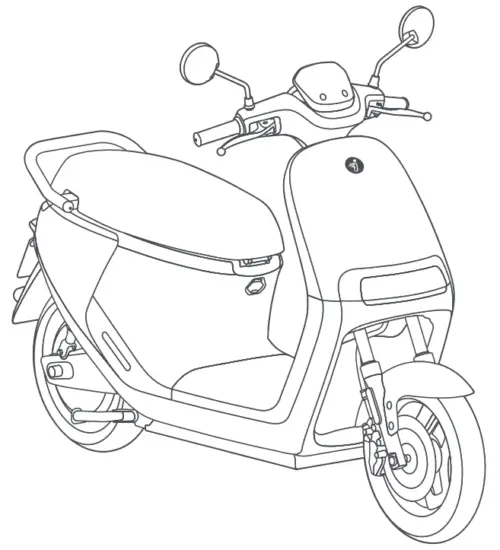

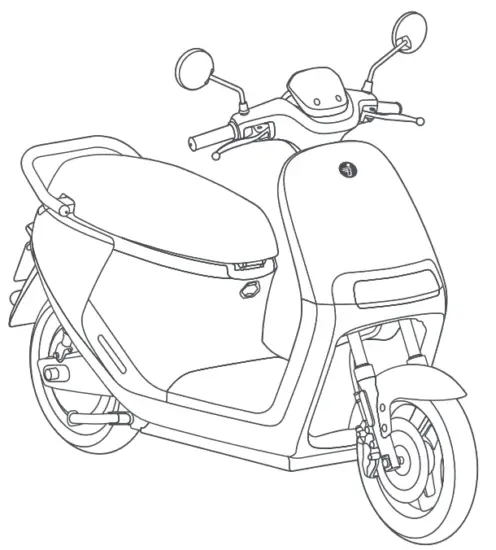

Vehicle

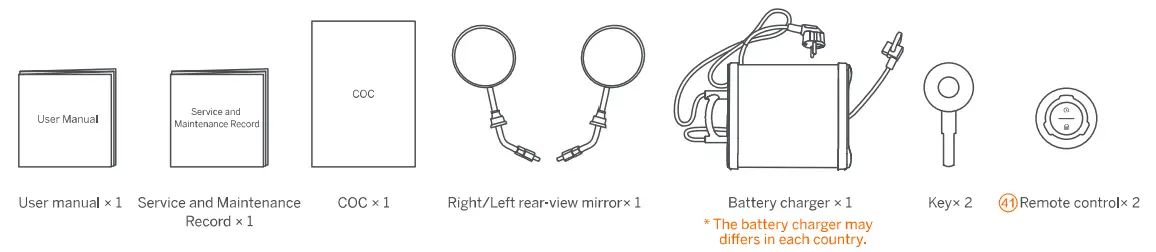

Accessories

When unpacking. please check if all items are in good condition. If there are any missing or defective parts. please contact your dealer or the after-sales service.
To avoid damage to vehicle parts or to avoid accidents. please consult with your dealer for service and vehicle adjustment.

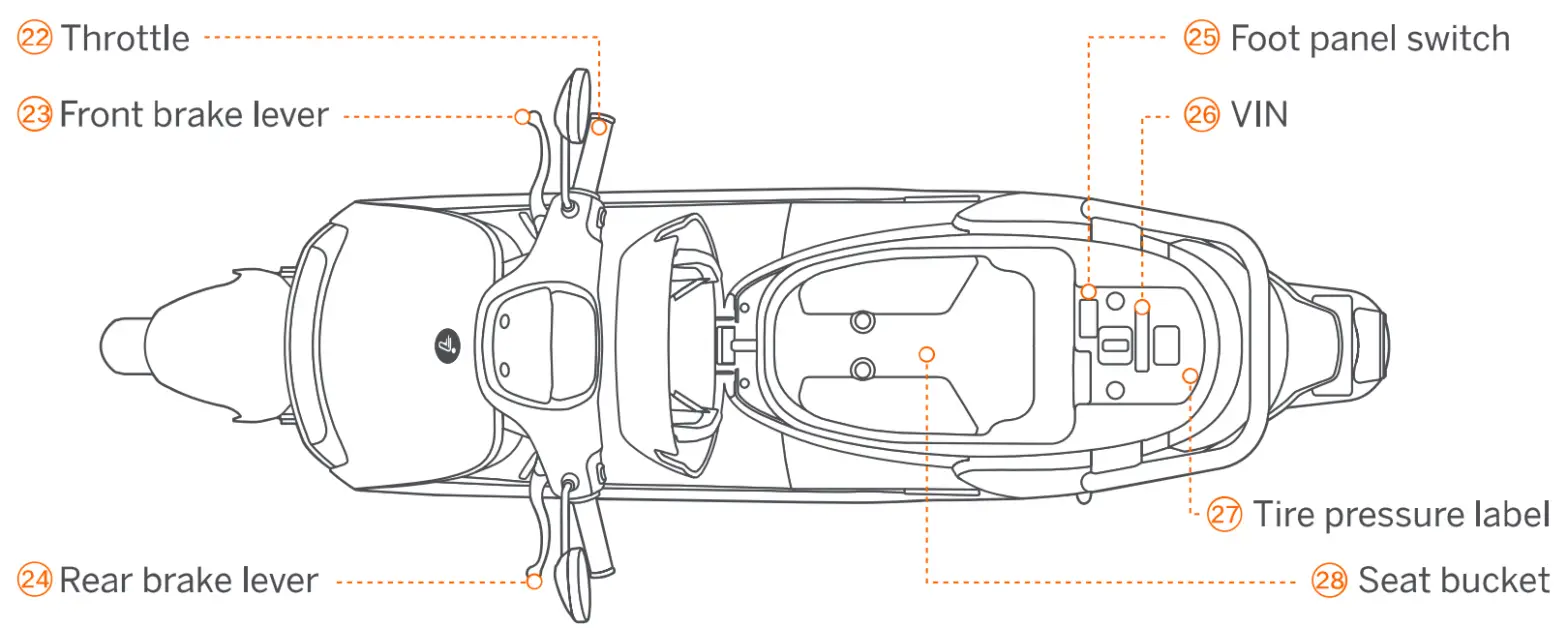

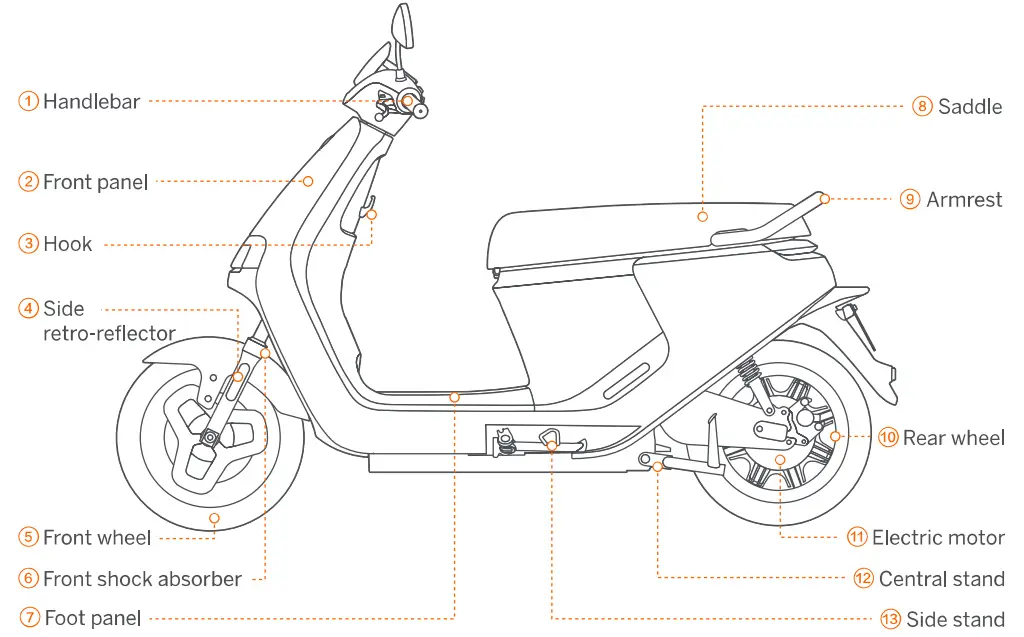

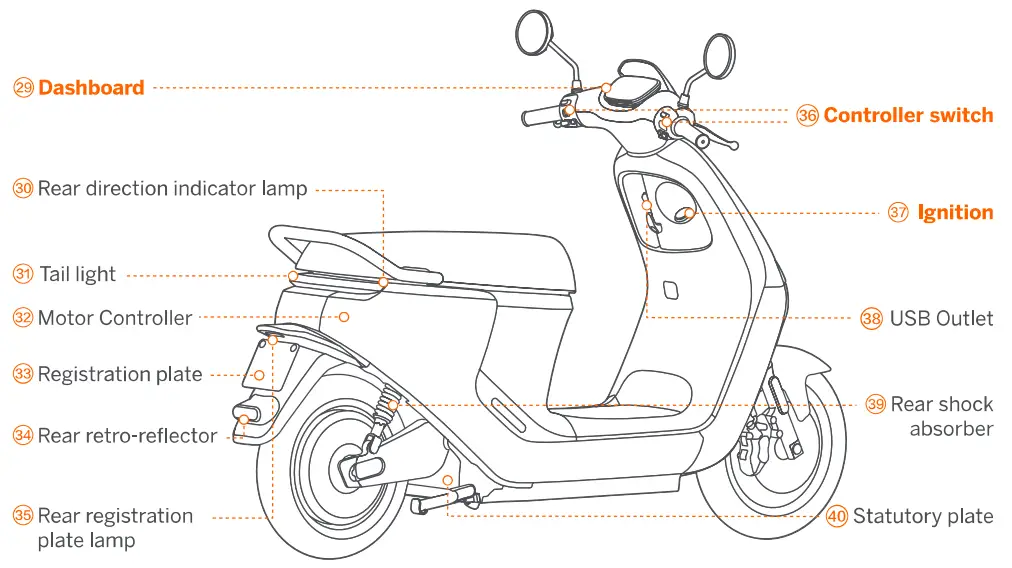

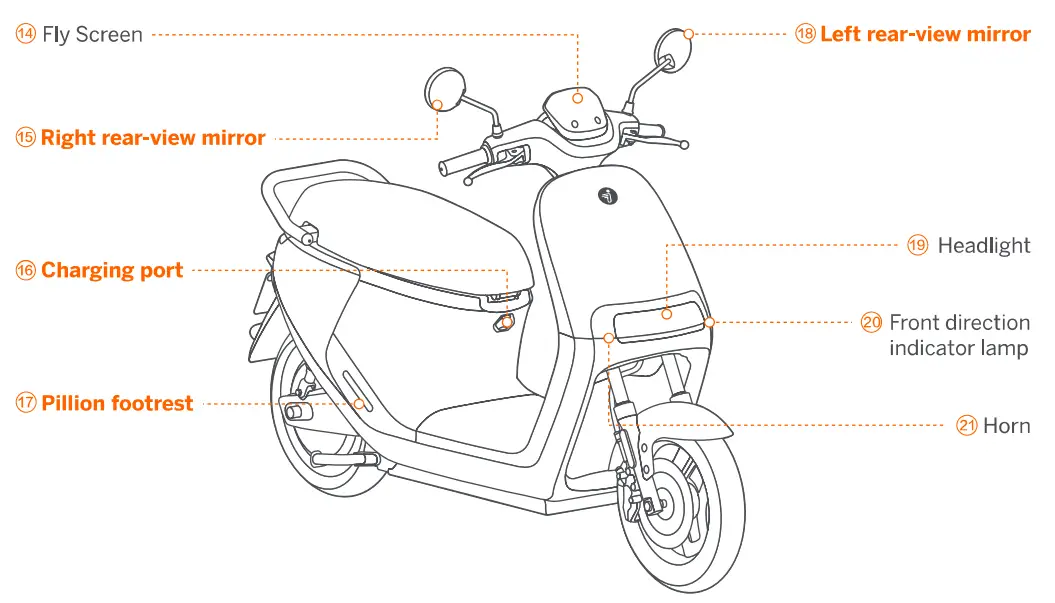

Parts and Functions

Functions of the Remote Control

Follow the instructions of step 1 in “First Use”. The remote control can work when the scooter is powered on and the distance between the remote control and the scooter body is no greater than 10 m.

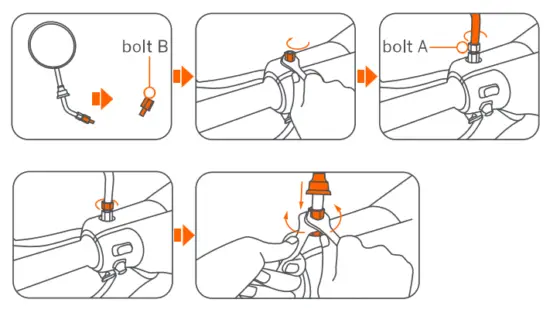

15. 18. Rear-view mirror installation
a. Unscrew bolt B as shown in the picture.
b. Mount onto the handlebar and affix the bolt.
c. Screw the rear-view mirror into the bolt counterclockwise. Turn bolt A until it comes into contact with bolt B.
d. Tighten the bolts in the opposite direction with the wrenches. Slide down the protector to cover the bolts.

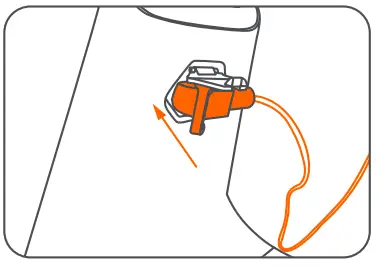

16. Charging port

Charge the Vehicle

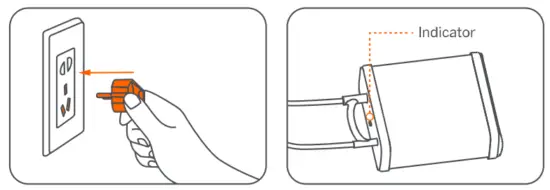

Please power off Segway eScooter before charging.	The charger indicator turns green when the battery pack is fully charged.

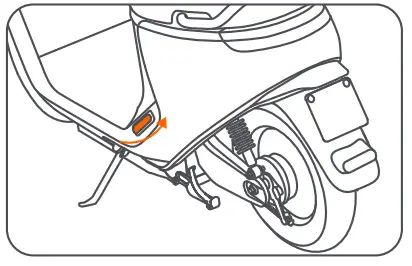

17. Pillion footrest

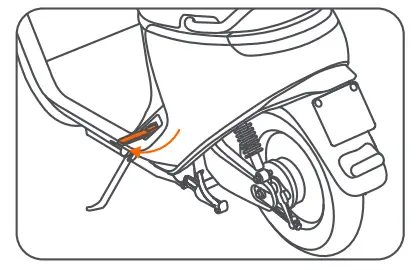

Open: Push the footrest and it will pop out automatically.	Close: Push the footrest inward.

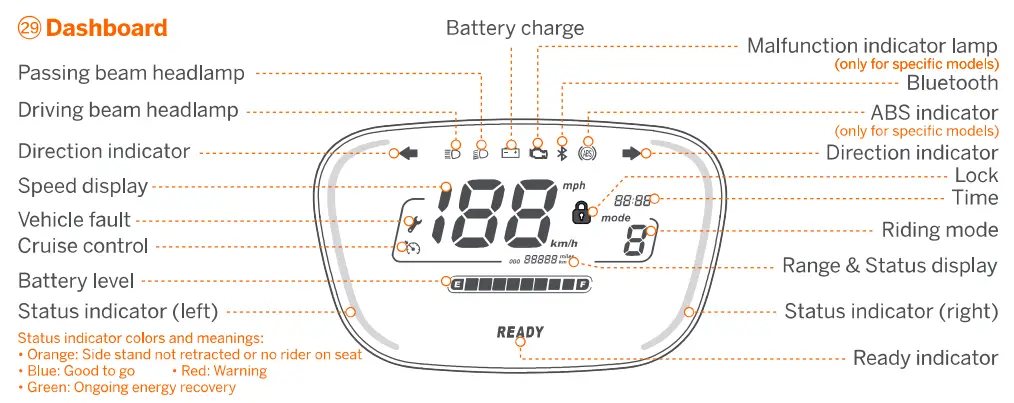

Symbol	Symbol Name	Description	Details
READY	READY indicator	When READY is on. the vehicle is good to go.	When the side stand is folded up and a person sits on the seat, press the Auto Key, and READY is on.
	Direction indicator (Left/Right)	1. Flash when the left/right turn button is pressed. 2. When both direction indicators (left and right) light up simultaneously with the warning indicator, the vehicle is in a warning state.	1. When toggled (at left combination switch) to the left/right, the left/right turn signal is on. Press again to turn off the turn signal. 2. When pressing (at the right combination switch), the left/right turn signal and this indicator will flash to alert pedestrians and other vehicles. press again to remove the warning.
	Driving beam headlamp	The high beam is on when it lights up.	Find button at the left combination switch, and toggle it to light up the high beam.
	Passing beam headlamp	The low beam is on when it lights up.
	Battery charge	The battery power is low and needs charging when it lights up.	When the battery power is low, this indicator lights up, and the battery level bar on the dashboard flashes.
	Malfunction indicator lamp	The indicator light will light up when the vehicle has a malfunction.	This indicator will flash once when powering on; This indicator will light up when the vehicle has a malfunction, and the error code will be displayed on the dashboard.
	Bluetooth	The vehicle is connected to a phone when it lights up.
	ABS indicator	The indicator light is off when the vehicle working normally.	if the symbol stays on when the speed is:> 5 km/h, it means there is an error in the ABS.
	Cruise control	The vehicle is in cruise control when it lights up.	During riding, press(at the left combination switch) to lock the current vehicle speed: Turn the throttle or brake lever to remove the cruise control.
	Vehicle failure	When the icon flashes, the vehicle has a malfunction.

	Vehicle lock	The vehicle is locked when the icon lights up.	Press on the Remote Control to lock the vehicle; Press to unlock the vehicle, at the same time, this indicator off.
	Speed display	1. Indicates the current speed. 2. Displays the error code when there is a malfunction.	mph : Imperial units km/h : Metric unit
	Clock	Indicates current time.
	Range	Indicates the total distance traveled.	miles: Imperial units km: Metric unit
	Status display	: While the vehicle is locked, insert the key and turn to ON mode. : The vehicle is still in ON mode when trying to turn it off via remote control or by pressing the Auto button. : The throttle is turned while the side is supported. : The throttle is turned while charging. : The throttle is turned when there is no rider.

Symbol	Symbol Name	Description	Comments
	Riding mode	Indicates the current gear.
	Remaining battery level	Bars of remaining battery.

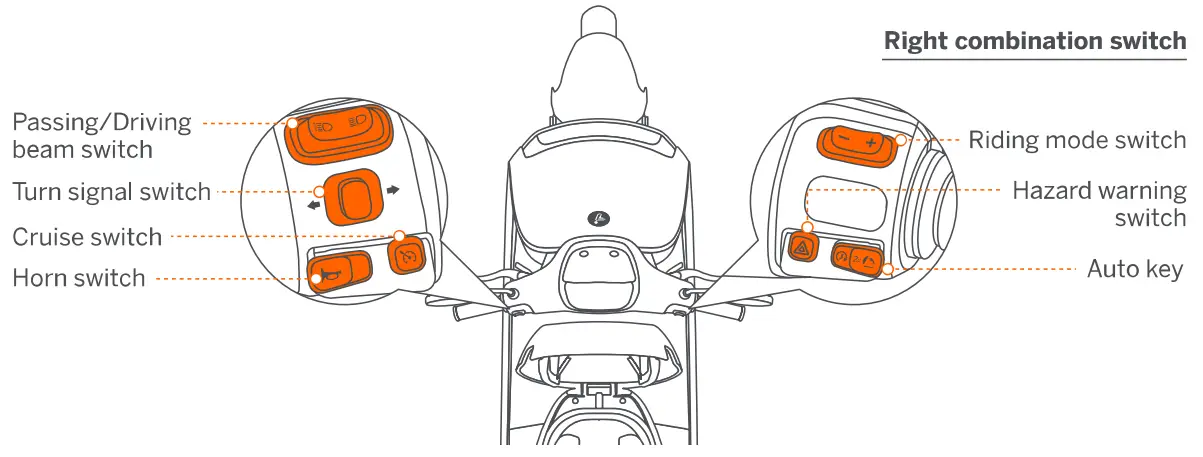

Controller switch

Left combination switch

Symbol	Symbol Name	Meaning
	Passing/Driving beam switch	1. Toggle it to the right to activate the high beam; toggle it to the center to turn off the high beam. 2. Slide it all the way to the left to turn on the overtaking signal; Release to cancel the overtaking signal.
	Turn signal switch	When toggled to the left, the left turn signal turns on. The button resets automatically after release. Toggle it to the center and press to turn off the left turn signal. When toggled to the right, the right turn signal is on. The button resets automatically after release. Place it at the center and hold it down to turn off the right turn signal.
	Horn switch	When pressed, the horn is sounded to alert pedestrians or other vehicles.
	Cruise switch	When pressed, the vehicle will cruise at the current speed. The cruise control can be canceled by pressing the button again, turning the throttle, or braking.
	Ridingmodeswitch	Press “+” to increase the mode (higher speed), and press “-” to decrease the mode (lower speed)
	Auto key	When the vehicle is on, double-press to open the seat bucket or press and hold to switch off the vehicle. If The airLock is enabled in the App, hold this button while the paired phone is within range to turn on the vehicle. When the side stand is folded up and the rider is on the seat, press this key, and the READY indicator is on.
	Hazard warning switch	When the button is pressed, both the left and right turn signals will flash to alert pedestrians and other vehicles.

37. Ignition

OFF position The vehicle is powered off.	OPEN position Rotate left to open the seat bucket.
ON position The vehicle is powered on.	LOCK position Turn the handlebar to the very left, then turn the key to the left end while pressing it down, so that the handlebar is locked.

First Use

For your safety, please go through the New Rider Tutorial in Segway-Ninebot App.

1. Turn on

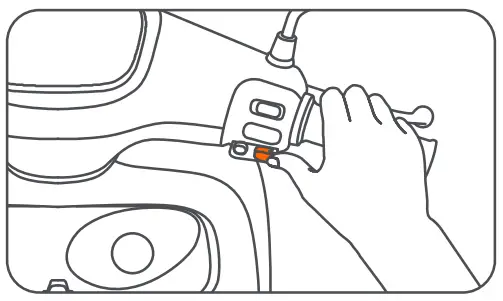

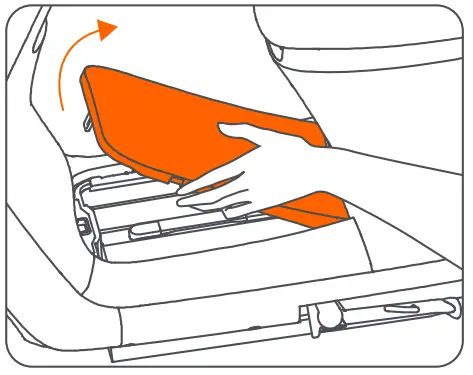

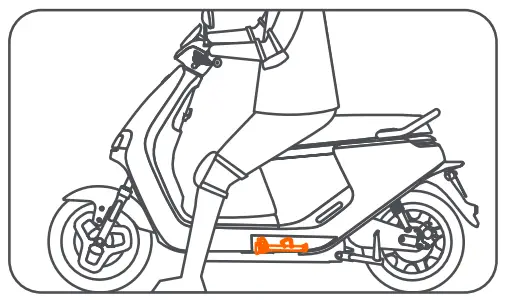

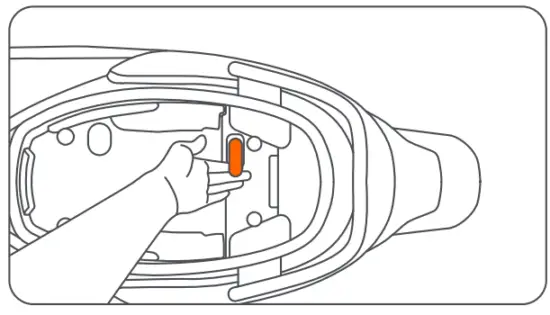

   a. Open the seat bucket with your key, and pull the foot panel switch to unlock it.	b. Lift the lid.
   c. Connect the battery plug.	d. Close the lid.

2. Powering-on and activation
   a. Power on:
   Option 1: Power on with the key [see 37 Ignition].
   Option 2: Press the ON button on the remote control [see 41 Functions of the Remote Control for details]. b. Activation:

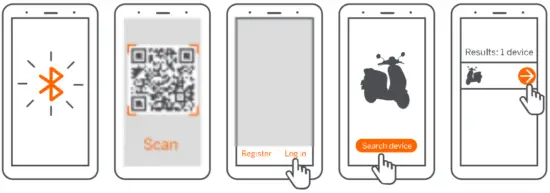

   Enable AirLock: Enable Bluetooth on your phone, scan the QR Code on the dashboard to download and install the app > register and log in > click “Search device” > Connect. Follow the instructions to bind your Segway eScooter.
3. How to power on/lock the vehicle after activation
   There are four ways to power on/lock the vehicle.
   Option 1: Use the remote control: Press the ON/OFF button to unlock and power on the vehicle: Press the lock button to power off and lock. [See 41 Functions of the Remote Control for details]
   Option 2: Use the key: Insert the key and turn it clockwise to ON position to power on or counterclockwise to LOCK position to lock. [see 37 Ignition]
   Option 3: Press the Auto button [see 36 Controller Switch]
   Option 4: Via the Segway-Ninebot app as shown below:
   1. Press the On/Off button on the vehicle homepage.
   2. Press “Confirm” on the popped-up window.
   3. When the indicator on the dashboard is pre-light, press and hold the Auto button to power on/lock the vehicle.

Learn to Ride

a. When powered on via the App. sit on the cushion and retract the side stand.	b. Press the Auto Key.

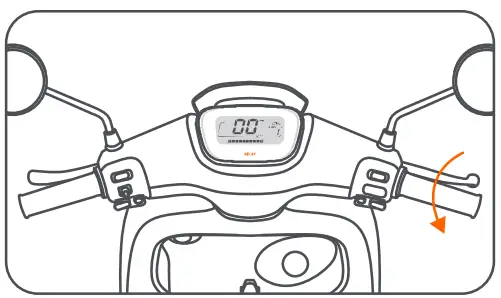

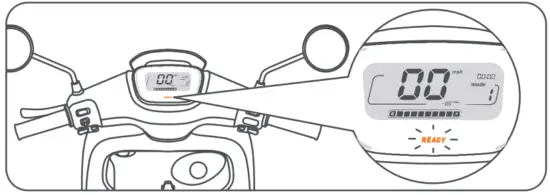

c. The “Ready” indicator lights up.	d. Squeeze the throttle inwards to go.

Installation of Lithium-ion Battery

For EllOSE / EllOS:

NOTE: Before installation, make sure there is no foreign object in the battery compartment and there is only one plug inside.

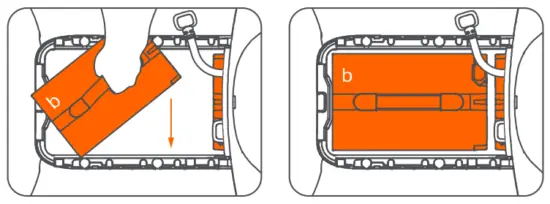

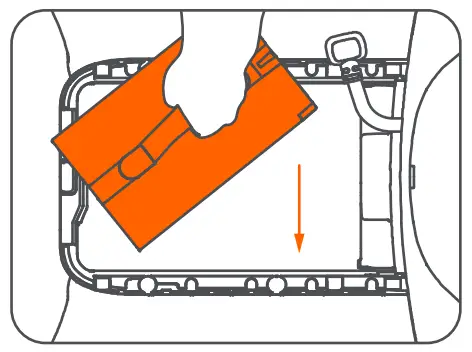

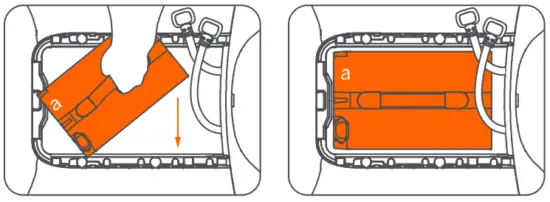

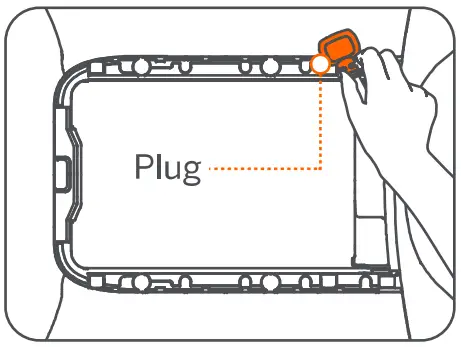

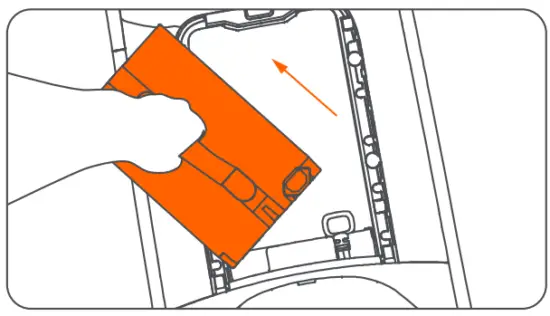

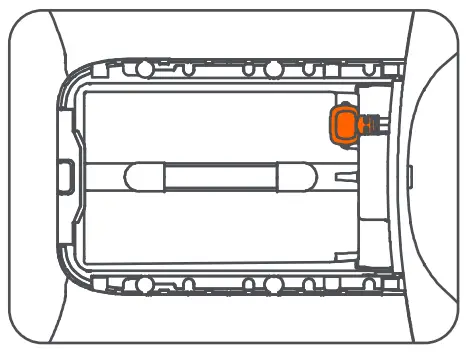

1. Place the battery in.	2. Connect the battery plug.

For E125S:
NOTE: Before installation, make sure there are no foreign objects in the battery compartment with two plugs inside.

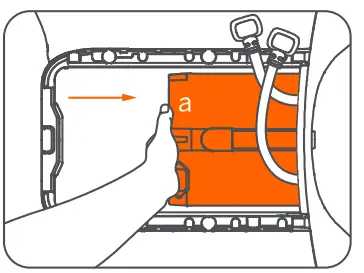

1. Place the battery (a) in.	2. Push the battery (a) to the inner end.

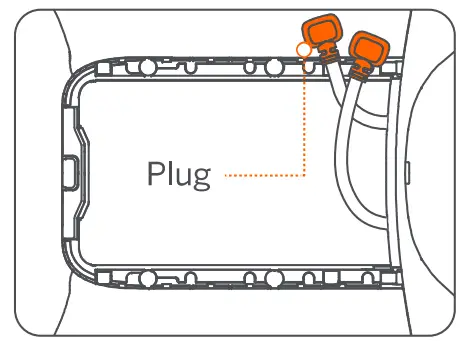

3. Connect the battery plug on the corresponding side.	4. Place the battery (b) in the compartment.

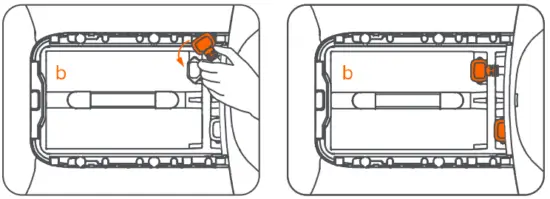

	5. Connect the battery plug(s).

* The battery (a) means the first battery: (b) is for the second battery.

Charge the Battery

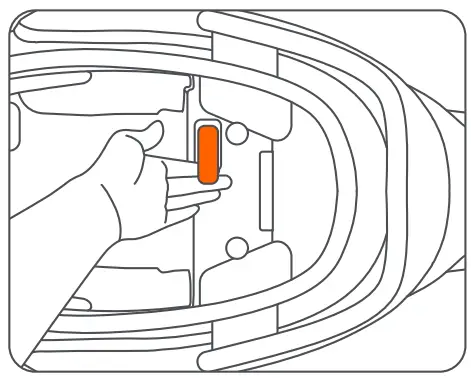

1. Use the key to open the seat bucket and pull the foot panel switch to unlock it.	2. Open the driver’s footrest, which is also the battery compartment lid, and take out the battery.

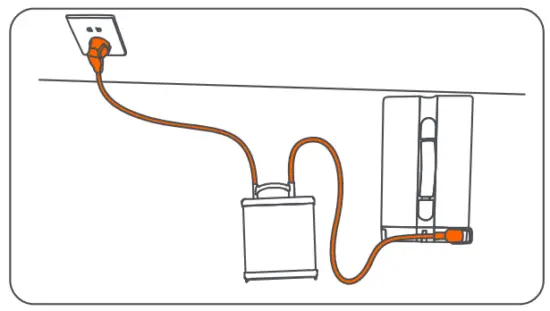

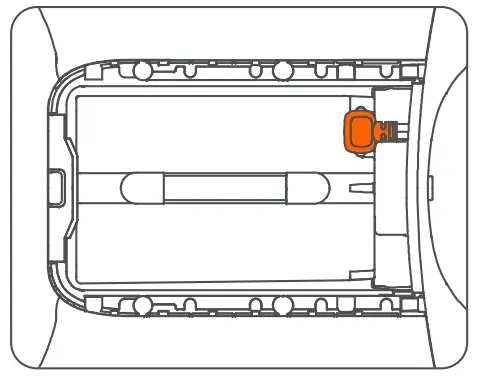

3. Connect the charging cable to the charging port on the battery and then plug it into a power socket.	* The indicator on the battery charger shows solid red when charging and turns green when finished.

* For how to charge the vehicle, see [16 Charging Port] on page 8.

Common Faults and Solutions

Maintenance

Cleaning and maintenance
Cleaning Wash with water and neutral detergent and use a soft and wet cloth to clean.

CAUTION
DO NOT clean with alcohol, gasoline, acetone, or other corrosive/volatile solvents. These substances may damage the appearance and internal structure of the vehicle. DO NOT rub with sandpaper or a metal brush.
WARNING Before cleaning, make sure the vehicle is powered off.
Storage
Store in a dry and cool place indoors and avoid sunlight and rain, so as to avoid oxidation and shorten the service life. Disconnect the battery plug for long-time storage to prevent over-discharge.

Motor

1. When driving through puddles or pools of water, make sure that the water level should not exceed the central axis of the rear wheel.
2. Regularly check the motor. In case of any loose objects, tighten immediately.
3. Clean the vehicle regularly to prevent particles from entering the motor and affecting its normal function. Do not spray water directly during cleaning.
4. Inspect if there are any scratches on the motor and whether there is any abnormal noise when the motor is running. In case of any abnormality, contact after-sales service or your dealer.

Battery

1. In case of any malfunction with the battery. please contact the after-sales service or an authorized dealer.
2. DO NOT drain the battery. It is recommended to keep the battery level above 15%. Charge after each ride to prolong the service life of the battery.
3. It is strictly prohibited to disassemble the battery. There is a danger of electric shock, and short circuits. fire, explosion. etc.
4. When the battery indicator bars are all lit up or the charger indicator turns green. it means the battery is fully charged.
5. If you are not going to use the vehicle for a long time, take out the battery after it is fully charged, place it in a dry and well-ventilated place, and charge it every two months.
6. DO NOT store the battery in a place where there is a risk of falling. Falling may cause battery damage and short circuit, fire, and explosion.

Battery Charger
Before charging:

1. The charger should ONLY be used to charge the original vehicle. It is strictly prohibited to charge non-rechargeable batteries.
2. To prevent the electronic components inside the charger from loosening. DO NOT place the charger inside the vehicle.
3. The power supply voltage should be 200-240V AC.
4. Should you discover any wire damage or loose connector, stop using the Segway scooter.

During charging:

1. Place the vehicle in a safe place away from the elements.
2. Connect to the battery or vehicle charging port first, and then plug into the power socket.
3. When there is an unusual smell, sound, or light display. stop charging immediately and contact after-sales service.

After charging:

1. When the battery is full, disconnect from the power socket first and then unplug from the battery/vehicle.
2. After the charger cools down, place it in a safe place inaccessible to children.

WARNING

1. Ensure good ventilation during charging. Stay away from fire or explosive materials!
2. High voltage in the charger! DO NOT disassemble or replace parts of the charger.
3. DO NOT connect the charger to the power supply for a long time. Unplug from the power socket when not charging. DO NOT use the charger to charge multiple vehicles.
4. Regularly inspect the charger for damage to the cord and plug. enclosure and other parts. If any damage is found. stop using it until it is repaired or replaced.
5. The external cable of the charger cannot be replaced; if the cord is damaged, the charger must be discarded and replaced by a new one.
6. The charger should be handled with care.

Others

• Tires supplied with the product are to be mounted on the wheel by a professional repairer. Removing the wheels is complicated and incorrect assembly can lead to instability and malfunctions.
• You may find the limited warranty information in the service and maintenance record booklet.
• Efforts have been made to simplify wording in the user manual for users. Where an action appears too complicated for a user, he/she is advised to contact an authorized or a specialized repairer or customer service.
• For maintenance records and limited warranty, please refer to Segway eScooter Service and Maintenance Record.

NOTICE: INSURANCE YOUR INSURANCE POLICIES MAY NOT PROVIDE COVERAGE FOR ACCIDENTS INVOLVING THE USE OF THIS SCOOTER. TO DETERMINE IF COVERAGE IS PROVIDED, PLEASE CONTACT YOUR INSURANCE COMPANY OR AGENT.

Specifications

Certifications

This product is certified by EU No 168/2013.
The battery complies with UN/DOT 38.3.
The Radio Equipment Directive

Segway-Ninebot EMEA
EU Contact Address for regulatory topics only: Dynamostraat 7.1014 BN Amsterdam. The Netherlands Hereby. Nine Tech Co., Ltd. declares that the wireless equipment listed in this section is in compliance with the essential requirements and other relevant provisions of the RED Directive 2014/53/EU.

Trademark and Legal Statement

Ninebot. Ninebot Airlock, and RideyGo! is the registered trademark or trademark of Ninebot (Tianjin) Tech Co. Ltd; Segway and the Rider Design are the registered trademarks of Segway Inc.. Bluetooth is the registered trademark of BLUETOOTH SIG. INC.; Android, and Google Play are trademarks of Google Inc., App Store is a service mark of Apple Inc., The respective owners reserve the rights of their trademarks referred to in this manual. We have attempted to include descriptions and instructions for all the functions of the Segway eScooter EllOSE. EllOS. E125S at the time of printing. However, due to the constant improvement of product features and changes in design, your Segway eScooter may differ slightly from the one shown in this document. Visit the Apple App Store (i0S) or the Google Play Store (Android) to download and install the App. Please note that there are multiple Segway and Ninebot models with different functions, and some of the functions mentioned herein may not be applicable to your unit. The manufacturer reserves the right to change the design and functionality of the Segway scooter product and documentation without prior notice.
© 2020 Ninebot (Beijing) Tech Co.. Ltd. All rights reserved.

Legal Statement:

1. Please read the User Manual carefully and learn how to ride Segway eScooter. As a means of transport, the Segway scooter carries all the same potential risks as those of any other vehicle. There are risks of losing control, collisions, and falls when riding. In order to minimize the risks, you’re obliged to read the User Manual carefully before your riding. It covers most knowledge about how to ride the scooter safely and how to take appropriate precautions. If it is difficult for you to fully follow the riding instructions of the User Manual, please do not attempt to ride Your eScooter casually.
2. Please check and obey your local laws or regulations. It is the User’s responsibility to comply with all laws pertaining to the use of electric scooters in your jurisdiction. Various countries or regions have different laws and regulations about electric scooters, please note:
   (1) A helmet may be legally required by local law or regulation in your jurisdiction.
   (2) A Driving and/or Vehicle License of a scooter may be legally required by local law or regulation in your area.
   (3) Your scooter may not be allowed to be driven on motorways or highways.
   (4) Carrying pillion passenger(s) may be restricted in your jurisdiction. You can gain further guidance from the (local) government in your country or region.
3. Please insure yourself timely upon purchase of the product to minimize the risks of use.
4. Please check whether Your eScooter and its accessories are in good condition immediately when you receive them.
5. All components of Segway eScooter must be properly installed as per the User Manual. Inappropriate installation may lead to loss of control, collisions, and falls.
6. The product may contain removable components and small parts. Please keep it out of the reach of children to avoid choking hazards.
7. Before using Your eScooter, please check its tire pressure, battery level and vehicle installation status, and all functional parts. Check whether the front and rear brakes function properly and ensure that the brake cable is not damaged. The brake cable should have the right tension. Screws. nuts, bolts, and other fasteners must be checked. Make sure there’s no loose part. If any abnormality is found, please stop using it immediately and contact our after-sale service for help.
8. You should always be cautious and maintain a proper speed when riding. Avoid speeding, overloading, or performing stunts of any kind. Do not try to touch the tires with your hands or feet when riding.
9. Do not dispose of this product in a landfill, by incineration, or by mixing it with household trash. Serious danger/ injury can occur because of the electrical components and the battery. For information about battery and electrical waste. please contact your household waste disposal service. your local or regional waste management office, or your point-of-sale.
10. Try not to use any non-original accessories, and never dismantle or modify the product without authorization. All damage and loss arising therefrom will be your sole responsibility.
11. SEGWAY is subject to no compensation responsibility for any claim, liability, and loss that arises (or may arise) from violating any of the abovementioned clauses. The User(s) should undertake all and any unpredictable or inevitable risks during riding.
12. After purchase, you may either use the product according to the abovementioned clauses or return the Product as per the “Warranty Policies”. In the case of a return, please ensure that both the Product and the packaging thereof are in good condition for resale.
13. This document should be considered a permanent part of the product and should remain with the vehicle when it is resold.

Thank you again for choosing Segway eScooter!

The manufacturer reserves the right to make changes to the product, release firmware updates, and update this manual at any time. Visit www.segway.com or check the Segway-Ninebot App to download the latest user materials. In order to activate your Segway eScooter and obtain the latest updates and safety instructions, you must install the Segway-Ninebot App.
