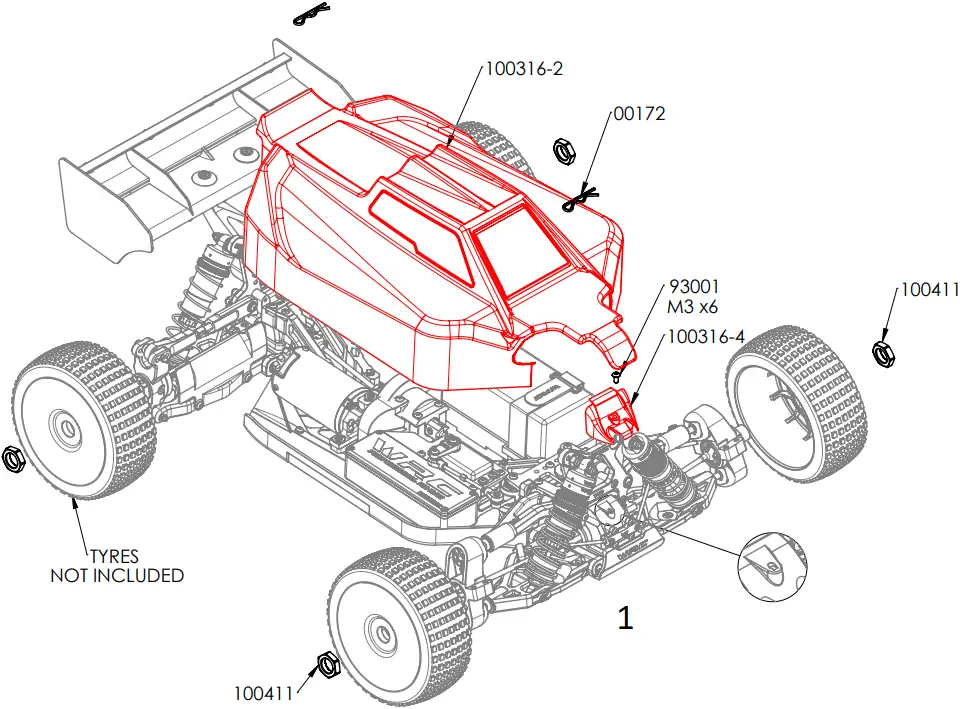

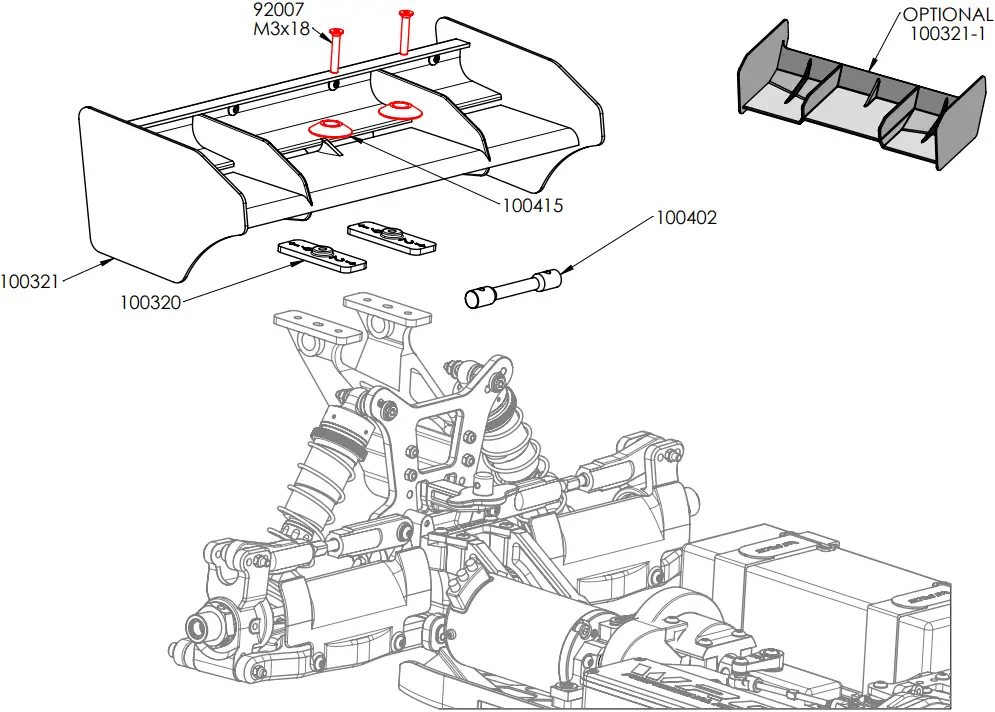

new generation rc car

1/8 OFF-ROAD 4WD ELECTRIC
RC PROFESSIONAL BUGGY

INSTRUCTION MANUAL

www.wrc-racing.com

NOTE:

INTRODUCTION

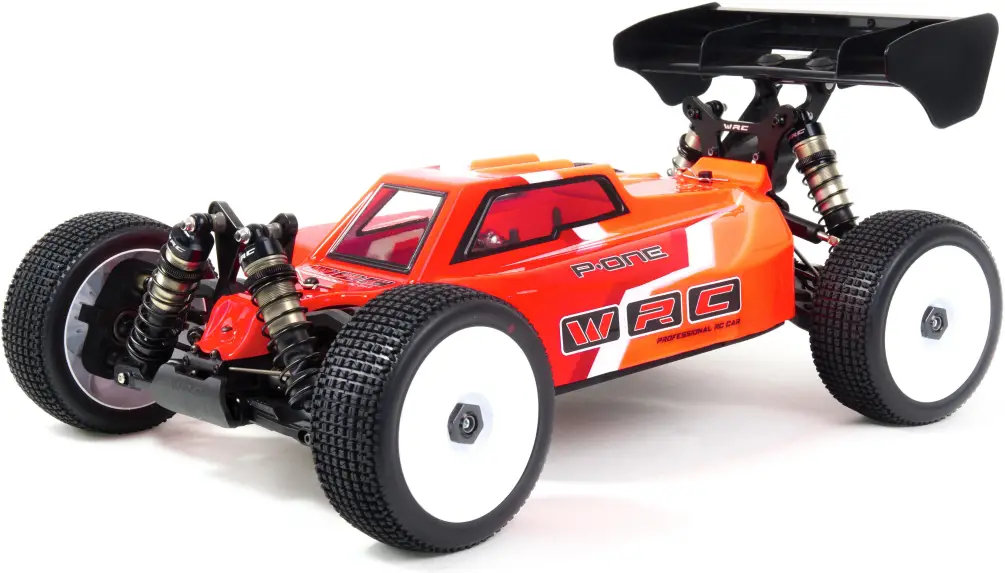

SBXE is a new generation high quality 1/8 scale electric off-road buggy.
SBXE is supplied in a box, you can download the Instruction manual from www.wrc-racing.com
Its use is intended for more than 16 years old persons with experience on rc model car field.
Children and all the persons without this requirement MUST have direct supervision of a knowledgeable adult responsible.

SAFETY PRECAUTIONS

Instruction Manual MUST be read and fully understood before to start building and operating functions.
Always keep Instruction Manual in safety place, ready to be consulted for any reference you need.
Use only original WRC spare parts.

GENERAL INFORMATION

Assemble the kit only away from the reach of children.
Follow the building and operating instructions using the utmost care.
Don’t put any part of your body inside rotating and moving elements as this may cause damage or serious injury.
Check and clean the model before putting it away.
Don’t use your model car in public places or in roads and areas where it could generate conflict with person or vehicular traffic.
The model car is controlled by radio: you MUST put great care to avoid loss of radio control always keeping a safety margin all around your model in order to prevent any collision.
Operating frequency: check and be sure it is clear and not shared with anybody at same time; it could cause loss of control of the RC model.
Always turn on your transmitter before you turn on the receiver in the car and always turn off the receiver before you turn off your transmitter.
Keep the wheels of the model off the ground when checking the operation of the radio equipment.
Disconnect the battery pack before storing your model.

WARRANTY

WRC guarantees this model kit to be free from defects in both material and workmanship within 30 days of purchase.
The total monetary value under warranty will in no case exceed the cost of the original kit purchased.
This warranty doesn’t cover any components damaged by use or modification or as result of wear.
Part or parts missing from this kit must be reported within 30 days of purchase.
No part or parts will be sent under warranty without proof of purchase.
If you find a defective or missing part, contact the local distributor.
Customer service and support will be provided through local hobby store.
No warranties are expressed or implied that cover damage caused by what is considered normal use or cover or imply how long any model cars’ components or electric components will last before requiring replacement.
Due to the high performance level of this model car you will need to periodically maintain and replace consumable components; any and all warranty coverage will not cover replacement of any part or component damaged by neglect, abuse or improper or unreasonable use.
This includes but is not limited to damage from crashing, excessive moisture, improper use or no maintenance or user modifications which compromise the integrity of components.
Warranty will not cover components that are considered consumable on RC model car.
WRC doesn’t pay nor refund on any component sent from WRC or its distributor for warranty.
WRC reserves the right to make final determination of the warranty status of any component or part
Use only original WRC spare part:

CUSTOMER SUPPORT

Please don’t hesitate to contact WRC support at [email protected] for any problem or question.
Also kindly visit our website www.wrc-racing.com to find last updates, set-up information, option parts and other information.

W.R.C. world racing car s.r.l.
Via Meucci, 23/B
36040 Brendola (VI)
ITALY

Phone: 0039 0 444 401138
fax: 0039 0 444 401139
E-mail: [email protected]
Website: www.wrc-racing.com

TECHNICAL INFORMATION

– WHEELS LOCK: Lightweight 17 mm 7075 T6 Nut
– CHASSIS: 3.0 mm Swiss 7075 T6 aluminium
– RADIO PLATE: Composite Material
– DRIVETRAIN TYPE: Spring steel CVD Driveshfts
– FRONT DIFFERENTIAL: Differential Gear
– REAR DIFFERENTIAL: Differential Gear
– SUSPENSION: Pivot ball suspension
– RIDE HEIGHT: Adjustable Front & Rear
– CAMBER: Adjustable Front & Rear
– CASTER: Adjustable Front
– TOE: Adjustable Front & Rear
– ROLLCENTER: Adjustable Front & Rear
– ACKERMANN: Adjustable Front
– ANTI-ROLL BARS: Adjustable Front & Rear

TECHNICAL DATA

– WIDTH ……………………………………… 310 mm
– WHEEL BASE ………… adjustable 315-320 mm.

ADDITIONAL ITEMS NEEDED FOR COMPLETION (REQUIRED BUT NOT INCLUDED IN THE KIT)

ENGINE AND MUFFLER TRANSMITTER RECEIVER

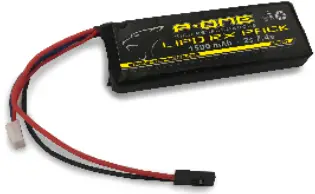

LOW PROFILE STEERING SERVO BATTERIES FOR TRANSMITTER AND RECEIVER

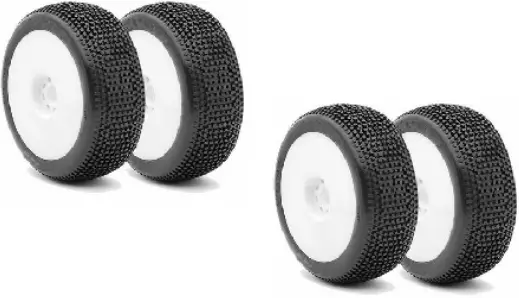

WHEEL – TYRES – INSERTS

2 X 7.4 V 1 X 14.8 V

LIPO BATTERIES

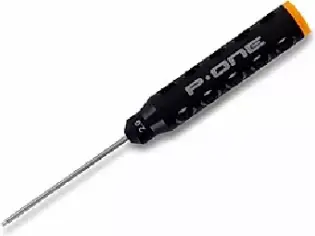

TOOLS REQUIRED

THESE TOOLS ARE NOT INCLUDED IN THE KIT BUT ARE REQUIRED FOR PROPER ASSEMBLY

ALLENS: SOCKET
1.5 mm 5mm
2 mm
2.5 mm
3 mm

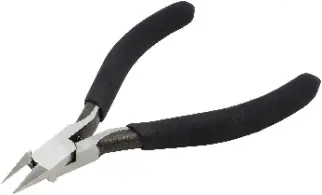

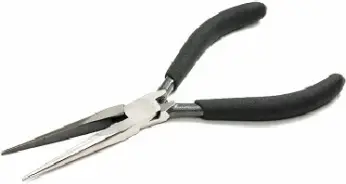

SIDE CUTTERS COMBINATION PLIERS

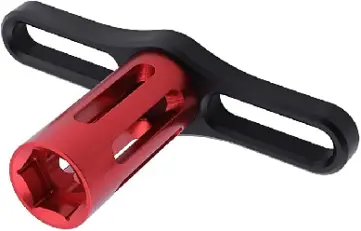

TOOL FOR TURNBUCKLES/NUTS WHEEL NUT TOOL 17mm

GREASE OILS: 5000 CST BEARING OIL

NOTICE:

THE FOLLOWING ITEMS ARE NEEDED FOR COMPLETION OF THE SBXE; THEY ARE NOT INCLUDED IN THIS KIT (UNLESS NOTED) AND SHOULD BE OBTEINED FROM YOUR LOCAL HOBBY SHOP.
BE SURE TO READ THE INSTRUCTION COMPLETELY PRIOR TO ASSEMBLY

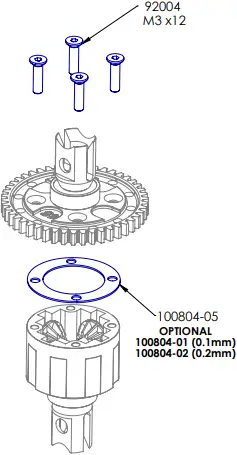

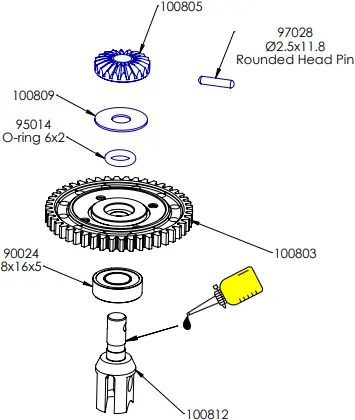

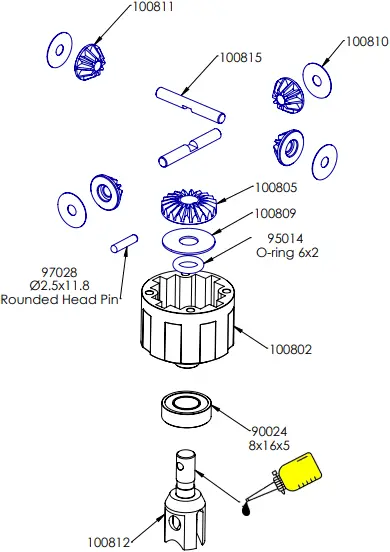

BAG 1

Central Diff. Gear

DIFFERENTIAL OIL :
Central : 5000 cst
Weight : 3 g
Fill the differential up to the top of the pin.
DO NOT fill the diff. to the top of the housing.

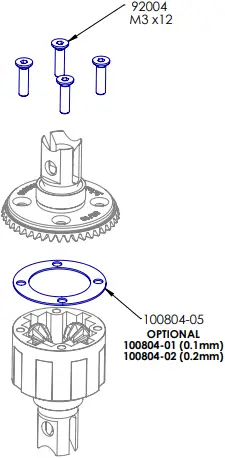

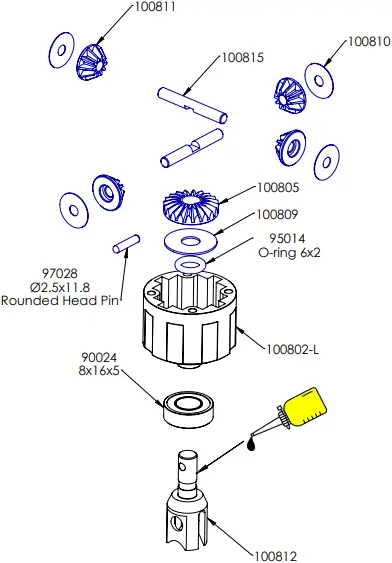

BAG 2

Front Diff. Gear

DIFFERENTIAL OIL :
Front : 5000 cst
Weight : 3 g
Fill the differential up to the top of the pin.
DO NOT fill the diff. to the top of the housing.

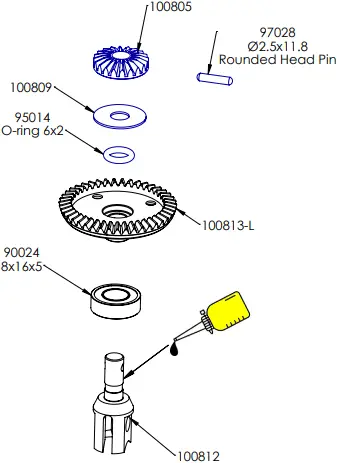

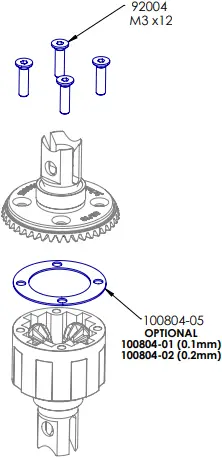

BAG 3

Rear Diff. Gear

DIFFERENTIAL OIL :
Rear : 5000 cst
Weight : 3 g
Fill the differential up to the top of the pin.
DO NOT fill the diff. to the top of the housing.

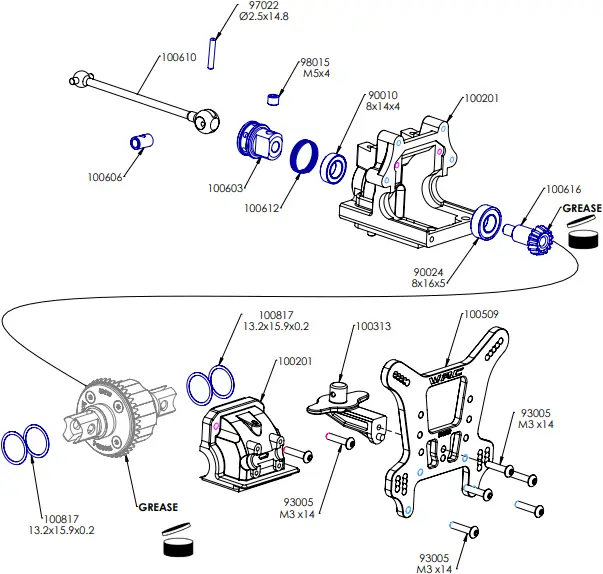

BAG 4

Rear Transmission

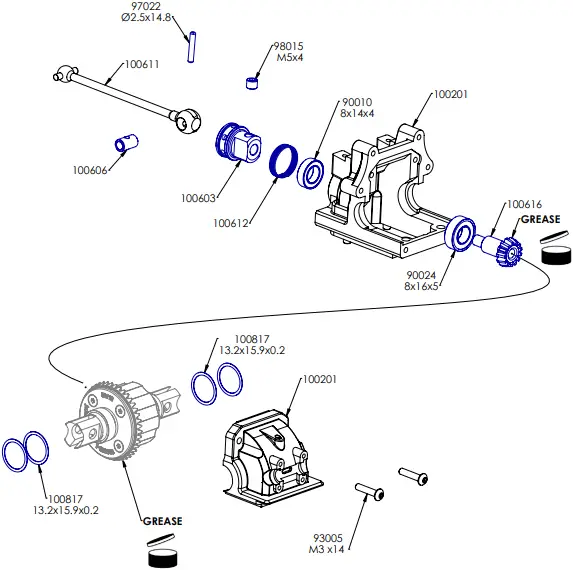

BAG 5

Front Transmission

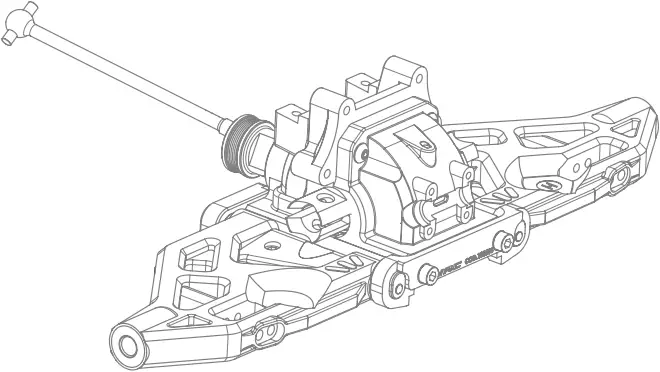

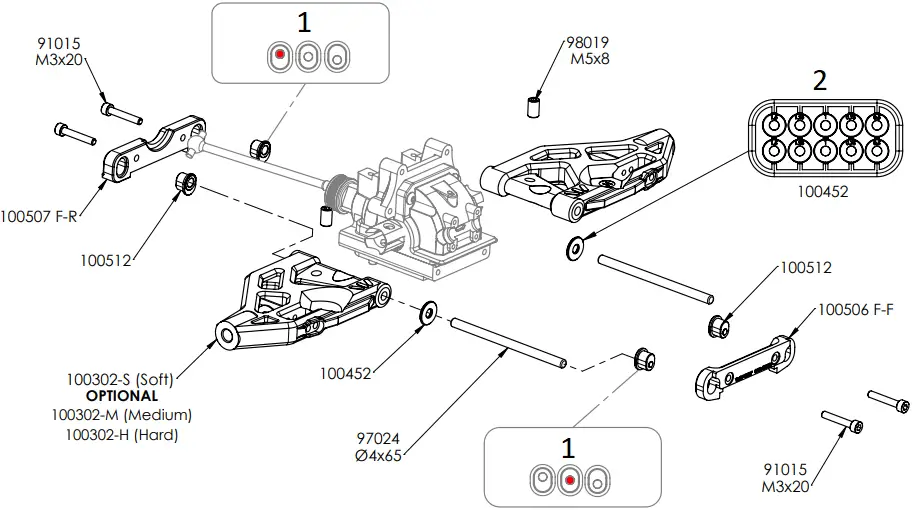

BAG 6

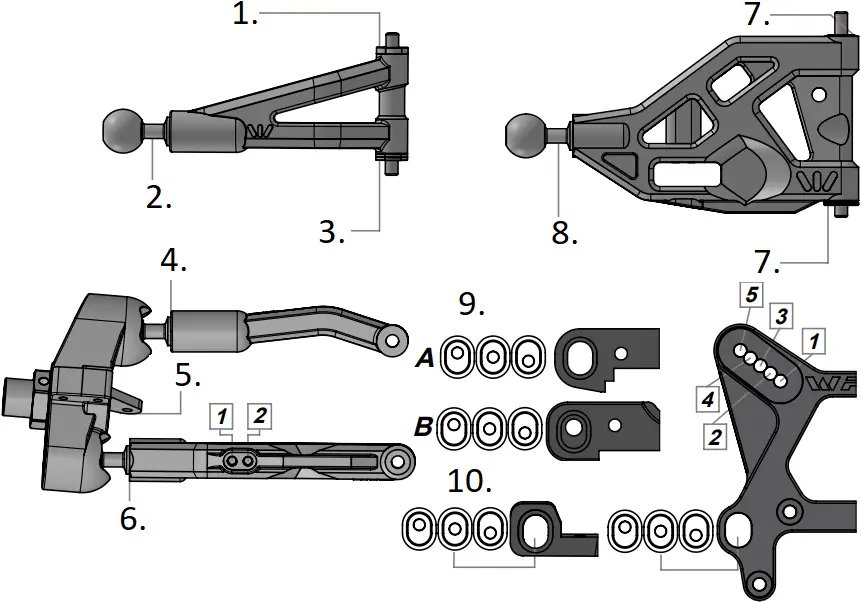

Front Suspension

Lower Arm Position
ADJUST THE PLAY WITH THE SHIMS

SCREW POSITION

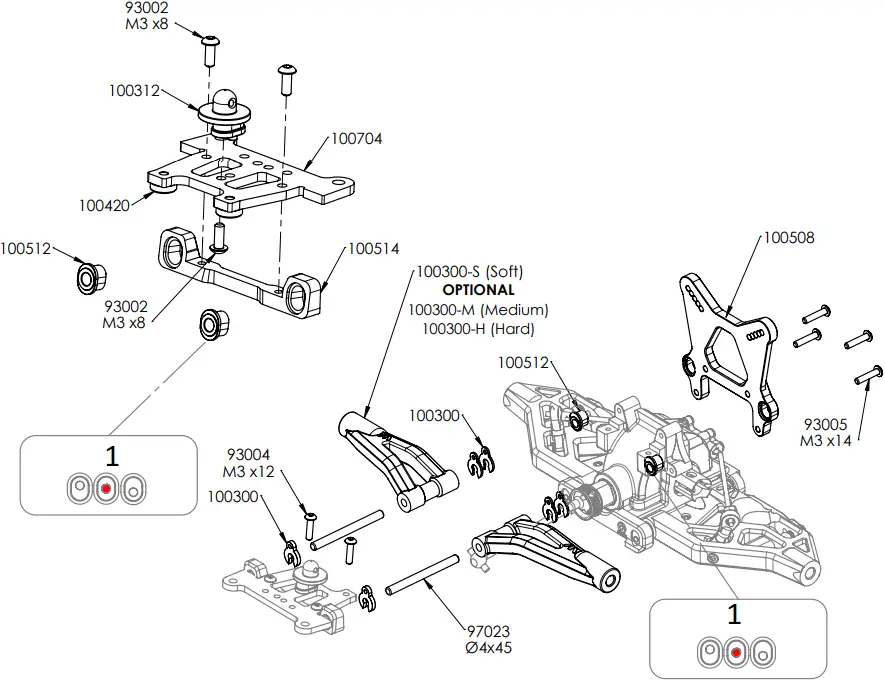

BAG 7

Upper Arm Position

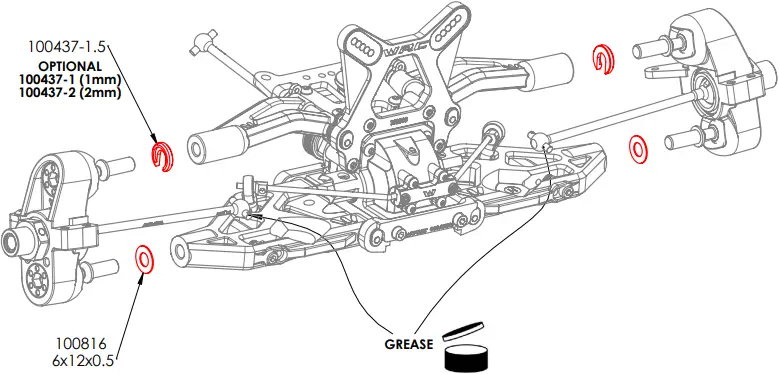

BAG 8

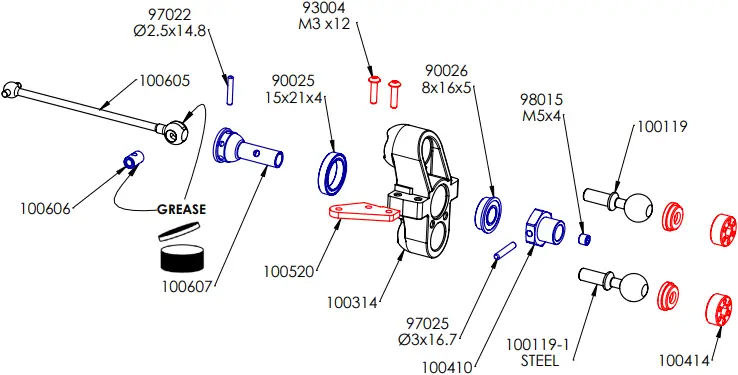

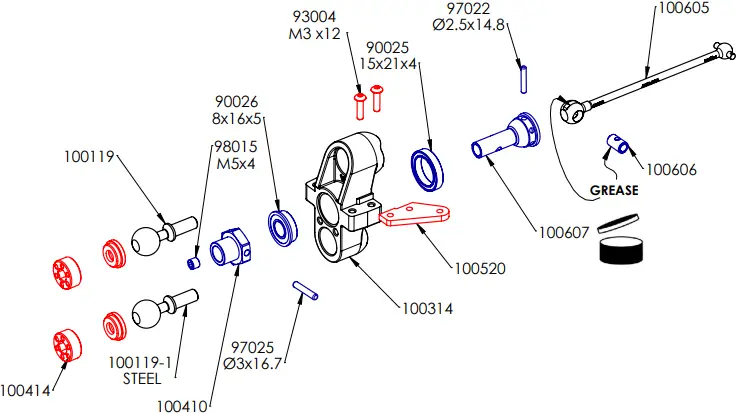

Front Upright

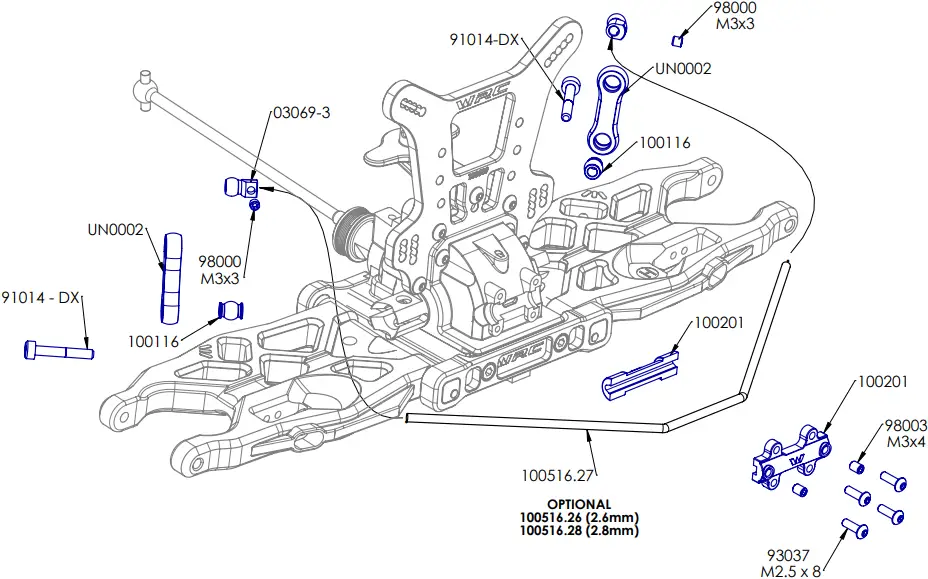

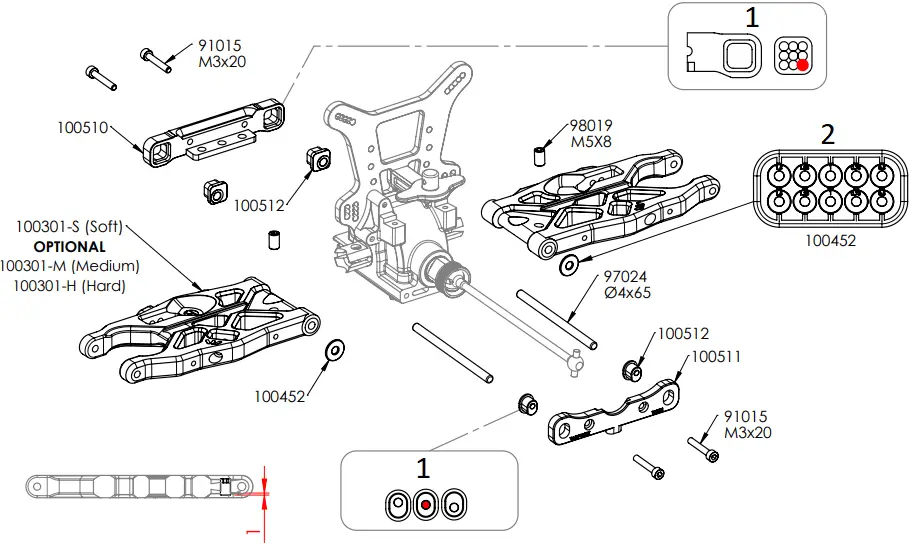

BAG 9

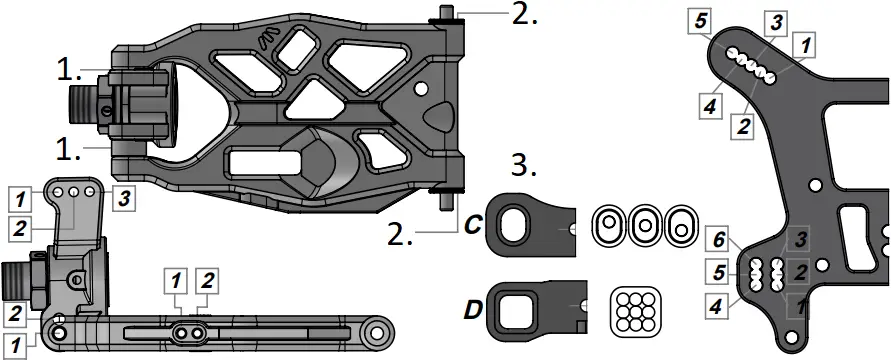

Rear Suspension

Lower Arm Position
ADJUST THE PLAY WITH THE SHIMS

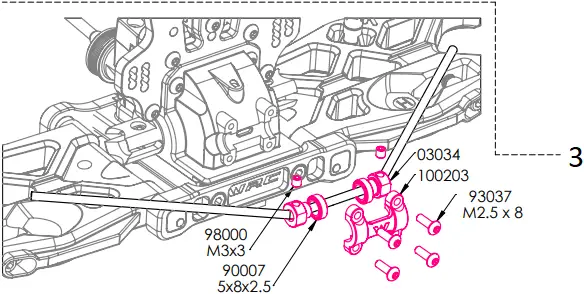

Optional
Bearing Mounted Anti roll-bar Kit
Front – Rear

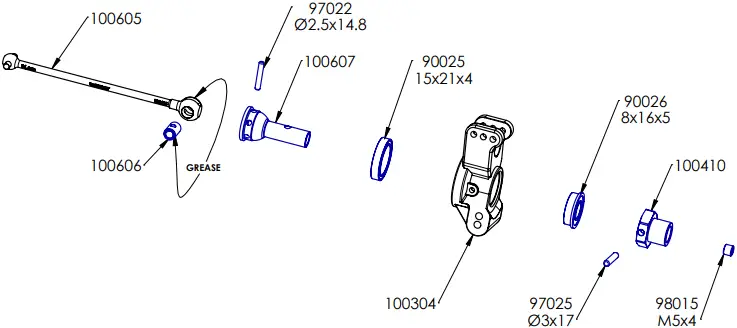

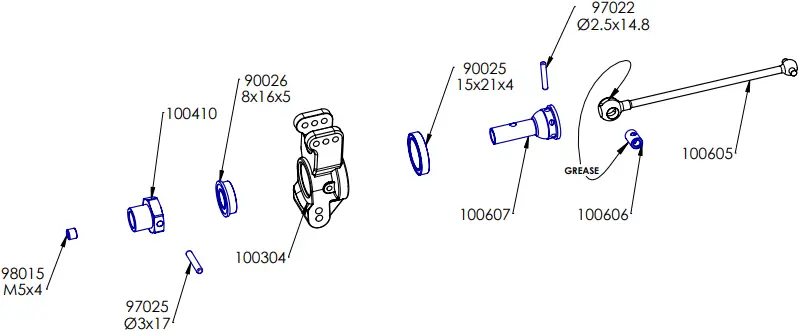

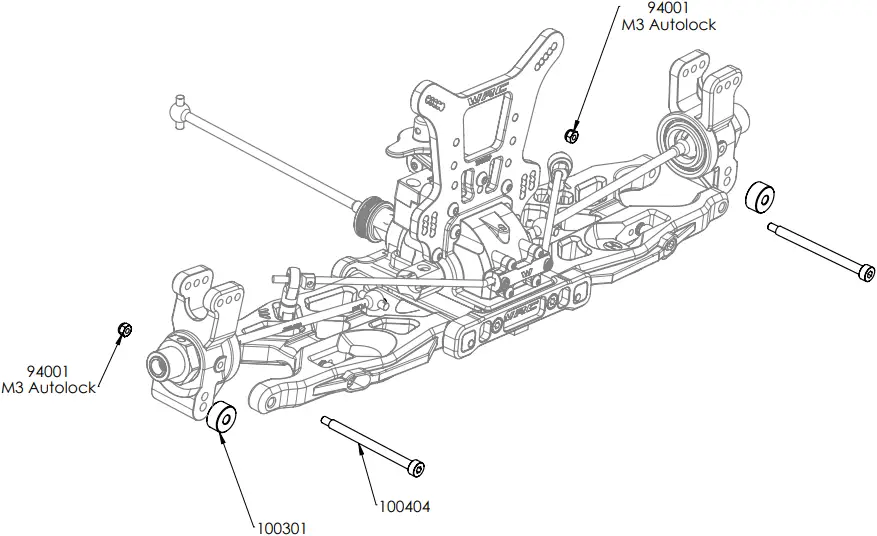

BAG 10

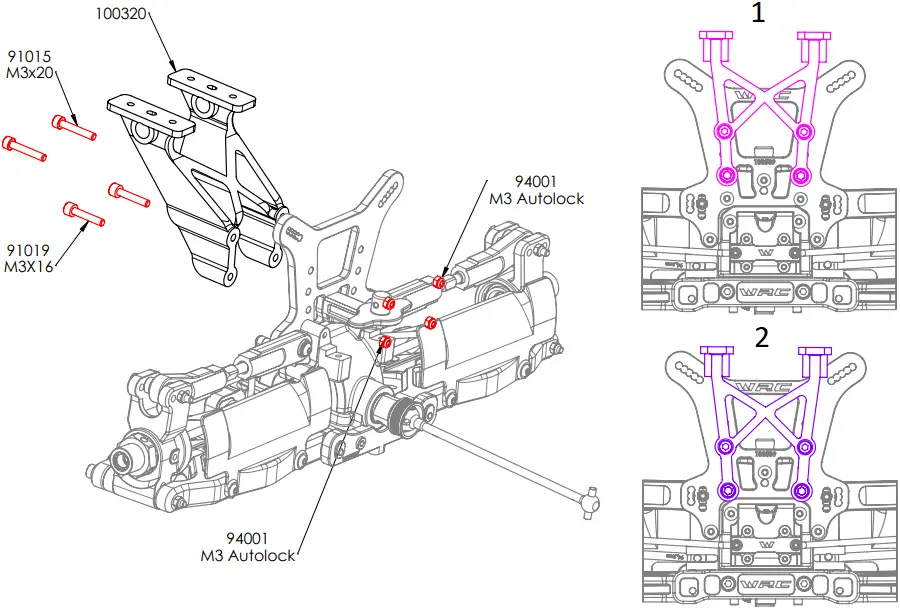

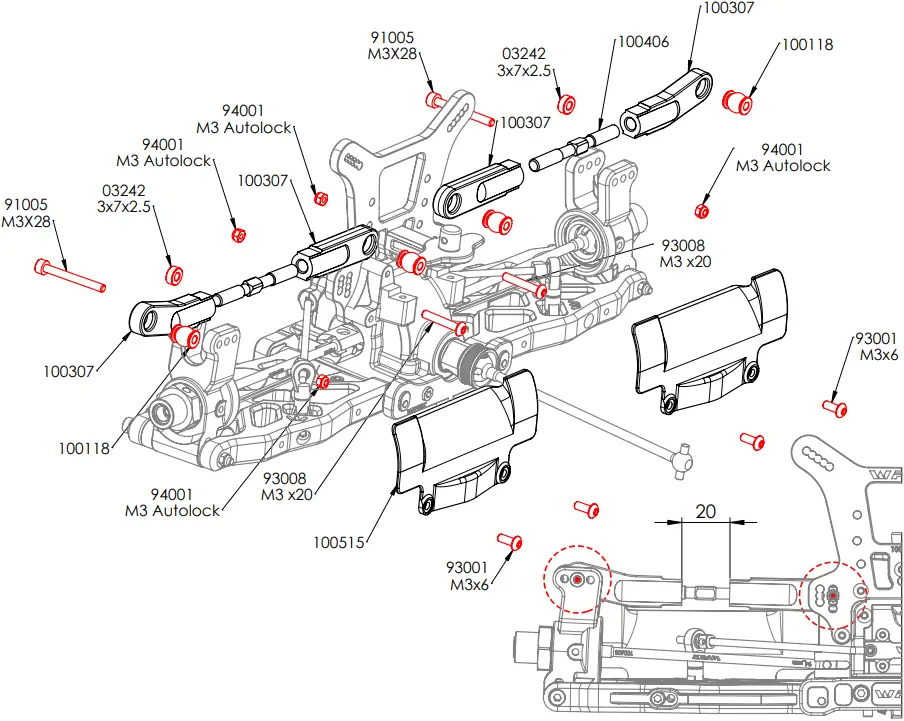

BAG 11

High Position
Low Position

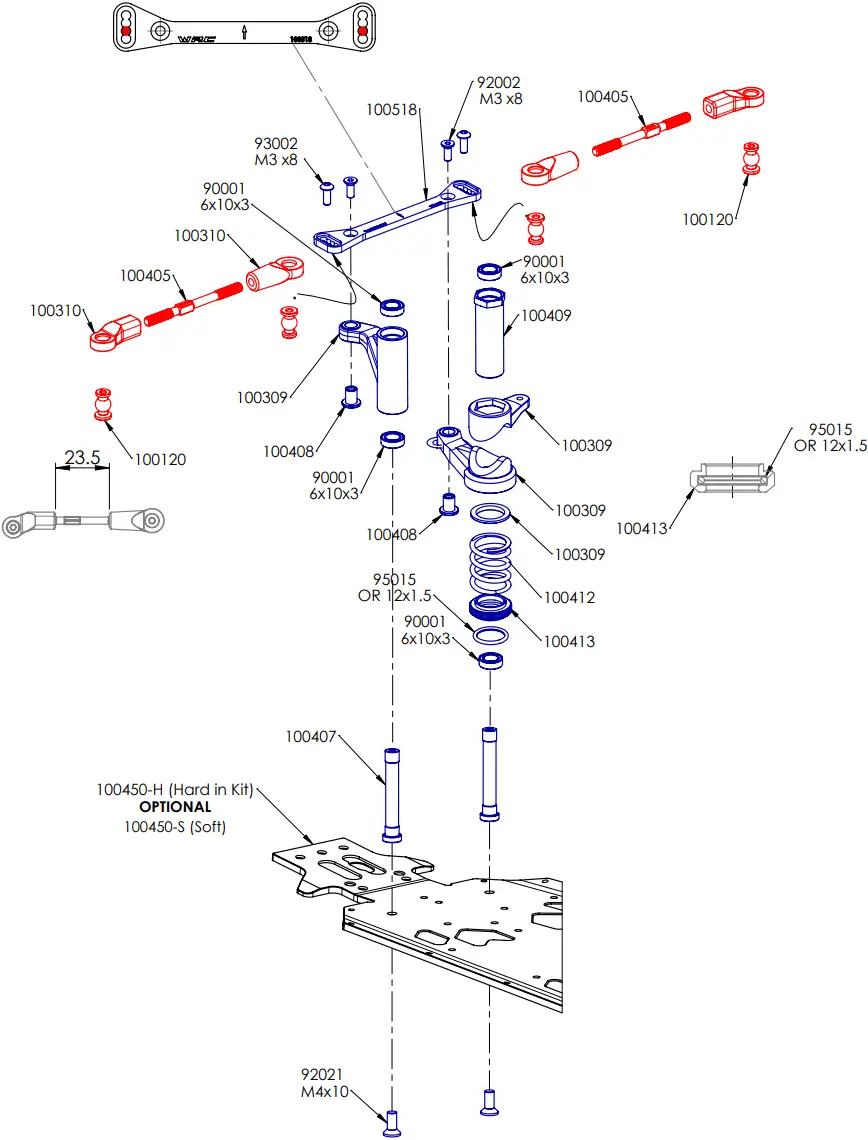

BAG 12

Front & Rear Assembly

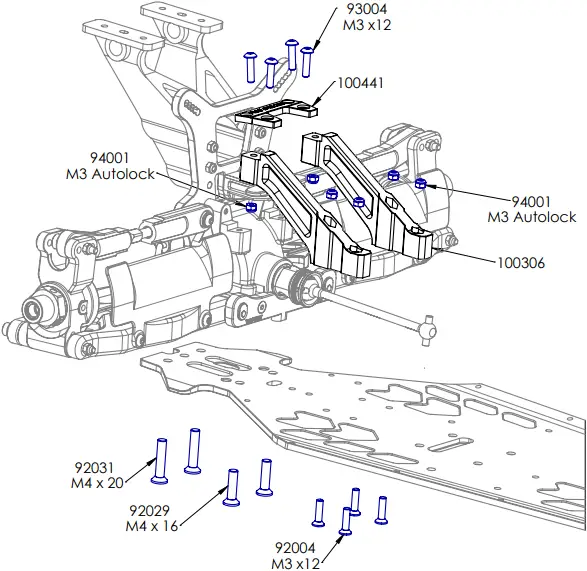

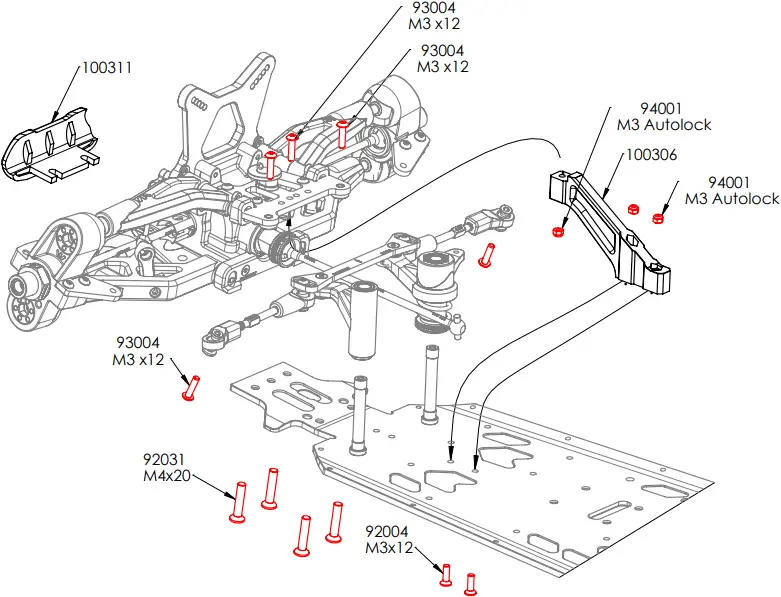

BAG 13

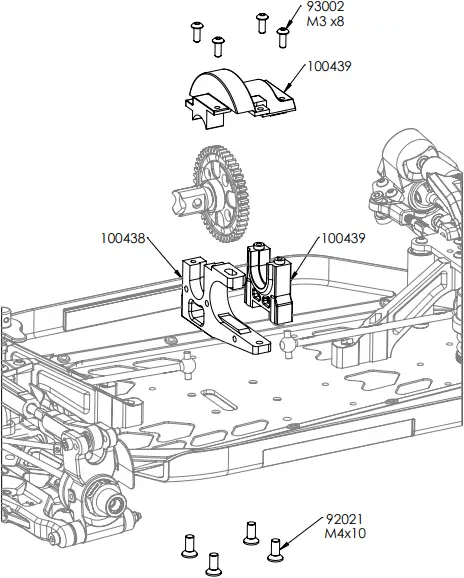

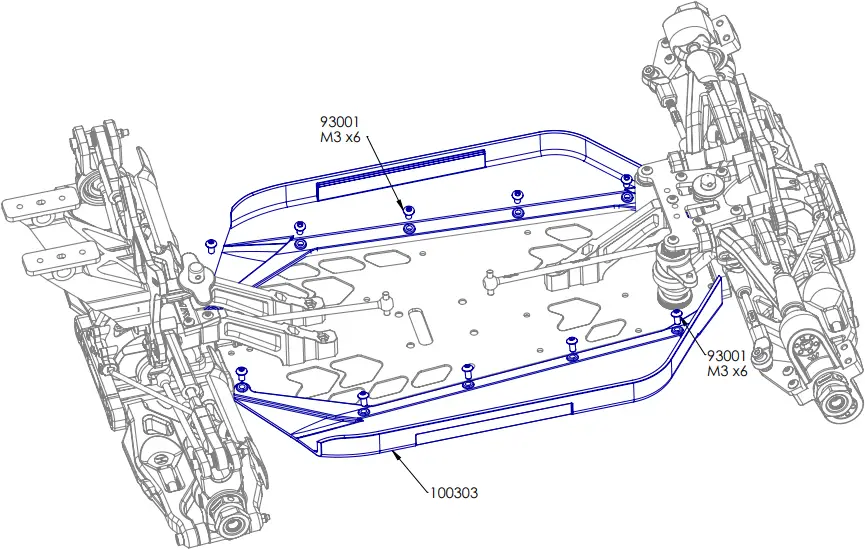

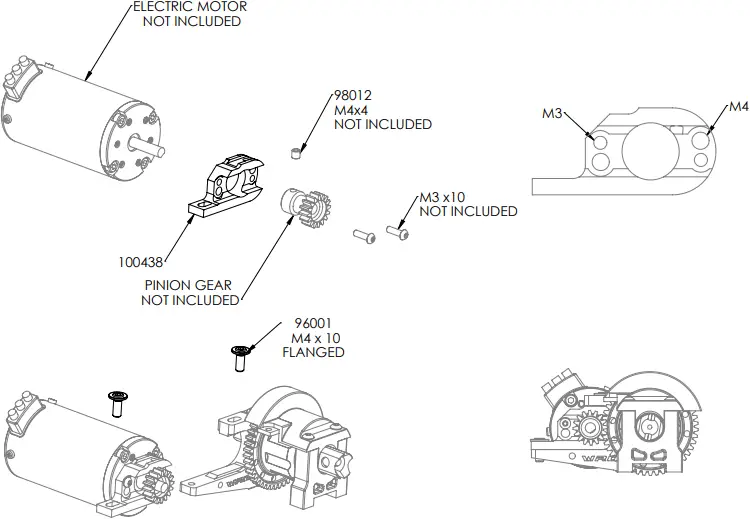

BAG 14

Electric motor

PINION GEAR

RCM10-12 12 T
RCM10-13 13 T
RCM10-14 14 T
RCM10-15 15 T
RCM10-16 16 T
RCM10-17 17 T
RCM10-18 18 T

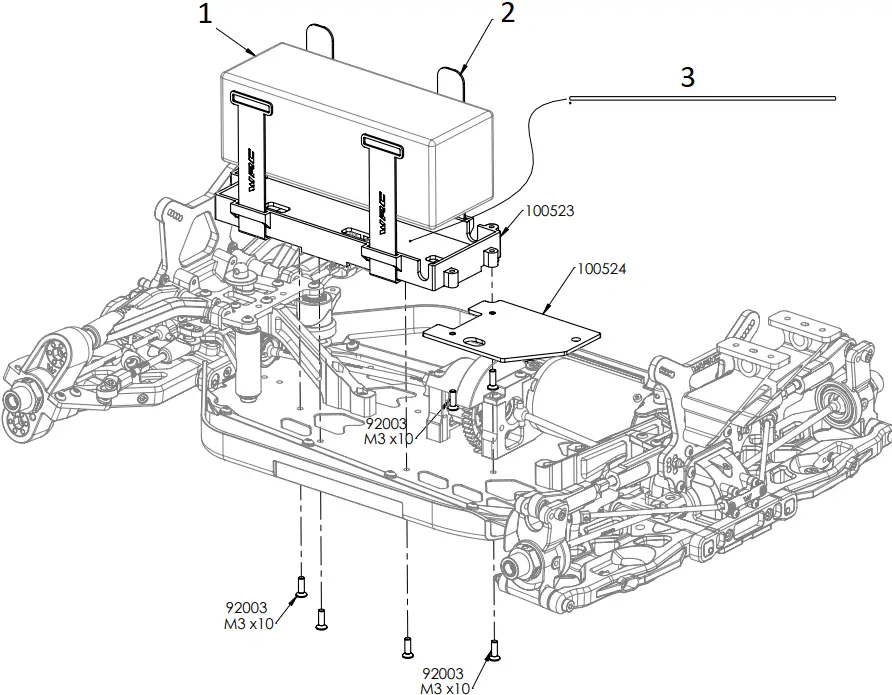

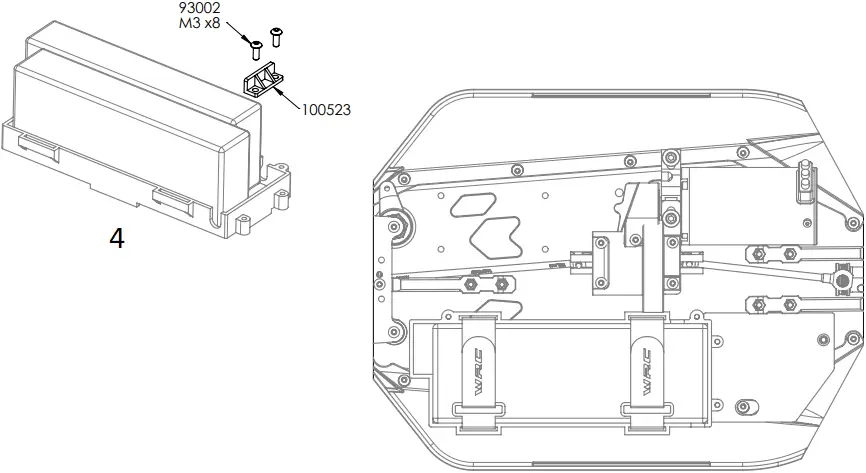

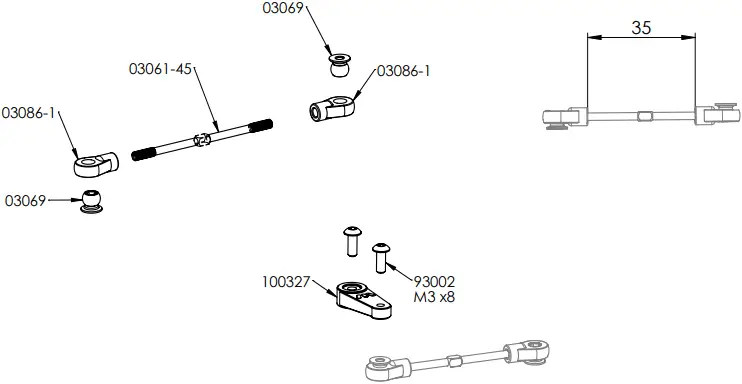

BAG 15

Electric Battery

BATTERY
NOT INCLUDED
VELCRO STRAP
BATTERY FOAM PAD
Install the pad between battery and the battery tray

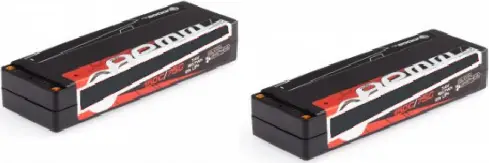

Two Lipo Batteries
Version

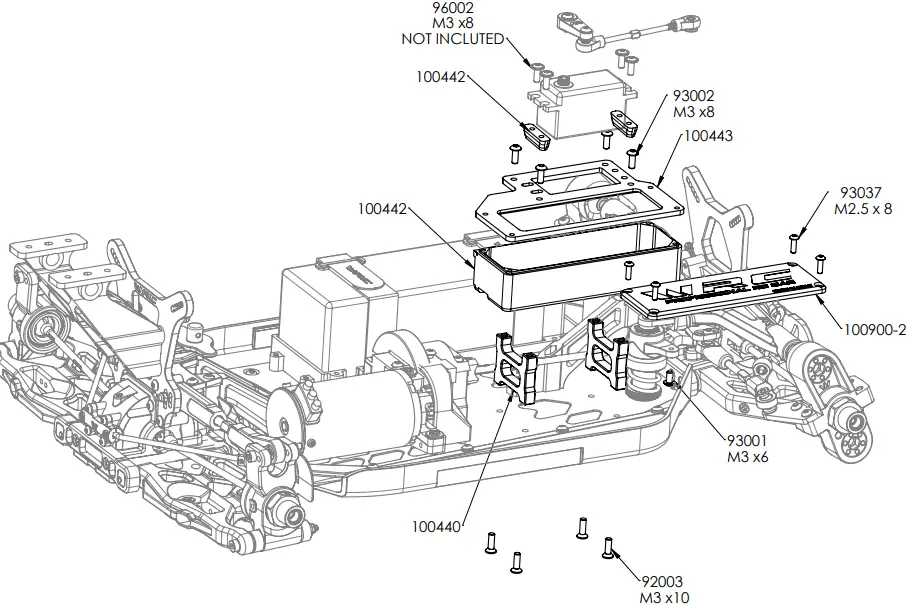

Radio Case

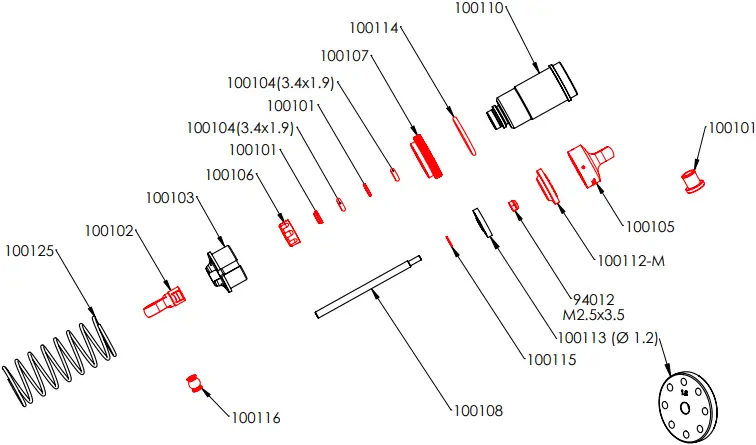

BAG 16

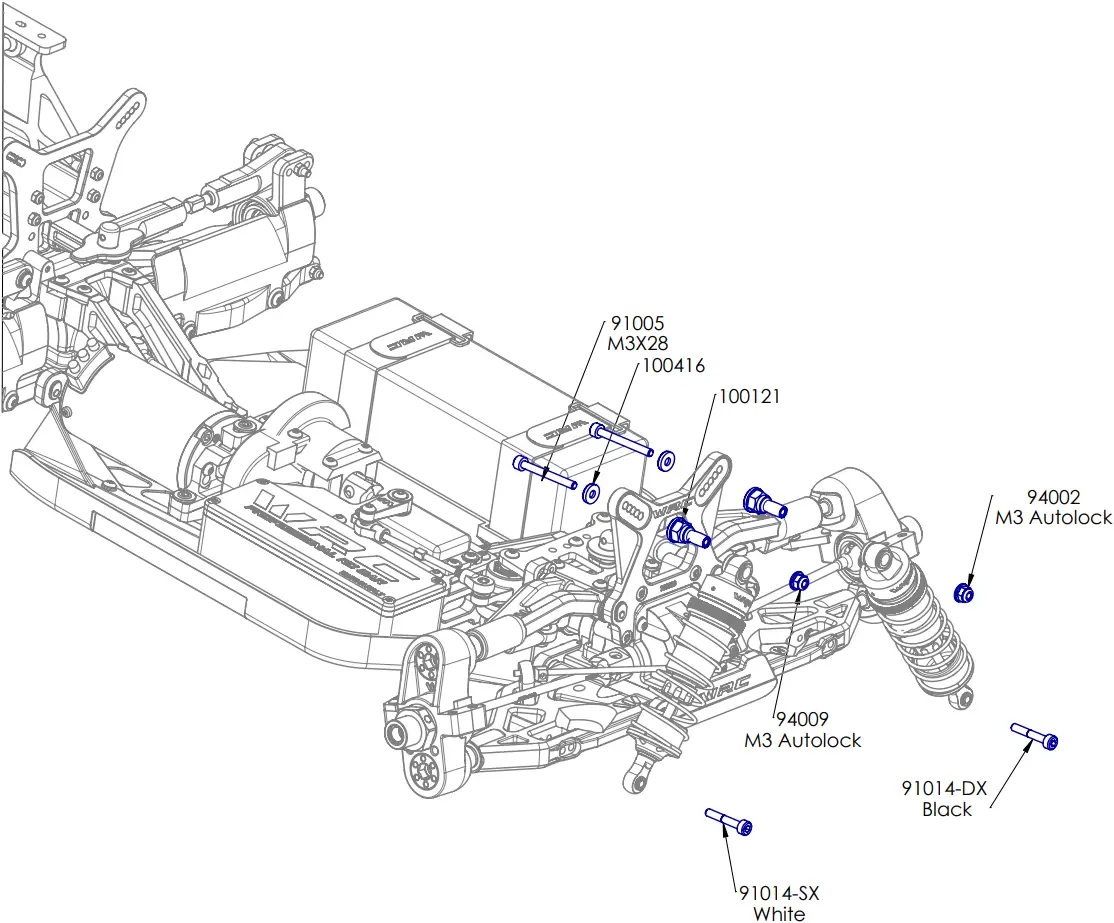

Front Shock

Assembly 2 set

a) DO NOT BLOCK COMPLETELY ALLOW THE PISTON TO ROTATE

SHOCK FILLING

Fully extend the piston rod so the piston is at the bottom of the shock body.

Hold the shock upright and fill the shock body with shock oil as in the picture.

Let the oil settle and allow air bubbles to rise to the top.
Slowly move the piston up and down until no more air bubbles appear.
Add shock oil as necessary.

Pull the piston rod most of the way out of the shock bod.
Let the shock rest for 5 minutes to allow the air bubbles to scape.

SPRINGS
COD	FORCE		COLOUR
100125 100125-2 100125-3	MEDIUM SOFT HARD		BLACK YELLOW RED
P- ONE SHOCKS OIL
CODE		CST
SO-400 SO-500 SO-600 SO-700 SO-800		400 500 600 (IN KIT) 700 800

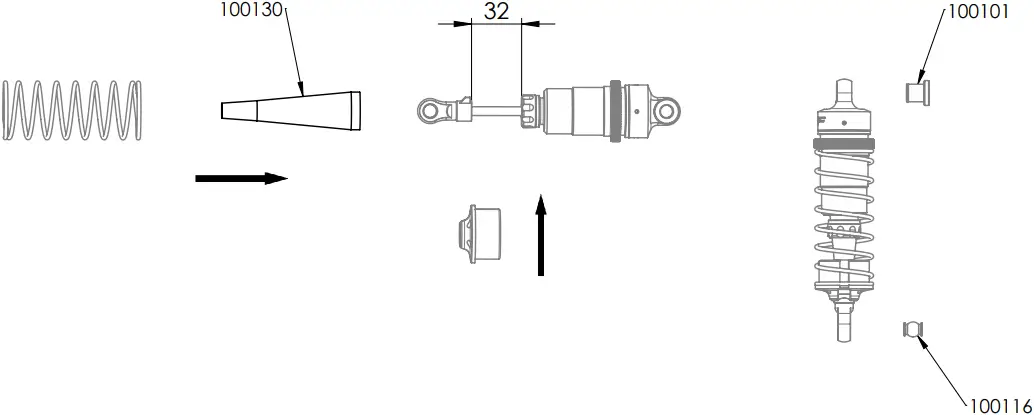

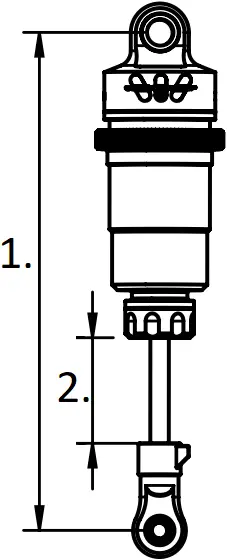

Set distance

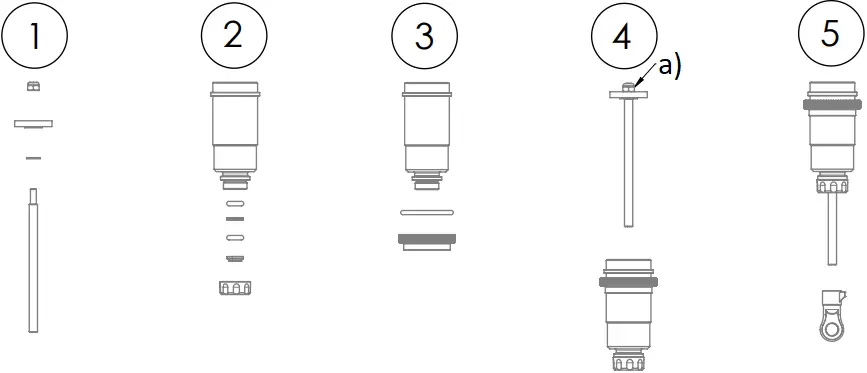

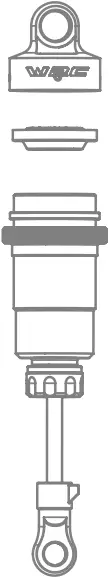

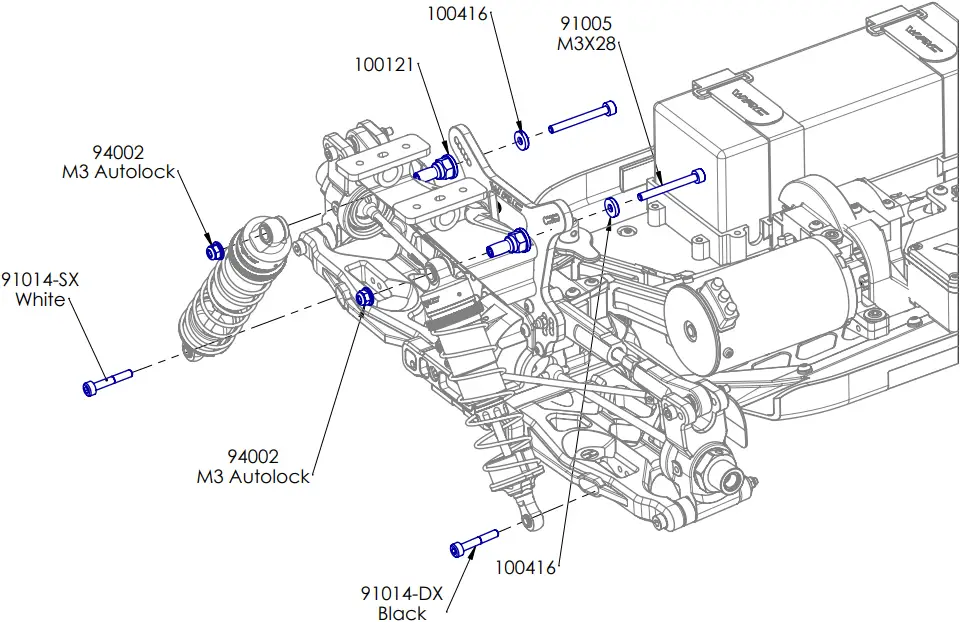

BAG 17

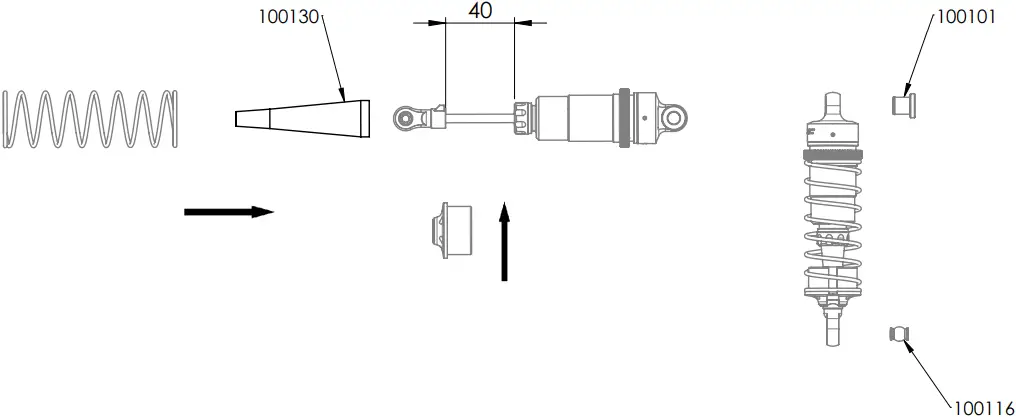

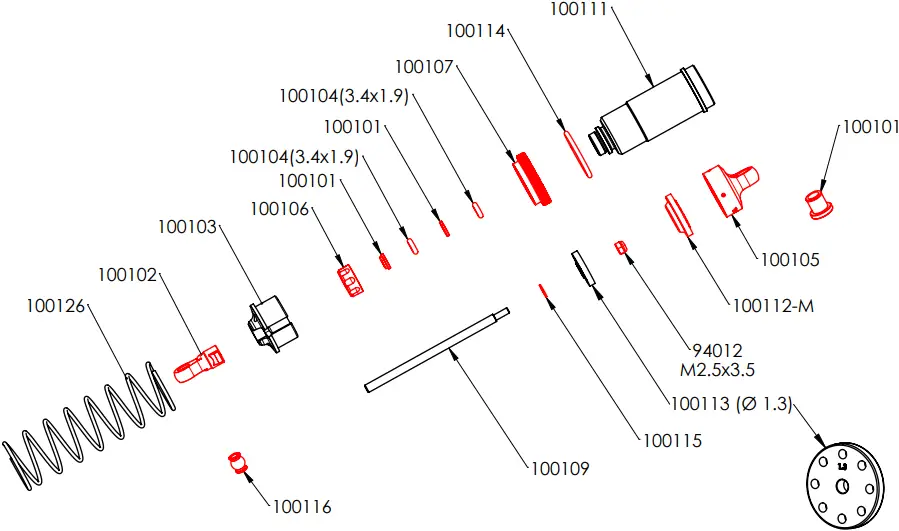

Rear Shock
