RCB R15 Electric Scooter User Manual

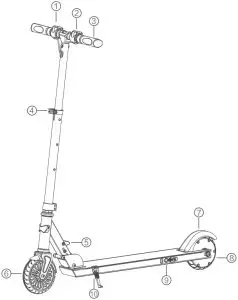

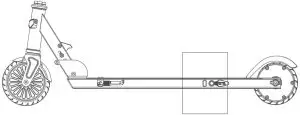

PRODUCT STRUCTURE
- Accelerator
- Electronic brake
- Handle
- Locking
- Foldable mechanism
- Front wheel
- Foot braker
- Motor
- Charger port
- Kickstand
PRODUCT PARAMETER
Relative parameters of the electric scooter
- Startup mode: start by pressing the button
- Speed: 20km / h
- Motor: 5.57 150W
- Voltage / Capacity: 25.2V / 5.0AH
- Controller: 24V
- Charging time: 6 hours Load / KG: 80KG
- Waterproof level: IP*4
- Autonomy: 12-16kms
- Grade of slope: 10 °
- Net Weight: 7.5kg
- Rear braking: electronic braking + mechanical braking
Relative parameters of the charger
- Charger input voltage: 100-240V
- Charger output voltage: 29.4V

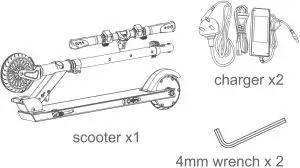

List of packages
- Scooter x 1
- Charger x 2
- 4mm wrench x 2
*The data, such as the maximum speed, the maximum range, the degree of climbing are influenced by the weight of the user, the road condition etc. while driving in real life. Actual data is possible higher or lower than the above data.
INSTRUCTIONS
- Assembly instructions

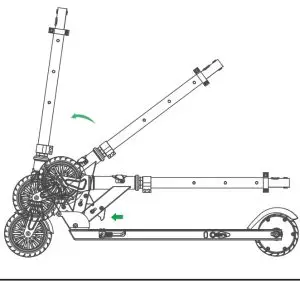

- While pressing the folding wrench down, lift the front rod net until the latch snaps into the front slot.

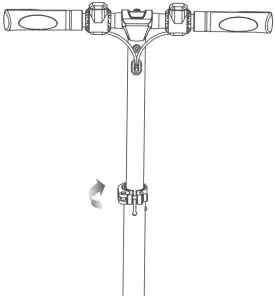

- Use the included 4 mm wrench to loosen the handle fixing screw, insert the handle into the vertical tube and tighten the screw.
- While pressing the folding wrench down, lift the front rod net until the latch snaps into the front slot.
Height adjustment instructions

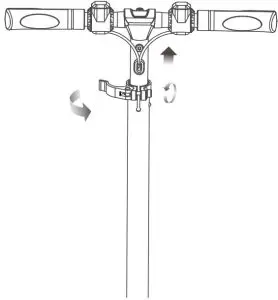

- Open the latch according to the picture.
- Pull up or down the front inner rod to adjust the height.
- Once the limit stack is engaged in the limit hole, lock the limit lock
Driving instruction
- Beginners: please wear a hard hat and protective gear first.
- Press the power button to start the scooter.
- Before riding, please check if the scooter has enough electricity.
Green indication, electricity >5O%
Yellow indication, electricity 20% – 50%
Red indication, electricity 20% - Mount and slide the scooter at 5 km / h.
- Press the accelerator to start the engine.
- If you still cannot brake after pressing the electronic brake, press the foot pedal.
- At the end of the journey, press the power button to turn off the scooter.
(If the power is not turned off after use, the scooter will automatically turn off after 5 minutes. When you use the scooter again, you need to turn on the scooter first).
Green indication, electricity >5O%
WARRANTY
The warranty period for the individual parts is as follows
Type | Content of warranty | Duration of warranty |
Moter | Frame, motor, controller. handlebar, front body, dashboard of the middle cabin, rear wheel, brake disc, folding rod, front fork, rotating parts of the front tube of the front fork, control bus, brake cable | 1 year |
Attachment | Batteries, chargers, brake levers, accelerator, LED | 3 months |
Wear parts | Tire | 3 months |
Appearance | Handle, mudguard, decorative cover, pedal components, battery compartment cover, toot pad, charging port, rubber plug | 1 month |
Notes: there is no warranty period for consumables such as rollers, handles, non-slip stickers; if the warranty periods exceeded, paid repair services can be provided.
RETURN INSTRUCTIONS
Regarding return without reason for 14 days.
| The following conditions are not included in the warranty: | the following cases do not meet the return requirements |
When the above situation occurs, you cannot benefit from the warranty service. You can take advantage of the paid repair. Paid items include: accessories transportation costs, accessories costs, labor time costs …
|
If you need to return the product, please contact customer service in the store.
|
