MiBOXER PX1 100W 5 IN 1 LED Controller
Features
100W 5 in 1 (Single Color & CCT & RGB & RGBW & RGB+CCT) smart strip controller is our newly developed high-end LED controller controlled by wireless remote controller, also with smart phone control and 4G long distance control (2.4GHz gateway is needed ). The controller has auto-transmitting and auto-synchronizing function and with brightness, CCT, RGB, RGBW and RGB+CCT output mode. This controller adopt the widely used 2.4GHz wireless technology with the features of low power consumption, long signal transmitting and strong anti-interference,etc. One compatible remote control many controllers at the same time. Widely used on the controlling of hotel lighting and home lighting.
Parameters
Model No.: PX1 Input Voltage: AC180~240V 50/60Hz Working Temp.: -20~60°C PF: >0.5 Output Voltage: DC24V Output Current (Max): 4.5A Output Power (Max): 100W RF: 2.4GHz Transmitting power: 6dBm Remote Control Distance: 30 m ta: 50^ tc: 85^
Indicating lamp showing instruction
| Indicating Lamp Colo | Output Mode |
| White Light | Single Color Mode |
| Yellow Light | Dual White Mode |
| Red Light | RGB Mode |
| Green Light | RGBW Mode |
| Blue Light | RGB+CCT Mode |
Self-protection for over current
When the output current is over 5A, automatic stop output, Indicating red light blinking.

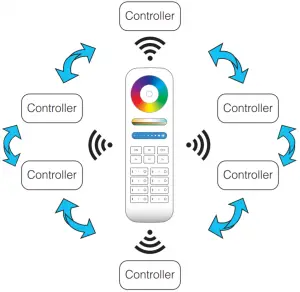

Auto-synchronization function
Different controllers can work synchronously when they are started at different times, controlled by the same remote, under same dynamic mode and with same speed.
Remark:
Indicating Auto-transmitting.- Controller will be auto-synchronizing in the same dynamic modes and within 30m controlling distance.

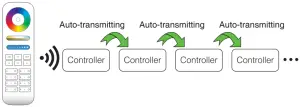

Indicating Auto-transmitting.Auto-transmitting Diagram
One strip controller can transmit the signals from the remote control to another controller within 30m, as long as there is a strip controller within 30m, the remote control distance can be limitless.

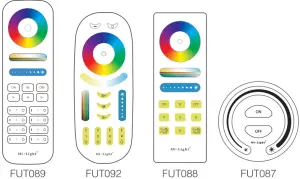

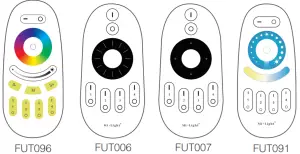

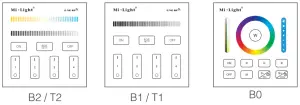

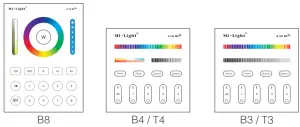

Remote Controller
Compatible with these remote controls (Purchased separately).
For more details, pls read the remote instruction.
Dynamic mode
Saturation Adjustable both on static and dynamic mode
| Number | Dynamic mode | Brightness & Speed | |
| Brightness, Color Temperature | RGB / RGBW / RGB+CCT | ||
1 | White gradual change | colors gradual change | Adjustable |
2 | White jump to change | White gradual change | |
3 | White Gradual + Jump to change | RGB color gradual change | |
4 | NC | 7 colors jump to change | |
5 | NC | Random jump to change | |
6 | NC | RED Gradual + Jump to change | |
7 | NC | Green Gradual +Jump to change | |
8 | NC | Blue Gradual + Jump to change | |
9 | NC | White Gradual + Jump to change | |
Controller connect to LED strip diagram
Attention
- Please check whether the input voltage of the power supply is in accordance with the controller, and please check the connection of both the cathode and anode, otherwise the controller will be broken.
- Please check whether the output voltage of the controller is in accordance with the LED strip, and please check the connection of both the cathode and anode, otherwise the controller will be broken.
- Please don’t connect wires with power on. Please turn on again only when it is in right connection and no short circuit. 4. Please do not use the controller in the place with widely range metal area or strong electromagnetic wave nearby, otherwise, the remote distance will be seriously affected .
www.futlight.com Made in China
