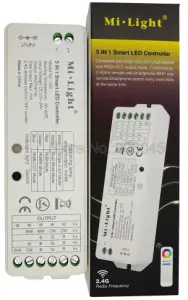

MIBOXER LS2 5 IN 1 Smart LED Controller User Manual
Introduction
5 in 1 (Single Color&CCT&RGB&RGBW&RGB+CCT) smart strip controller is our newly developed high-end LED controller controlled by wireless remote controller, also with smart phone control and 4G long distance control (2.4GHz gateway is needed). The controller has auto-transmitting and auto-synchronizing function and with brightness, CCT, RGB, RGBW and RGB+CCT output mode. This controller adopt the widely used 2.4GHz wireless technology with the features of low power consumption, long signal transmitting and strong anti-interference,etc. One compatible remote control many controllers at the same time. Widely used on the controlling of hotel lighting and home lighting.

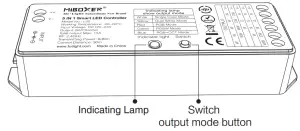

Indicating lamp showing instruction
| Indicating Lamp Color | Output Mode |
| White Light | Single Color Mode |
| Yellow Light | Dual White Mode |
| Red Light | RGB Mode |
| Green Light | RGBW Mode |
| Blue Light | RGB+CCT Mode |
Remote Controller

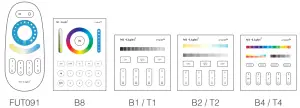

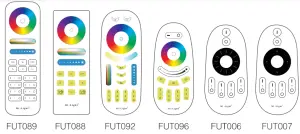

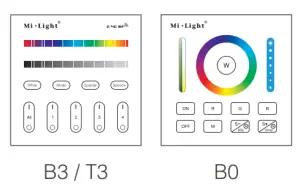

Compatible with these remote controls (Purchased separately). For more details, pls read the remote instruction.
Warning: Lighting can be working after linking with remote; for more details, pls read the remote instruction.
Technical Data
- Model No.: LS2
- Working Temperature: -20~60°C
- Input Voltage: DC12V~24V
- Output: 6A/Channel
- Total Output Max: 15A
- Connection: Common anode
- RF: 2.4GHz
- Transmitting power: 6dBm
- Control Distance: 30m

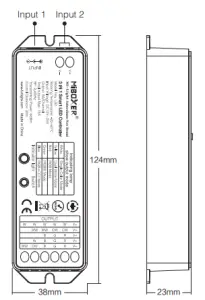

- Size: 124*38*23mm
- Weight: 60g
Signal transmitting

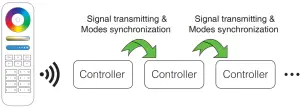

One lighting fixture can transmit the signals from the remote control to another lighting fixture within 30m, as long as there is a lighting fixture within 30m, the remote control distance can be limitless.
Modes synchronization
Different lighting fixture can work synchronously when they are started at different times, controlled by the same remote, under same dynamic mode and within 30m distance.
Dynamic Mode Sheet
| Number | Dynamic Mode | Brightness /Saturation / Speed |
| 1 | Mardi gras | Adjustable |
| 2 | Automatic color change | |
| 3 | Sam | |
| 4 | Gemstone | |
| 5 | Twilight | |
| 6 | American | |
| 7 | Fat tuesday | |
| 8 | Party | |
| 9 | Slow color splash |
Controller connect to LED strip diagram

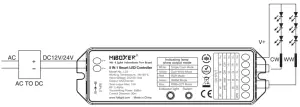

Controller connect to Single Color LED strip diagram

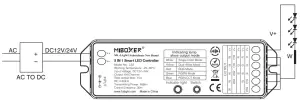

Controller connect to CCT LED strip diagram
Controller connect to RGB LED strip diagram
Controller connect to RGBW LED strip diagram
Controller connect to RGB+CCT LED strip diagram
Attention
- Please check whether the input voltage of the constant voltage power supply is in accordance with the controller, and please check the connection of both the cathode and anode, otherwise the controller will be broken.
- Please don’t connect wires with power on. Please turn on again only when it is in right connection and no short circuit.
- Please do not use the controller in the place with widely range metal area or strong electromagnetic wave nearby, otherwise, the remote distance will be seriously affected .
Signal transmitting & Modes synchronization
