Mi-Light
Subordinate New Brand
Waterproof 5-in-1 LED Controller
Model No.: LS2-WP
Features
This product is a waterproof LED controller suitable for outdoor use. It has brightness, color temperature, RGB, RGBW, and RGB+CCT output modes, and is controlled by RF remote controller.
 | Support third party voice control (2.4GHz gateway is needed) |
 | Smartphone APP control (2.4GHz gateway is needed) |
 | 2.4GHz RF remote control distance 30m |
 | Signal transmitting & modes synchronization |
 | DMX512 controllable (DMX512 LED transmitter is needed) |
 | 16 Million colors to choose |
 | Color temperature 2700K~6500K |
 | Dim brightness/Saturation |
 | Waterproof and dustproof grade IP67 |

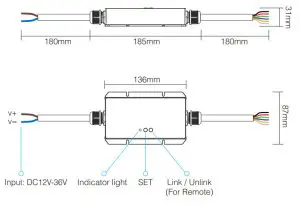

Parameters
Model No.: LS2-WP
Input Voltage: DC12V~36V
Output: 6A/Channel
Total Output Max: 20A
RF: 2.4GHz
Remote Control Distance: 30m
Connection: Common anode
Working Temperature: -20~45°C
Function Instruction
Switching Output Mode
Short press the “ SET ” button, indicator lamp change color if switch mode successfully, different colors mean different output mode, details see below sheet.
| Indicating Light Color | Output Mode |
| White Light | Single Color Mode |
| Yellow Light | Dual White Mode |
| Red Light | RGB Mode |
| Green Light | RGBW Mode |
| Blue Light | RGB+CCT Mode |
Signal transmitting
One lighting fixture can transmit the signals from the remote control to another lighting fixture within 30m, as long as there is a lighting fixture within 30m, the remote control distance can be limitless.
Modes synchronization
Different lighting fixtures can work synchronously when they are started at different times, controlled by the same remote, under the same dynamic mode, and within 30m distance.
Dynamic Mode Sheet
Note: only suitable for RGB/RGBW/RGB+CCT output mode.
| Number | Dynamic Mode | Brightness /Saturation / Speed |
| 1 | Mardi gras | Adjustable |
| 2 | Automatic color change | |
| 3 | Sam | |
| 4 | Gemstone | |
| 5 | Twilight | |
| 6 | American | |
| 7 | Fat Tuesday | |
| 8 | Party | |
| 9 | Slow color splash |

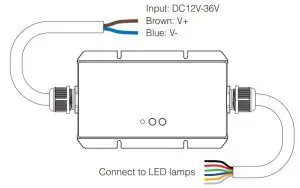

Connect diagram
Controller input voltage must be in accordance with the required voltage of LED Strips.
Note: the connection method is different for different output modes. Please connect it according to the below sheet.
| Output Mode ( LED Wiring ) | ||||||
| Mode Wire | Black | Red | Green | Blue | White | Yellow |
| Single Color | V+ | W | W | W | W | W |
| Dual White | V+ | CW | CW | WW | WW | |
| RGB | V+ | R | G | B | ||
| RGBW | V+ | R | G | B | W | |
| RGB+CCT | V+ | R | G | B | CW | WW |
Single Color
Output mode connection diagram
Dual White
Output mode connection diagram
RGB
Output mode connection diagram
RGBW
Output mode connection diagram
RGB+CCT
Output mode connection diagram
RF Remote Link / Unlink
Link:
- Short press the ” Link/Unlink ” button once on the LED controller( or switch off the controller power. After 10 seconds, switch on again). The indicator light flashes red and green alternately.
- Short press the Link/Unlink button on the remote (i.e. “
on” or ” “) 3 times within 3 seconds. The green light flashing 3 times slowly means linking successfully.
Unlink:
Long press the” Link/Unlink ” button on the LED controller for 3 seconds. The red light flashing 10 times quickly means unlink successfully. (Or follow the unlinking steps on the remote instruction.)
Note:
Remote controllers need to be purchased separately. For the remote linking and unlinking method, please see details on remote instruction.

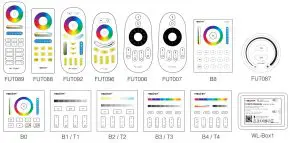

Compatible with these remote controls (Purchased separately)
Attention
- Please check whether the input voltage of the constant voltage power supply is in accordance with the controller, and please check the connection of both the cathode and anode.
- Non-professional users cannot dismantle the controller directly, otherwise, it may cause fire and electric shock.
- Please do not use a controller around the mental area and high magnetic field, otherwise, it will badly affect the control distance.
Made in China
