5G Quad Cellular Mobile Powerhouse
Best of both worlds

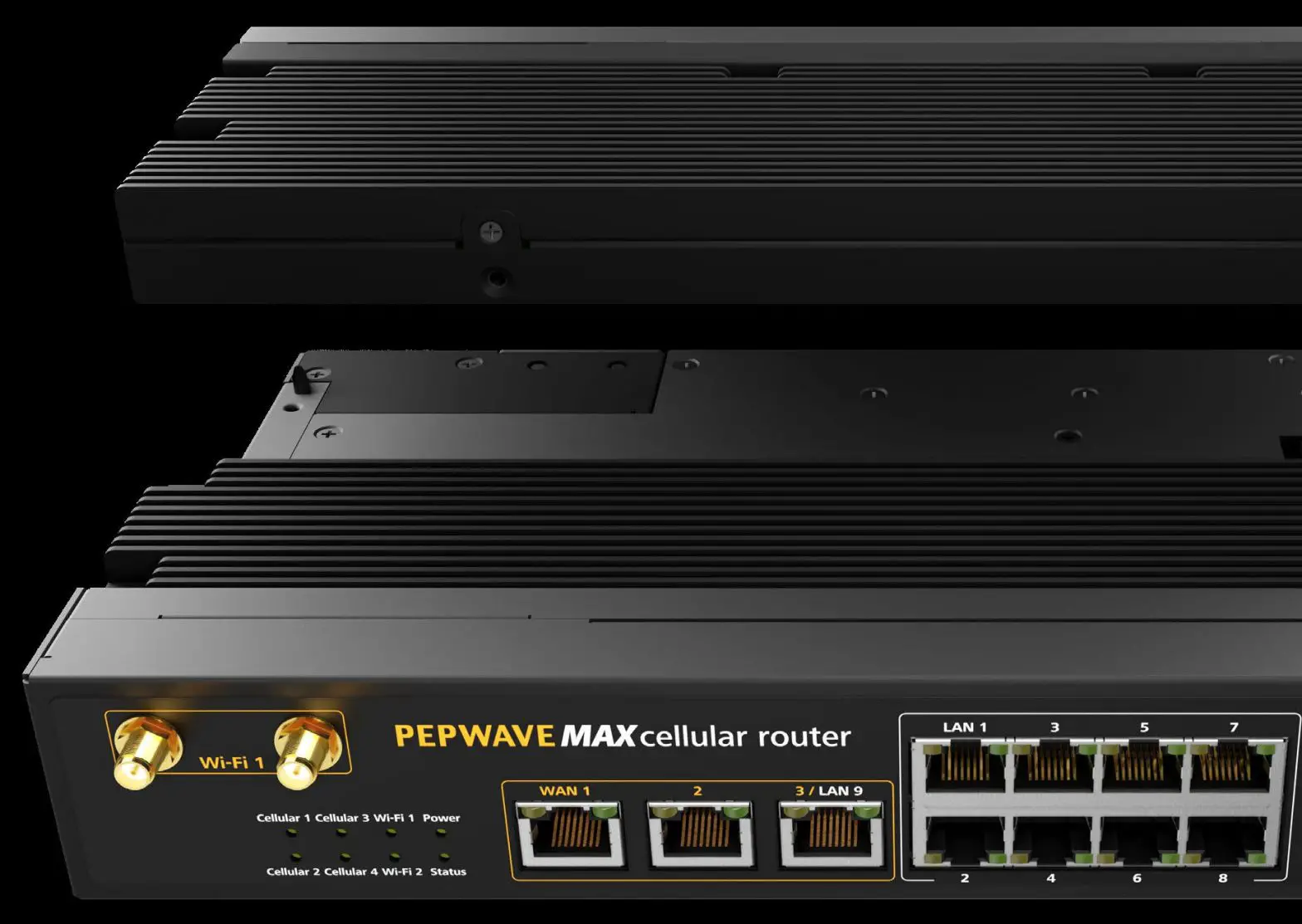

MBX 5G is a quad cellular mobile powerhouse with redundant SIM slots and multi-radio capabilities providing speed, reliability, and coverage by combining the best of 5G and LTE.
Portability
Its compact form allows it to be deployed in a wide variety of situations such as vehicles, vessels, and branch networks.
Compatibility with SIM injector
Its compatibility allows for upgradable modules for further customization to suit any deployment needs.
Optimize your traffic

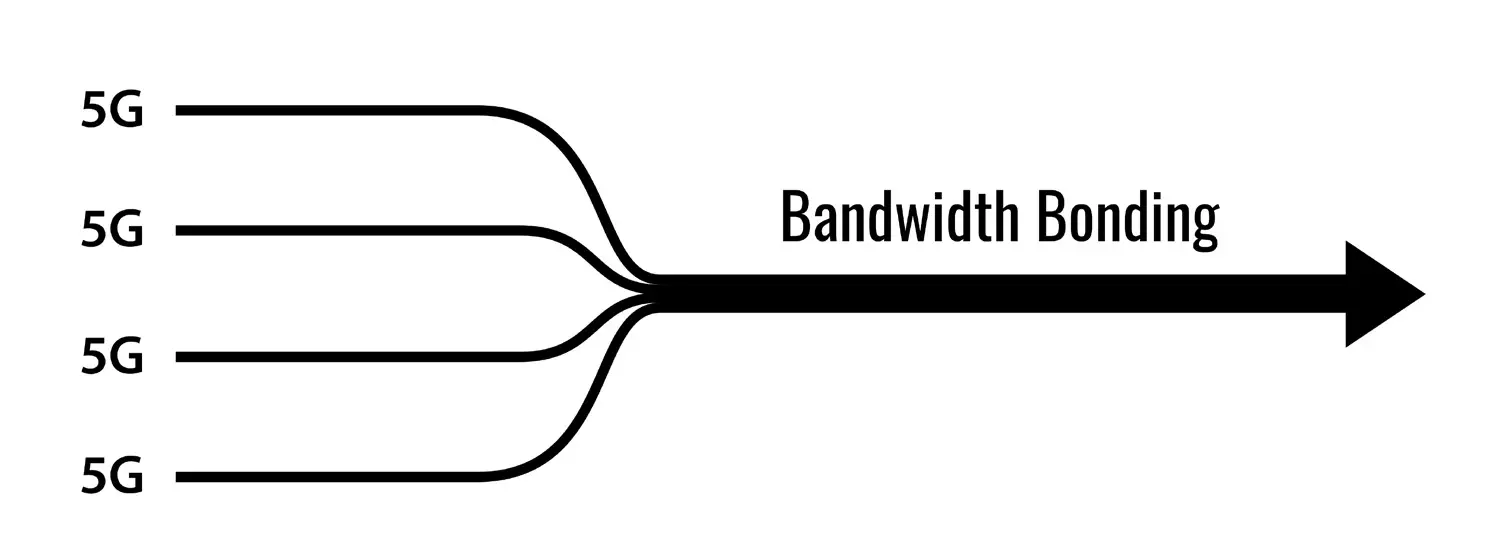

Whether you need speed or cost-effectiveness, use Traffic Steering to guide each packet to the most suitable connection.

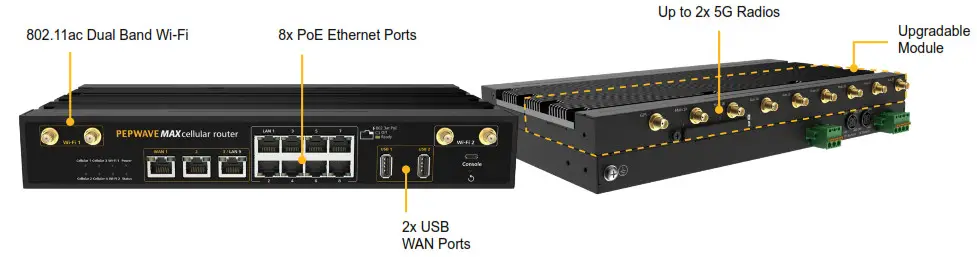

HD2 MBX
Specifications
Specifications| WAN Interface | 2x Embedded Cellular Modems with Redundant SIM Slots 3x GE* 2x USB 2.0 Interface |
| LAN Interface | 9x GE* |
| Wi-Fi Interface | 802.11ac/a/b/g/n, 1166 Mbps 2x2MIMO Wi-Fi WAN and/or AP Simultaneous Dual-Band |
| Router Throughput | 2.5 Gbps |
| PepVPN Throughput (No Encryption) | 600 Mbps |
| PepVPN Throughput (256-bit AES) | 500 Mbps |
| 5G Cellular Data Rate @(Downlink/Uplink) | 5G: 4 Gbps / 700 Mbps LTE CAT-20: 2 Gbps / 150 Mbps |
| Recommended Users | 50-500 |
| Antenna Connectors | 8x SMA Cellular Antenna Connectors 1x SMA GPS Antenna Connector 4x RP-SMA Wi-Fi Antenna Connectors |
| Power Input | DC Jack/Terminal Block: 12-56 V # |
| Power Output | Up to Eight 802.3at PoE Outputs # |
| Power Consumption | 55 W (max.) |
| Dimensions | 1.7 x 11.5 x 7.0 inches 43 x 292 x 177 mm |
| Weight | 7.28 pounds 3.3 kg |
| Operating Temperature | -40°– 149 °F -40°– 65 °C |
| Humidity | 15%–95% (non-condensing) |
| Certifications | FCC, CE, RoHS, E-Mark, PTCRB, Shock and Vibration Resistance: EN 61373:1999 IEC 61373:1999 Railway Applications: EN 50155 Electromagnetic Compatibility: EN 61000 |
| Package Content | MAX HD2 MBX, PSU 180W (ACW-630), 4x Dual Band Wi-Fi Antennas (ACW-341), 1x GPS Antenna (ACW-232), 8x Cellular Antennas (ACW-235), 1 Pair of Mounting Brackets (ACW-513), 3pin Terminal Block Connector (Ignition sense), 4pin Terminal Block Connector (Power supply), Grounding cable, Rubber Foot Pad set |
Ordering information
| Product Code | Description | Embedded Modems | Carrier/Categories | 5G Bands | LTE Bands |
| MAX-HD2-MBX5GD-T | HD2 MBX 5G with 2x 5Gmodems | 2 | Global/5G | 5G (NSA) Sub 6Ghz: n1, n2, n3, n5, n7, n8, n12,n20, n28, n38, n41, n66,n71, n77, n78, n79 | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17,B18, B19, B20, B25, B26, B28, B29, B30, B32,B34, B38, B39, B40, B41, B42, B46, B48, B66,B71 |
Custom Options
| Product Code | Description |
| ACW-630 | Includes 1x 54V, 3.34A Power Supply Enable 4x LAN with 802.3at PoE output (PoE License automatically applied after kit purchase) |
| ACW-633 | Includes 2x 54V, 3.34A Power Supply Enables 8x LAN with 802.3at PoE output (PoE License automatically applied after kit purchase) |
| MAX-HD-020-SPF | Supports up to 20 PepVPN/SpeedFusion Peers |
| SFN-LC-50 | Up to 50 SpeedFusion Bonding License Key for MAX HD2 MBX 5G |
| SIM-BK8-4E-56V | SIM Injector, 8x SIM cards capacity, 4x 10/100/1000 LAN ports, 56V DC |
| PUMA-421-S-W-6 | 7-in-1 Cellular and Wi-Fi Antenna System with GPS Receiver (White) |
| PUMA-421-S-B-6 | 7-in-1 Cellular and Wi-Fi Antenna System with GPS Receiver (Black) |
*WAN 3 is configured as a LAN port by default, configuration is changeable on the Web Admin. #2x 54V DC input is needed for all 8x LAN ports to have 802.3at PoE. Plugging in 1x 54V DC input will result in 4x LAN ports having 802.3at PoE. @Theoretical maximum data rates. Available globally. Regional and carrier certification is subject to local approval.

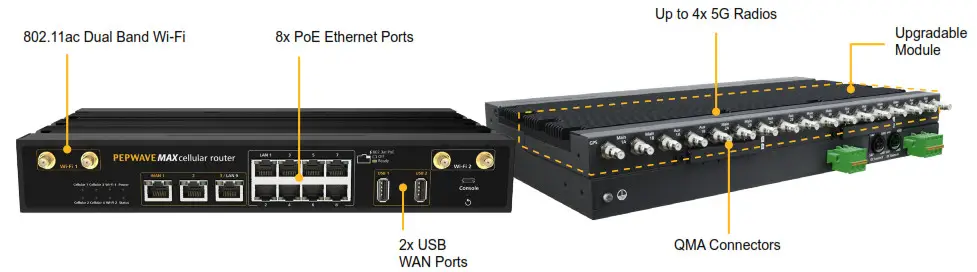

HD4 MBX
Specifications
| WAN Interface | 4x Embedded Cellular Modems with redundant SIM Slots 3x GE* 2x USB 2.0 Interface |
| LAN Interface | 9x GE* |
| Wi-Fi Interface | 802.11ac/a/b/g/n, 1166 Mbps 2x2MIMO Wi-Fi WAN and/or AP Simultaneous Dual-Band |
| Router Throughput | 2.5 Gbps |
| PepVPN Throughput (No Encryption) | 600 Mbps |
| PepVPN Throughput (256-bit AES) | 500 Mbps |
| 5G Cellular Data Rate @(Downlink/Uplink) | 5G: 4 Gbps / 700 Mbps LTE CAT-20: 2 Gbps / 150 Mbps |
| Recommended Users | 50-500 |
| Antenna Connectors | 16x QMA Antenna Connectors 1x QMA GPS Antenna Connector 4x RP-SMA Wi-Fi Antenna Connectors |
| Power Input | DC Jack/Terminal Block: 12-56 V# |
| Power Output | Up to Eight 802.3at PoE Outputs# |
| Power Consumption | 55 W (max.) |
| Dimensions | 1.7 x 11.5 x 7.0 inches 43 x 292 x 177 mm |
| Weight | 7.28 pounds 3.3 kg |
| Operating Temperature | -40°– 149°F -40°– 65°C |
| Humidity | 15%–95% (non-condensing) |
| Certifications | FCC, CE, RoHS, E-Mark, PTCRB, Shock and Vibration Resistance: EN61373:1999 IEC 61373:1999 Railway Applications: EN 50155 Electromagnetic Compatibility: EN 61000 |
| Package Content | MAX HD4 MBX,PSU 180W (ACW-630), 1x QMA to SMA Adaptor (for GPS), 1x GPS Antenna (ACW-232), 1 Pair of Mounting Brackets (ACW-513), 4x Dual Band Wi-Fi Antennas (ACW-341), 3pin Terminal Block Connector (Ignition sense), 4pin Terminal Block Connector (Power supply), Grounding cable, Rubber Foot Pad set * Cellular antennas not included. To enhance the MBX, Puma antennas are recommended. |
Ordering information
| Product Code | Description | Embedded Modems | Carrier/Categories | 5G Bands | LTE Bands |
| MAX-HD4-MBX5GD-T | HD4 MBX 5G with 4x 5G modems | 4 | Global/5G | 5G (NSA) Sub 6Ghz: n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n41, n66, n71, n77, n78, n79 | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46, B48, B66, B71 |
Add-On Feature & Accessories
| Product Code | Description |
| ACW-630 | Includes 1x 54V, 3.34A Power Supply Enable 4x LAN with 802.3at PoE output (PoE License automatically applied after kit purchase) |
| ACW-633 | Includes 2x 54V, 3.34A Power Supply Enables 8x LAN with 802.3at PoE output (PoE License automatically applied after kit purchase) |
| MAX-HD-020-SPF | Supports up to 20 PepVPN/SpeedFusion Peers |
| SFN-LC-50 | Up to 50 SpeedFusion Bonding License Key for MAX HD4 MBX 5G |
| SIM-BK8-4E-56V | SIM Injector, 8x SIM cards capacity, 4x 10/100/1000 LAN ports, 56V DC |
| PUMA-421-Q-W-6 | 7-in-1 Cellular and Wi-Fi Antenna System with GPS Receiver (White) |
| PUMA-401-Q-B-6 | 5-in-1 Cellular Antenna System with GPS Receiver (White) |
| PUMA-401-Q-W-6 | 5-in-1 Cellular Antenna System with GPS Receiver (Black) |
*WAN 3 is configured as a LAN port by default, configuration is changeable on the Web Admin. #2x 54V DC input is needed for all 8x LAN ports to have 802.3at PoE. Plugging in 1x 54V DC input will result in 4x LAN ports having 802.3at PoE. @Theoretical maximum data rates
Available globally. Regional and carrier certification is subject to local approval.

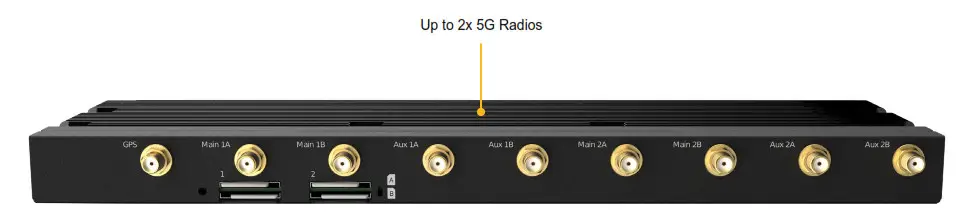

Expansion Module for HD2 MBX
Specifications
| Interface | 2x Embedded Cellular Modems with Redundant SIM Slots |
| Antenna Connectors | 8x SMA Antenna Connectors, 1x SMA GPS Antenna Connector |
| 5G Cellular Data Rate@Downlink/Uplink) | 5G: 4 Gbps / 700 Mbps LTE CAT-20: 2 Gbps / 150 Mbps |
| Dimensions | 0.9 x 11.5 x 3.5 inches 22 x 292 x 88 mm |
| Weight | 2.2 pounds 1 kg |
Ordering information
| Product Code | Description | Embedded Modems | Carrier/Categories | 5G Bands | LTE Bands |
| EXM-MBX-T25GD | Expansion Module for HD2 MBX 5G with 2x 5G modems | 2 | Global/5G | 5G (NSA) Sub 6Ghz: n1, n2, n3, n5, n7, n8, n12,n20, n28, n38, n41, n66,n71, n77, n78, n79 | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46, B48, B66, B71 |
@Theoretical maximum data rates
Available globally. Regional and carrier certification is subject to local approval.

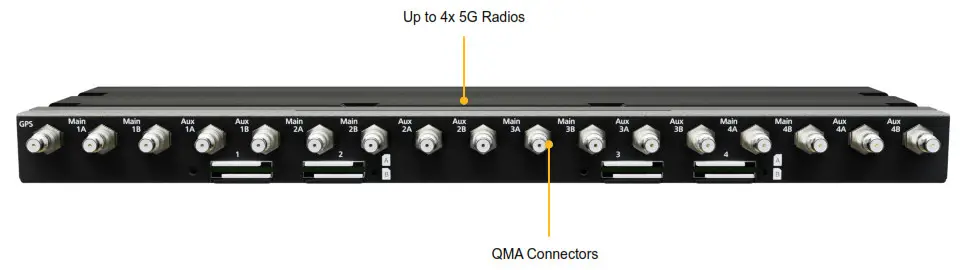

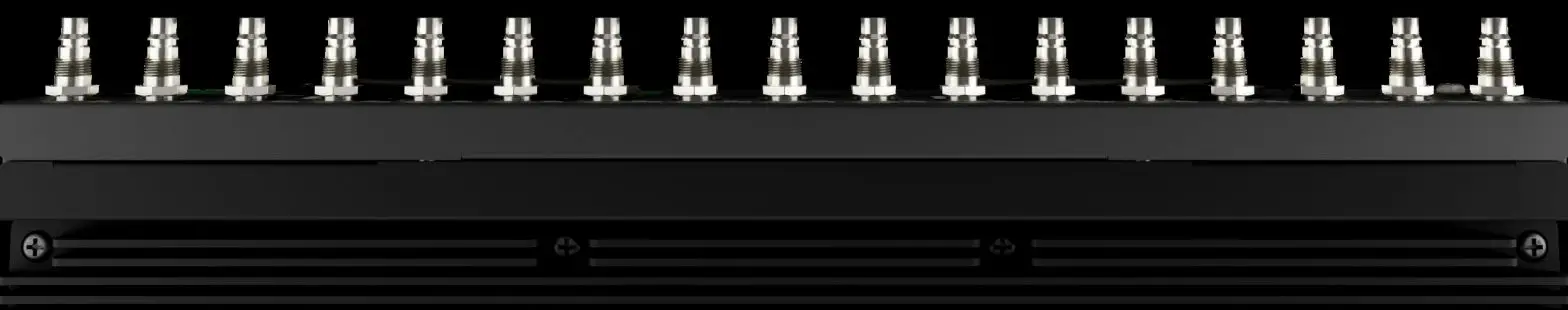

Expansion Module for HD4 MBX
Specifications
| Interface | 4x Embedded Cellular Modems with Redundant SIM Slots |
| Antenna Connectors | 16x QMA Antenna Connectors, 1x QMA GPS Antenna Connector |
| 5G Cellular Data Rate@ (Downlink/Uplink) | 5G: 4 Gbps / 700 Mbps LTE CAT-20: 2 Gbps / 150 Mbps |
| Dimensions | 0.9 x 11.5 x 3.5 inches 22 x 292 x 88 mm |
| Weight | 2.2 pounds 1 kg |
Ordering information
| Product Code | Description | Embedded Modems | Carrier/Categories | 5G Bands | LTE Bands |
| EXM-MBX-T45GD | Expansion Module for HD4 MBX 5G with 4x 5G modems | 4 | Global/5G | 5G (NSA) Sub 6Ghz: n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n41, n66,n71, n77, n78, n79 | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17,B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46, B48, B66, B71 |
@Theoretical maximum data rates Available globally. Regional and carrier certification is subject to local approval.
