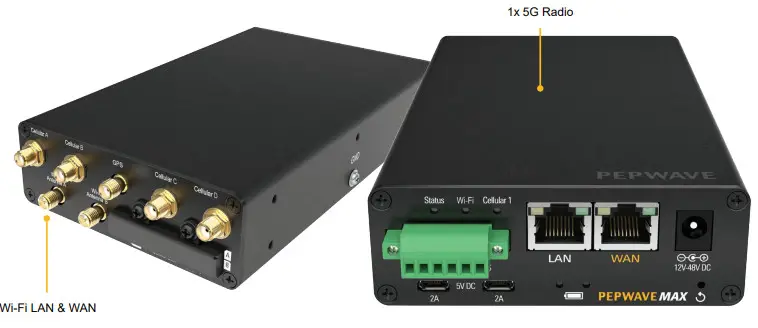

Transit 5G
5G Mobile Router Engineered for Transportation Deployments
Simultaneous Dual-Band Wi-Fi
Reduce Wi-Fi congestion and interference and enjoy two independent networks that work simultaneously to maximize throughput and overall user experience.
Achieve lower latency, faster speed, and more capability Transit 5G now supports a wider range of bands offering lower latency to ensure users wield optimal network connectivity.
Now available with PrimeCare
Our one-stop central management and warranty subscription make building and management of your SpeedFusion network simpler than ever. Enjoy SpeedFusion capability,
InControl, FusionHub compatibility, and warranty support with our PrimeCare program.
Transit 5G
Transit 5G
Specifications
| WAN Interface | 1x 10/100/1000M Ethernet 1x Embedded Cellular Modem with Redundant SIM Slots |
| LAN Interface | 1x 10/100/1000M Ethernet |
| Wi-Fi Interface | 802.11ac/a/b/g/n 2×2 MIMO Simultaneous Dual-Band |
| Transmit Power (2.4GHz / 5GHz) | 19 dBm / 21 dBm |
| Router Throughput | 400 Mbps |
| SpeedFusion throughput (No Encryption) | 100 Mbps |
| SpeedFusion throughput (256-bit AES) | 60 Mbps |
| SpeedFusion Features | Hot Failover, WAN Smoothing^ Bandwidth Bonding^ |
| Number of PepVPN SpeedFusion Peers | 5^ |
| Cellular Data Rate@(Downlink / Uplink) | 5G: 4 Gbps / 700 Mbps LTE CAT-20: 2 Gbps / 150 Mbps |
| Recommended Users | 150 |
| Antenna Connectors | 4x SMA Cellular, 1x SMA GPS, 2x RP-SMA Wi-Fi |
| Power Input | Power Port: 12V – 48V DC AC Adapter: AC Input 100V – 240V / DC Output 12V Terminal Block: 12V – 48V DC 2x Micro-USB B with 5V, 2A each for Power Input |
| Power Consumption | 7W (nominal), 18W (max.) |
| Dimensions (L x W x H) | 6.3 x 3.8 x 1.3 inches 160 x 97 x 33.5 mm |
| Weight | 1.3 pounds / 590 grams |
| Operating Temperature | -40° – 149°F / -40° – 65°C |
| Humidity | 15% – 95% (non-condensing) |
| Warranty | 1-Year Limited Warranty |
| Package Content | MAX Transit 5G, 12V2A Power Supply (ACW-601), 2x Wi-Fi Dual-Band Antennas (ACW-341), 1x GPS Antenna (ACW-232), 4x LTE/5G Antennas (ACW-235), 1 Pair of Mounting Brackets (ACW-724) |
| Product Code | Description | Embedded Modems | Carrier/ Categories | 5G Bands | 4G Bands |
| MAX-TST-5GD-T-PRM | MAX Transit 5G | 1 | Global/5G | 5G (NSA) Sub 6Ghz: n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n41, n66, n71, n77, n78, n79
| B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46, B48, B66, B71 |
| Product Code | Description |
| ACW-DIN-TST PUMA-421-S-W-6 PRM-MAX-TST-5GD-1Y PRM-MAX-TST-5GD-2Y PRM-MAX-TST-5GD-4Y PUMA-421-S-B-6 | DIN Rail Mount 1 Year PrimeCare Subscription 2 Years PrimeCare Subscription 4 Years PrimeCare Subscription 7-in-1 Cellular and Wi-Fi Antenna System with GPS Receiver (White) 7-in-1 Cellular and Wi-Fi Antenna System with GPS Receiver (Black) |
+ The WAN port can act as a LAN port if needed.
@ Theoretical maximum data rates. ^ Requires PrimeCare Subscription, complimentary for the first year.
Available globally. Regional and carrier certification is subject to local approval.
www.peplink.com
©Peplink. All rights reserved
Ref no.: max-transit-5g-202107-v2
