Fibocom NL668-EU Highly Integrated 4G Cellular
Product Instructions
Product Name: NL668-EU
Product Manufacturer : Fibocom Wireless Inc.
Product Manufacturer Address: 1101, Building A, Building 6, Shenzhen International Innovation Valley, Xili Community, Xili Street, Nanshan District, Shenzhen, China
Description

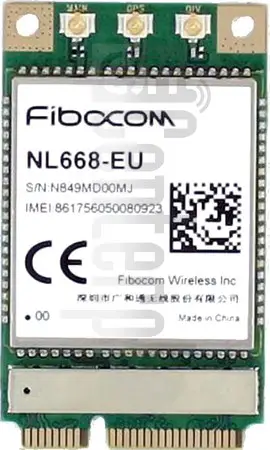

NL668-EU-00 is a highly integrated 4G cellular module which adopts the standard M.2 interface, and supports LTE FDD/LTE TDD/WCDMA systems.
| Operating Band | Description | Mode | Tx (MHz) | Rx (MHz) | ||
| Band 1 | IMT 2100MHz | LTE FDD/WCDMA | 1920-1980 | 2110-2170 | ||
| Band 3 | DCS 1800MHz | LTE FDD/GSM | 1710-1785 | 1805-1880 | ||
| Band 5 | CLR 850MHz | LTE FDD/WCDMA/GSM | 824-849 | 869-894 | ||
| Band 7 | IMT-E 2600Mhz | LTE FDD | 2500-2570 | 2620-2690 | ||
| Band 8 | E-GSM 900MHz | LTE FDD/WCDMA/GSM | 880-915 | 925-960 | ||
| Band 20 | EUDD 800MHz | LTE FDD | 832-862 | 791-821 | ||
| GPS L1 | NA | NA | NA | 1575.42±1.023 | ||
| GLONASS L1 | NA | NA | NA | 1602.5625±4 | ||
| BDS | NA | NA | NA | 1561.098±2.046 | ||
| Galileo | NA | NA | NA | 1575.42±1.023 | ||
| Mode | Condition | Band | Transmit Power (dBm) | |||
| Min | Type | Max | ||||
| GSM | PCL=5 | GSM 850/900 | 31 | 32.5 | 34 | |
| PCL=0 | GSM 1800 | 27 | 29.5 | 31 | ||
| GPRS | 1U1D,gamma=3 | GSM 850/900 | 31 | 32.5 | 34 | |
| 1U1D,gamma=3 | GSM 1800 | 27 | 29.5 | 31 | ||
| EDGE | 1U1D,gamma=6 | GSM 850/900 | 25.5 | 27 | 28.5 | |
| 1U1D,gamma=5 | GSM 1800 | 24.5 | 26 | 27.5 | ||
| WCDMA | Max power | Band 1/5/8 | 22 | 23.5 | 25 | |
| LTE FDD | 10MHz 1RB | Band 1/3/5/7/8/20 | 21 | 23 | 25 | |
For more information, please refer to the website : www.fibocom.com
Declaration of Conformity
Manufacturer:
Name: Fibocom Wireless Inc.
Address: 1101,Tower A, Building 6, Shenzhen International Innovation Valley, Dashi 1st Rd, Nanshan, Shenzhen, China
Radio Equipment:
Model: NL668-EU
Description: LTE Module
We, Fibocom Wireless Inc., declare under our sole responsibility that the product described above is in conformity with the relevant Union harmonization legislations:
RE Directive (2014/53/EU), RoHS Directive (2011/65/EU)
The following harmonized standards and/or other relevant standards have been applied:
- Health and Safety (Article 3.1(a) of the RE Directive)
- EN 62311:2008
- EN 62368-1:2014+A11:2017
- Electromagnetic compatibility (Article 3.1 (b) of the RE Directive)
- ETSI EN 301 489-1 V2.2.3
- ETSI EN 301 489-19 V2.2.0
- Draft ETSI EN 301 489-52 V1.1.0
- Radio frequency spectrum usage (Article 3.2 of the RE Directive)
- ETSI EN 301511 V12.5.1
- ETSI EN 301908-2 V13.1.1
- ETSI EN 301908-13 V13.1.1
- ETSI EN 301908-1 V13.1.1
- ETSI EN 303 413 V1.1.1
The notified body
(Name: Timco, ID: 1177) performed the conformity assessment according to Annex III of the RE Directive and issued the EU-type examination certificate (Ref. No.:1177-210037).
Signed for and on behalf of: Fibocom Wireless Inc.
Place: 1101,Tower A, Building 6, Shenzhen International Innovation Valley, Dashi 1st Rd, Nanshan,Shenzhen,China, Date: March 1, 2022
Name: Lucy Liu, Function: Certification Manager, Signature:
