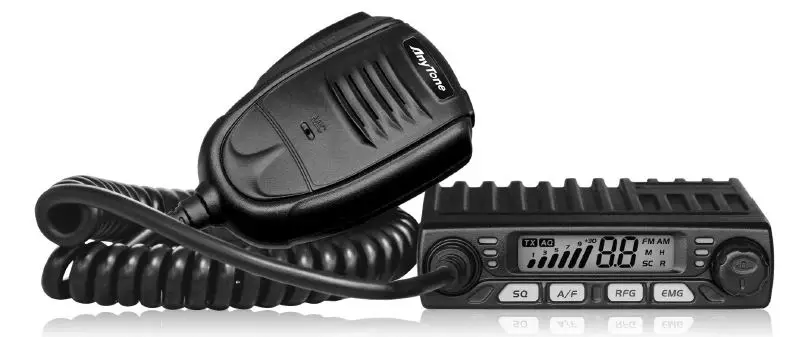

AnyTone SMT02 Smart 10 Meter Ham Radio

Qixiang Electon Science & Technoloyg Co.,Ltd. www.qxdz.cn

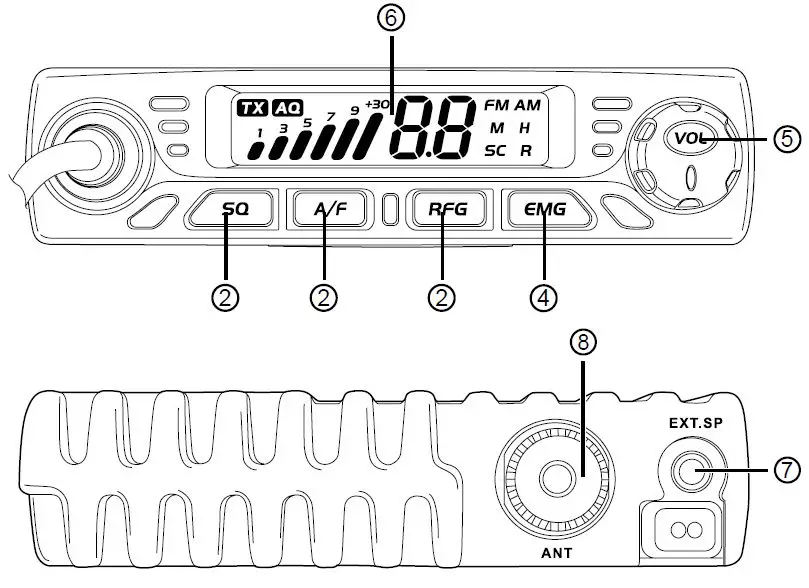

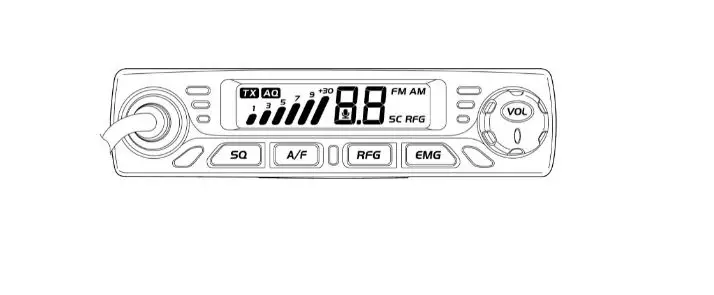

KNOW ABOUT THIS RADIO

HOW TO USE THIS RADIO

Power On/Off the radio

1. Turn VOL switch clockwise to power on the radio, the LCD displays the Norms and then displays channel number.
2. Turn VOL switch anti-clockwise, until hear Ka Ta, the radio is powered off.

Volume Control
Turn clockwise to increase volume, anti-clockwise to decrease volume.

Channel Control

1. Short press [ UP ] or [ DN ] to change working channel.
2. Hold [ UP ] or [ DN ] can fast change working channel.

Squelch Level Control (O.F to 2.8 level available)

1. Short press SQ , until LCD displays SQ and then displays X.X, X.X stands for SQ level, the bigger value stands for high squelch level.
2. Short press [ UP ] or [ DN ] to change SQ level.
3. Hold [ UP ] or [ DN ] can fast change SQ level.
4. Hold SQ or wait for 3 seconds to store and exit.

ASQ Control(A.1-A.9 level available)

1. Hold SQ key, until LCD displays AQ, the ASQ function turned on. The LCD will displays “A.X”, “X” stands for the ASQ level.
2. Short press microphone [ UP ] or [ DN ] to change SQ level
3. Hold microphone [ UP ] or [ DN ] can fast change ASQ level.
4. Hold  SQ or wait for 3 seconds to store and exit.

Mode Control

1. Short press A/F key to switch between AM /FM mode.
2. The LCD displays the selected mode.

RF Gain Control

1. Short press key RFG, LCD displays R and the present RF gain level flashes.
2. Short press microphone [ UP ] or [ DN ] to change level.
3. Short press RFG key to exit RF gain level control.

Note: When RFG function is on, the LCD displays R. If RFG level is 6 means the attenuation is 6dBm.

Emergency Channel

1. Short press key to choose CH9, the channel number flashes.
2. Short press key again to choose CH19, the channel number flashes.
3. Short press key third time to return to last normal channel.

Keypad Lock

1. Hold key for over 2 seconds to lock the keys, LCD displays “LC”.
2. Hold key for over 2 seconds again to unlock the keys, LCD displays OF.

Note: In lock Mode all keys except PTT is valid.

Scan Function

1. Hold to start scan function, “SC” falshes in the LCD;
2. Press [ UP ] or [ DN ] to change scan direction during scan;
3. Press or [PTT] key to exit scan function.

Band Control

1. Hold to power on radio, until LCD displays the bands;
2. Press [ UP ] or [ DN ] to choose wanted bands;
3. Power off and power on again.

High/Low Control

1. Hold and PTT key to power on;
2. Press [ UP ] or [ DN ] to choose wanted power level, PH is 8W, PL is 4W;
3. Power off and power on again.

Install External Speaker
Choose a 8Ω external speaker with 3.5mm mono connector.

Resume Factory Default

1. Hold SQ key to power on radio, until the LCD displays “RT”.
2. All channel and function setting will resume factory default after above operation.

SPECIFICATION

FREQUENCIES TABLE

WARNING Our Qixiang Electron Science & Technology Co.,Ltd radio generators RF electromagnetic energy during transmit mode. This radio is designed for and classified as“Occupational Use Only”,meaning it must be used only during the  course of employment by individuals aware of the hazards, and the ways To Minimize Such hazards.

This radio is NOT intended for use by the“General Population” in an uncontrolled environment. This radio has been tested and complies with the FCC RF exposure limits for“Occupational Use Only”.

In addition, our Qixiang Electron Science & Technology Co.,Ltd radio complies with the following Standards and Guidelines with regard to RF energy and electromagnetic energy levels and evaluation of such levels for exposure to humans:

• IEEE Std. 1528:2013 and KDB447498, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields.
• American National Standards Institute (C95.1-1992), IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.
• American National Standards Institute (C95.3-1992), IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields-RF and Microwave.

CAUTION The information listed above provides the user with the information needed to make him or her aware of RF exposure, and what to do to as-sure that this radio operates with the FCC RF exposure limits of this radio.

Electromagnetic Interference/Compatibility
During transmissions, Qixiang Electron Science & Technology Co.,Ltd radio generates RF energy that can possibly cause interference with other devices or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so. DO NOT operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals, aircraft, and blasting sites.

Occupational/Controlled Use
The radio transmitter is used in situations in which persons are exposed as consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help

MODIFICATION OF THIS DEVICE TO RECEIVE CELLULAR RADIOTELEPHONE SERVICE SIGNALS IS PROHIBITED UNDER FCC RULES AND FEDERAL LAW.
