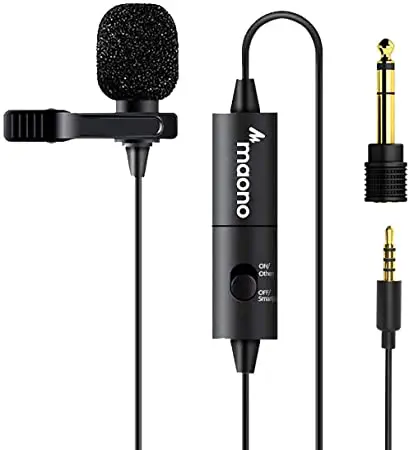

maono AU-100 Condenser Clip On Lavalier Microphone with 6 Meters Audio Cable User Manual
Introduction

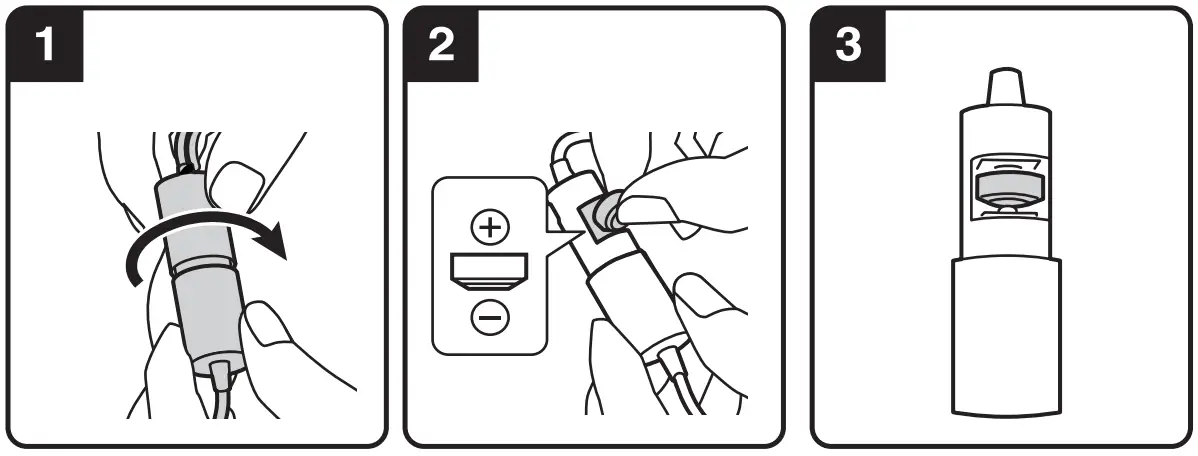

Battery Change

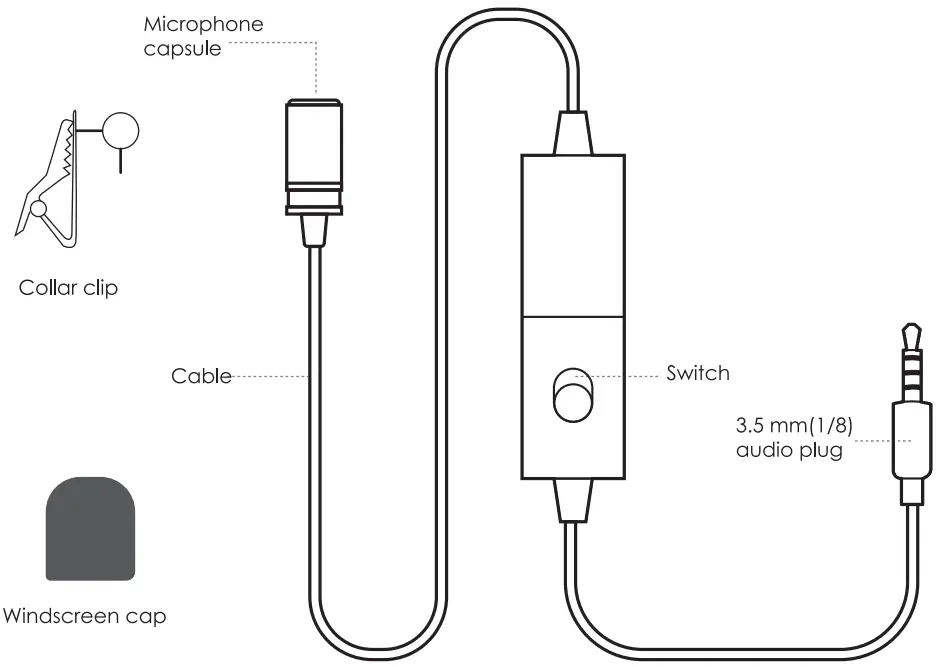

Description
MAONO AU-100 Lavalier Microphone is designed to provide better audio quality when recording video and audio. The universal 3.5mm TRRS plug is compatible with computers, smartphones, cameras, and voice recorders. AU-100 comes with l8ft (6m) cable, which gives more versatility. It is a perfect choice for voice over, interview, karaoke, live streaming, and vlog.
Features
- Omni-directional polar pattern
- High sensitivity
- 360 degrees sound pick up
- Mobile and camera compatible
- 20 ft (6 meters) long cable
- Extra long battery life
Notes

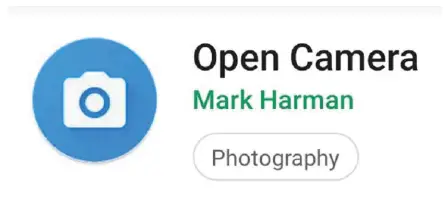

Since of default camera app on Android OS can not select external mic for record audio source for video. Please download “Open Camera” from Google Play Store when use microphone on Android Phone for Video shoot, and setting it Audio Source ” External mic”.
Specification
| Transducer type | Electret Condenser |
| Polar Pattern | Omni-directional |
| Frequency Range | 65Hz – 18KHz |
| Signal / Noise | 74dB SPL |
| Sensitivity | -30dB +/-3dB / OdB=1 V/Pa, 1 kHz |
| Output Impedance | 1000 Ohm or less |
| Output Connection | 3.5mm (1/8inch) 4-pole gold plug |
| Battery Type | LR44 (Included) |
| Audio Cable | 20ft (6.00m) |

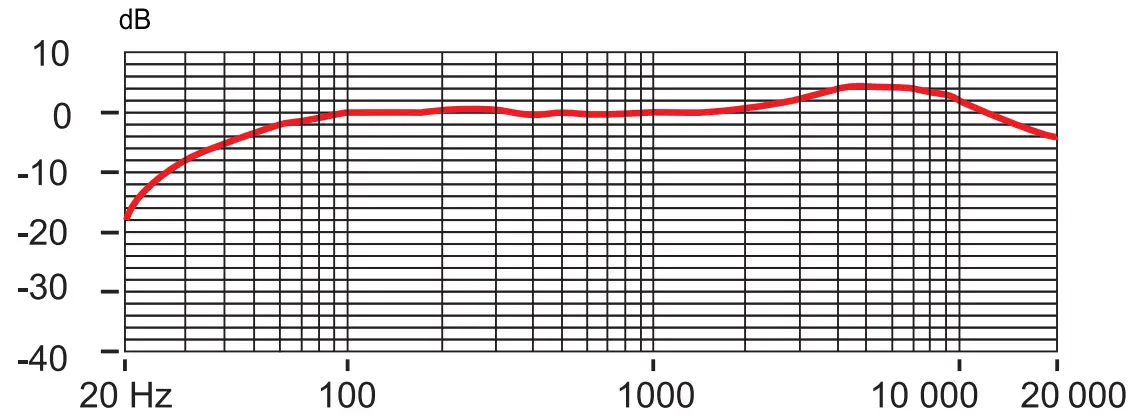

Frequency response

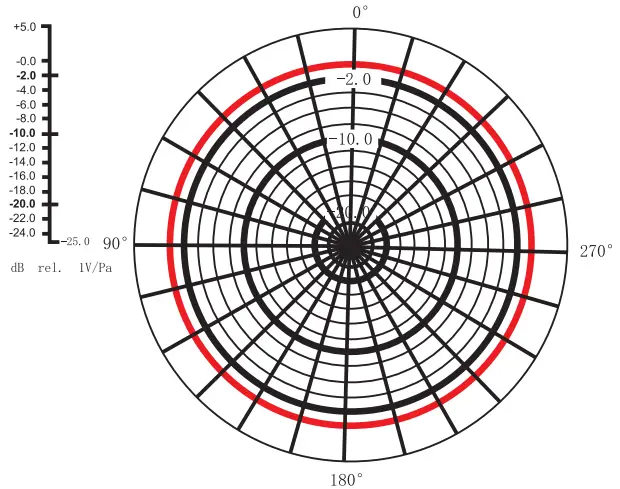

Polar Patern

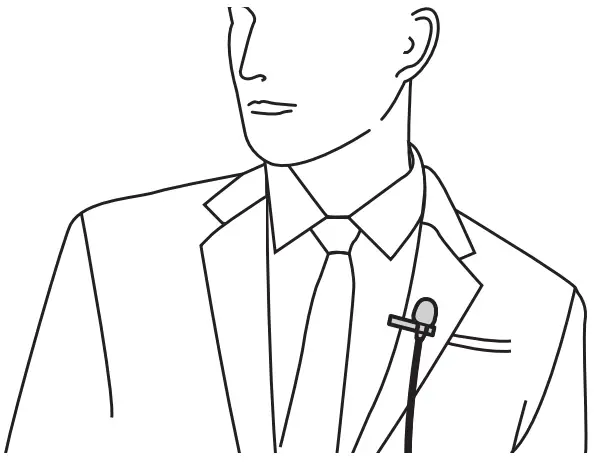

Microphone wear
Put the clip on collar around 10-30cm from your mouth.

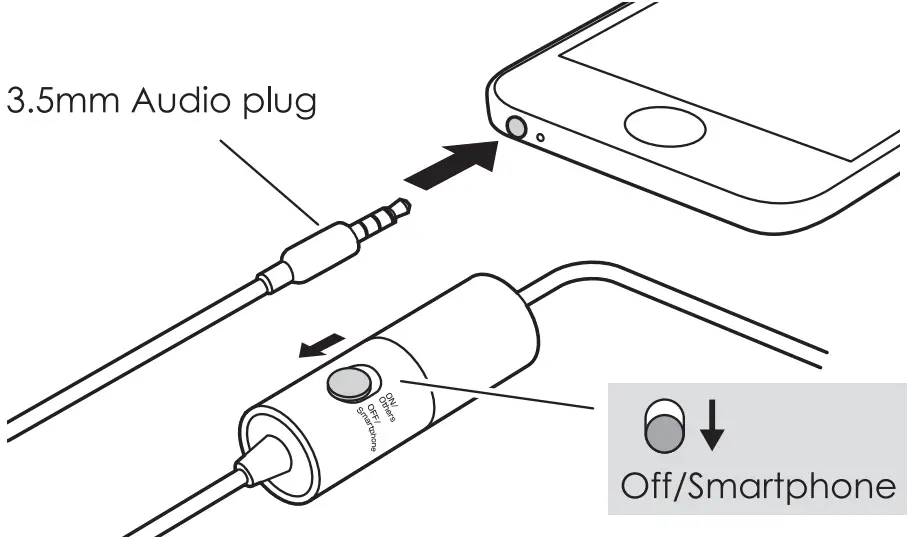

Work on smartphone

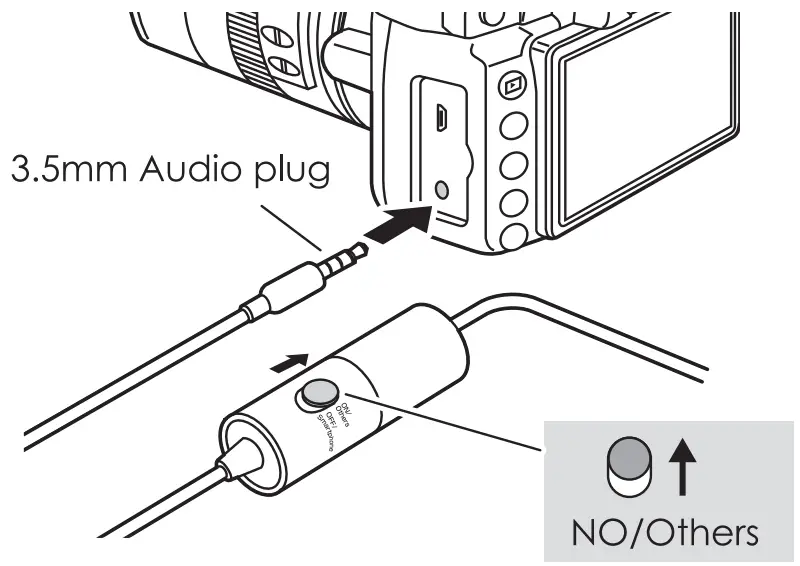

Work on Camera
* Please switch off when you not use it
Work on computer
If your computer has earphone and mic integrated jack, please put the switch to OFF.

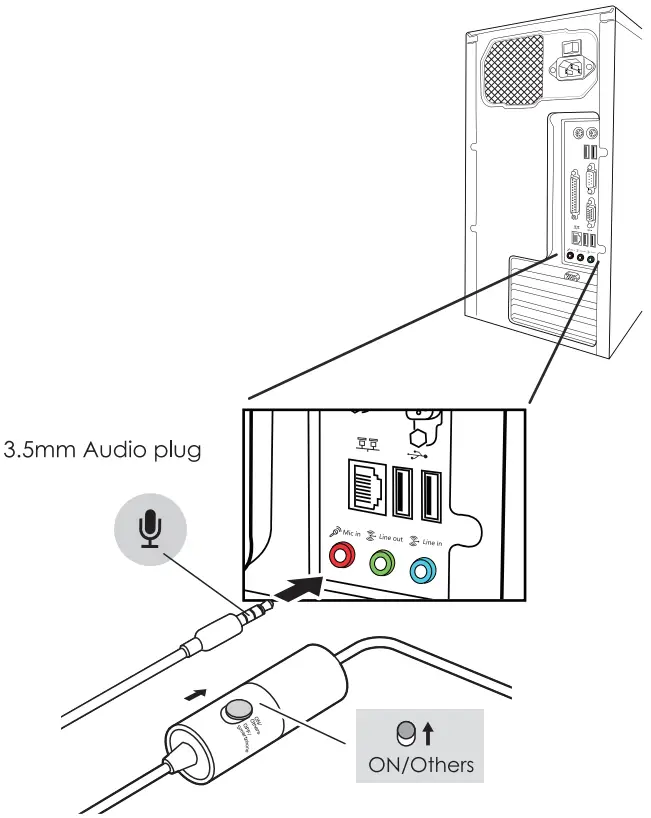

Work on Desktop
Please switch off when you not use it.
Technical support
[email protected]
www.maono.com
