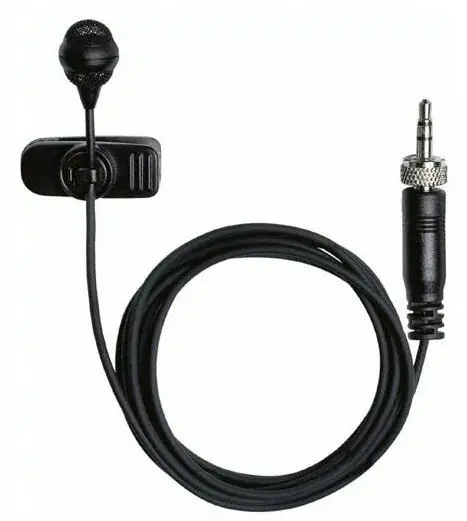

SENNHEISER ME 4 Clip-On Lavalier Microphone

SENNHEISER ME-4-Clip-On-Lavalier-Microphone-9

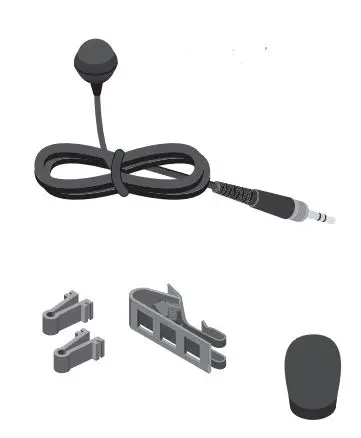

In the boxSENNHEISER ME-4-Clip-On-Lavalier-Microphone-1

AccessorySENNHEISER ME-4-Clip-On-Lavalier-Microphone-2

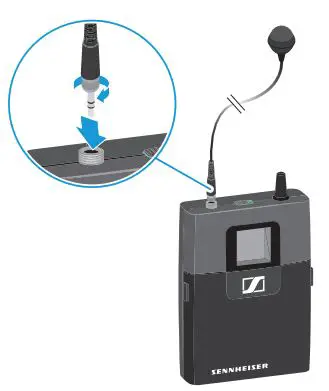

SetupSENNHEISER ME-4-Clip-On-Lavalier-Microphone-3SENNHEISER ME-4-Clip-On-Lavalier-Microphone-4

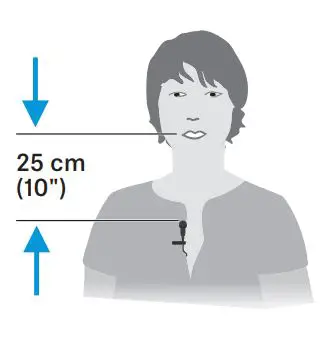

Wearing the microphoneSENNHEISER ME-4-Clip-On-Lavalier-Microphone-5

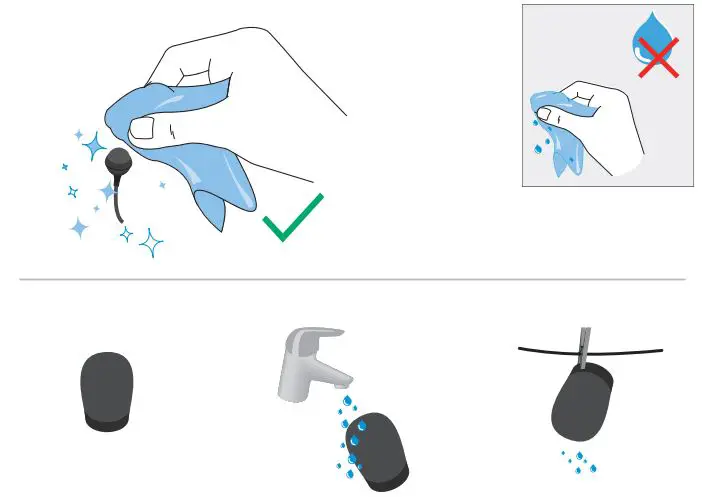

CleaningSENNHEISER ME-4-Clip-On-Lavalier-Microphone-6

Specifications

  • Transducer principle pre-polarized condensor microphone
  • Pick-up pattern cardioid
  • Sensitivity in free field (1 kHz) 40 mV/Pa
  • Max. SPL at 1 kHz 120 dB
  • Frequency response 50 to 18,000 Hz
  • Equivalent noise level A-weighted 31 dB
  • Connector 3.5 mm jack
  • Cable length approx. 1.60 m
  • Supply voltage 7.5 V
  • Diameter of microphone 13 mm

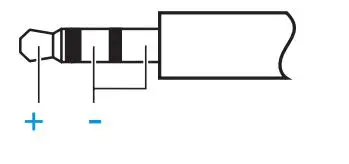

Connector assignmentSENNHEISER ME-4-Clip-On-Lavalier-Microphone-7
