ROUND 1.28″ LCD DISPLAY
Circular IPS LCD display with 4-Wire SPI interface
Joy-IT powered by SIMAC Electronics GmbH – Pascalstr. 8 – 47506 Neukirchen-Vluyn – www.joy-it.net
GENERAL INFORMATION
Dear customer,
thank you for choosing our product. In the following, we will show you what to consider during commissioning and use.
Should you encounter any unexpected problems during use, please feel free to contact us.
BASICS

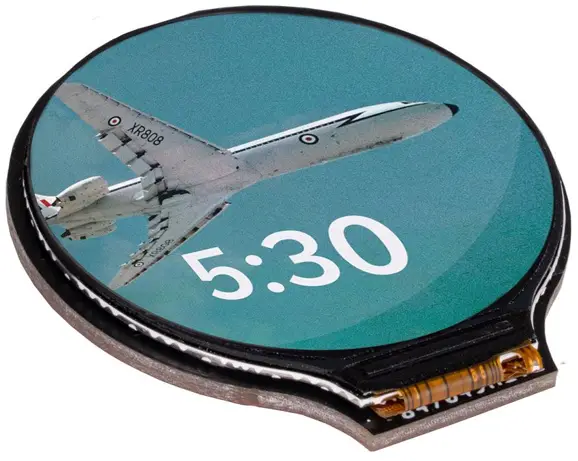

The 1.28″ LCD display convinces with its high-resolution IPS display and its circular display surface. With a color depth of 65,000 colors, the display is of particularly high quality.
Due to the control via the SPI interface, the display is ideally suited for use as an output device on microcontrollers and single board computers.
APPLICATION EXAMPLE ARDUINO

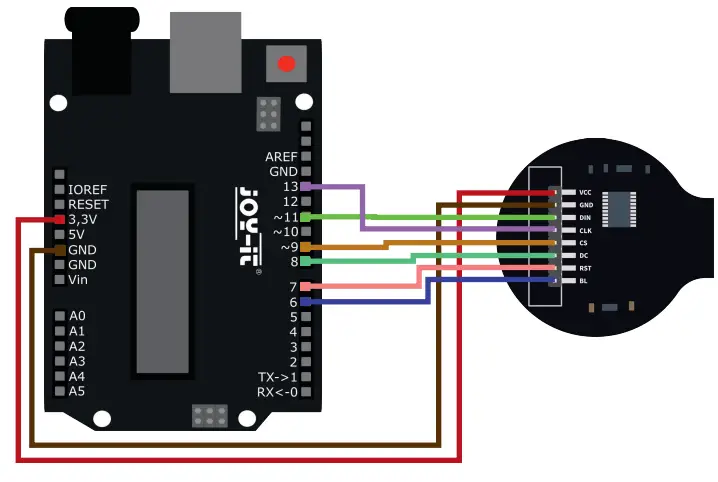

First connect the module to your Arduino as follows:
| ARDUINO | 1.28″ LCD DISPLAY |
| 3,3 V | VCC |
| GND | GND |
| D11 | DIN |
| D13 | CLK |
| D9 | CS |
| D8 | DC |
| D7 | RST |
| D6 | BL |
For the use of our software example the installation of the GitHub – moononournation/Arduino_GFX: Arduino GFX developing for various color displays and various data bus interfaces is required. To install it, first open the library manager in your Arduino IDE at Sketch → Include Library → Manage Libraries. Here, type GFX Library for Arduino in the search box and install the library titled GFX Library for Arduino.
You can download the sample program here. Open this and transfer it to your Arduino.
4. APPLICATION EXAMPLE RASPBERRY PI

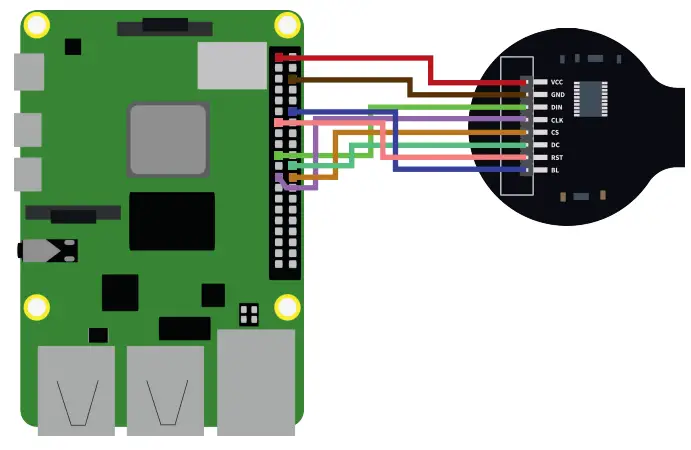

First connect the module to your Raspberry Pi as follows:
| RASPBERRY PI | 1.28″ LCD DISPLAY |
| 3,3 V | VCC |
| GND | GND |
| GPIO10 | DIN |
| GPIO11 | CLK |
| GPIO8 | CS |
| GPIO25 | DC |
| GPIO27 | RST |
| GPIO18 | BL |
Before we can use the sensor, we first need to enable the I2C interface on the Raspberry Pi. Open a new terminal window and enter the following command to open the Raspberry Pi configuration menu:
sudo raspi-config
Navigate here to the menu 3 Interfacing Options and activate I4 SPI here.
Now you can download and unpack the sample program with the following command:
sudo apt-get install python3-pip
sudo pip3 install Pillow
sudo apt install python3-numpy
sudo apt-get install libopenjp2-7
wget https://www.joy-it.net/files/files/Produkte/SBC-LCD1.28R/SBCLCD128R-RPi.zipunzip
SBC-LCD128R-RPi.zip
Now run the sample program: sudo python3 SBC-LCD128R.py
