LSP7T The Premiere Smart 4K UHD Ultra
User Guide
LSP7T The Premiere Smart 4K UHD Ultra

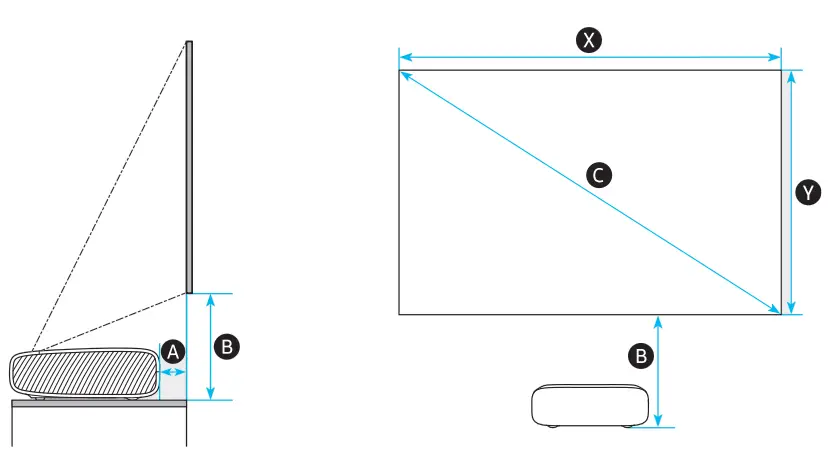

– The screen sizes for each projection distance may differ depending on the installation environment.
SP-LSP7T*A
| C | X | Y | A | B |
| 90 inches (2286 mm) (228.6 cm) | 78.4 inches (1992 mm) (199.2 cm) | 441 inches (1121 mm) (112.1cm) | 9.7 inches (247 mm) (24.7 cm) | 13.7 inches (349 mm) (34.9 cm) |
| 95 inches (2413 mm) (241.3 cm) | 82.8 inches (2103 mm) (210.3 cm) | 46.6 inches (1183 mm) (118.3 cm) | 10.8 inches (275 mm) (27.5 cm) | 14.3 inches (364 mm) (36.4 cm) |
| 100 inches (2540 mm) (254.0 cm) | 87.2 inches (2214 mm) (2214 cm) | 49.0 inches (1245 mm) (124.5 cm) | 119 inches (303 mm) (30.3 cm) | 149 inches (379 mm) (37.9 cm) |
| 105 inches (2667 mm) (266.7 cm) | 91.5 inches (2324 mm) (2324 cm) | 51.5 inches (1308 mm) (130.8 cm) | 13.0 inches (331 mm) (331 cm) | 15.5 inches (394 mm) (39.4 cm) |
| 110 inches (2794 mm) (279.4 cm) | 959 inches (2435 mm) (243.5 cm) | 53.9 inches (1370 mm) (137.0 cm) | 141 inches (359 mm) (359 cm) | 163 inches (409 mm) (409 cm) |
| 115 inches (2921 mm) (292.1cm) | 100.2 inches (2546 mm) (254.6 cm) | 56.4 inches (1432 mm) (143.2 cm) | 15.2 inches (387 mm) (38.7 cm) | 16.7 inches (424 mm) (42.4 cm) |
| 120 inches (3048 mm) (304.8 cm) | 104.6 inches 58.8 inches (2657 mm) (1494 mm) (265.7 cm) (149.4 cm) | 16.3 inches (415 mm) (41.5 cm) | 173 inches (439 mm) (43.9 cm) | |
SP-LSP9T*A
| C | X | Y | A | B |
| 100 inches (2540 mm) (254.0 cm) | 87.2 inches (2214 mm) (221A cm) | 49.0 inches (1245 mm) (124.5 cm) | 4.4 inches (113 mm) (11.3 cm) | 13.8 inches (351 mm) (351 cm) |
| 105 inches (2667 mm) (266.7 cm) | 91.5 inches (2324 mm) (232.4 cm) | 51.5 inches (1308 mm) (130.8 cm) | 5.3 inches (134 mm) (13.4 cm) | 14.3 inches (363 mm) (36.3 cm) |
| 110 inches (2794 mm) (279.4 cm) | 95.9 inches (2435 mm) (243.5 cm) | 53.9 inches (1370 mm) (137.0 cm) | 61 inches (154 mm) (15.4 cm) | 14.8 inches (376 mm) (37.6 cm) |
| 115 inches (2921 mm) (2921 cm) | 100.2 inches (2546 mm) (254.6 cm) | 56.4 inches (1432 mm) (143.2 cm) | 6.9 inches (175 mm) (17.5 cm) | 15.3 inches (388 mm) (38.8 cm) |
| 120 inches (3048 mm) (304.8 cm) | 104.6 inches (2657 mm) (265.7 cm) | 58.8 inches (1494 mm) (149.4 cm) | 7.7 inches (196 mm) (19.6 cm) | 15.8 inches (401 mm) (401 cm) |
| 125 inches (3175 mm) (317.5 cm) | 1089 inches (2767 mm) (276.7 cm) | 61.3 inches (1557 mm) (155.7 cm) | 8.5 inches (217 mm) (21.7 cm) | 16.3 inches (413 mm) (41.3 cm) |
| 130 inches (3302 mm) (330.2 cm) | 113.3 inches (2878 mm) (287.8 cm) | 63.7 inches (1619 mm) (1619 cm) | 9A inches (238 mm) (23.8cm) | 16.8 inches (426 mm) (42.6 cm) |
