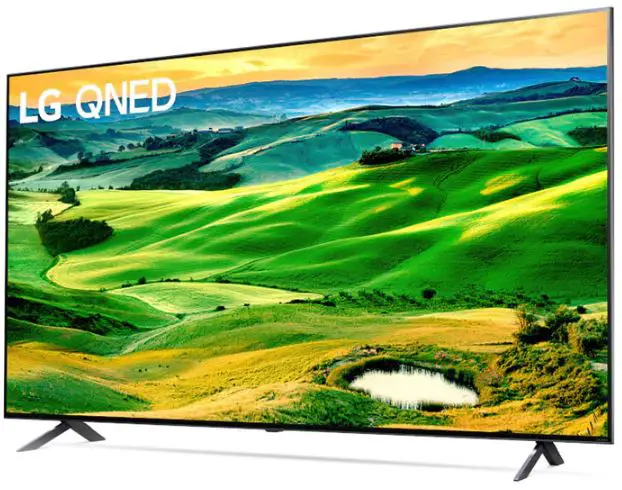

LG 75QNED80AQA 4K UHD Smart TV

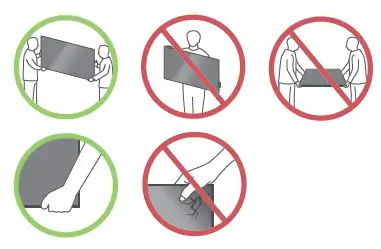

Caution

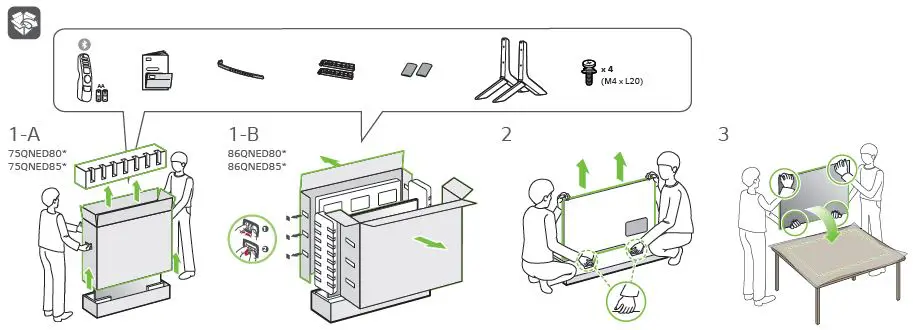

What’s In The Box

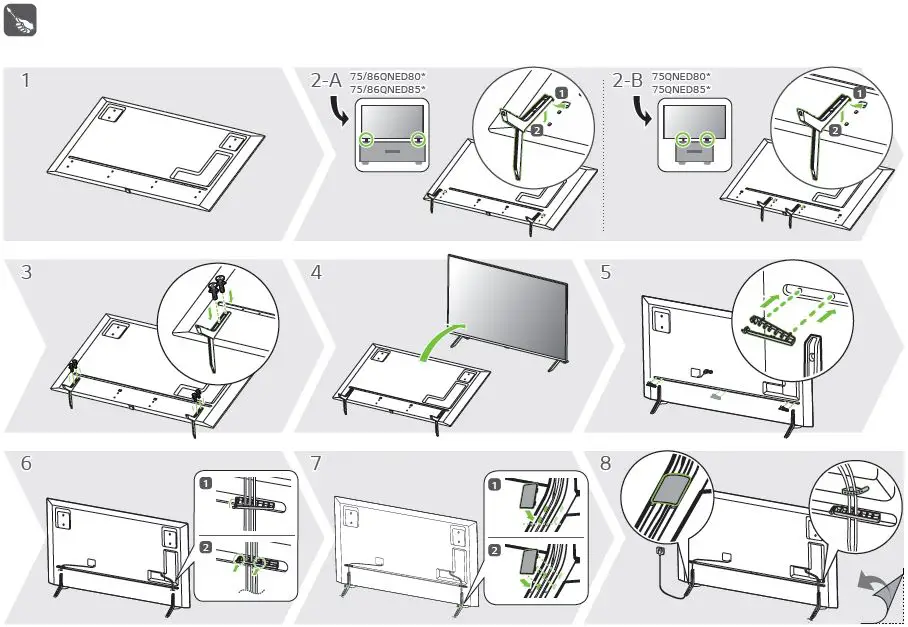

Installation

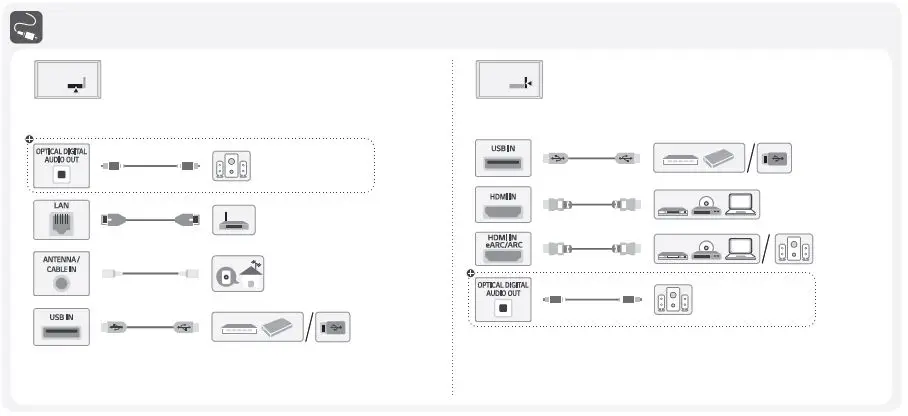

Cable Connections

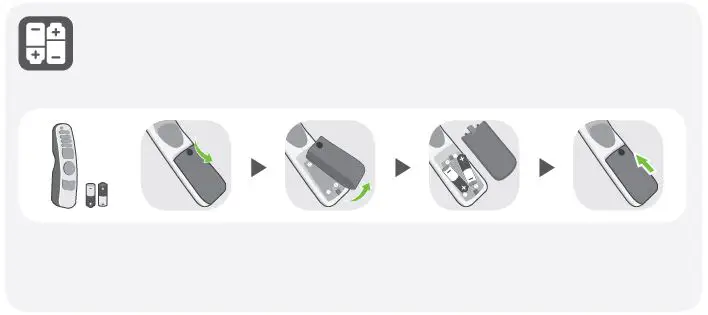

Insert Remote Battery

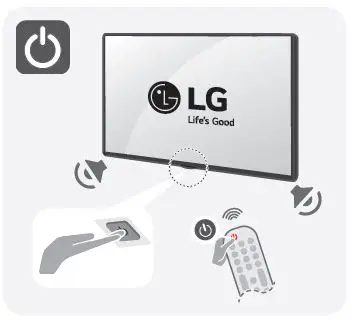

Power On

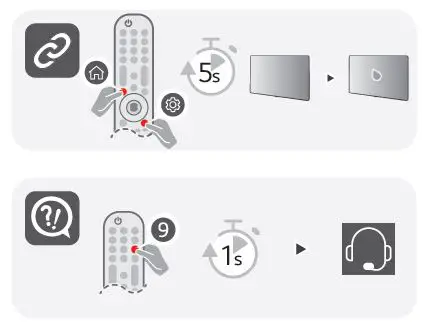

Remote Control

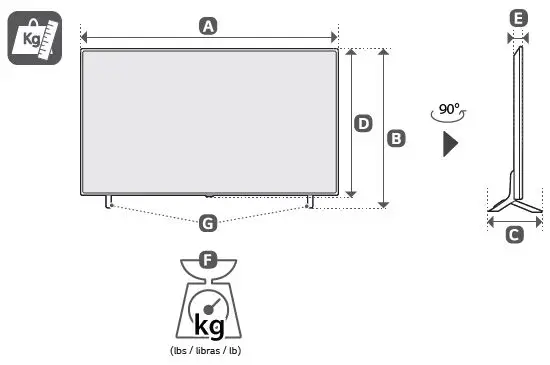

Dimension
- A, B, C, D, E: mm (inches)
- F, G: kg (lbs)
| MODEL | A | B | C | D | E | F | F G | Power consumption | |||||||
| 75QNED80AQA 75QNED80UQA | 1,675 (65.9) | 1 675 (65,9) | 1,029 (40.5) | 1 029 (40,5) | 359 (14.1) | 359 (14,1) | 964 (37.9) | 964 (37,9) | 44.5 (1.7) | 44,5 (1,7) | 36.9 (81.3) | 36,9 (81,3) | 35.9 (79.1) | 35,9 (79,1) | 240 W |
| 75QNED85AQA 75QNED85UQA | 1,673 (65.8) | 1 673 (65,8) | 1,027 (40.4) | 1 027 (40,4) | 359 (14.1) | 359 (14,1) | 963 (37.9) | 963 (37,9) | 44.9 (1.7) | 44,9 (1,7) | 40.1 (88.4) | 40,1 (88,4) | 39.1 (86.2) | 39,1 (86,2) | 315 W |
| 86QNED80AQA 86QNED80UQA | 1,925 (75.7) | 1 925 (75,7) | 1,165 (45.8) | 1 165 (45,8) | 359 (14.1) | 359 (14,1) | 1,105 (43.5) | 1 105 (43,5) | 46.1 (1.8) | 46,1 (1,8) | 55.5 (122.3) | 55,5 (122,3) | 54.5 (120.1) | 54,5 (120,1) | 370 W |
| 86QNED85AQA 86QNED85UQA | 1,925 (75.7) | 1 925 (75,7) | 1,165 (45.8) | 1 165 (45,8) | 359 (14.1) | 359 (14,1) | 1,105 (43.5) | 1 105 (43,5) | 46.1 (1.8) | 46,1 (1,8) | 57.5 (126.7) | 57,5 (126,7) | 56.5 (124.5) | 56,5 (124,5) | 415 W |
| Power requirement | AC 120 V~ 50/60 Hz | ||||||||||||||

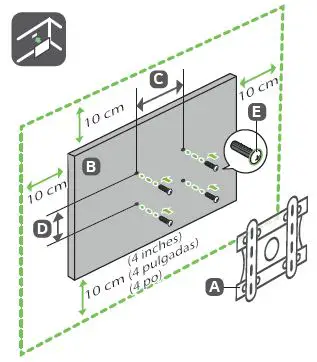

- C, D: mm (inches)
| A | B | C D (mm) | E |
| LSW440B | 75QNED80* 75QNED85* | 400 (15.7) x 400 (15.7) | M6 |
| 400 (15,7) x 400 (15,7) | |||
| LSW640B | 86QNED80* 86QNED85* | 600 (23.6) x 400 (15.7) | M8 |
| 600 (23,6) x 400 (15,7) |
- C, D: mm (inches)
| A | B | C D (mm) | E |
| WB21LGB | 75QNED80* 75QNED85* | 1,281 (50.4) x 125 (4.9) | M8 |
| 1 281 (50,4) x 125 (4,9) | |||
| WB21LGB | 86QNED80* 86QNED85* | 1,586 (62.4) x 125 (4.9) | M8 |
| 1 586 (62,4) x 125 (4,9) |
Read Safety and Reference.
Depending upon model
Easy Setup Guide
Please read this manual carefully before operating your set and retain it for future reference.
