STL-9-I Street Light
User Manual
STL-9-I
Street Light Series
USER MANUAL

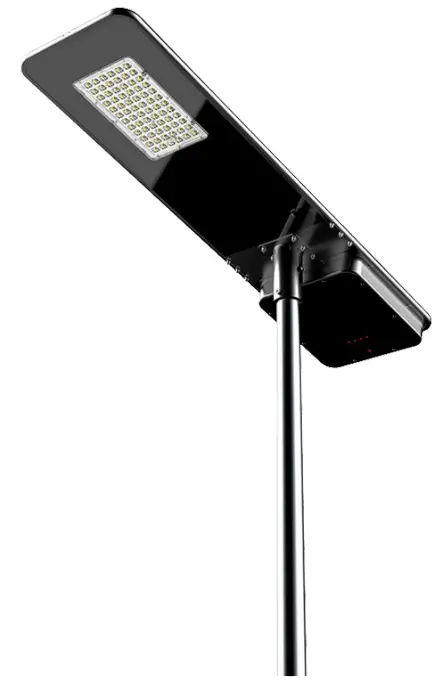

STL-9-I Street Light
Special Features:
Monocrystalline Solar Panel
Li-ion Rechargeable Battery
Highly Efficient Operation Mode
Material: Aluminum alloy+PC+Plexiglass+PMMA
Installation Instructions

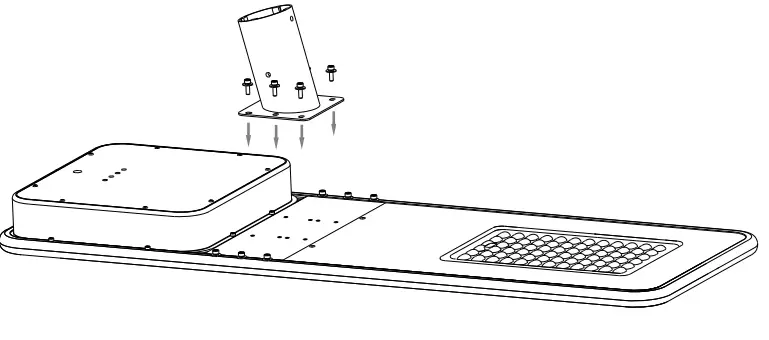

- Fix bracket to the lamp using supplied screws

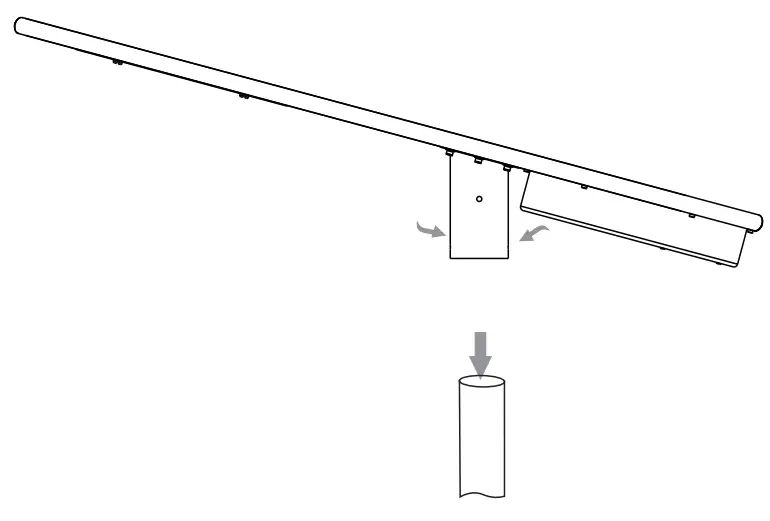

- Fix lamp to pole using supplied screws
Solar Panel must be oriented toward sun and avoiding any shade for battery charging efficiency
Solar Panel must be oriented toward sun and avoiding any shade for battery charging efficiencyOperation Instructions

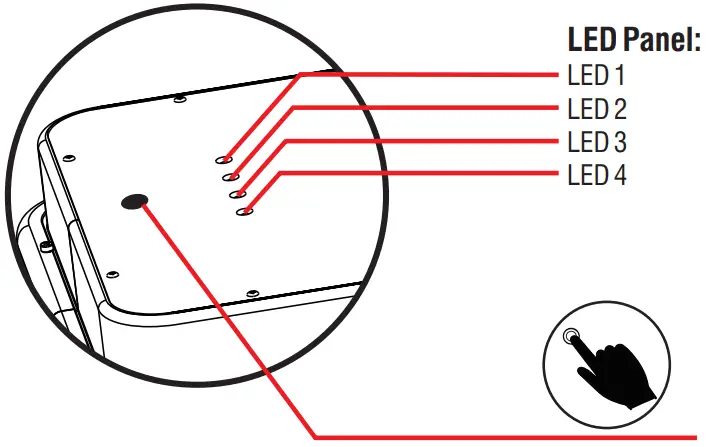

Power On/Off: Press switch for 1.5 Sec, approx.
Operation Mode: 100%x5Hrs + 20% Untill dawn Auto-Cleaning System:
Automatic sweeping. Dust and snow cleaning, 4 times per day

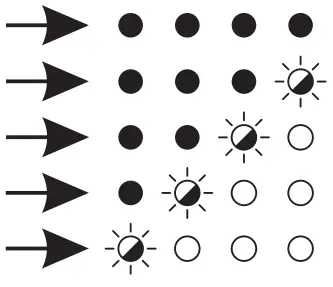

Battery Power Indication (Charging Process):
| Battery Power Indication (Charging Process): | |

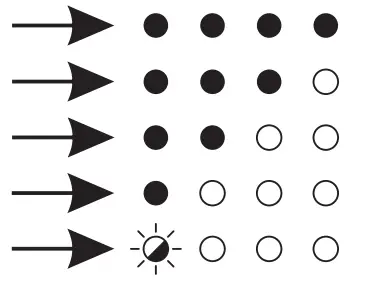

| 4 LEDs On:100% 3 LEDs On+LED 4 flashing: 100% to 80% 2 LEDs On+LED 3 flashing: 80% to 60% 1 LED On+LED 2 flashing: 60% to 30% LED 1 Flasing: <30% LEDs flashes slowly |  |
| Battery Power Indication (Discharging Process): | |
| 4 LEDs On:>80% 3 LEDs On: 80% to 60% 2 LEDs On: 60% to 30% 1 LED On: <30% LED 1 Flashing: Low Batt. Alarm LED 1 Flashes quickly |  |
| Internal Fault Indication: | |
| LED 1 Flashing: Battery Fault LED 2 Flashing: Solar Panel Fault LED 3 Flashing: LED Panel Fault LED 4 Flashing: Power Circuitry Fault |  |
If multiple faults are detected, only the first will be displayed
Fault display will clear after error disappear
When there is an error, Battery Power is not Indicated
TECHNICAL SPECIFICATIONS
| STL-9-I | 2 | 4 | 6 | 8 | 10 | 12 |
| Luminosity (LM) | 2 | 4 | 6 | 8 | 10 | 12 |
| SOLAR PANEL | ||||||
| Type | ||||||
| Capacity | 37.5 | 37.5 | 60 | 60 | 75 | 75 |
| Li-Ion BATTERY (14.8 Vdc / 2.6 AH Pc) | ||||||
| Capacity | 153.92 | 230.88 | 346.32 | 461.76 | 577.5 | 692.64 |
| Charge & Discharge Temp. | 0 | |||||
| Recharge Time | 4.5 H | 6.7 H | 6.3 H | 8.4 H | 8.4 H | 10H |
| ILLUMINATION | ||||||
| LED (OSRAM) | 3030 72pcs | 3030 72pcs | 3030 144pcs | 3030 144pcs | 3030 288pcs | 3030 288pcs |
| Light Color Temp. | 4000K, Ra 70+ | |||||
| Efficiency | 190 lm/W | |||||
| OPERATION | ||||||
| Backup (Cloudy days) | Up to 10 nights / Hasta 10 noches | |||||
| Operation Modes | 100% x 5H + 20% Until Dawn / Hasta Amanecer | |||||
| Capacity Indication | Discharging all models 4 LEDs On / Encendidos: > 80% 3 LEDs On / Encendidos: 80% to / a 60% 2 LEDs On / Encendidos: 60% to / a 30% 1 LED On / Encendido: < 30% LED 1 Flashing: Low Batt Alarm / Alarma de Bat. Baja 100%: 4 LEDs On / Encendidos 80% to / a 100%: 3 LEDs On/Encendido + LED 4 Flashing 60% to / a 80%: 2 LEDs On/Encendido + LED 3 Flashing 30% to / a 60%: 1 LED On/Encendido + LED 2 Flashing <30% LED 1 Flashing/Intermitente | |||||
| Alarm Indication LED | Built-In / Incluido | |||||
| IP/IK Codes | IP65 / IK10 | |||||
| Directives | CE (IEC60598-1 / IEC60598-2-3 / EN55015 / EN61547) | |||||
| Inst. Height & Spacing | 3 / 15 m, 4 / 18 m, 6 / 27 m, 8 / 36m, 10 / 45m, 12 / 54m | |||||
WARNING
- Keep the device away from fire and fire risk
- There are no replaceable parts in the lamp. If disassembled warranty will be void.
- Do not remove battery for any other use. If backup time is too short, battery pack needs to be recharged under bright sunlight
- Clean solar panel regularly for more efficient operation and longer backup (Suggestion: At least every 6 months)
- Long term storage might cause battery damage and leakage. Leakage might cause battery spontaneous combustion.
- Operation temperature for this lamp must comply with Technical Specifications
IMPORTANT NOTES:
- Use standard installation accessories
- If stored, charge the lamp every 3 months, to avoid battery damage
- If stored for more than 1 year without charging, make a charge & discharge process to assure battery is in good condition, otherwise it is not allowed to use.
Detailed View

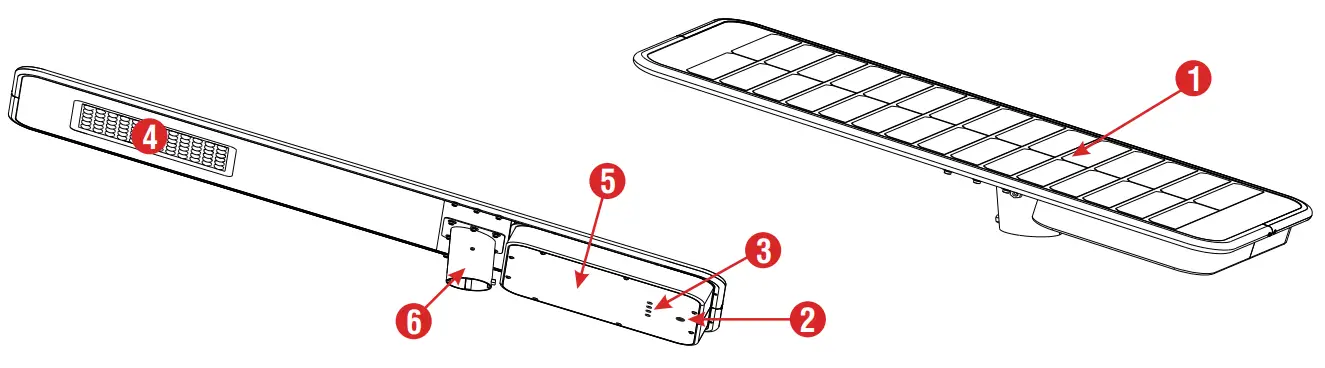

Parts ID
- Solar Panel
- Switch
- Indicator LEDs
- LED Lamp
- Battery Pack
- Bracket
Packing Information
| Model | Pcs x Box | Boxes x Carton | Dimensions (mm) | Carton Weight (Kg) | ||
| Box | Carton | Net | Gross | |||
| STL-9-I 02/04 | 1 | 1 | 913 x 158 x 443 | 915 x 160 x 445 | 7.8 | 9.1 |
| STL-9-I-06 / 08 | 1 | 1 | 1138 x 158 x 443 | 1140 x 160 x 445 | 10.5 | 12 |
| STL-9-I-10 /12 | 1 | 1 | 1372 x 158 x 445 | 1374 x 160 x 447 | 13.5 | 15 |
| Bracket / Soporte | 1 | 8 | 15.5 x 13 x 12 | 32.5 x 27.5 x 26 | 5.2 | 6.4 |
Net and Gross weight information is for reference purposes only

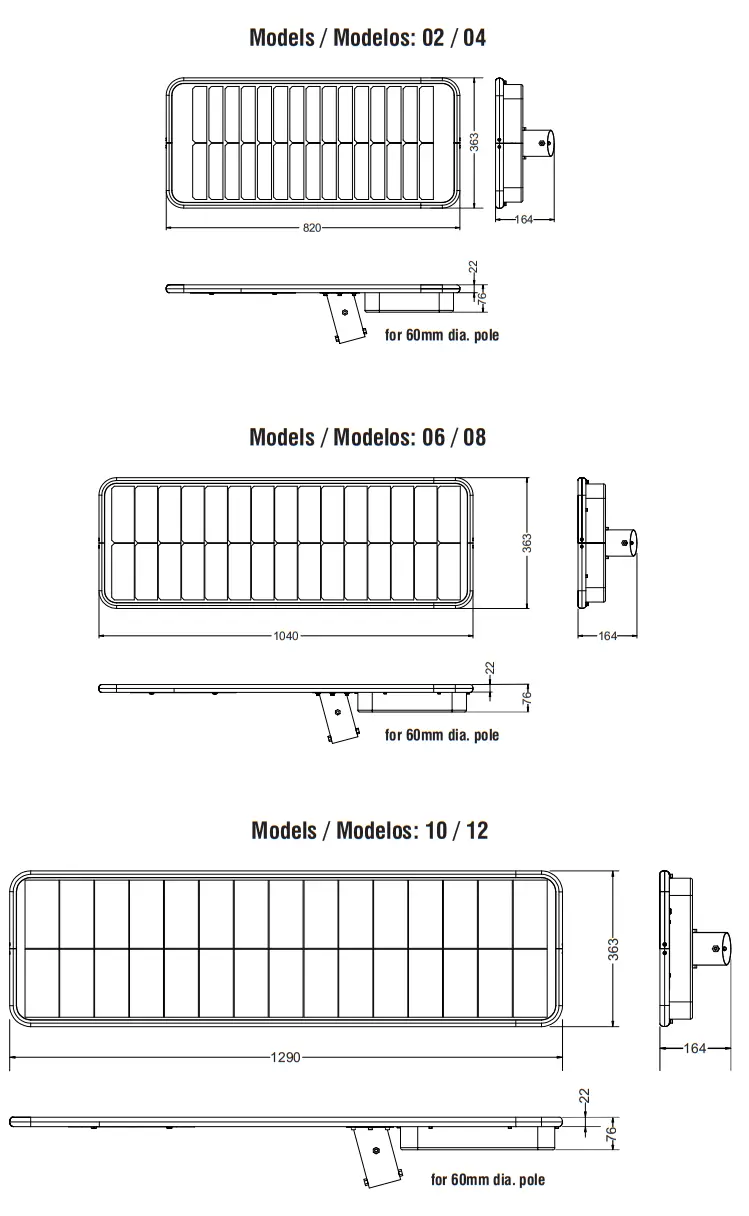

Dimensions
