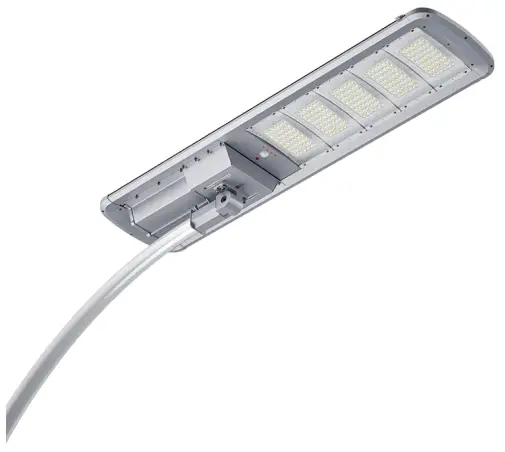

STL-7-I
Street Light Series
USER MANUAL
Installation Instructions

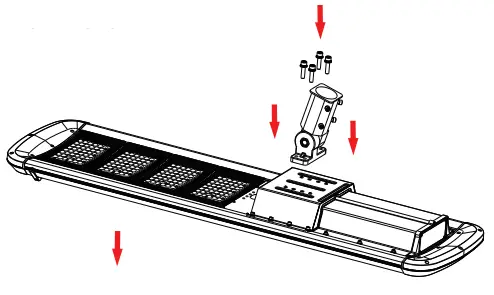

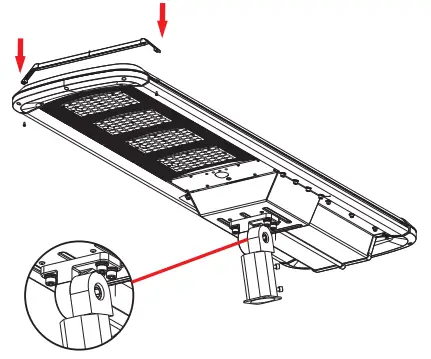

- Fix bracket to the lamp
- Install dust brush

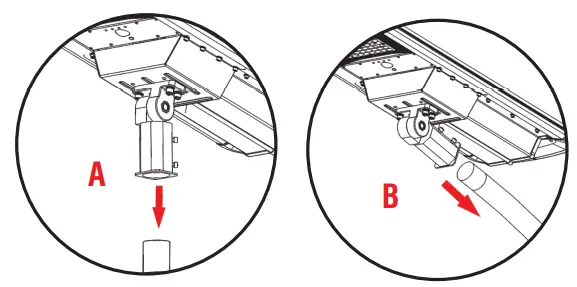

- Adjust bracket angle according to pole
Solar Panel must be oriented toward sun and avoiding any shade for battery charging efficiency

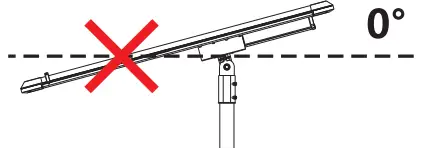

Warning: Lamp angle should not be lower than horizontal plane.
Operation Instructions
Power On/Off: Press switch for 1.5 Sec, approx.
Operation Mode: 100%x5Hrs + 20% Untill dawn
Auto-Cleaning System:
Automatic sweeping. Dust and snow cleaning, 4 times per day

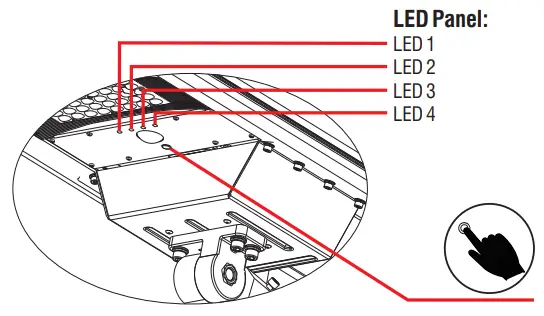

Battery Power Indication:
| 4 LEDs On:>80% 3 LEDs On: 80% to 60% 2 LEDs On: 60% to 30% 1 LED On: <30% LED 1 Flasing: Low Battery Alarm |  |
Internal Fault Indication:
| Only LED 1 On: Battery Fault Only LED 2 On: Solar Panel Fault Only LED 3 On: LED Panel Fault Only LED 4 On: Power Circuit Fault LEDs 1 & 4 On (Both): Sweeping Fault |  |
Special Features:
Monocrystalline Solar Panel
Li-ion Rechargeable Battery
Autocleaning System
Highly Efficient Operation Mode PIR Sensor
Material: Aluminum alloy & Steel Glass
TECHNICAL SPECIFICATIONS
| STL-7-I | 04-AC | 06-AC | 08-AC | 10-AC | 12-AC |
| Luminosity (LM) | 4.000 | 6.000 | 8.000 | 10.000 | 12.000 |
| SOLAR PANEL | |||||
| Type | Monocrystalline | ||||
| Capacity (W) | 37.5 | 47.5 | 61.4 | 78.8 | 95 |
| Li-Ion BATTERY (14.8 Vdc / 2.6 AH Pc) | |||||
| Capacity (WH) | 269.36 | 384.8 | 538.72 | 654.16 | 769.6 |
| Charge & Discharge Temp. | -20 a 45 °C / -20 A 60°C | ||||
| Recharge Time (Hrs) | 8 | 9 | 9 | 10 | 9 |
| ILLUMINATION | |||||
| LED (OSRAM) | 3030 96pcs | 3030 144pcs | 3030 192pcs | 3030 240pcs | 3030 336pcs |
| Light Color Temp. | 4000K, Ra 70+ | ||||
| Efficiency | 190 lm/W | ||||
| OPERATION | |||||
| Backup (Cloudy days) | Up to 10 nights | ||||
| Operation Modes | 100% x 5H + 20% Until Dawn | ||||
| Capacity Indication | 4 LEDs On : > 80% 3 LEDs On : 80% to / a 60% 2 LEDs On : 60% to / a 30% 1 LED On : < 30% LED 1 Flashing : Low Battery Alarm | ||||
| Alarm Indication LED | Built-In | ||||
| PIR Sensor | 120° , 5m (Optional ) | ||||
| IP/IK Codes | IP65 / IK10 | ||||
| Directives | CE (IEC60598-1 / IEC60598-2-3 / EN55015 / EN61547) | ||||
| Inst. Height & Spacing | 4 / 18 m | 6 / 27 m | 8 / 36 m | 10 / 45 m | 12 / 54m |
WARNING
- Keep the device away from fire and fire risk
- There are no replaceable parts in the lamp. If disassembled warranty will be void.
- Do not remove battery for any other use. If backup time is too short, battery pack needs to be recharged under bright sunlight
- Clean solar panel regularly for more efficient operation and longer backup (Suggestion: At least every 6 months)
- Long term storage might cause battery damage and leakage. Leakage might cause battery spontaneous combustion.
- Operation temperature for this lamp must comply with Technical Specifications
IMPORTANT NOTES:
- Use standard installation accessories
- If stored, charge the lamp every 3 months, to avoid battery damage
- If stored for more than 1 year without charging, make a charge & discharge process to assure battery is in good condition, otherwise it is not allowed to use.

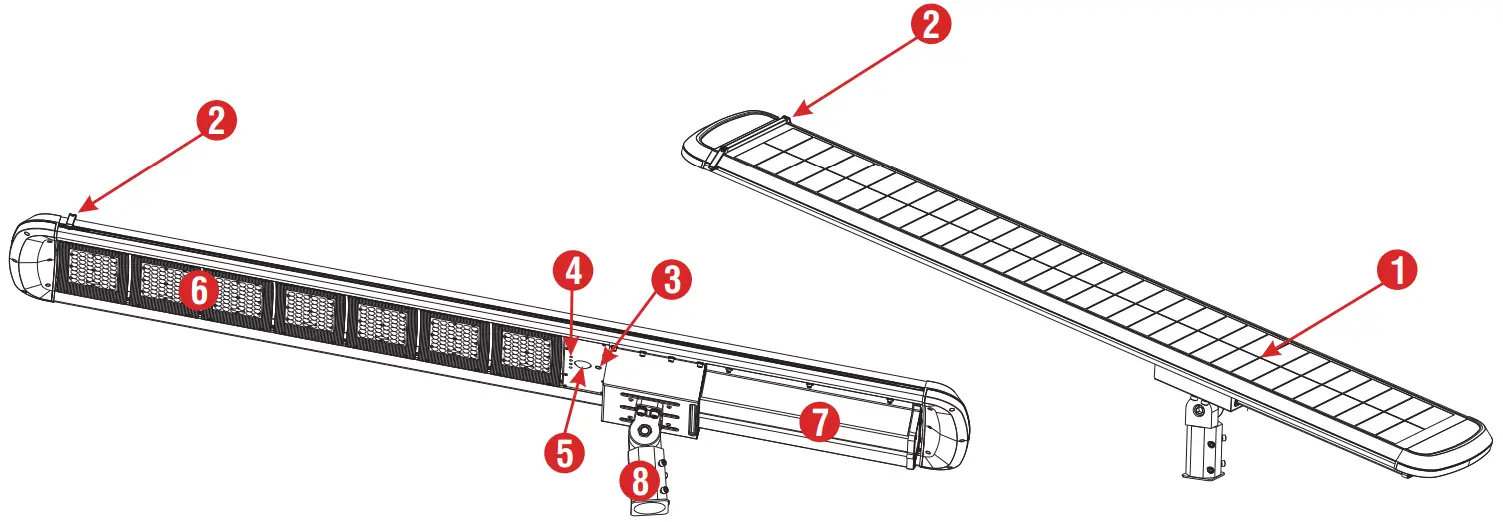

Detailed View
Parts ID
| 1. Solar Panel 2. Antidust Brush 3. Switch 4. Indicator LEDs | 5. Optional PIR 6. LED Lamp 7. Battery Pack 8. Bracket |
Note: Quantity of LED Lamp changes according to model
Packing Information
| Model | Pcs x Box | Boxes x Carton | Dimensions | Carton Weight (Kg) | |
| Carton (mm) | Net | Gross | |||
| STL-7-I-04-AC | 1 | 2 | 1060 x 430 x 533 | 22.4 | 30.2 |
| STL-7-I-06-AC | 1 | 2 | 1268 x 430 x 533 | 27 | 35.2 |
| STL-7-I-08-AC | 1 | 2 | 1555 x 423 x 535 | 34 | 43.34 |
| STL-7-1-10-AC | 1 | 2 | 1690 x 430 x 535 | 37.2 | 47.7 |
| STL-7-I-12-AC | 1 | 2 | 2113 x 430 x 533 | 45.3 | 57.4 |
| Bracket (All Models) | 1 | 8 | 477 x 380 x 166 | 9 | 11.34 |
Net and Gross weight information is for reference purposes only

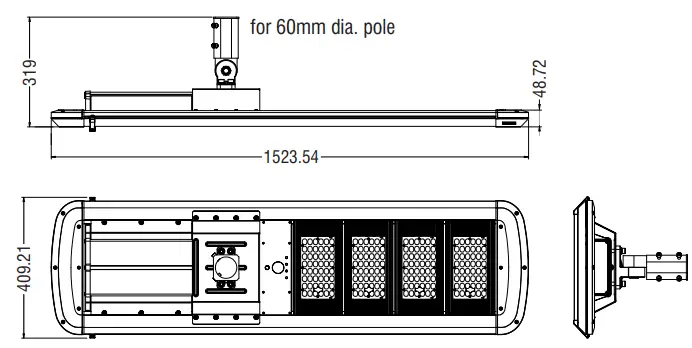

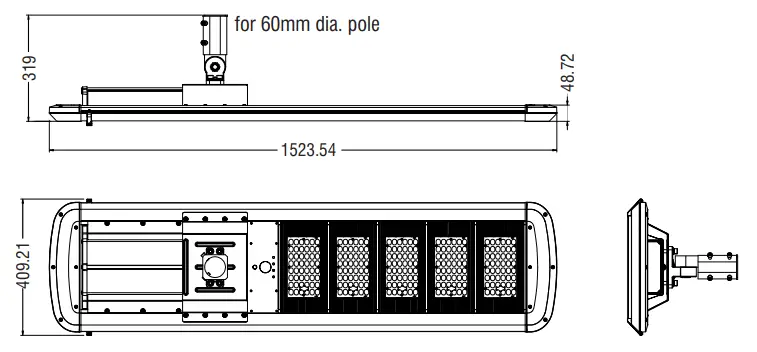

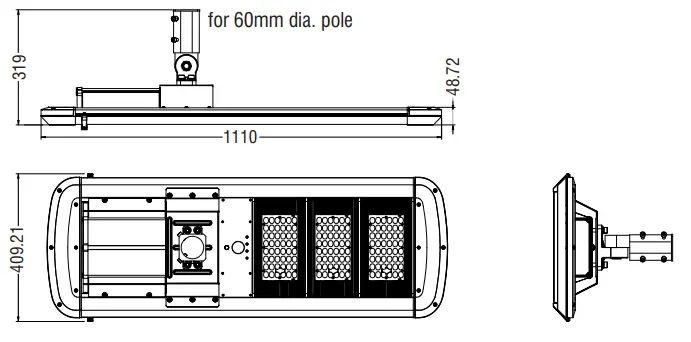

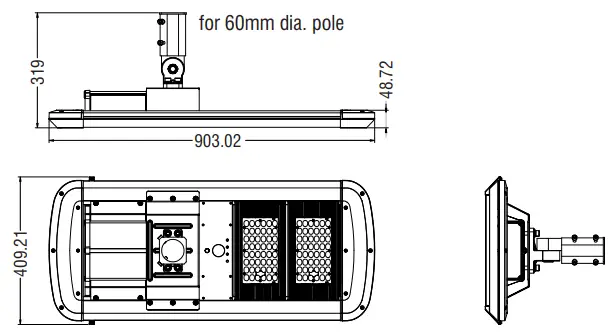

Dimensions
| Model : 04-AC | Model: 06-AC |
 |  |
| Model: 08-AC | Model : 10-AC |
 |  |
Model :12-AC
STL-7-I (P3)
