STL-3-I
Street Light Series
User Manual

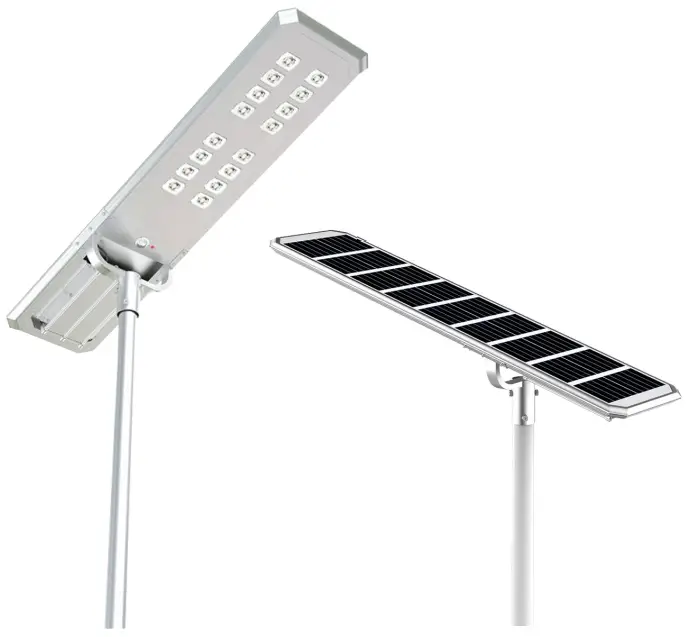

STL-3-I Street Light
Installation Instructions

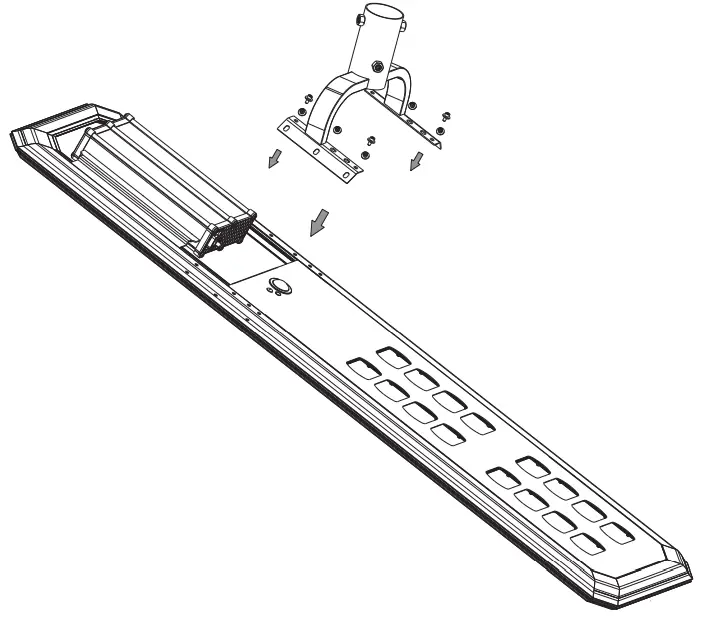

- Fix bracket to the lamp using supplied screws

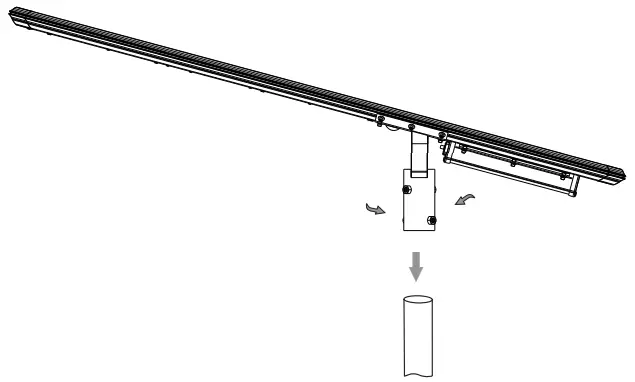

- Fix the lamp to the pole using supplied screws
Solar Panel must be oriented toward sun and avoiding any shade for battery charging efficiency
IMPORTANT
- Use standard installation accessories
- If stored, charge the lamp every 3 months, to avoid battery damage
- If stored for more than 1 year without charging, make a charge & discharge process to assure battery is in good condition, otherwise it is not allowed to use.
Operation Instructions

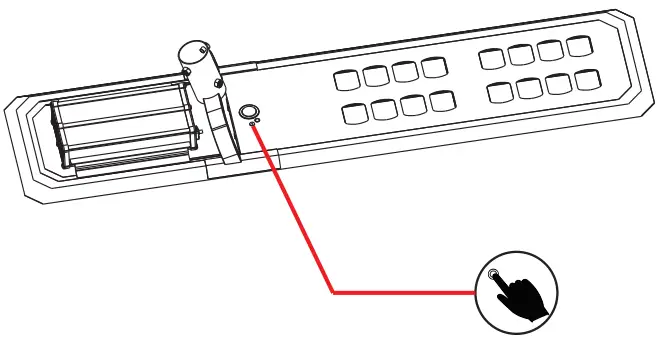

Power On/Off: Press switch for 1.5 Sec, approx.
Mode Change: Press switch shortly to choose Mode 1, Mode 2, or Mode 3.
Available Modes:
Mode 1 (Red): (30%+PIR) Untill dawn
Mode 2 (Green): 100%x5Hrs + (25%+PIR)x5Hrs Untill dawn
Mode 3 (Orange): 70% Untill dawn Select Operation Mode according to your own requirements Modes 2 and 3, are more power consuming
Battery Power Indication:
Green: >70%
Orange: Between 70% and 30%
Red: Between 30% and 10%
Red Flashing: <10%
Note: Indicator regularly shows Battery Capacity. When changing Operation Mode it shows selected mode for 5 Sec, then it returns to show Battery Capacity
Special Features:
Monocrystalline Solar Panel Li-ion Rechargeable Battery Configurable Operation Modes PIR Sensor
Material: Aluminum alloy & PC
TECHNICAL SPECIFICATIONS
| STL-3-I | 02-P | 03-P | 04-P | 05-P | 06-P | 07-P | 08-P | 09-P | 10-P |
| Luminosity | 2.000 | 3.000 | 4.000 | 5.000 | 6.000 | 7.000 | 8.000 | 9.000 | 10.000 |
| SOLAR PANEL | |||||||||
| Type | Monocrystalline | ||||||||
| Capacity | 25 | 37.5 | 37.5 | 60 | 60 | 60 | 75 | 75 | 75 |
| Li-Ion BATTERY (14.8 Vdc / 2.6 AH Pc) | |||||||||
| Capacity (WH) | 153.92 | 192.4 | 269.36 | 346.32 | 423.28 | 500.24 | 577.5 | 615.68 | 692.64 |
| Charge & Discharge Temp. | Charge : 0 to/a 45 °C Discharge : -20 to/a 60°C | ||||||||
| Recharge Time (Hrs) | 6 | 5 | 7 | 6 | 7 | 9 | 8 | 9 | 10 |
| ILLUMINATION | |||||||||
| LED (OSRAM) | 3030 20pcs | 3030 40pcs | 3030 40pcs | 3030 80pcs | 3030 80pcs | 3030 80pcs | 3030 160pcs | 3030 160pcs | 3030 160pcs |
| Light Color Temp. | 5700K, Ra 70+ | ||||||||
| Efficiency | 190 lm/W | ||||||||
| OPERATION | |||||||||
| Backup (Cloudy days) (con Poca Luz Solar) | Up to 10 nights | ||||||||
| Operation Modes | Mode 1: 30%+PIR Mode 2: 100%x5H + 25%+PIR x 5H + 70% Until Dawn | ||||||||
| Mode Indication LED | Mode 1: Red – Mode 2: Green – Mode 3: Orange | ||||||||
| Capacity Indication | Green : ³ 70% Orange : 70% to / a 30% Red : <30% | ||||||||
| PIR Sensor | 120 ° , >5m | ||||||||
| IP/IK Codes | IP65 / IK10 | ||||||||
| Directives | CE (IEC60598-1 / IEC60598-2-3 / EN55015 / EN61547) | ||||||||
| Inst. Height & Spacing | 3 / 10 m | 3 / 15 m | 4 / 15 m | 5 / 15 m | 6 / 22m | 7 / 28m | 8 / 28m | 9 / 32m | 10 / 32m |
WARNING
- Keep the device away from fire and fire risk
- There are no replaceable parts inside the lamp. If disassembled warranty will be void.
- Do not remove battery for any other use. If backup time is too short, lamp’s battery pack needs to be recharged under bright sunlight
- Clean solar panel regularly for more efficient operation and longer backup (Suggestion: At least every 6 months)
- Long term storage might cause battery damage and leakage. Leakage might cause battery spontaneous combustion
- Operation temperature for this lamp must comply with Technical Specifications
Detailed View
Models: 08-P / 09-P / 10-P

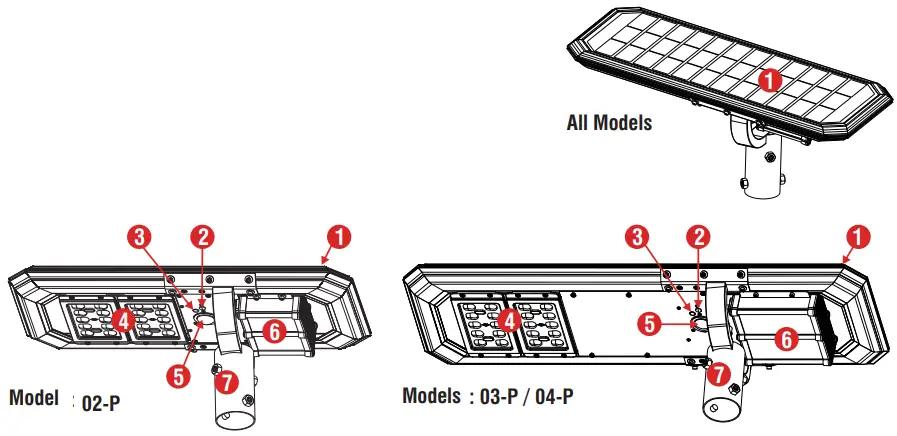

Parts ID
- Solar Panel
- Switch
- Indicator LED
- LED Lamp
- PIR Sensor
- Battery Pack
- Bracket

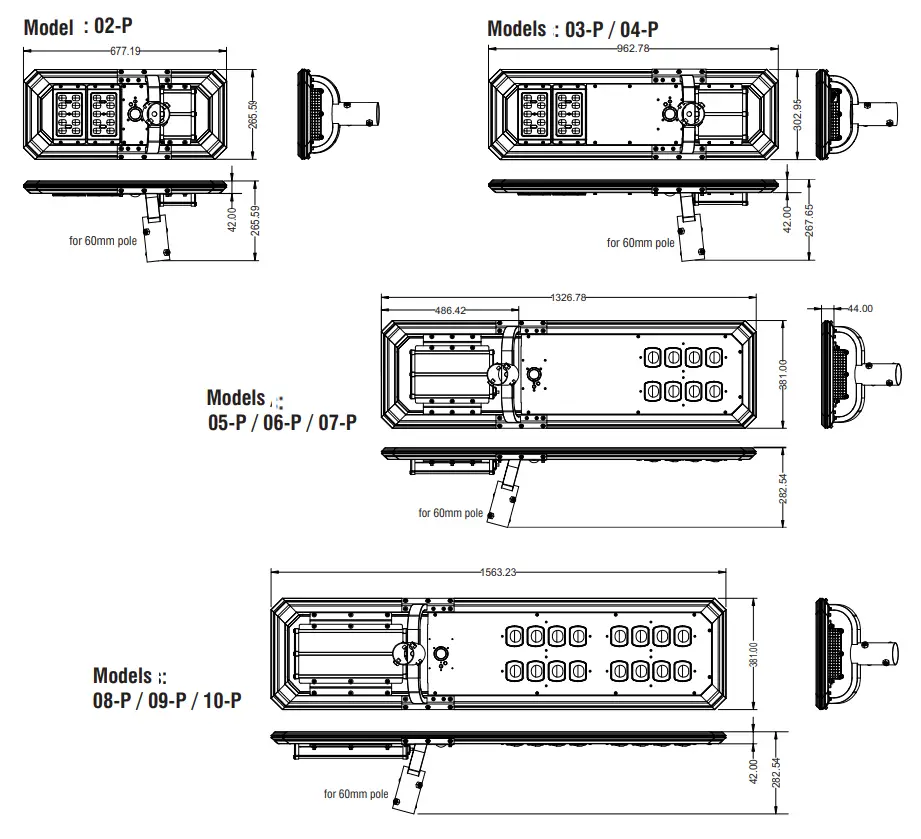

Dimensions
Packing Information
| Model | Item | Pcs x Box | Boxes x Carton | Dimensions | Carton Weight | |
| Carton (mm) | Net | Gross | ||||
| STL-3-I-02-P
| Bracket | 1 | 2 | 330 x 215 x 280 | 2.3 | 3 |
| Lamp | 1 | 2 | 775 x 329 x 398 | 12.5 | 13.5 | |
| STL-3-I-03-P / 04-P
| Bracket | 1 | 2 | 330 x 215 x 280 | 2.3 | 2.9 |
| Lamp | 1 | 2 | 1060 x 329 x 398 | 14.5 | 18.7 | |
| STL-3-I-05-P / 06-P/ 07-P
| Bracket | 1 | 2 | 410 x 210 x 280 | 2.9 | 3.3 |
| Lamp | 1 | 2 | 1440 x 370 x 495 | 28.8 | 30.8 | |
| STL-3-I-08-P / 09-P/ 10-P
| Bracket | 1 | 2 | 410 x 210 x 280 | 2.9 | 3.3 |
| Lamp | 1 | 2 | 1675 x 380 x 495 | 38 | 40 | |
STL-3-I (P3)
All boxes include Lamp and Bracket
Net and Gross weight information is for reference purposes only
