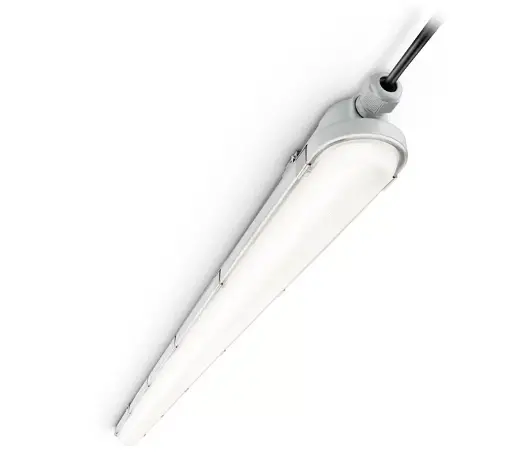

PHILIPS WT120C G2 CoreLine Waterproof Wide-Beam Light

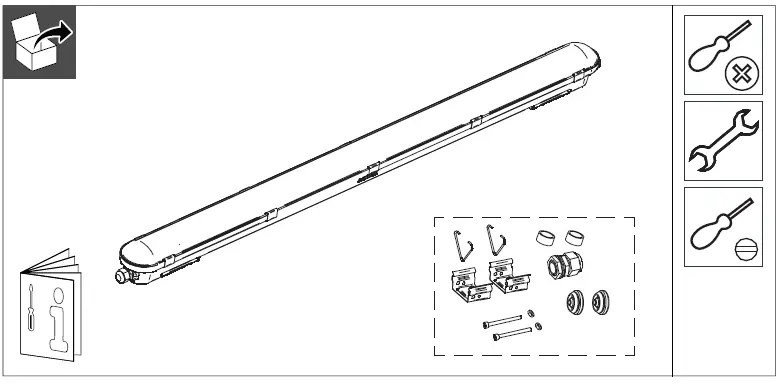

WHAT IN BOX

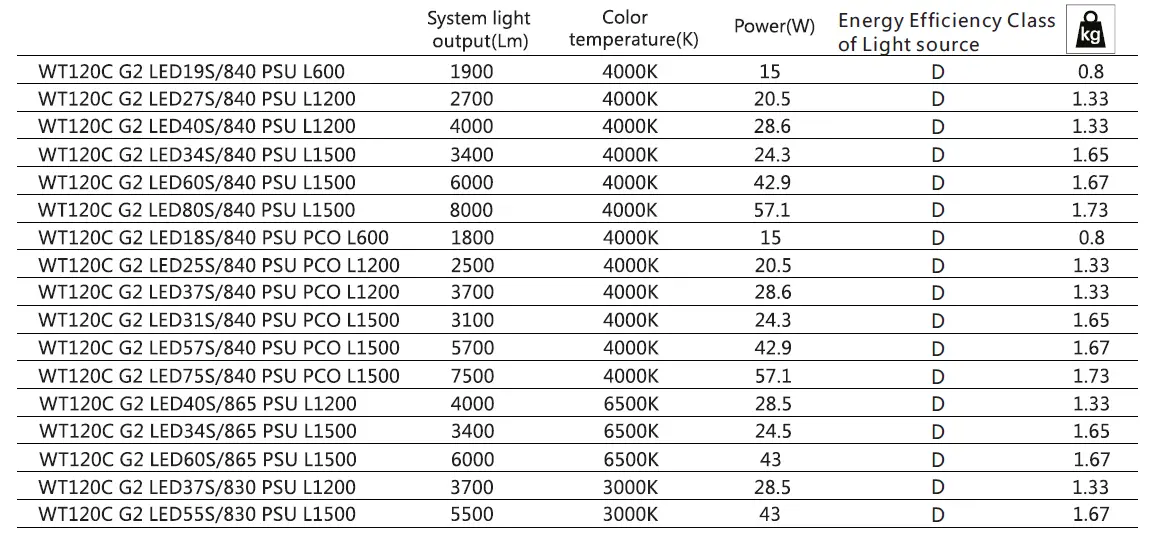

Features

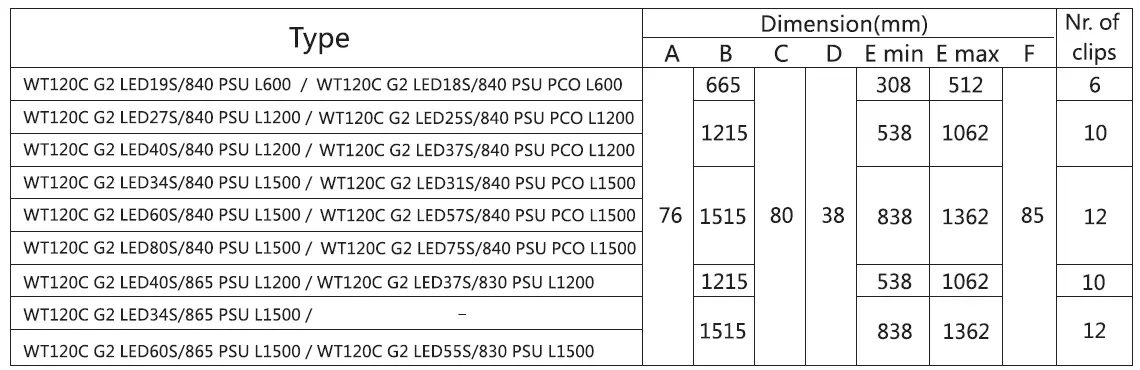

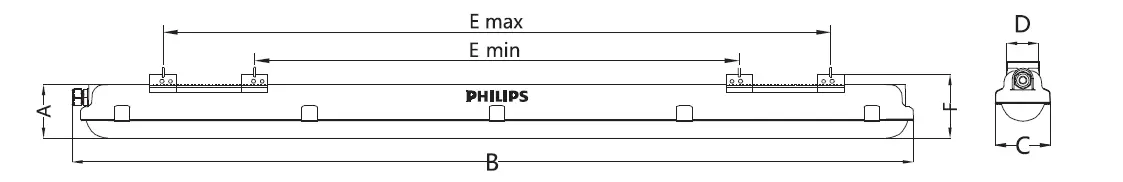

DIMENSION

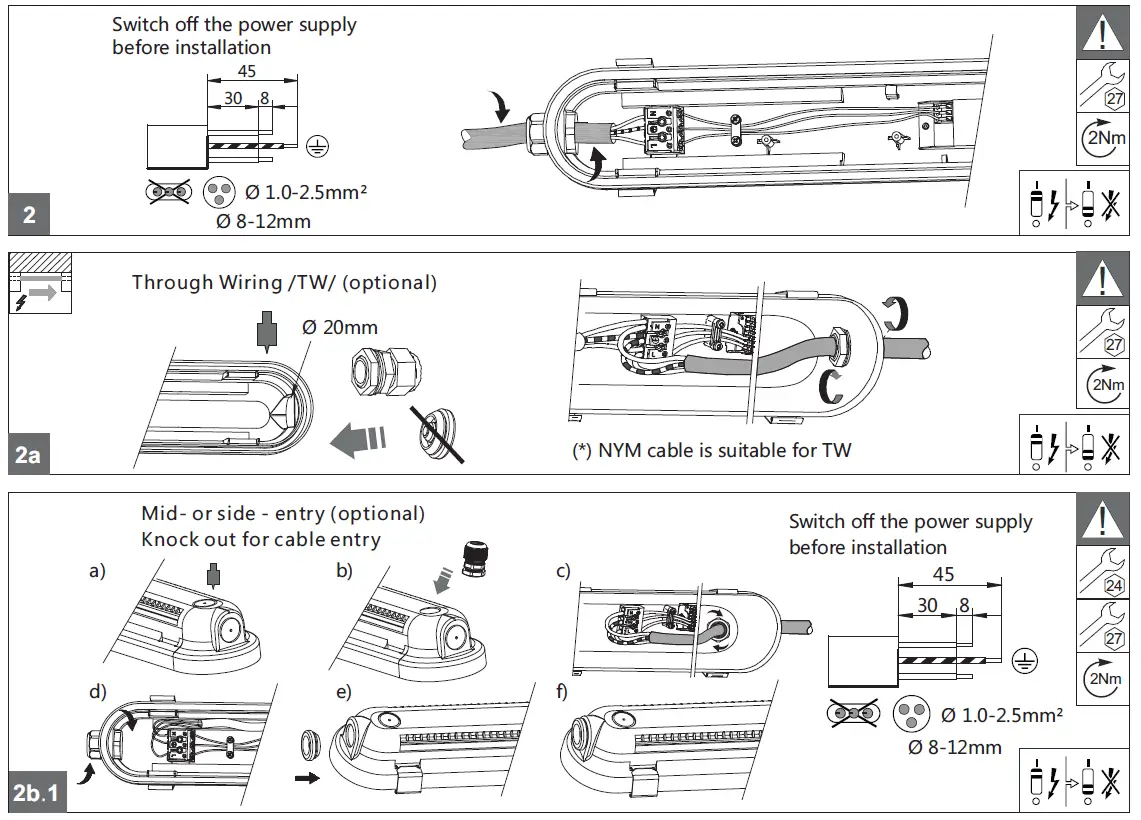

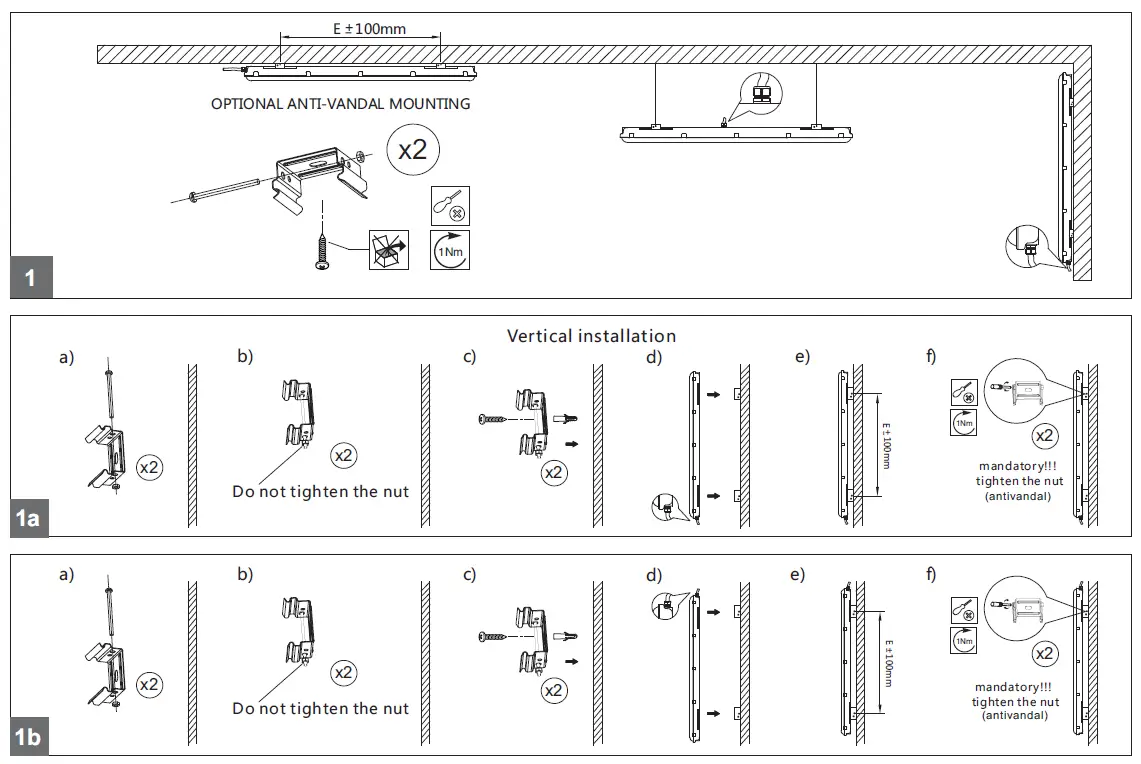

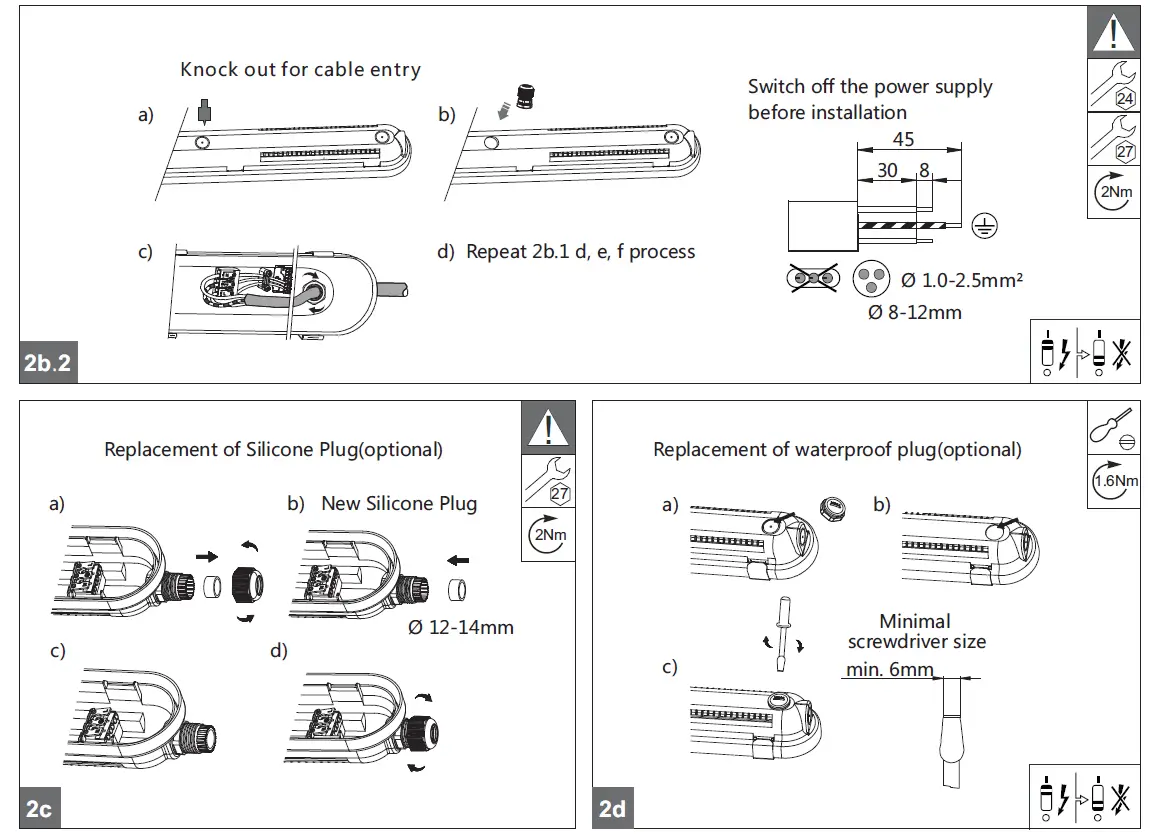

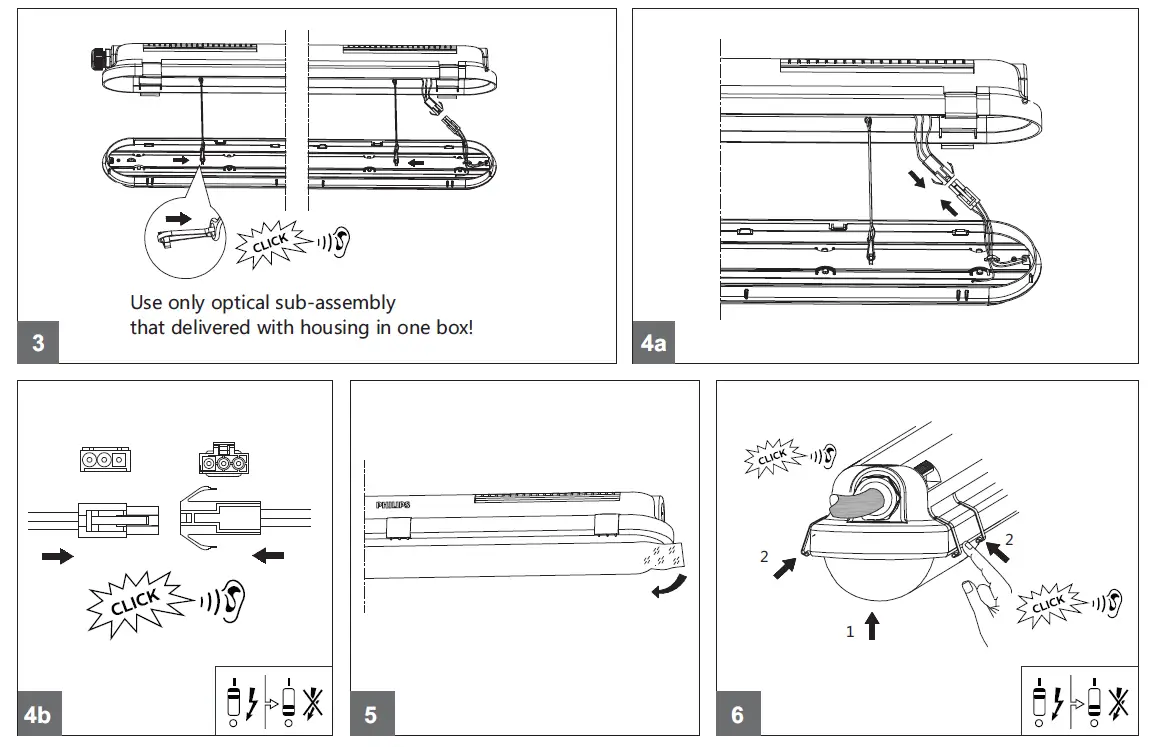

INSTALLATION INSTRUCTION
CAUTION
- Do not stare into LED light beam.
- The luminaire shall be installed by a qualified electrician and wired in accordance with the latest IEE electrical regulations or the national requirements.

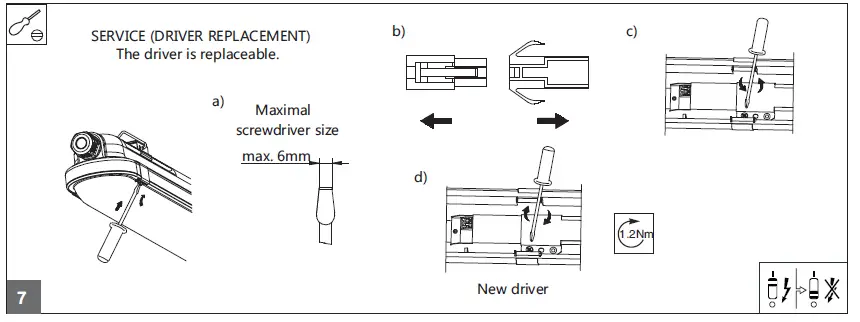

- The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
- Above average concentration of sulfur effects the useful lifetime of the product. E.g: Light color changes from white to blue. Typically in chicken & pig farms.
- For use in environments where an accumulation of conductive dust on the luminaire may be expected
- Do not install the luminaire on the location where it is exposed to heavily grease, esp. mineral oil and distillates (petroleum), heavy naphthenic treated with hydrogen.
- Do not install the luminaire on locations where it is exposed to direct sunlight.
- UV radiation will damage the material over time resulting in loss of waterproof sealing and IP65 rating.

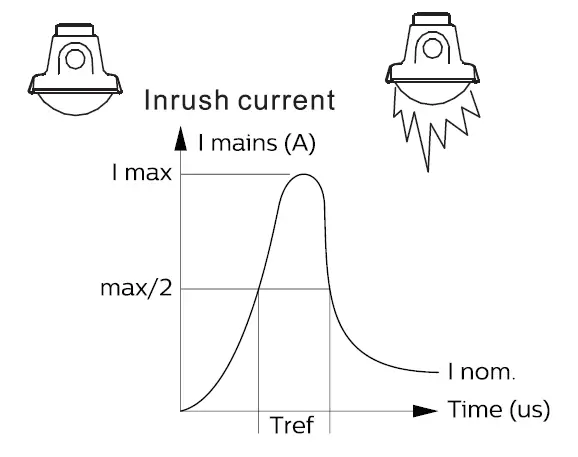

| Driver I peak 14.2 14.2 15 Driver Tref 222 222 240 Max. Nr. of connecting products by MCB type | ||||||
| 36 | 36 | 31 | ||||
| 22 | 22 | 19 | ||||
| 60 | 60 | 52 | ||||
| 37 | 37 | 32 | ||||
| Max. Nr. of connecting products by through wire cross-section area | ||||||
| 1.0 mm2 | 45 33 | 23 | 27 | 16 | 11 | |
| 1.5 mm2 | 67 49 | 35 | 41 | 23 | 18 | |
| 2.5 mm2 | 112 82 | 59 | 69 | 39 | 29 | |
| According to MCB type & through wire cross-section area, choose the mininum number to connect products. | ||||||
