OPTONICA SKU-6378 3-Key RGB LED Mini Controller without remote function
Model List

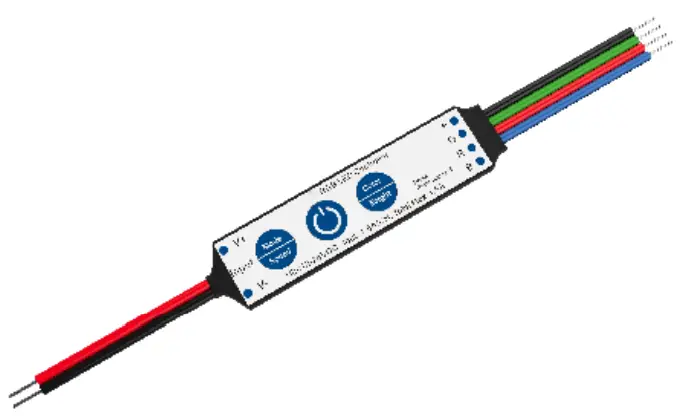

Model | Photo | Power Connector | LED Connector |
6378 |  | Red/Black Cable 10cm | 4-color Flat Cable 10cm |
Features
- 3 channel constant voltage RGB LED mini controller.
- 3 key operation with on/off, mode and color adjustment.
- 1.5A per channel, output connect with 5 meters RGB LED strip.
- 256 levels 0-100% dimming smoothly without any flash.
- Built in 10 dynamic mode, include jump or gradual change style.

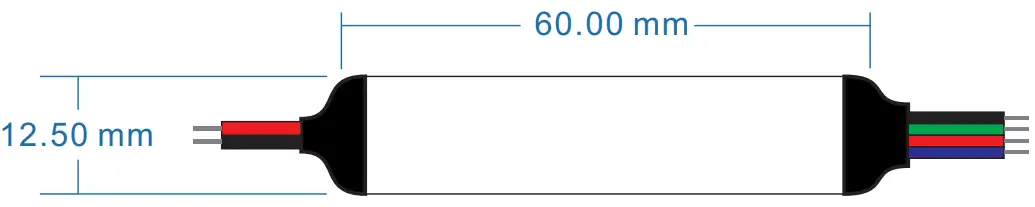

Dimension
Technical Parameters
| Input and Output | |
| Input voltage | 12-24VDC |
| Output voltage | 12-24VDC |
| Output current | 1.5A/CH, Total Max. 4.5A |
| Output type | Constant voltage |
| Environment | |
| Operation temperature | Ta: -30 OC ~ +55 OC |
| Case temperature (Max.) | T c: +85OC |
| IP rating | IP20 |
| Warranty and Protection | |
| Warranty | 3 years |
| Protection | Reverse polarity Over heat |
| Dimming data | |
| Dimming level | 256 levels |
| Dimming range | 0 -100% |
| Dimming curve | Linear |
| PWM Frequency | 750Hz (default) |
| Safety and EMC | |
| EMC standard (EMC) | EN301 489,EN 62479 |
| Safety standard(LVD) | EN60950 |
| Certification | CE,EMC,LVD |

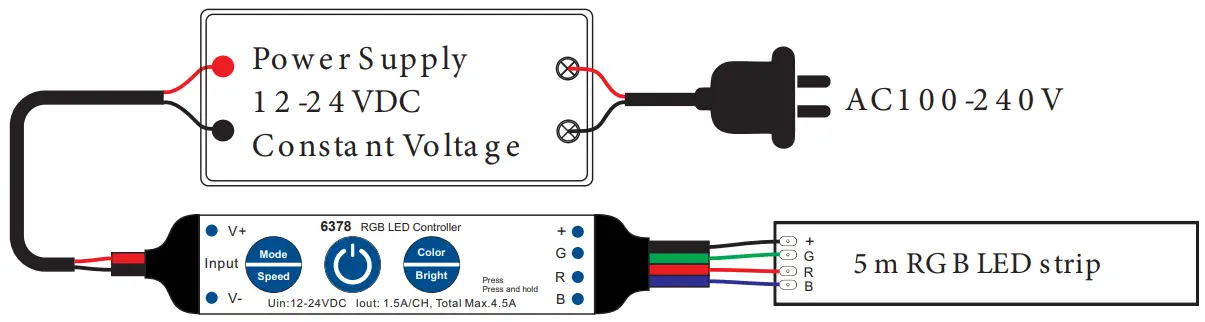

Wiring Diagram

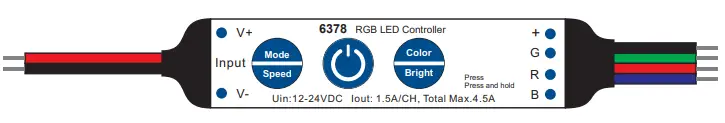

Key Function
 | Turn on or off light |
 | Short press change 10 dynamic mode, Long press 2s adjust speed, 10 levels. |
 | Short press change 24 static RGB color, Long press 1-6s for continuous 256 levels brightness adjustment. |
RGB dynamic mode list
| No. | Name | No. | Name |
| 1 | RGB jump | 6 | RGB fade in and out |
| 2 | RGB smooth | 7 | Red fade in and out |
| 3 | 6 color jump | 8 | Green fade in and out |
| 4 | 6 color smooth | 9 | Blue fade in and out |
| 5 | Yellow cyan purple smooth | 10 | White fade in and out |

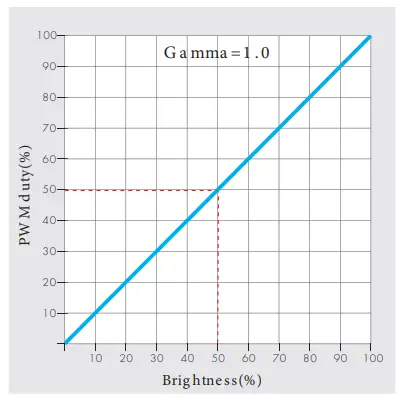

Dimming Curve
