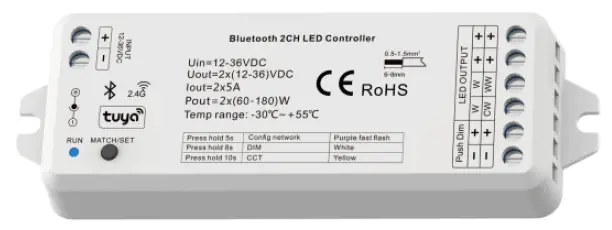

optonica SKU-6384 2CH LED Bluetooth RF Controller
Tuya APP cloud control/2 Channels/Push-Dim/DC power socket input/Wireless remote control
Features
- Used for control single color or color temperature LED strip.
- DC power socket input and 5 channel constant voltage output.
- Tuya APP cloud control, support on/off, color temperature and brightness adjust, delay turn on/off light, timer run, scene edit and music play function.
- Voice control, support amazon ECHO and TmallGenie smart speaker.
- Match with RF 2.4G remote control optional.
- User need set light type by press key before Tuya APP network connection and match RF remote of the same light type.
- This controller can also work as Bluetooth-RF converter, then use Tuya APP to control one or more RF LED controller or RF LED dimming driver synchronously.
- Connect with external push switch to achieve on/off and 0-100% dimming function.
- Light on/off fade time 3s selectable.
Technical Parameters
| Input and Output | |
| Input voltage | 12-36VDC |
| Input current | 10.5A |
| Output voltage | 2 x (12-36)VDC |
| Output current | 2CH,5A/CH |
| Output power | 2 x (60-180)W |
| Output type | Constant voltage |
| Dimming data | |
| Input signal | Tuya APP + RF + Push Dim |
| Control distance | 30m(Barrier-free space) |
| Dimming gray scale | 4096 (2^12) levels |
| Dimming range | 0 -100% |
| Dimming curve | Logarithmic |
| PWM Frequency | 2000Hz (default) |
| Safety and EMC | |
| EMC standard (EMC) | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 |
| Safety standard(LVD) | EN 62368-1:2020+A11:2020 |
| Radio Equipment(RED) | ETSI EN 300 328 V2.2.2 |
| Certification | CE,EMC,LVD,RED |
| Environment | |
| Operation temperature | Ta: -30 OC ~ +55 OC |
| Case temperature (Max.) | T c: +85OC |
| IP rating | IP20 |
| Warranty and Protection | |
| Warranty | 3 years |
| Protection | Reverse polarity Over-heat Short circuit |

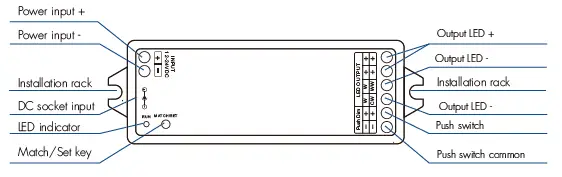

Mechanical Structures and Installations

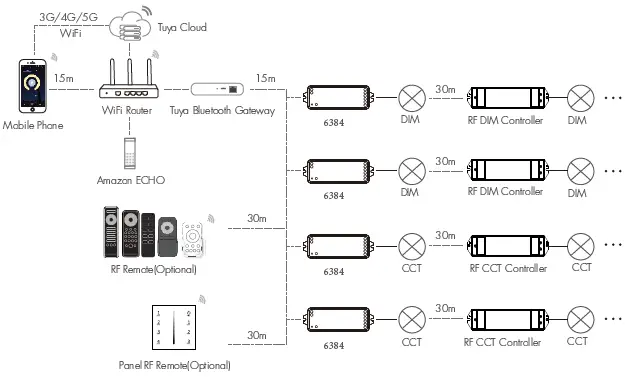

System wiring
- Wired connection
- Wireless connection
Note:
- The above distance is measured in spacious (no obstacle) environment, Please refer to the actual test distance before installation.
- Users can also use the Tuya Bluetooth gateway to realize remote control and voice control.
Wiring Diagram

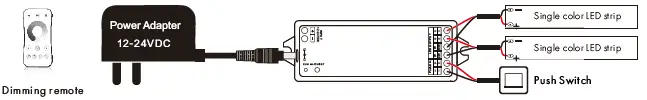

For single color
Dimming remote
Press and hold match/set key for 8s, until the RUN LED indicator turn white, then release, the controller will become DIM type, then do smart config by tuya APP, or short press match key to match with dimming RF remote.
For dual color CCT
Press and hold match/set key for 10s, until the RUN LED indicator turn yellow, then release, the controller will become CCT type, then do smart config by tuya APP, or short press match key to match with CCT RF remote.
Note:
- User can connect constant voltage power supply or power adapter as power input.
- Switch off the power, then switch on power, repeat again. Immediately short press match key 3 times, the light on/off time will change between 3s and 0.5s.
- For CCT light, continuous power on and off will change 3 levels color temperature (WW, NW and WH) in sequence.
Push Dim
| DIM Single color | Click | ON/OFF |
| Double Click | Turn on at 100% or 10%(night light) and vice-versa | |
| Long press(>1s) from OFF | Dimming UP/DOWN | |
| Long press(>1s) from ON | Dimming UP/DOWN | |
| CCT Dual Color | Click | ON/OFF |
| Double Click | Turn on at 100% or 10%(night light) and vice-versa | |
| Long press(>1s) from OFF | Color temperature UP/DOWN (turn off and turn on to return dimming) | |
| Long press(>1s) from ON | Dimming UP/DOWN |
Tuya APP network connection
Press and hold Match/Set key for 5s, or push twice Match/Set key fastly, or when press and hold Match/Set key for 8 or10s to set 2 kinds light type: Clear previous network connection, enter config mode, the purple LED indicator fast flash, the output LED will flash 10 times. If Tuya APP network connection succeed, the RUN LED indicator will stop flash purple, and turn corresponding light type color (White: DIM, Yellow: CCT). and in Tuya APP, you can find BT-DIM or BT-CCT device

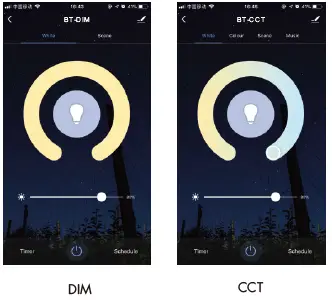

Tuya APP interface
DIM
Touch brightness slide to adjust brightness.
CCT:
Touch color wheel to adjust color temperature. Touch brightness slide to adjust brightness
6384 match remote control (Optional)
End user can choose the suitable match/delete ways. Two options are offered for selection
Use the Match key
Match: Short press match key of 6384, immediately press on/off key (single zone remote)or zone key (multiple zone remote) on the remote. The LED indicator fast flash a few times means match is successful. Delete: Press and hold match key of 6384 for 15s , The LED indicator fast flash a few times means all matched remotes were deleted
Use Power Restart
Match:
Switch off the power of 6384, then switch on power, repeat again. Immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 3 times on the remote. The light blinks 3 times means match is successful..D elete: Switch off the power of 6384, then switch on power, repeat again. Immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 5 times on the remote. The light blinks 5 times means all matched remotes were deleted.
6384 match remote control (Optional)
End user can choose the suitable match/delete ways. Two options are offered for selection
Use the Match key
Match: Short press match key of 6384, immediately press on/off key (single zone remote)or zone key (multiple zone remote) on the remote. The LED indicator fast flash a few times means match is successful. Delete: Press and hold match key of 6384 for 15s , The LED indicator fast flash a few times means all matched remotes were deleted
Use Power Restart
Match:
Switch off the power of 6384, then switch on power, repeat again. Immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 3 times on the remote. The light blinks 3 times means match is successful..D elete: Switch off the power of 6384, then switch on power, repeat again. An immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 5 times on the remote. The light blinks 5 times means all matched remotes were deleted.
