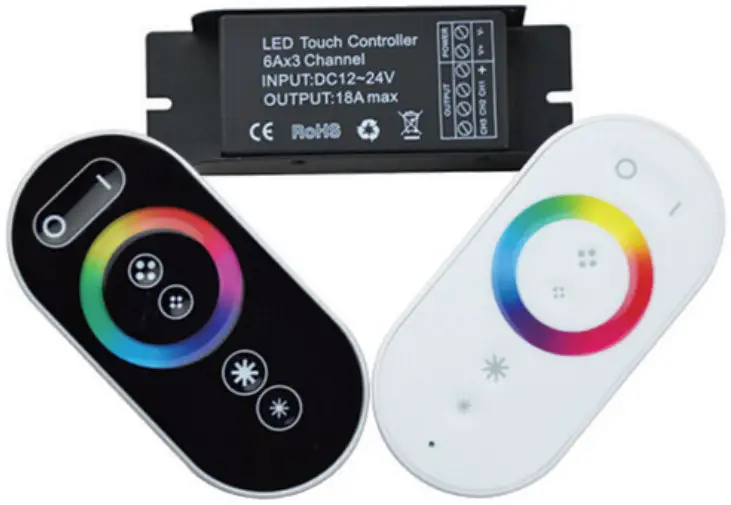

OPTONICA 6314 6 Key LED Touch Controller User Manual
Caution
- Supply voltage of this product is DC12V-24V, never connect to others or AC220V.
- Lead wire should be connected correctly according to grade that connecting diagram offers.; 3. This product can not be overloaded.
Technology parameter
Technical Parameters (remote control):
- Power supply: AAA battery * 3pcs
- Cover material: ABS
- Fabrication processing: multicolour printing & UV varnish
- RF frequency: 433.92MHZ
Technical Parameters (controller)
- Working temperature: -20 C-60 C
- Working voltage: DC12V/24V
- Output control: 3 circuits(R/G/B)
- Output current: 18A
- Connection method: common anode
- RF frequency: 433.92MHZ
- Receiving range: 20meters
- Controller size: L130xW42xH31mm
- Net weight: 250g
- Gross weight: 280g
- Static power consumption: <1W
- Output power: 12V < 216W; 24V <432W;
| NO. | Changing color | Note |
| 1 | Static red | A.D.E.F.G. effected |
| 2 | Static Green | A.D.E.F.G. effected |
| 3 | Static Blue | A.D.E.F.G.effected |
| 4 | Static yellow | A.D.E.F.G.effected |
| 5 | Static purple | A.D.E.F.G effected |
| 6 | Static cyan | A.D.E.F.G.effected |
| 7 | Static white | A.D.E.F.G.effected |
| 8 | 3 color jump changing | A.D.E.F.G.effected |
| 9 | 7color jump changing | A.D.E.F.G.effected |
| 10 | 3 color fade away | A.D.E.F.G. effected |
| 11 | 3 color general changing | A.D.E.F.G. effected |
| 12 | 7 color fade away | A.D.E.F.G. effected |
| 13 | 7color general changing | A.D.E.F.G. effected |
| 14 | 3 color flicker | A.D.E.F.G. effected |
| 15 | 7 color flicker | A.D.E.F.G. effected |
| 16 | 3 color strobe-flash | A.D.E.F.G. effected |
| 17 | 7 color strobe-flash | A.D.E.F.G. effected |
| 18 | Auto changing | A.D.E.F.G. effected |

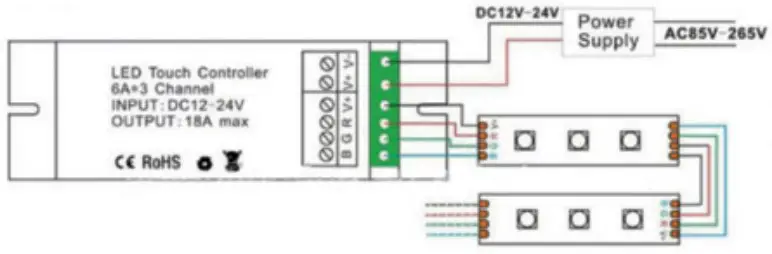

Connecting Chart
IMPORTER: Prima Group 2004 LTD, Bulgaria, 1784 Sofia, Mladost 1, bl. 144, Ground Floor; Phone: +359 2 988 45 72;
