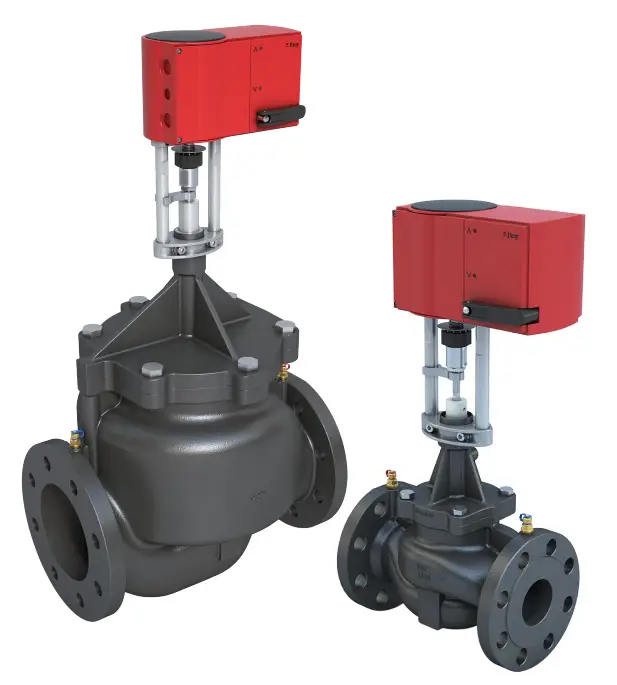

Bray SSM Series Pressure Independent Control Valve
FOR MORE INFORMATION ON THIS PRODUCT AND OTHER BRAY PRODUCTS PLEASE VISIT OUR WEBSITE – www.braycommercialdivision.com
Contents hide
Technical Specifications
| Technical Specifications – Valve | ||
| Service | Hot Water, Chilled Water, 50-50 Glycol Solutions | |
| Size Range | 2-Way | 2-1/2″ through 12″ (DN 65 to 300) |
| Cold Working Pressure | 2-1/2″ through 12″ – 232 PSI @ 100˚F, ANSI 125 2-1/2″ through 12″ – 500 PSI @ 100˚F, ANSI 250 | |
| Media Temperature Range | 2.5″ to 5″ | 32°F to 248°F (0°C to 120°C) |
| 6″ to 12″ | 32°F to 230°F (0°C to 110°C) | |
| Min. Operational ∆P | Refer to Flow Rate Charts on Pages 9 thru 16 | |
| Max. Operational ∆P | 116 PSID (800kPa) | |
| Max. Close-Off Pressure | 116 PSI (800kPa) | |
| Valve Operation | Push down to close, Normally Open | |
| Shut-Off Leakage | <ANSI Class IV (0.01%) | |
| Flow Rate Range | 19.27 to 2641 GPM | |
| Stroke | 2.5″ & 3″ | 0.79″ (20mm) |
| 4″ & 5″ | 1.58″ (40mm) | |
| 6″ & 8″ | 1.69″ (43mm) | |
| 10″ & 12″ | 1.89″ (48mm) | |
| Rangeability | >100:1 | |
| Flange Connections | ANSI 125 & ANSI 250 | |
| Test Ports | 1/4” NPT | |
| Materials | Body | 2-1/2″ thru 6″ – Cast Iron 8″ thru 12″ – Ductile Iron |
| Flow Regulation Unit | Stainless Steel | |
| Diaphragm | Reinforced EPDM (Ethylene Propylene Diene Monomer) | |
| Spring | Stainless Steel | |
| O-Rings | EPDM | |
| Warranty | 5 Years limited from time of shipment. | |

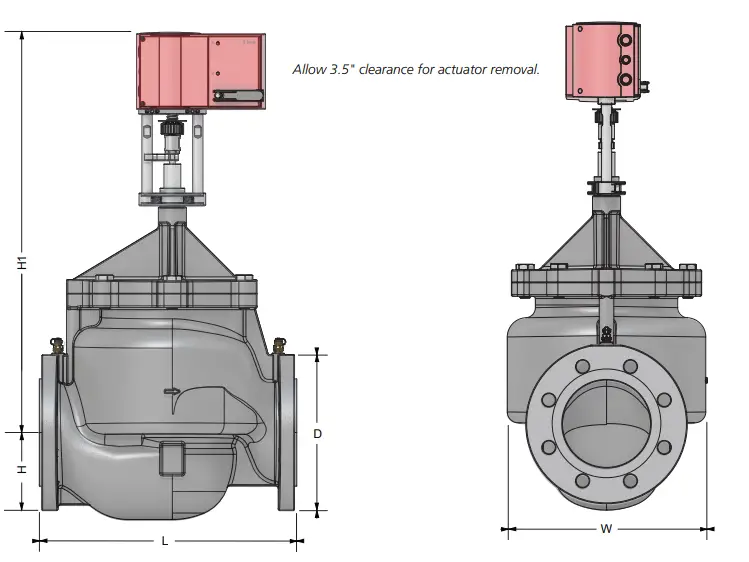

| Weights | See Dimensions – Pages 17 & 18 | |
Disclaimer – The pipe system shall be properly ventilated to avoid risk of air pockets. Glycolic mixtures up to 50% are applicable (both ethylene and propylene). Bray can accept no responsibility if another actuator is used instead of the Bray actuator recommendation: Water treatment to VDI 2035.
Simple Set Max – Installation, Operation & Maintenance Manual Continued
Safety Instructions
– Definition of Terms Read, Follow and Save these instructions
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. NOTICE
Used without the safety alert symbol indicates a potential situation which, if not avoided, may result in an undesirable result or state, including property damage.
Qualified Personnel
A qualified person in terms of this document is one who is familiar with the installation, commissioning and operation of the device and who has appropriate qualifications,
such as:
- Is trained in the operation and maintenance of electric equipment and systems in accordance with established safety practices.
- Is trained or authorized to energize, de-energize, ground, tag and lock electrical circuits and equipment in accordance with established safety practices.
- Is trained in the proper use and care of personal protective equipment (PPE) in accordance with established safety practices.
- Is trained in first aid.
- In cases where the device is installed in a potentially explosive (hazardous) location – is trained in the operation, commissioning, operation and maintenance of equipment in hazardous locations.
Product Description
Bray’s Simple Set Max combines an externally adjustable dynamic balancing valve with a full authority modulating control valve.
Available in both ANSI 125 and ANSI 250 configurations.
Function

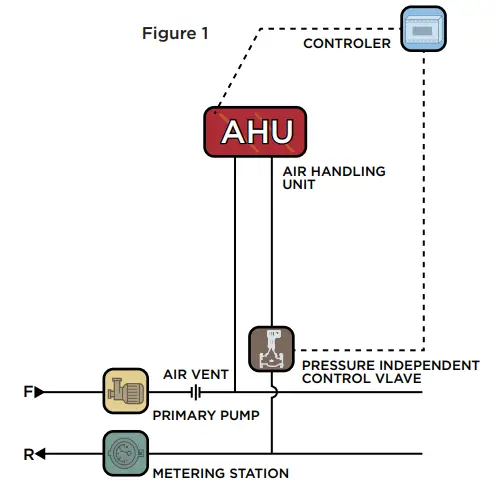

The air temperature of the Air Handling Unit is controlled by a sensor in the outlet. When the control system calls for higher or lower temperature on the air outlet, the PICV opens or closes to increase or decrease the flow through the coil. The power output from the coil follows a parabolic curve where often an EQ% valve/actuator characteristic is chosen to have a direct relation between the input control signal and power output.
Figure 1 Installation

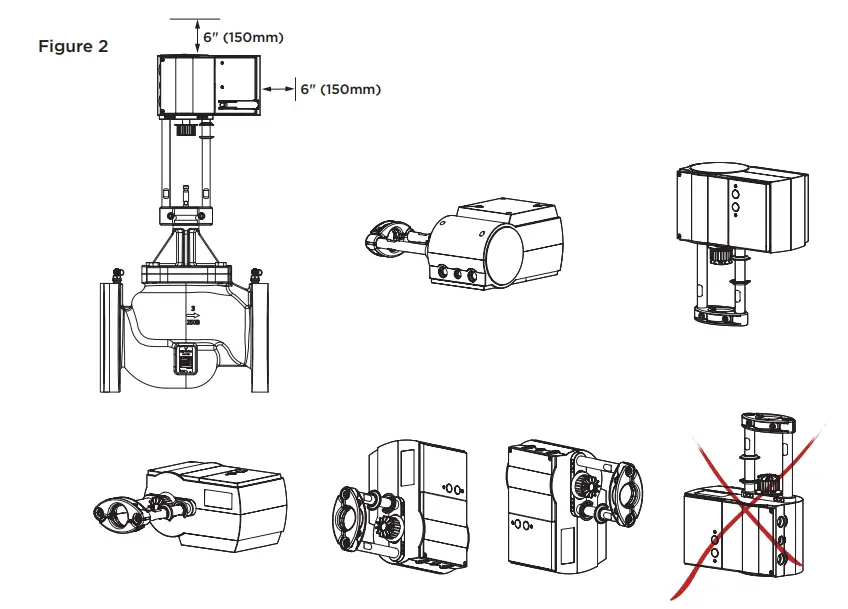

Bray’s Simple Set Max can be mounted in either the supply or the return line. Installation of strainers and isolation ball valves are recommended. The temperature in and about the actuator should not be below 14˚F (-10˚C). We recommend mounting downstream to the coil to minimize temperature extremes.
Figure 2 Mounting Positions
Actuator mounting positions for GA Series Actuators
Precautions:
Wear safety glasses and wear safety glasses and appropriate safety equipment before performing any of the listed tasks.- Assure all components are present before assembly.

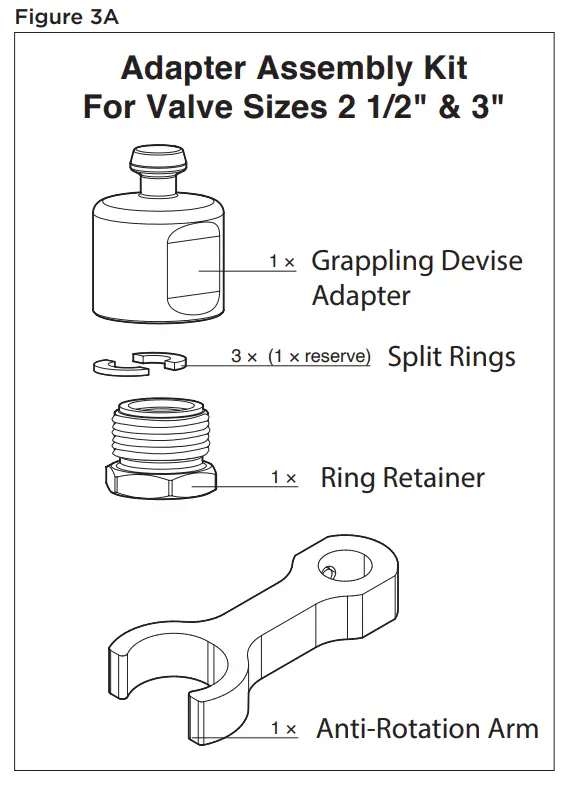

Kit Components
Tools and Equipment Required

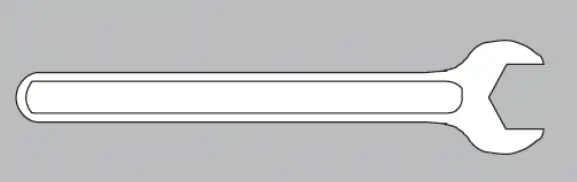

22 & 24 mm Wrench (or Crescent Wrench)

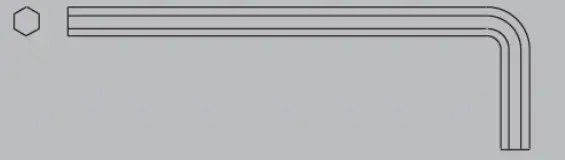

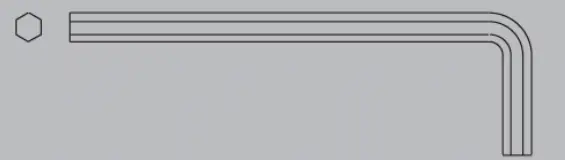

6 mm Allen Wrench
2.5 mm Allen Wrench

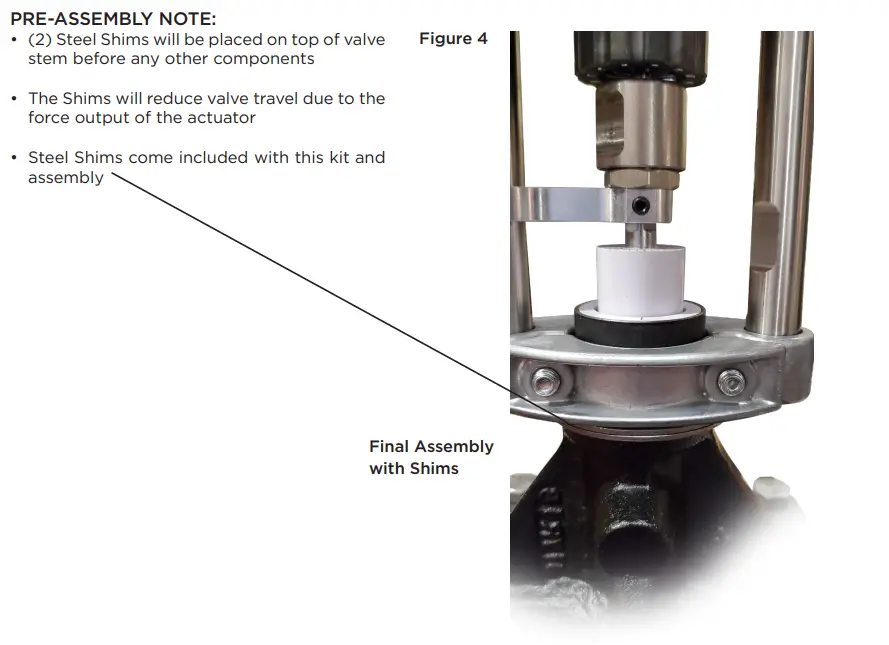

PRE-ASSEMBLY
NOTE:
ASSEMBLY
- Inspect the actuator for any sign of physical damage.
- Using the actuator manual override assure actuator full shaft extension retraction. If spring return, assure that spring extension/ retraction is functioning properly.
- Prior to assembly the actuator shaft should be fully retracted, except for spring extended models, and the grappling claw should be in the extended position.
- 2-½” & 3″ Valves use Adaptor Kit 0510390052. 4″ to 12″ valves use Adaptor Kit 0510390053, this kit includes leg extensions.

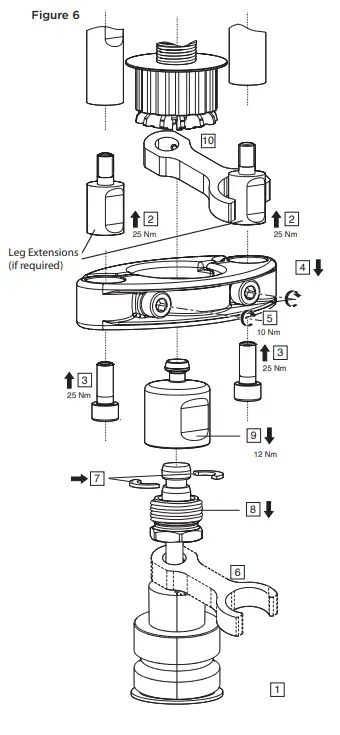

- Remove the neck clamp mechanism by removing the two leg fasteners using 6mm Allen wrench. (Part #3)
- Assemble the two leg extensions (Part #2) to the actuator legs (4″ to 12″ valves only.)
- Reassemble the neck clamp to leg extensions by installing the two leg fasteners. (Part #3)
- Using the 6mm Allen wrench, remove the threaded neck clamp (Part #4) of the actuator by removing the two neck clamp fasteners. (Part #5)

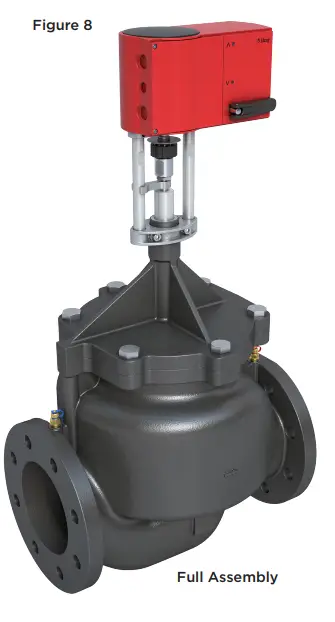

- With the actuator oriented as shown, [Figure 8] actuator handle face on the same side as valve tag, assemble the actuator on to valve using the neck clamping mechanism. Assure that the neck clamp is seated properly into the valve neck groove.
- First –> have to assemble coupler part # 9 to part #8
- Take the anti-rotation arm (Part #6) open end and clasp the actuator legs (flat surface) and allow it to slide downwards.
- Assemble the grappling device adapter (Part #9) to the valve stem with two split rings (Part #7) and split ring retainer. [Figure 6] (Part #9)
Note: The two split rings fit into the split ring grove and the split ring retainer screws into the grappling device adapter.Note: For spring extended actuators the shaft may need to be retracted, using the manual override, to a position which allows for assembly.

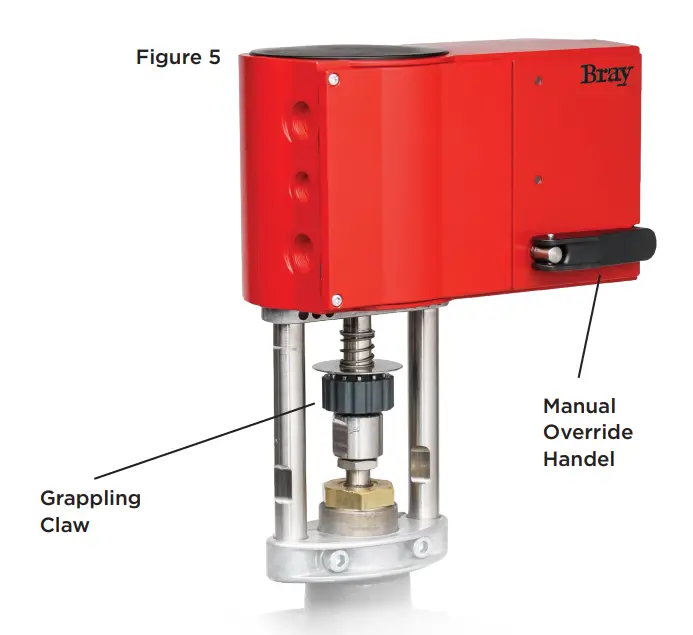

- Using the actuator manual override extend the actuator shaft and capture the grappling device adapter with the grappling device. (Part #10) Note: For spring extended actuators the grappling device adapter may be captured by the grappling device during actuator assembly.
- Assure that the grappling claw is fully retracted into the grappling device.
GPM Settings:
- Inspect the actuator for any sign of physical damage.
- Refer to the Flow Rate Charts on page 6 or the flow rate calculator at https://braycommercialdivision.com product/simpleset-max-pressure-independentcontrol-valve/ for the dial setting that correlates to the specified

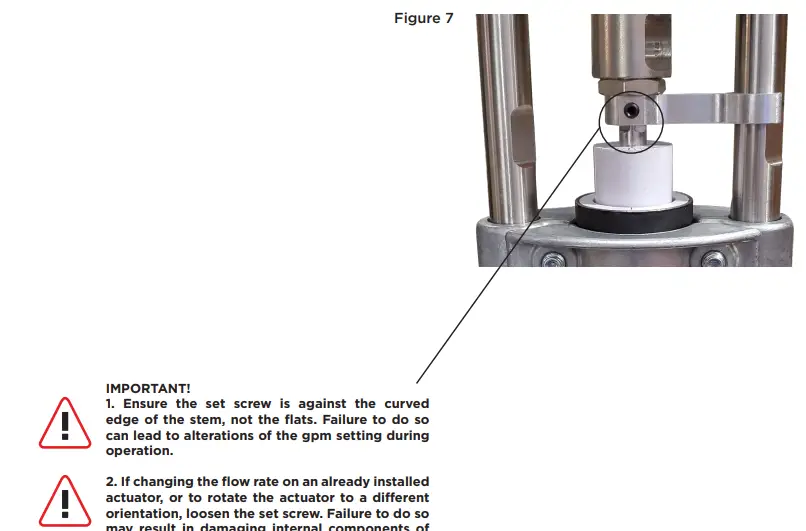

GPM. - Turn the valve’s white dial located under stem [Figure 7] to desired setting.
- Using 2.5mm Allen Wrench tighten the anti-rotation arm set screw around valve stem.
Overview
For Wiring and Operating Instructions for the GA(S) Actuators refer to:
https://braycommercialdivision.com/product/gasseries-globe-valve-actuators/
Simple Set Max – ANSI 125 Flow Rate Charts
| 2-1/2″ | 2-1/2″ Low Flow Rate Cartridge | |||
| Model Number | Pre-Set | Min. Delta P | Flow m3/h | Flow GPM |
| SSM-250-A-L-19 | 0.6 | 2.18 | 4.4 | 19 |
| SSM-250-A-L-24 | 0.8 | 2.18 | 5.6 | 24 |
| SSM-250-A-L-29 | 1.0 | 2.18 | 6.6 | 29 |
| SSM-250-A-L-34 | 1.2 | 2.31 | 7.7 | 34 |
| SSM-250-A-L-38 | 1.4 | 2.41 | 8.6 | 38 |
| SSM-250-A-L-42 | 1.6 | 2.49 | 9.6 | 42 |
| SSM-250-A-L-46 | 1.8 | 2.55 | 10.5 | 46 |
| SSM-250-A-L-51 | 2.0 | 2.61 | 11.5 | 51 |
| SSM-250-A-L-55 | 2.2 | 2.66 | 12.5 | 55 |
| SSM-250-A-L-60 | 2.4 | 2.7 | 13.5 | 60 |
| SSM-250-A-L-65 | 2.6 | 2.76 | 14.7 | 65 |
| SSM-250-A-L-70 | 2.8 | 2.82 | 15.8 | 70 |
| SSM-250-A-L-75 | 3.0 | 2.9 | 17.1 | 75 |
| SSM-250-A-L-81 | 3.2 | 3 | 18.5 | 81 |
| SSM-250-A-L-88 | 3.4 | 3.11 | 19.9 | 88 |
| SSM-250-A-L-95 | 3.6 | 3.26 | 21.5 | 95 |
| SSM-250-A-L-102 | 3.8 | 3.42 | 23.2 | 102 |
| SSM-250-A-L-110 | 4.0 | 3.59 | 25.0 | 110 |
| 2-1/2″ | 2-1/2″ High Flow Rate Cartridge | |||
| Model Number | Pre-Set | Min. Delta P | Flow m3/h | Flow GPM |
| SSM-250-A-H-26 | 0.6 | 4.35 | 6.0 | 26 |
| SSM-250-A-H-33 | 0.8 | 4.35 | 7.6 | 33 |
| SSM-250-A-H-40 | 1.0 | 4.35 | 9.1 | 40 |
| SSM-250-A-H-46 | 1.2 | 4.51 | 10.5 | 46 |
| SSM-250-A-H-53 | 1.4 | 4.6 | 11.9 | 53 |
| SSM-250-A-H-59 | 1.6 | 4.64 | 13.3 | 59 |
| SSM-250-A-H-65 | 1.8 | 4.65 | 14.7 | 65 |
| SSM-250-A-H-71 | 2.0 | 4.64 | 16.0 | 71 |
| SSM-250-A-H-77 | 2.2 | 4.64 | 17.5 | 77 |
| SSM-250-A-H-84 | 2.4 | 4.67 | 19.0 | 84 |
| SSM-250-A-H-91 | 2.6 | 4.74 | 20.6 | 91 |
| SSM-250-A-H-98 | 2.8 | 4.87 | 22.3 | 98 |
| SSM-250-A-H-106 | 3.0 | 5.09 | 24.1 | 106 |
| SSM-250-A-H-114 | 3.2 | 5.4 | 26.0 | 114 |
| SSM-250-A-H-123 | 3.4 | 5.81 | 28.0 | 123 |
| SSM-250-A-H-133 | 3.6 | 6.36 | 30.2 | 133 |
| SSM-250-A-H-143 | 3.8 | 7.06 | 32.5 | 143 |
| SSM-250-A-H-154 | 4.0 | 8.01 | 35.0 | 154 |
| 3″ | 3″ Low Flow Rate Cartridge | |||
| Model Number | Pre-Set | Min. Delta P | Flow m3/h | Flow GPM |
| SSM-3-A-L-26 | 0.6 | 2.32 | 5.3 | 26 |
| SSM-3-A-L-30 | 0.8 | 2.32 | 6.9 | 30 |
| SSM-3-A-L-36 | 1.0 | 2.33 | 8.3 | 36 |
| SSM-3-A-L-42 | 1.2 | 2.41 | 9.6 | 42 |
| SSM-3-A-L-48 | 1.4 | 2.47 | 10.9 | 48 |
| SSM-3-A-L-54 | 1.6 | 2.52 | 12.2 | 54 |
| SSM-3-A-L-59 | 1.8 | 2.57 | 13.5 | 59 |
| SSM-3-A-L-65 | 2.0 | 2.61 | 14.8 | 65 |
| SSM-3-A-L-71 | 2.2 | 2.65 | 16.2 | 71 |
| SSM-3-A-L-77 | 2.4 | 2.7 | 17.6 | 77 |
| SSM-3-A-L-84 | 2.6 | 2.75 | 19.1 | 84 |
| SSM-3-A-L-91 | 2.8 | 2.82 | 20.7 | 91 |
| SSM-3-A-L-99 | 3.0 | 2.9 | 22.4 | 99 |
| SSM-3-A-L-107 | 3.2 | 3 | 24.3 | 107 |
| SSM-3-A-L-116 | 3.4 | 3.13 | 26.4 | 116 |
| SSM-3-A-L-126 | 3.6 | 3.28 | 28.7 | 126 |
| SSM-3-A-L-138 | 3.8 | 3.44 | 31.2 | 138 |
| SSM-3-A-L-150 | 4.0 | 3.61 | 34.0 | 150 |
| 3″ | 3″ High Flow Rate Cartridge | |||
| Model Number | Pre-Set | Min. Delta P | Flow m3/h | Flow GPM |
| SSM-3-A-H-31 | 0.6 | 3.34 | 7.0 | 31 |
| SSM-3-A-H-40 | 0.8 | 3.34 | 9.0 | 40 |
| SSM-3-A-H-48 | 1.0 | 3.34 | 11.0 | 48 |
| SSM-3-A-H-56 | 1.2 | 3.43 | 12.8 | 56 |
| SSM-3-A-H-64 | 1.4 | 3.49 | 14.5 | 64 |
| SSM-3-A-H-71 | 1.6 | 3.53 | 16.2 | 71 |
| SSM-3-A-H-79 | 1.8 | 3.57 | 18.0 | 79 |
| SSM-3-A-H-86 | 2.0 | 3.61 | 19.6 | 86 |
| SSM-3-A-H-94 | 2.2 | 3.68 | 21.4 | 94 |
| SSM-3-A-H-102 | 2.4 | 3.77 | 23.2 | 102 |
| SSM-3-A-H-111 | 2.6 | 3.91 | 25.1 | 111 |
| SSM-3-A-H-119 | 2.8 | 4.11 | 27.1 | 119 |
| SSM-3-A-H-129 | 3.0 | 4.39 | 29.3 | 129 |
| SSM-3-A-H-139 | 3.2 | 4.75 | 31.6 | 139 |
| SSM-3-A-H-150 | 3.4 | 5.19 | 34.1 | 150 |
| SSM-3-A-H-162 | 3.6 | 5.73 | 36.8 | 162 |
| SSM-3-A-H-175 | 3.8 | 6.39 | 39.8 | 175 |
| SSM-3-A-H-189 | 4.0 | 7.19 | 43.0 | 189 |
Note: Min. Delta P Available at Selected Flow Rate. See Website for Specifc Flow Rate Settings Calculator
| 4″ | 4″ Low Flow Rate Cartridge | |||
| Model Number | Pre-Set | Min. Delta P | Flow m3/h | Flow GPM |
| SSM-4-A-L-53 | 0.6 | 2.75 | 12.1 | 53 |
| SSM-4-A-L-67 | 0.8 | 2.83 | 15.3 | 67 |
| SSM-4-A-L-80 | 1.0 | 2.9 | 18.1 | 80 |
| SSM-4-A-L-91 | 1.2 | 2.96 | 20.8 | 91 |
| SSM-4-A-L-102 | 1.4 | 3.02 | 23.2 | 102 |
| SSM-4-A-L-112 | 1.6 | 3.08 | 25.5 | 112 |
| SSM-4-A-L-122 | 1.8 | 3.13 | 27.8 | 122 |
| SSM-4-A-L-132 | 2.0 | 3.19 | 30.0 | 132 |
| SSM-4-A-L-143 | 2.2 | 3.25 | 32.4 | 143 |
| SSM-4-A-L-154 | 2.4 | 3.32 | 34.9 | 154 |
| SSM-4-A-L-166 | 2.6 | 3.4 | 37.6 | 166 |
| SSM-4-A-L-179 | 2.8 | 3.5 | 40.6 | 179 |
| SSM-4-A-L-194 | 3.0 | 3.63 | 44.0 | 194 |
| SSM-4-A-L-210 | 3.2 | 3.78 | 47.7 | 210 |
| SSM-4-A-L-229 | 3.4 | 3.98 | 51.9 | 229 |
| SSM-4-A-L-249 | 3.6 | 4.25 | 56.7 | 249 |
| SSM-4-A-L-273 | 3.8 | 4.6 | 62.0 | 273 |
| SSM-4-A-L-299 | 4.0 | 5.08 | 68.0 | 299 |
| 4″ | 4″ High Flow Rate Cartridge | |||
| Model Number | Pre-Set | Min. Delta P | Flow m3/h | Flow GPM |
| SSM-4-A-H-65 | 0.6 | 4.14 | 14.8 | 65 |
| SSM-4-A-H-83 | 0.8 | 4.24 | 18.9 | 83 |
| SSM-4-A-H-99 | 1.0 | 4.35 | 22.6 | 99 |
| SSM-4-A-H-114 | 1.2 | 4.48 | 26.0 | 114 |
| SSM-4-A-H-128 | 1.4 | 4.61 | 29.1 | 128 |
| SSM-4-A-H-141 | 1.6 | 4.75 | 32.1 | 141 |
| SSM-4-A-H-154 | 1.8 | 4.91 | 35.1 | 154 |
| SSM-4-A-H-168 | 2.0 | 5.08 | 38.1 | 168 |
| SSM-4-A-H-181 | 2.2 | 5.27 | 41.2 | 181 |
| SSM-4-A-H-196 | 2.4 | 5.5 | 44.5 | 196 |
| SSM-4-A-H-212 | 2.6 | 5.78 | 48.2 | 212 |
| SSM-4-A-H-230 | 2.8 | 6.11 | 52.2 | 230 |
| SSM-4-A-H-250 | 3.0 | 6.52 | 56.7 | 250 |
| SSM-4-A-H-272 | 3.2 | 7.05 | 61.9 | 272 |
| SSM-4-A-H-298 | 3.4 | 7.7 | 67.7 | 298 |
| SSM-4-A-H-327 | 3.6 | 8.51 | 74.2 | 327 |
| SSM-4-A-H-360 | 3.8 | 9.56 | 81.7 | 360 |
| SSM-4-A-H-396 | 4.0 | 10.87 | 90.0 | 396 |
| 5″ | 5″ Low Flow Rate Cartridge | |||
| Model Number | Pre-Set | Min. Delta P | Flow m3/h | Flow GPM |
| SSM-5-A-L-81 | 0.6 | 2.32 | 18.5 | 81 |
| SSM-5-A-L-104 | 0.8 | 2.32 | 23.6 | 104 |
| SSM-5-A-L-125 | 1.0 | 2.32 | 28.5 | 125 |
| SSM-5-A-L-147 | 1.2 | 2.39 | 33.3 | 147 |
| SSM-5-A-L-167 | 1.4 | 2.46 | 38.0 | 167 |
| SSM-5-A-L-188 | 1.6 | 2.51 | 42.6 | 188 |
| SSM-5-A-L-207 | 1.8 | 2.56 | 47.1 | 207 |
| SSM-5-A-L-227 | 2.0 | 2.61 | 51.5 | 227 |
| SSM-5-A-L-246 | 2.2 | 2.67 | 55.9 | 246 |
| SSM-5-A-L-266 | 2.4 | 2.73 | 60.4 | 266 |
| SSM-5-A-L-286 | 2.6 | 2.81 | 65.0 | 286 |
| SSM-5-A-L-308 | 2.8 | 2.91 | 69.8 | 308 |
| SSM-5-A-L-330 | 3.0 | 3.05 | 75.0 | 330 |
| SSM-5-A-L-355 | 3.2 | 3.23 | 80.6 | 355 |
| SSM-5-A-L-382 | 3.4 | 3.48 | 86.7 | 382 |
| SSM-5-A-L-412 | 3.6 | 3.83 | 93.6 | 412 |
| SSM-5-A-L-446 | 3.8 | 4.34 | 101.3 | 446 |
| SSM-5-A-L-484 | 4.0 | 5.08 | 110.0 | 484 |
| 5″ | 5″ High Flow Rate Cartridge | |||
| Model Number | Pre-Set | Min. Delta P | Flow m3/h | Flow GPM |
| SSM-5-A-H-101 | 0.6 | 3.92 | 23.0 | 101 |
| SSM-5-A-H-132 | 0.8 | 3.92 | 29.9 | 131 |
| SSM-5-A-H-161 | 1.0 | 3.92 | 36.5 | 161 |
| SSM-5-A-H-188 | 1.2 | 3.99 | 42.8 | 188 |
| SSM-5-A-H-215 | 1.4 | 4.05 | 48.7 | 215 |
| SSM-5-A-H-240 | 1.6 | 4.1 | 54.5 | 240 |
| SSM-5-A-H-264 | 1.8 | 4.15 | 60.0 | 264 |
| SSM-5-A-H-288 | 2.0 | 4.21 | 65.5 | 288 |
| SSM-5-A-H-312 | 2.2 | 4.27 | 70.9 | 312 |
| SSM-5-A-H-336 | 2.4 | 4.35 | 76.4 | 336 |
| SSM-5-A-H-361 | 2.6 | 4.46 | 82.0 | 361 |
| SSM-5-A-H-387 | 2.8 | 4.6 | 87.8 | 387 |
| SSM-5-A-H-414 | 3.0 | 7.79 | 94.0 | 414 |
| SSM-5-A-H-443 | 3.2 | 5.05 | 100.7 | 443 |
| SSM-5-A-H-475 | 3.4 | 5.41 | 108.0 | 475 |
| SSM-5-A-H-511 | 3.6 | 5.92 | 116.0 | 511 |
| SSM-5-A-H-550 | 3.8 | 6.65 | 125.0 | 550 |
| SSM-5-A-H-594 | 4.0 | 7.69 | 135.0 | 594 |
Note: Min. Delta P Available at Selected Flow Rate. See Website for Specifc Flow Rate Settings Calculator
| 6″ | 6″ Low Flow Rate Cartridge | |||
| Model Number | Pre-Set | Min. Delta P | Flow m3/h | Flow GPM |
| SSM-6-A-L-113 | 0.6 | 3.05 | 25.6 | 113 |
| SSM-6-A-L-143 | 0.8 | 3.05 | 32.6 | 143 |
| SSM-6-A-L-173 | 1.0 | 3.05 | 39.2 | 173 |
| SSM-6-A-L-201 | 1.2 | 3.05 | 45.6 | 201 |
| SSM-6-A-L-228 | 1.4 | 3.05 | 51.8 | 228 |
| SSM-6-A-L-255 | 1.6 | 3.05 | 58.0 | 255 |
| SSM-6-A-L-282 | 1.8 | 3.05 | 64.1 | 282 |
| SSM-6-A-L-310 | 2.0 | 3.19 | 70.4 | 310 |
| SSM-6-A-L-338 | 2.2 | 3.39 | 76.8 | 338 |
| SSM-6-A-L-367 | 2.4 | 3.61 | 83.4 | 367 |
| SSM-6-A-L-398 | 2.6 | 3.86 | 90.3 | 398 |
| SSM-6-A-L-429 | 2.8 | 4.11 | 97.5 | 429 |
| SSM-6-A-L-462 | 3.0 | 4.35 | 105.0 | 462 |
| SSM-6-A-L-497 | 3.2 | 4.58 | 112.9 | 497 |
| SSM-6-A-L-533 | 3.4 | 4.77 | 121.1 | 533 |
| SSM-6-A-L-571 | 3.6 | 4.93 | 129.7 | 571 |
| SSM-6-A-L-610 | 3.8 | 5.03 | 138.7 | 610 |
| SSM-6-A-L-652 | 4.0 | 5.08 | 148.0 | 652 |
| 6″ | 6″ High Flow Rate Cartridge | |||
| Model Number | Pre-Set | Min. Delta P | Flow m3/h | Flow GPM |
| SSM-6-A-H-141 | 0.6 | 4.79 | 32.0 | 141 |
| SSM-6-A-H-182 | 0.8 | 4.79 | 41.3 | 182 |
| SSM-6-A-H-220 | 1.0 | 4.79 | 50.0 | 220 |
| SSM-6-A-H-256 | 1.2 | 4.79 | 58.2 | 256 |
| SSM-6-A-H-291 | 1.4 | 4.79 | 66.0 | 291 |
| SSM-6-A-H-324 | 1.6 | 4.79 | 73.7 | 324 |
| SSM-6-A-H-358 | 1.8 | 4.79 | 81.3 | 358 |
| SSM-6-A-H-392 | 2.0 | 4.93 | 89.0 | 392 |
| SSM-6-A-H-427 | 2.2 | 5.16 | 96.9 | 427 |
| SSM-6-A-H-463 | 2.4 | 5.46 | 105.2 | 4637 |
| SSM-6-A-H-501 | 2.6 | 5.82 | 113.9 | 5017 |
| SSM-6-A-H-542 | 2.8 | 6.23 | 123.1 | 5427 |
| SSM-6-A-H-586 | 3.0 | 6.68 | 133.0 | 586 |
| SSM-6-A-H-632 | 3.2 | 7.14 | 143.6 | 632 |
| SSM-6-A-H-683 | 3.4 | 7.69 | 155.1 | 683 |
| SSM-6-A-H-737 | 3.6 | 8.23 | 167.4 | 737 |
| SSM-6-A-H-796 | 3.8 | 8.81 | 180.7 | 796 |
| SSM-6-A-H-859 | 4.0 | 9.44 | 195.0 | 859 |
| 8″ | 8″ Low Flow Rate Cartridge | |||
| Model Number | Pre-Set | Min. Delta P | Flow m3/h | Flow GPM |
| SSM-8-A-L-418 | 1 | 1.6 | 95.2 | 418 |
| SSM-8-A-L-435 | 1.2 | 1.7 | 98.8 | 435 |
| SSM-8-A-L-460 | 1.4 | 1.8 | 104.5 | 460 |
| SSM-8-A-L-485 | 1.6 | 1.9 | 110.2 | 485 |
| SSM-8-A-L-515 | 1.8 | 2.1 | 117.0 | 515 |
| SSM-8-A-L-545 | 2 | 2.3 | 123.8 | 545 |
| SSM-8-A-L-575 | 2.2 | 2.5 | 130.6 | 575 |
| SSM-8-A-L-610 | 2.4 | 2.7 | 138.6 | 610 |
| SSM-8-A-L-640 | 2.6 | 2.9 | 145.4 | 640 |
| SSM-8-A-L-680 | 2.8 | 3.2 | 154.4 | 680 |
| SSM-8-A-L-720 | 3 | 3.4 | 163.5 | 720 |
| SSM-8-A-L-760 | 3.2 | 3.7 | 172.6 | 760 |
| SSM-8-A-L-795 | 3.4 | 3.9 | 180.6 | 795 |
| SSM-8-A-L-835 | 3.6 | 4.2 | 189.7 | 835 |
| SSM-8 -A-L-875 | 3.8 | 4.4 | 198.7 | 875 |
| SSM-8-A-L-925 | 4 | 4.6 | 209.9 | 925 |
| 8″ | 8″ High Flow Rate Cartridge | |||
| Model Number | Pre-Set | Min. Delta P | Flow m3/h | Flow GPM |
| SSM-8-A-H-572 | 1 | 4.5 | 130.1 | 572 |
| SSM-8-A-H-598 | 1.2 | 5 | 135.8 | 598 |
| SSM-8-A-H-630 | 1.4 | 5 | 143.1 | 630 |
| SSM-8-A-H-664 | 1.6 | 5 | 150.8 | 664 |
| SSM-8-A-H-702 | 1.8 | 5 | 159.4 | 702 |
| SSM-8-A-H-739 | 2 | 6 | 167.9 | 739 |
| SSM-8-A-H-779 | 2.2 | 6 | 176.9 | 779 |
| SSM-8-A-H-823 | 2.4 | 7 | 186.9 | 823 |
| SSM-8-A-H-865 | 2.6 | 7 | 196.5 | 865 |
| SSM-8-A-H-910 | 2.8 | 8 | 206.7 | 910 |
| SSM-8-A-H-957 | 3 | 9 | 217.4 | 957 |
| SSM-8-A-H-1008 | 3.2 | 9 | 228.9 | 1008 |
| SSM-8-A-H-1058 | 3.4 | 10 | 240.3 | 1058 |
| SSM-8-A-H-1109 | 3.6 | 10 | 251.9 | 1109 |
| SSM-8-A-H-1164 | 3.8 | 11 | 264.4 | 1164 |
| SSM-8-A-H-1233 | 4 | 11 | 279.8 | 1233 |
Note: Min. Delta P Available at Selected Flow Rate.
See Website for Specifc Flow Rate Settings Calculator.
| 10″ | 10″ Low Flow Rate Cartridge | |||
| Model Number | Pre-Set | Min. Delta P | Flow m3/h | Flow GPM |
| SSM-10-A-L-837 | 1 | 1.5 | 190.1 | 837 |
| SSM-10-A-L-900 | 1.2 | 1.5 | 204.4 | 900 |
| SSM-10-A-L-960 | 1.4 | 1.6 | 218.0 | 960 |
| SSM-10-A-L-1020 | 1.6 | 1.7 | 231.7 | 1020 |
| SSM-10-A-L-1075 | 1.8 | 1.9 | 244.2 | 1075 |
| SSM-10-A-L-1135 | 2 | 2.1 | 257.8 | 1135 |
| SSM-10-A-L-1195 | 2.2 | 2.4 | 271.4 | 1195 |
| SSM-10-A-L-1255 | 2.4 | 2.6 | 285.0 | 1255 |
| SSM-10-A-L-1325 | 2.6 | 2.9 | 300.9 | 1325 |
| SSM-10-A-L-1400 | 2.8 | 3.3 | 318.0 | 1400 |
| SSM-10-A-L-1480 | 3 | 3.6 | 336.1 | 1480 |
| SSM-10-A-L-1570 | 3.2 | 3.9 | 356.6 | 1570 |
| SSM-10-A-L-1680 | 3.4 | 3.4 | 381.6 | 1680 |
| SSM-10-A-L-1795 | 3.6 | 4.5 | 407.7 | 1795 |
| SSM-10-A-L-1930 | 3.8 | 4.8 | 438.4 | 1930 |
| SSM-10-A-L-2091 | 4 | 5.1 | 474.9 | 2091 |
| 10″ | 10″ High Flow Rate Cartridge | |||
| Model Number | Pre-Set | Min. Delta P | Flow m3/h | Flow GPM |
| SSM-10-A-H-1079 | 1 | 2.18 | 245.1 | 1079 |
| SSM-10-A-H-1118 | 1.2 | 2.3 | 253.9 | 1118 |
| SSM-10-A-H-1178 | 1.4 | 2.5 | 267.6 | 1178 |
| SSM-10-A-H-1246 | 1.6 | 2.8 | 283.0 | 1246 |
| SSM-10-A-H-1330 | 1.8 | 3.1 | 302.1 | 1330 |
| SSM-10-A-H-1420 | 2 | 3.6 | 322.5 | 1420 |
| SSM-10-A-H-1515 | 2.2 | 4.1 | 344.1 | 1515 |
| SSM-10-A-H-1620 | 2.4 | 4.6 | 367.9 | 1620 |
| SSM-10-A-H-1730 | 2.6 | 5.2 | 392.9 | 1730 |
| SSM-10-A-H-1845 | 2.8 | 5.8 | 419.1 | 1845 |
| SSM-10-A-H-1965 | 3 | 6.4 | 446.3 | 1965 |
| SSM-10-A-H-2090 | 3.2 | 7.1 | 474.7 | 2090 |
| SSM-10-A-H-2220 | 3.4 | 7.8 | 504.2 | 2220 |
| SSM-10-A-H-2355 | 3.6 | 8.6 | 534.9 | 2355 |
| SSM-10-A-H-2490 | 3.8 | 9.3 | 565.5 | 2490 |
| SSM-10-A-H-2642 | 4 | 10.2 | 599.8 | 2642 |
| 12″ | 12″ Low Flow Rate Cartridge | |||
| Model Number | Pre-Set | Min. Delta P | Flow m3/h | Flow GPM |
| SSM-12-A-L-837 | 1 | 1.5 | 190.1 | 837 |
| SSM-12-A-L-895 | 1.2 | 1.5 | 203.3 | 895 |
| SSM-12-A-L-955 | 1.4 | 1.6 | 216.9 | 955 |
| SSM-12-A-L-1015 | 1.6 | 1.7 | 230.5 | 1015 |
| SSM-12-A-L-1075 | 1.8 | 1.8 | 244.2 | 1075 |
| SSM-12-A-L-1130 | 2 | 2.1 | 256.7 | 1130 |
| SSM-12-A-L-1195 | 2.2 | 2.4 | 271.4 | 1195 |
| SSM-12-A-L-1255 | 2.4 | 2.6 | 285.0 | 1255 |
| SSM-12-A-L-1325 | 2.6 | 2.9 | 300.9 | 1325 |
| SSM-12-A-L-1400 | 2.8 | 3.3 | 318.0 | 1400 |
| SSM-12-A-L-1480 | 3 | 3.6 | 336.1 | 1480 |
| SSM-12-A-L-1570 | 3.2 | 3.2 | 356.6 | 1570 |
| SSM-12-A-L-1680 | 3.4 | 4.2 | 381.6 | 1680 |
| SSM-12-A-L-1795 | 3.6 | 4.5 | 407.7 | 1795 |
| SSM-12-A-L-1930 | 3.8 | 4.8 | 438.4 | 1930 |
| SSM-12-A-L-2091 | 4 | 5.1 | 474.9 | 2091 |
| 12″ | 12″ High Flow Rate Cartridge | |||
| Model Number | Pre-Set | Min. Delta P | Flow m3/h | Flow GPM |
| SSM-12-A-H-1079 | 1 | 2.2 | 245.1 | 1079 |
| SSM-12-A-H-1118 | 1.2 | 2.3 | 253.9 | 1118 |
| SSM-12-A-H-1178 | 1.4 | 2.5 | 267.6 | 1178 |
| SSM-12-A-H-1248 | 1.6 | 2.8 | 283.5 | 1248 |
| SSM-12-A-H-1330 | 1.8 | 3.1 | 302.1 | 1330 |
| SSM-12-A-H-1418 | 2 | 3.6 | 322.1 | 1418 |
| SSM-12-A-H-1515 | 2.2 | 4.1 | 344.1 | 1515 |
| SSM-12-A-H-1618 | 2.4 | 4.6 | 367.5 | 1618 |
| SSM-12-A-H-1730 | 2.6 | 5.2 | 392.9 | 1730 |
| SSM-12-A-H-1847 | 2.8 | 5.8 | 419.5 | 1847 |
| SSM-12-A-H-1969 | 3 | 6.5 | 447.2 | 1969 |
| SSM-12-A-H-2090 | 3.2 | 7.1 | 474.7 | 2090 |
| SSM-12-A-H-2225 | 3.4 | 7.9 | 505.4 | 2225 |
| SSM-12-A-H-2350 | 3.6 | 8.6 | 533.7 | 2350 |
| SSM-12-A-H-2490 | 3.8 | 9.3 | 565.5 | 2490 |
| SSM-12-A-H-2642 | 4 | 10.2 | 599.8 | 2642 |
Note: Min. Delta P Available at Selected Flow Rate.
See Website for Specifc Flow Rate Settings Calculator
Simple Set Max – ANSI 250 Flow Rate Charts
| 2-1/2″ | 2-1/2″ Low Flow Rate Cartridge | |||
| Model Number | Pre-Set | Min. Delta P | Flow m3/h | Flow GPM |
| SSM-250-A250-L-19 | 0.6 | 2.18 | 4.4 | 19 |
| SSM-250-A250-L-24 | 0.8 | 2.18 | 5.6 | 24 |
| SSM-250-A250-L-29 | 1.0 | 2.18 | 6.6 | 29 |
| SSM-250-A250-L-34 | 1.2 | 2.31 | 7.7 | 34 |
| SSM-250-A250-L-38 | 1.4 | 2.41 | 8.6 | 38 |
| SSM-250-A250-L-42 | 1.6 | 2.49 | 9.6 | 42 |
| SSM-250-A250-L-46 | 1.8 | 2.55 | 10.5 | 46 |
| SSM-250-A250-L-51 | 2.0 | 2.61 | 11.5 | 51 |
| SSM-250-A250-L-55 | 2.2 | 2.66 | 12.5 | 55 |
| SSM-250-A250-L-60 | 2.4 | 2.7 | 13.5 | 60 |
| SSM-250-A250-L-65 | 2.6 | 2.76 | 14.7 | 65 |
| SSM-250-A250-L-70 | 2.8 | 2.82 | 15.8 | 70 |
| SSM-250-A250-L-75 | 3.0 | 2.9 | 17.1 | 75 |
| SSM-250-A250-L-81 | 3.2 | 3 | 18.5 | 81 |
| SSM-250-A250-L-88 | 3.4 | 3.11 | 19.9 | 88 |
| SSM-250-A250-L-95 | 3.6 | 3.26 | 21.5 | 95 |
| SSM-250-A250-L-102 | 3.8 | 3.42 | 23.2 | 102 |
| SSM-250-A250-L-110 | 4.0 | 3.59 | 25.0 | 110 |
| 2-1/2″ | 2-1/2″ High Flow Rate Cartridge | |||
| Model Number | Pre-Set | Min. Delta P | Flow m3/h | Flow GPM |
| SSM-250-A250-H-26 | 0.6 | 4.35 | 6.0 | 26 |
| SSM-250-A250-H-33 | 0.8 | 4.35 | 7.6 | 33 |
| SSM-250-A250-H-40 | 1.0 | 4.35 | 9.1 | 40 |
| SSM-250-A250-H-46 | 1.2 | 4.51 | 10.5 | 46 |
| SSM-250-A250-H-53 | 1.4 | 4.6 | 11.9 | 53 |
| SSM-250-A250-H-59 | 1.6 | 4.64 | 13.3 | 59 |
| SSM-250-A250-H-65 | 1.8 | 4.65 | 14.7 | 65 |
| SSM-250-A250-H-71 | 2.0 | 4.64 | 16.0 | 71 |
| SSM-250-A250-H-77 | 2.2 | 4.64 | 17.5 | 77 |
| SSM-250-A250-H-84 | 2.4 | 4.67 | 19.0 | 84 |
| SSM-250-A250-H-91 | 2.6 | 4.74 | 20.6 | 91 |
| SSM-250-A250-H-98 | 2.8 | 4.87 | 22.3 | 98 |
| SSM-250-A250-H-106 | 3.0 | 5.09 | 24.1 | 106 |
| SSM-250-A250-H-114 | 3.2 | 5.4 | 26.0 | 114 |
| SSM-250-A250-H-123 | 3.4 | 5.81 | 28.0 | 123 |
| SSM-250-A250-H-133 | 3.6 | 6.36 | 30.2 | 133 |
| SSM-250-A250-H-143 | 3.8 | 7.06 | 32.5 | 143 |
| SSM-250-A250-H-154 | 4.0 | 8.01 | 35.0 | 154 |
| 3″ | 3″ Low Flow Rate Cartridge | |||
| Model Number | Pre-Set | Min. Delta P | Flow m3/h | Flow GPM |
| SSM-3-A250-L-26 | 0.6 | 2.32 | 5.3 | 26 |
| SSM-3-A250-L-30 | 0.8 | 2.32 | 6.9 | 30 |
| SSM-3-A250-L-36 | 1.0 | 2.33 | 8.3 | 36 |
| SSM-3-A250-L-42 | 1.2 | 2.41 | 9.6 | 42 |
| SSM-3-A250-L-48 | 1.4 | 2.47 | 10.9 | 48 |
| SSM-3-A250-L-54 | 1.6 | 2.52 | 12.2 | 54 |
| SSM-3-A250-L-59 | 1.8 | 2.57 | 13.5 | 59 |
| SSM-3-A250-L-65 | 2.0 | 2.61 | 14.8 | 65 |
| SSM-3-A250-L-71 | 2.2 | 2.65 | 16.2 | 71 |
| SSM-3-A250-L-77 | 2.4 | 2.7 | 17.6 | 77 |
| SSM-3-A250-L-84 | 2.6 | 2.75 | 19.1 | 84 |
| SSM-3-A250-L-91 | 2.8 | 2.82 | 20.7 | 91 |
| SSM-3-A250-L-99 | 3.0 | 2.9 | 22.4 | 99 |
| SSM-3-A250-L-107 | 3.2 | 3 | 24.3 | 107 |
| SSM-3-A250-L-116 | 3.4 | 3.13 | 26.4 | 116 |
| SSM-3-A250-L-126 | 3.6 | 3.28 | 28.7 | 126 |
| SSM-3-A250-L-138 | 3.8 | 3.44 | 31.2 | 138 |
| SSM-3-A250-L-150 | 4.0 | 3.61 | 34.0 | 150 |
| 3″ | 3″ High Flow Rate Cartridge | |||
| Model Number | Pre-Set | Min. Delta P | Flow m3/h | Flow GPM |
| SSM-3-A250-H-31 | 0.6 | 3.34 | 7.0 | 31 |
| SSM-3-A250-H-40 | 0.8 | 3.34 | 9.0 | 40 |
| SSM-3-A250-H-48 | 1.0 | 3.34 | 11.0 | 48 |
| SSM-3-A250-H-56 | 1.2 | 3.43 | 12.8 | 56 |
| SSM-3-A250-H-64 | 1.4 | 3.49 | 14.5 | 64 |
| SSM-3-A250-H-71 | 1.6 | 3.53 | 16.2 | 71 |
| SSM-3-A250-H-79 | 1.8 | 3.57 | 18.0 | 79 |
| SSM-3-A250-H-86 | 2.0 | 3.61 | 19.6 | 86 |
| SSM-3-A250-H-94 | 2.2 | 3.68 | 21.4 | 94 |
| SSM-3-A250-H-102 | 2.4 | 3.77 | 23.2 | 102 |
| SSM-3-A250-H-111 | 2.6 | 3.91 | 25.1 | 111 |
| SSM-3-A250-H-119 | 2.8 | 4.11 | 27.1 | 119 |
| SSM-3-A250-H-129 | 3.0 | 4.39 | 29.3 | 129 |
| SSM-3-A250-H-139 | 3.2 | 4.75 | 31.6 | 139 |
| SSM-3-A250-H-150 | 3.4 | 5.19 | 34.1 | 150 |
| SSM-3-A250-H-162 | 3.6 | 5.73 | 36.8 | 162 |
| SSM-3-A250-H-175 | 3.8 | 6.39 | 39.8 | 175 |
| SSM-3-A250-H-189 | 4.0 | 7.19 | 43.0 | 189 |
Note: Min. Delta P Available at Selected Flow Rate.
See Website for Specifc Flow Rate Settings Calculator
| 4″ | 4″ Low Flow Rate Cartridge | |||
| Model Number | Pre-Set | Min. Delta P | Flow m3/h | Flow GPM |
| SSM-4-A250-L-53 | 0.6 | 2.75 | 12.1 | 53 |
| SSM-4-A250-L-67 | 0.8 | 2.83 | 15.3 | 67 |
| SSM-4-A250-L-80 | 1.0 | 2.9 | 18.1 | 80 |
| SSM-4-A250-L-91 | 1.2 | 2.96 | 20.8 | 91 |
| SSM-4-A250-L-102 | 1.4 | 3.02 | 23.2 | 102 |
| SSM-4-A250-L-112 | 1.6 | 3.08 | 25.5 | 112 |
| SSM-4-A250-L-122 | 1.8 | 3.13 | 27.8 | 122 |
| SSM-4-A250-L-132 | 2.0 | 3.19 | 30.0 | 132 |
| SSM-4-A250-L-143 | 2.2 | 3.25 | 32.4 | 143 |
| SSM-4-A250-L-154 | 2.4 | 3.32 | 34.9 | 154 |
| SSM-4-A250-L-166 | 2.6 | 3.4 | 37.6 | 166 |
| SSM-4-A250-L-179 | 2.8 | 3.5 | 40.6 | 179 |
| SSM-4-A250-L-194 | 3.0 | 3.63 | 44.0 | 194 |
| SSM-4-A250-L-210 | 3.2 | 3.78 | 47.7 | 210 |
| SSM-4-A250-L-229 | 3.4 | 3.98 | 51.9 | 229 |
| SSM-4-A250-L-249 | 3.6 | 4.25 | 56.7 | 249 |
| SSM-4-A250-L-273 | 3.8 | 4.6 | 62.0 | 273 |
| SSM-4-A250-L-299 | 4.0 | 5.08 | 68.0 | 299 |
| 4″ | 4″ High Flow Rate Cartridge | |||
| Model Number | Pre-Set | Min. Delta P | Flow m3/h | Flow GPM |
| SSM-4-A250-H-65 | 0.6 | 4.14 | 14.8 | 65 |
| SSM-4-A250-H-83 | 0.8 | 4.24 | 18.9 | 83 |
| SSM-4-A250-H-99 | 1.0 | 4.35 | 22.6 | 99. |
| SSM-4-A250-H-114 | 1.2 | 4.48 | 26.0 | 114 |
| SSM-4-A250-H-128 | 1.4 | 4.61 | 29.1 | 128 |
| SSM-4-A250-H-141 | 1.6 | 4.75 | 32.1 | 141 |
| SSM-4-A250-H-154 | 1.8 | 4.91 | 35.1 | 154 |
| SSM-4-A250-H-168 | 2.0 | 5.08 | 38.1 | 168 |
| SSM-4-A250-H-181 | 2.2 | 5.27 | 41.2 | 181 |
| SSM-4-A250-H-196 | 2.4 | 5.5 | 44.5 | 196 |
| SSM-4-A250-H-212 | 2.6 | 5.78 | 48.2 | 212 |
| SSM-4-A250-H-230 | 2.8 | 6.11 | 52.2 | 230 |
| SSM-4-A250-H-250 | 3.0 | 6.52 | 56.7 | 250 |
| SSM-4-A250-H-272 | 3.2 | 7.05 | 61.9 | 272 |
| SSM-4-A250-H-298 | 3.4 | 7.7 | 67.7 | 298 |
| SSM-4-A250-H-327 | 3.6 | 8.51 | 74.2 | 327 |
| SSM-4-A250-H-360 | 3.8 | 9.56 | 81.7 | 360 |
| SSM-4-A250-H-396 | 4.0 | 10.87 | 90.0 | 396 |
| 5″ | 5″ Low Flow Rate Cartridge | |||
| Model Number | Pre-Set | Min. Delta P | Flow m3/h | Flow GPM |
| SSM-5-A250-L-81 | 0.6 | 2.32 | 18.5 | 81 |
| SSM-5-A250-L-104 | 0.8 | 2.32 | 23.6 | 104 |
| SSM-5-A250-L-125 | 1.0 | 2.32 | 28.5 | 125 |
| SSM-5-A250-L-147 | 1.2 | 2.39 | 33.3 | 147 |
| SSM-5-A250-L-167 | 1.4 | 2.46 | 38.0 | 167 |
| SSM-5-A250-L-188 | 1.6 | 2.51 | 42.6 | 188 |
| SSM-5-A250-L-207 | 1.8 | 2.56 | 47.1 | 207 |
| SSM-5-A250-L-227 | 2.0 | 2.61 | 51.5 | 227 |
| SSM-5-A250-L-246 | 2.2 | 2.67 | 55.9 | 246 |
| SSM-5-A250-L-266 | 2.4 | 2.73 | 60.4 | 266 |
| SSM-5-A250-L-286 | 2.6 | 2.81 | 65.0 | 286 |
| SSM-5-A250-L-308 | 2.8 | 2.91 | 69.8 | 308 |
| SSM-5-A250-L-330 | 3.0 | 3.05 | 75.0 | 330 |
| SSM-5-A250-L-355 | 3.2 | 3.23 | 80.6 | 355 |
| SSM-5-A250-L-382 | 3.4 | 3.48 | 86.7 | 382 |
| SSM-5-A250-L-412 | 3.6 | 3.83 | 93.6 | 412 |
| SSM-5-A250-L-446 | 3.8 | 4.34 | 101.3 | 446 |
| SSM-5-A250-L-484 | 4.0 | 5.08 | 110.0 | 484 |
| 5″ | 5″ High Flow Rate Cartridge | |||
| Model Number | Pre-Set | Min. Delta P | Flow m3/h | Flow GPM |
| SSM-5-A250-H-101 | 0.6 | 3.92 | 23.0 | 101 |
| SSM-5-A250-H-132 | 0.8 | 3.92 | 29.9 | 132 |
| SSM-5-A250-H-161 | 1.0 | 3.92 | 36.5 | 161 |
| SSM-5-A250-H-188 | 1.2 | 3.99 | 42.8 | 188 |
| SSM-5-A250-H-215 | 1.4 | 4.05 | 48.7 | 215 |
| SSM-5-A250-H-240 | 1.6 | 4.1 | 54.5 | 240 |
| SSM-5-A250-H-264 | 1.8 | 4.15 | 60.0 | 264 |
| SSM-5-A250-H-288 | 2.0 | 4.21 | 65.5 | 288 |
| SSM-5-A250-H-312 | 2.2 | 4.27 | 70.9 | 312 |
| SSM-5-A250-H-336 | 2.4 | 4.35 | 76.4 | 336 |
| SSM-5-A250-H-361 | 2.6 | 4.46 | 82.0 | 361 |
| SSM-5-A250-H-387 | 2.8 | 4.6 | 87.8 | 387 |
| SSM-5-A250-H-414 | 3.0 | 7.79 | 94.0 | 414 |
| SSM-5-A250-H-443 | 3.2 | 5.05 | 100.7 | 443 |
| SSM-5-A250-H-475 | 3.4 | 5.41 | 108.0 | 475 |
| SSM-5-A250-H-511 | 3.6 | 5.92 | 116.0 | 511 |
| SSM-5-A250-H-550 | 3.8 | 6.65 | 125.0 | 550 |
| SSM-5-A250-H-594 | 4.0 | 7.69 | 135.0 | 594 |
Note: Min. Delta P Available at Selected Flow Rate.
See Website for Specifc Flow Rate Settings Calculator
| 6″ | 6″ Low Flow Rate Cartridge | |||
| Model Number | Pre-Set | Min. Delta P | Flow m3/h | Flow GPM |
| SSM-6-A250-L-113 | 0.6 | 3.05 | 25.6 | 113 |
| SSM-6-A250-L-143 | 0.8 | 3.05 | 32.6 | 143 |
| SSM-6-A250-L-173 | 1.0 | 3.05 | 39.2 | 173 |
| SSM-6-A250-L-201 | 1.2 | 3.05 | 45.6 | 201 |
| SSM-6-A250-L-228 | 1.4 | 3.05 | 51.8 | 228 |
| SSM-6-A250-L-255 | 1.6 | 3.05 | 58.0 | 255 |
| SSM-6-A250-L-282 | 1.8 | 3.05 | 64.1 | 282 |
| SSM-6-A250-L-310 | 2.0 | 3.19 | 70.4 | 310 |
| SSM-6-A250-L-338 | 2.2 | 3.39 | 76.8 | 338 |
| SSM-6-A250-L-367 | 2.4 | 3.61 | 83.4 | 367 |
| SSM-6-A250-L-398 | 2.6 | 3.86 | 90.3 | 398 |
| SSM-6-A250-L-429 | 2.8 | 4.11 | 97.5 | 429 |
| SSM-6-A250-L-462 | 3.0 | 4.35 | 105.0 | 462 |
| SSM-6-A250-L-497 | 3.2 | 4.58 | 112.9 | 497 |
| SSM-6-A250-L-533 | 3.4 | 4.77 | 121.1 | 533 |
| SSM-6-A250-L-571 | 3.6 | 4.93 | 129.7 | 571 |
| SSM-6-A250-L-610 | 3.8 | 5.03 | 138.7 | 610 |
| SSM-6-A250-L-652 | 4.0 | 5.08 | 148.0 | 652 |
| 6″ | 6″ High Flow Rate Cartridge | |||
| Model Number | Pre-Set | Min. Delta P | Flow m3/h | Flow GPM |
| SSM-6-A250-H-141 | 0.6 | 4.79 | 32.0 | 141 |
| SSM-6-A250-H-182 | 0.8 | 4.79 | 41.3 | 182 |
| SSM-6-A250-H-220 | 1.0 | 4.79 | 50.0 | 220 |
| SSM-6-A250-H-256 | 1.2 | 4.79 | 58.2 | 256 |
| SSM-6-A250-H-291 | 1.4 | 4.79 | 66.0 | 291 |
| SSM-6-A250-H-324 | 1.6 | 4.79 | 73.7 | 324 |
| SSM-6-A250-H-358 | 1.8 | 4.79 | 81.3 | 358 |
| SSM-6-A250-H-392 | 2.0 | 4.93 | 89.0 | 392 |
| SSM-6-A250-H-427 | 2.2 | 5.16 | 96.9 | 427 |
| SSM-6-A250-H-463 | 2.4 | 5.46 | 105.2 | 463 |
| SSM-6-A250-H-501 | 2.6 | 5.82 | 113.9 | 501 |
| SSM-6-A250-H-542 | 2.8 | 6.23 | 123.1 | 542 |
| SSM-6-A250-H-586 | 3.0 | 6.68 | 133.0 | 586 |
| SSM-6-A250-H-632 | 3.2 | 7.14 | 143.6 | 632 |
| SSM-6-A250-H-683 | 3.4 | 7.69 | 155.1 | 683 |
| SSM-6-A250-H-737 | 3.6 | 8.23 | 167.4 | 737 |
| SSM-6-A250-H-796 | 3.8 | 8.81 | 180.7 | 796 |
| SSM-6-A250-H-859 | 4.0 | 9.44 | 195.0 | 859 |
| 8″ | 8″ Low Flow Rate Cartridge | |||
| Model Number | Pre-Set | Min. Delta P | Flow m3/h | Flow GPM |
| SSM-8-A250-L-418 | 1 | 1.6 | 95.2 | 418 |
| SSM-8-A250-L-435 | 1.2 | 1.7 | 98.8 | 435 |
| SSM-8-A250-L-460 | 1.4 | 1.8 | 104.5 | 460 |
| SSM-8-A250-L-485 | 1.6 | 1.9 | 110.2 | 485 |
| SSM-8-A250-L-515 | 1.8 | 2.1 | 117.0 | 515 |
| SSM-8-A250-L-545 | 2 | 2.3 | 123.8 | 545 |
| SSM-8-A250-L-575 | 2.2 | 2.5 | 130.6 | 575 |
| SSM-8-A250-L-610 | 2.4 | 2.7 | 138.6 | 610 |
| SSM-8-A250-L-640 | 2.6 | 2.9 | 145.4 | 640 |
| SSM-8-A250-L-680 | 2.8 | 3.2 | 154.4 | 680 |
| SSM-8-A250-L-720 | 3 | 3.4 | 163.5 | 720 |
| SSM-8-A250-L-760 | 3.2 | 3.7 | 172.6 | 760 |
| SSM-8-A250-L-795 | 3.4 | 3.9 | 180.6 | 795 |
| SSM-8-A250-L-835 | 3.6 | 4.2 | 189.7 | 835 |
| SSM-8 -A250-L-875 | 3.8 | 4.4 | 198.7 | 875 |
| SSM-8-A250-L-925 | 4 | 4.6 | 209.9 | 925 |
| 8″ | 8″ High Flow Rate Cartridge | |||
| Model Number | Pre-Set | Min. Delta P | Flow m3/h | Flow GPM |
| SSM-8-A250-H-572 | 1 | 4.5 | 130.1 | 572 |
| SSM-8-A250-H-598 | 1.2 | 5 | 135.8 | 598 |
| SSM-8-A250-H-630 | 1.4 | 5 | 143.1 | 630 |
| SSM-8-A250-H-664 | 1.6 | 5 | 150.8 | 664 |
| SSM-8-A250-H-702 | 1.8 | 5 | 159.4 | 702 |
| SSM-8-A250-H-739 | 2 | 6 | 167.9 | 739 |
| SSM-8-A250-H-779 | 2.2 | 6 | 176.9 | 779 |
| SSM-8-A250-H-823 | 2.4 | 7 | 186.9 | 823 |
| SSM-8-A250-H-865 | 2.6 | 7 | 196.5 | 865 |
| SSM-8-A250-H-910 | 2.8 | 8 | 206.7 | 910 |
| SSM-8-A250-H-957 | 3 | 9 | 217.4 | 957 |
| SSM-8-A250-H-1008 | 3.2 | 9 | 228.9 | 1008 |
| SSM-8-A250-H-1058 | 3.4 | 10 | 240.3 | 1058 |
| SSM-8-A250-H-1109 | 3.6 | 10 | 251.9 | 1109 |
| SSM-8-A250-H-1164 | 3.8 | 11 | 264.4 | 1164 |
| SSM-8-A250-H-1233 | 4 | 11 | 279.8 | 1233 |
Note: Min. Delta P Available at Selected Flow Rate.
See Website for Specifc Flow Rate Settings Calculator
| 10″ | 10″ Low Flow Rate Cartridge | |||
| Model Number | Pre-Set | Min. Delta P | Flow m3/h | Flow GPM |
| SSM-10-A250-L-837 | 1 | 1.5 | 190.1 | 837 |
| SSM-10-A250-L-900 | 1.2 | 1.5 | 204.4 | 900 |
| SSM-10-A250-L-960 | 1.4 | 1.6 | 218.0 | 960 |
| SSM-10-A250-L-1020 | 1.6 | 1.7 | 231.7 | 1020 |
| SSM-10-A250-L-1075 | 1.8 | 1.9 | 244.2 | 1075 |
| SSM-10-A250-L-1135 | 2 | 2.1 | 257.8 | 1135 |
| SSM-10-A250-L-1195 | 2.2 | 2.4 | 271.4 | 1195 |
| SSM-10-A250-L-1255 | 2.4 | 2.6 | 285.0 | 1255 |
| SSM-10-A250-L-1325 | 2.6 | 2.9 | 300.9 | 1325 |
| SSM-10-A250-L-1400 | 2.8 | 3.3 | 318.0 | 1400 |
| SSM-10-A250-L-1480 | 3 | 3.6 | 336.1 | 1480 |
| SSM-10-A250-L-1570 | 3.2 | 3.9 | 356.6 | 1570 |
| SSM-10-A250-L-1680 | 3.4 | 3.4 | 381.6 | 1680 |
| SSM-10-A250-L-1795 | 3.6 | 4.5 | 407.7 | 1795 |
| SSM-10-A250-L-1930 | 3.8 | 4.8 | 438.4 | 1930 |
| SSM-10-A250-L-2091 | 4 | 5.1 | 474.9 | 2091 |
| 10″ | 10″ High Flow Rate Cartridge | |||
| Model Number | Pre-Set | Min. Delta P | Flow m3/h | Flow GPM |
| SSM-10-A250-H-1079 | 1 | 2.18 | 245.1 | 1079 |
| SSM-10-A250-H-1118 | 1.2 | 2.3 | 253.9 | 1118 |
| SSM-10-A250-H-1178 | 1.4 | 2.5 | 267.6 | 1178 |
| SSM-10-A250-H-1246 | 1.6 | 2.8 | 283.0 | 1246 |
| SSM-10-A250-H-1330 | 1.8 | 3.1 | 302.1 | 1330 |
| SSM-10-A250-H-1420 | 2 | 3.6 | 322.5 | 1420 |
| SSM-10-A250-H-1515 | 2.2 | 4.1 | 344.1 | 1515 |
| SSM-10-A250-H-1620 | 2.4 | 4.6 | 367.9 | 1620 |
| SSM-10-A250-H-1730 | 2.6 | 5.2 | 392.9 | 1730 |
| SSM-10-A250-H-1845 | 2.8 | 5.8 | 419.1 | 1845 |
| SSM-10-A250-H-1965 | 3 | 6.4 | 446.3 | 1965 |
| SSM-10-A250-H-2090 | 3.2 | 7.1 | 474.7 | 2090 |
| SSM-10-A250-H-2220 | 3.4 | 7.8 | 504.2 | 2220 |
| SSM-10-A250-H-2355 | 3.6 | 8.6 | 534.9 | 2355 |
| SSM-10-A250-H-2490 | 3.8 | 9.3 | 565.5 | 2490 |
| SSM-10-A250-H-2642 | 4 | 10.2 | 599.8 | 2642 |
| 12″ | 12″ Low Flow Rate Cartridge | |||
| Model Number | Pre-Set | Min. Delta P | Flow m3/h | Flow GPM |
| SSM-12-A250-L-837 | 1 | 1.5 | 190.1 | 837 |
| SSM-12-A250-L-895 | 1.2 | 1.5 | 203.3 | 895 |
| SSM-12-A250-L-955 | 1.4 | 1.6 | 216.9 | 955 |
| SSM-12-A250-L-1015 | 1.6 | 1.7 | 230.5 | 1015 |
| SSM-12-A250-L-1075 | 1.8 | 1.8 | 244.2 | 1075 |
| SSM-12-A250-L-1130 | 2 | 2.1 | 256.7 | 1130 |
| SSM-12-A250-L-1195 | 2.2 | 2.4 | 271.4 | 1195 |
| SSM-12-A250-L-1255 | 2.4 | 2.6 | 285.0 | 1255 |
| SSM-12-A250-L-1325 | 2.6 | 2.9 | 300.9 | 1325 |
| SSM-12-A250-L-1400 | 2.8 | 3.3 | 318.0 | 1400 |
| SSM-12-A250-L-1480 | 3 | 3.6 | 336.1 | 1480 |
| SSM-12-A250-L-1570 | 3.2 | 3.2 | 356.6 | 1570 |
| SSM-12-A250-L-1680 | 3.4 | 4.2 | 381.6 | 1680 |
| SSM-12-A250-L-1795 | 3.6 | 4.5 | 407.7 | 1795 |
| SSM-12-A250-L-1930 | 3.8 | 4.8 | 438.4 | 1930 |
| SSM-12-A250-L-2091 | 4 | 5.1 | 474.9 | 2091 |
| 12″ | 12″ High Flow Rate Cartridge | |||
| Model Number | Pre-Set | Min. Delta P | Flow m3/h | Flow GPM |
| SSM-12-A250-H-1079 | 1 | 2.2 | 245.1 | 1079 |
| SSM-12-A250-H-1118 | 1.2 | 2.3 | 253.9 | 1118 |
| SSM-12-A250-H-1178 | 1.4 | 2.5 | 267.6 | 1178 |
| SSM-12-A250-H-1248 | 1.6 | 2.8 | 283.5 | 1248 |
| SSM-12-A250-H-1330 | 1.8 | 3.1 | 302.1 | 1330 |
| SSM-12-A250-H-1418 | 2 | 3.6 | 322.1 | 1418 |
| SSM-12-A250-H-1515 | 2.2 | 4.1 | 344.1 | 1515 |
| SSM-12-A250-H-1618 | 2.4 | 4.6 | 367.5 | 1618 |
| SSM-12-A250-H-1730 | 2.6 | 5.2 | 392.9 | 1730 |
| SSM-12-A250-H-1847 | 2.8 | 5.8 | 419.5 | 1847 |
| SSM-12-A250-H-1969 | 3 | 6.5 | 447.2 | 1969 |
| SSM-12-A250-H-2090 | 3.2 | 7.1 | 474.7 | 2090 |
| SSM-12-A250-H-2225 | 3.4 | 7.9 | 505.4 | 2225 |
| SSM-12-A250-H-2350 | 3.6 | 8.6 | 533.7 | 2350 |
| SSM-12-A250-H-2490 | 3.8 | 9.3 | 565.5 | 2490 |
| SSM-12-A250-H-2642 | 4 | 10.2 | 599.8 | 2642 |
Note: Min. Delta P Available at Selected Flow Rate.
See Website for Specifc Flow Rate Settings Calculator
Simple Set Max – ANSI 125 Dimensions – 2-1/2″ – 12″
| Simple Set Max ANSI 125 Dimensions with GA(S) Actuators — 2-1/2″ – 12″ | |||||||||||||||
| ANSI 125 Model # | Connection | Flow Range | Please Reference the Illustration | ||||||||||||
| L | H | H1 | D | W | Weight | ||||||||||
| x = Flow in GPM | in. | mm | GPM | in. | mm | in. | mm | in. | mm | in. | mm | in. | mm | lbs | kg |
| SSM-250-A-L-x | 2.5 | 65 | 19 – 110 | 10.87 | 276 | 3.51 | 89 | 19.12 | 486 | 7.01 | 178 | 6.41 | 163 | 41 | 19 |
| SSM-250-A-H-x | 2.5 | 65 | 26 – 154 | 10.87 | 276 | 3.51 | 89 | 19.12 | 486 | 7.01 | 178 | 6.41 | 163 | 41 | 19 |
| SSM-3-A-L-x | 3.0 | 80 | 26 – 150 | 11.73 | 298 | 3.75 | 95 | 19.98 | 507 | 7.52 | 191 | 7.96 | 202 | 61 | 28 |
| SSM-3-A-H-x | 3.0 | 80 | 31 – 189 | 11.73 | 298 | 3.75 | 95 | 19.98 | 507 | 7.52 | 191 | 7.96 | 202 | 61 | 28 |
| SSM-4-A-L-x | 4.0 | 100 | 53 – 299 | 13.86 | 352 | 4.51 | 115 | 24.52 | 623 | 9.02 | 229 | 10.53 | 267 | 123 | 56 |
| SSM-4-A-H-x | 4.0 | 100 | 65 – 396 | 13.86 | 352 | 4.51 | 115 | 24.52 | 623 | 9.02 | 229 | 10.53 | 267 | 123 | 56 |
| SSM-5-A-L-x | 5.0 | 125 | 81 – 484 | 15.75 | 400 | 5.00 | 127 | 25.58 | 650 | 10.00 | 254 | 11.90 | 302 | 171 | 78 |
| SSM-5-A-H-x | 5.0 | 125 | 101 – 594 | 15.75 | 400 | 5.00 | 127 | 25.58 | 650 | 10.00 | 254 | 11.90 | 302 | 171 | 78 |
| SSM-6-A-L-x | 6.0 | 150 | 113 – 652 | 17.76 | 451 | 5.49 | 139 | 27.26 | 692 | 10.98 | 279 | 14.00 | 356 | 241 | 109 |
| SSM-6-A-H-x | 6.0 | 150 | 141 – 859 | 17.76 | 451 | 5.49 | 139 | 27.26 | 692 | 10.98 | 279 | 14.00 | 356 | 241 | 109 |
| SSM-8-A-L-x | 8.0 | 200 | 419 – 925 | 23.62 | 600 | 7.48 | 190 | 27.38 | 695 | 14.96 | 380 | 18.58 | 472 | 386 | 175 |
| SSM-8-A-H-x | 8.0 | 200 | 572 – 1233 | 23.62 | 600 | 7.48 | 190 | 27.38 | 695 | 14.96 | 380 | 18.58 | 472 | 386 | 175 |
| SSM-10-A-L-x | 10.0 | 250 | 837 – 2091 | 28.74 | 730 | 8.74 | 222 | 33.44 | 849 | 17.48 | 444 | 21.69 | 551 | 677 | 307 |
| SSM-10-A-H-x | 10.0 | 250 | 1079 – 2642 | 28.74 | 730 | 8.74 | 222 | 33.44 | 849 | 17.48 | 444 | 21.69 | 551 | 677 | 307 |
| SSM-12-A-L-x | 12.0 | 300 | 837 – 2091 | 33.46 | 850 | 10.24 | 260 | 33.44 | 849 | 20.47 | 520 | 28.39 | 721 | 1036 | 470 |
| SSM-12-A-H-x | 12.0 | 300 | 1079 – 2642 | 33.46 | 850 | 10.24 | 260 | 33.44 | 849 | 20.47 | 520 | 28.39 | 721 | 1036 | 470 |
GA Series (Non-Spring Return) Actuators only Weights shown are for valve/actuator assemblies Add 3.2 lbs. (1.5 kg) for spring return GA(S) actuator
Simple Set Max – ANSI 250 Dimensions – 2-1/2″ – 12″
| Simple Set Max Dimensions — 2-1/2″ – 12″ — ANSI 250 with GA(S) Series Actuators | ||||||||||||||||
| ANSI 250 Model Number | Valve Size | Flow Range | Please Reference the Illustration | |||||||||||||
| L | W | H | H1 | D | Weight | |||||||||||
| x = Flow in GPM | in. | mm | GPM | in. | mm | in. | mm | in. | mm | in. | mm | in. | mm | lb. | kg. | |
| SSM-250-A250-L-x | 2.5 | 65 | 19 | – 110 | 11.50 | 292 | 7.50 | 191 | 3 .70 | 95 | 19.20 | 487 | 7.50 | 189 | 6 4 .0 | 29 |
| SSM-250-A250-H-x | 2.5 | 65 | 26 | – 154 | 11.50 | 292 | 7.50 | 191 | 3.70 | 95 | 19.20 | 487 | 7.50 | 189 | 64.0 | 29 |
| SSM-3-A250-L-x | 3 | 80 | 26 | – 150 | 12.50 | 318 | 8.30 | 212 | 4 .10 | 104 | 20 .0 0 | 509 | 8.20 | 209 | 88.2 | 40 |
| SSM-3-A250-H-x | 3 | 80 | 31 – 189 | 12.50 | 318 | 8.30 | 212 | 4.10 | 104 | 20.0 0 | 509 | 8.20 | 209 | 88.2 | 40 | |
| SSM-4-A250-L-x | 4 | 100 | 53 – 299 | 14.50 | 368 | 10.80 | 274 | 5.0 0 | 127 | 25.30 | 643 | 10.00 | 253 | 167.6 | 76 | |
| SSM-4-A250-H-x | 4 | 100 | 65 – 396 | 14.50 | 368 | 10.80 | 274 | 5.00 | 127 | 25.30 | 643 | 10.00 | 253 | 167.6 | 76 | |
| SSM-5-A250-L-x | 5 | 125 | 81 – 484 | 16.60 | 422 | 12.30 | 312 | 5.50 | 139 | 26 .30 | 668 | 10.90 | 277 | 231.5 | 105 | |
| SSM-5-A250-H-x | 5 | 125 | 101 – 594 | 16.60 | 422 | 12.30 | 312 | 5.50 | 139 | 26.30 | 668 | 10.90 | 277 | 231.5 | 105 | |
| SSM-6-A250-L-x | 6 | 150 | 113 – 652 | 18 .6 0 | 473 | 14.40 | 365 | 6.30 | 159 | 28.10 | 713 | 12.50 | 317 | 319.7 | 145 | |
| SSM-6-A250-H-x | 6 | 150 | 141 – 859 | 18.60 | 473 | 14.40 | 365 | 6.30 | 159 | 28.10 | 713 | 12.50 | 317 | 319.7 | 145 | |
| SSM-8 -A250 -L-x | 8 | 200 | 419 – 925 | 23.60 | 600 | 18.6 0 | 472 | 7.50 | 190 | 28.20 | 715 | 15.00 | 380 | 392.4 | 178 | |
| SSM-8-A250-H-x | 8 | 200 | 572 – 1233 | 23.60 | 600 | 18.60 | 472 | 7.50 | 190 | 28.20 | 715 | 15.0 0 | 380 | 392.4 | 178 | |
| SSM-10-A250-L-x | 10 | 250 | 8 37 – 20 91 | 28 .80 | 730 | 21.70 | 551 | 8.70 | 222 | 34.20 | 870 | 17.5 0 | 444 | 685.6 | 311 | |
| SSM-10-A250-H-x | 10 | 250 | 10 79 – 264 2 | 28 .80 | 730 | 21.70 | 551 | 8.70 | 222 | 34.20 | 870 | 17.50 | 444 | 685.6 | 311 | |
| SSM-12-A250-L-x | 12 | 30 0 | 837 – 2091 | 33.50 | 850 | 28.40 | 721 | 10.20 | 260 | 34.20 | 869 | 20 .50 | 520 | 1047.2 | 475 | |
| SSM-12-A250-H-x | 12 | 300 | 1079 – 2642 | 33.50 | 850 | 28.40 | 721 | 10.20 | 260 | 34.20 | 869 | 20.50 | 520 | 1047.2 | 475 | |
GA Series (Non-Spring Return) Actuators only Weights shown are for valve/actuator assemblies
Add 3.2 lbs. (1.5 kg) for spring return GA(S) actuator
CUSTOMER SERVICES
Bray Commercial Division
13788 West Road, Suite 200A
Houston, Texas 77041
[email protected]
Phone: 1-888-412-2729
www.braycommercialdivision.com
Home - Bray Commercial Division
