ELRO FS4610 Ultra Thin Smoke Detector With 10 Year Battery

INTENDED USE: FIRE SAFETY

ESSENTIAL CHARACTERISTICS: PASSED
Response delay (response me) and Performance under ﬁre conditions Tolerance to supply voltage reliability and response delay, temperature resistance, vibration on resistance, humidity resistance, corrosion resistance, electrical stability

OVERVIEW

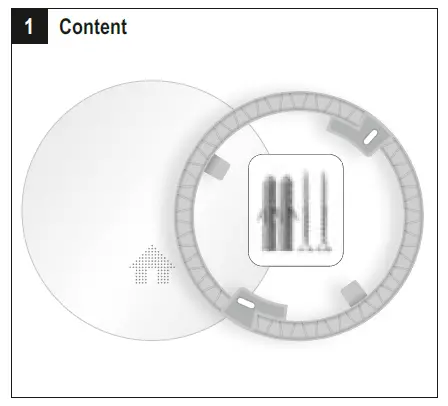

CONTENT

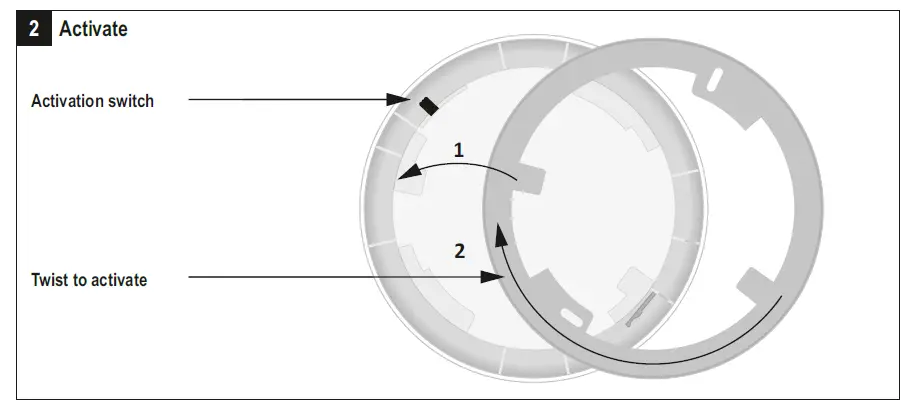

ACTIVATE

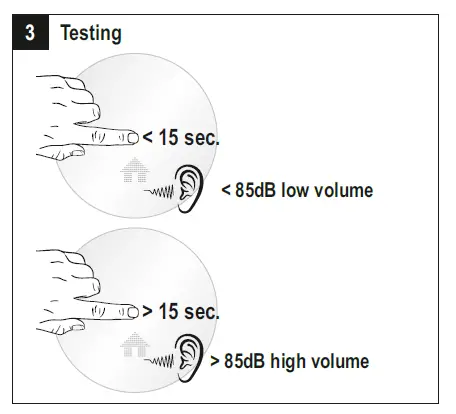

TESTING

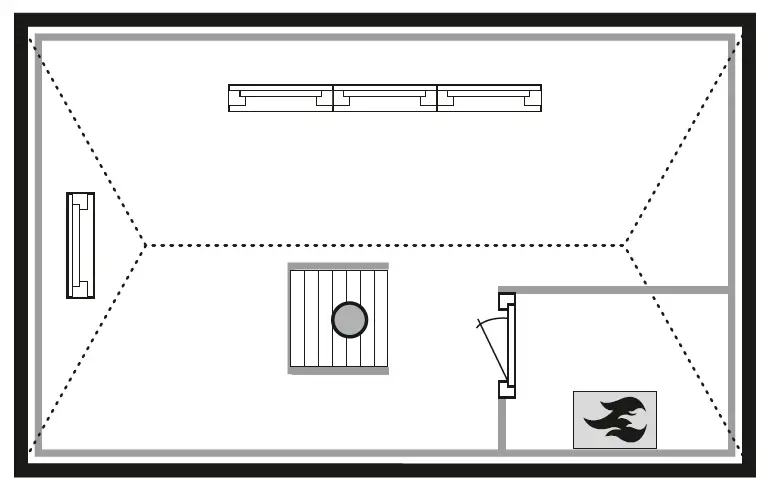

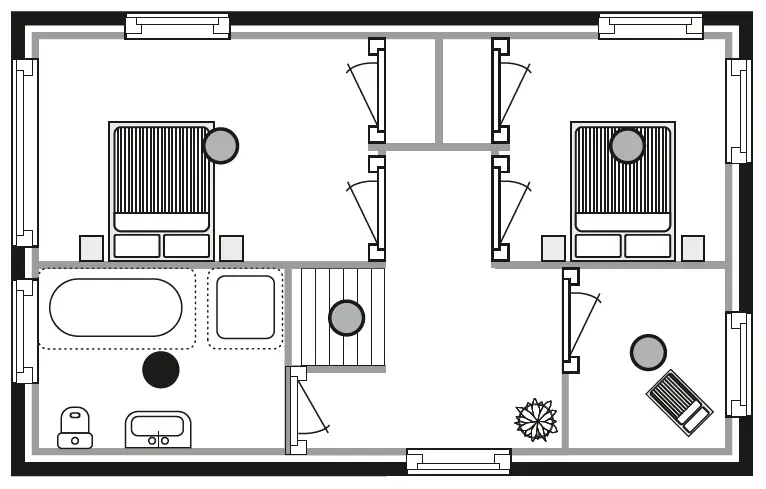

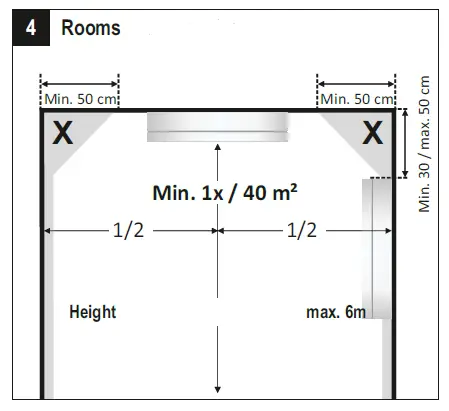

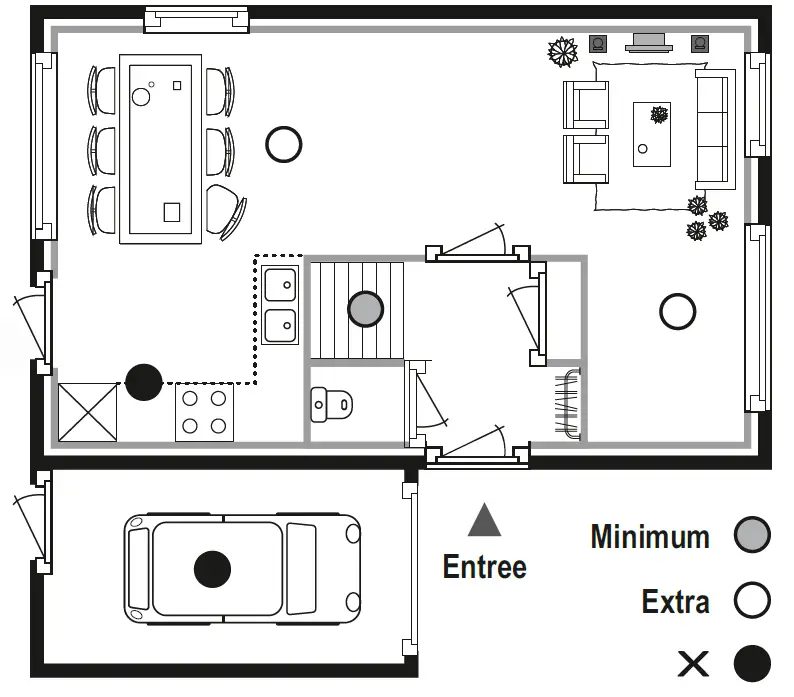

ROOMS

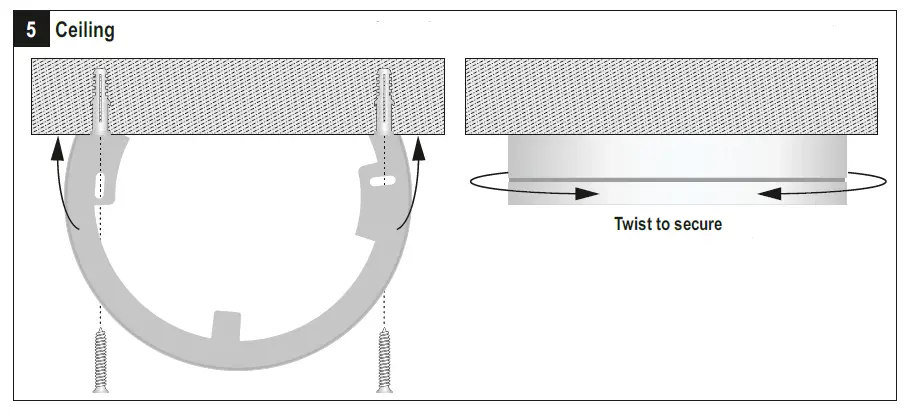

CEILING

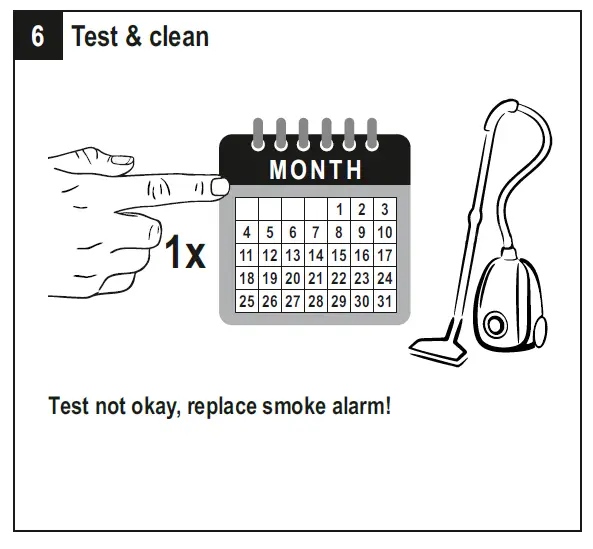

TEST &CLEAN

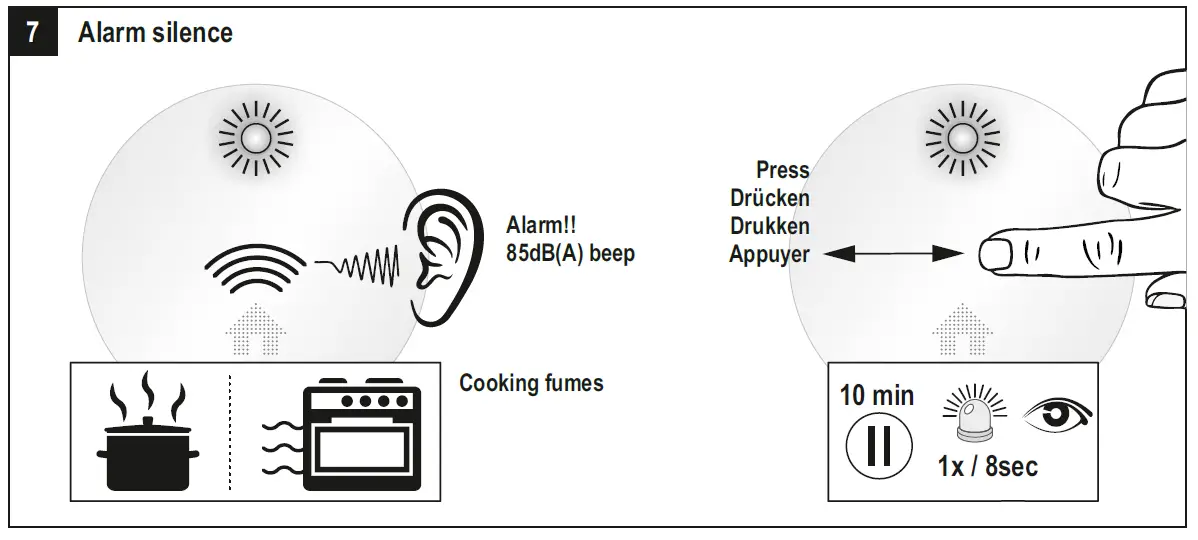

ALARM SILENCE

This smoke alarm is equipped with a self-test mechanism. At least once a month at a random moment, the device automatically checks the functionality of the sensor and the siren. During a successful test, the detector will beep and blink brieﬂy. If problems are detected, the detector switches to error mode. Replace the device immediately if the error message occurs.

Operating mode	Visual signal (ﬂash)	Acoustic signal (beep)	Description mode
Normal	1 x per 40 second	None	Device is functioning properly
Self test	1 x	1 x	Device functions correctly
Manual test	3 x	3 x	Device functions correctly
Alarm	1 x per second (3 x) / pause of 1,5 seconds	1 x per seconds (3 x) / pause of 1,5 seconds	Device is detecting smoke
Alarm silence	1 x per 8 seconds	None	The smoke alarm signal is muted
Low ba ery warning	1 x per 40 seconds	1 x per 40 seconds	The baTTERy is running low
Low ba ery warning silence	None	None	The low battery warning is muted
Sensor fault warning	1 x per 40 seconds	1 x per 40 seconds	The sensor is not functioning properly
Buzzer fault warning	2 x per 40 seconds	None	The buzzer is not functioning properly

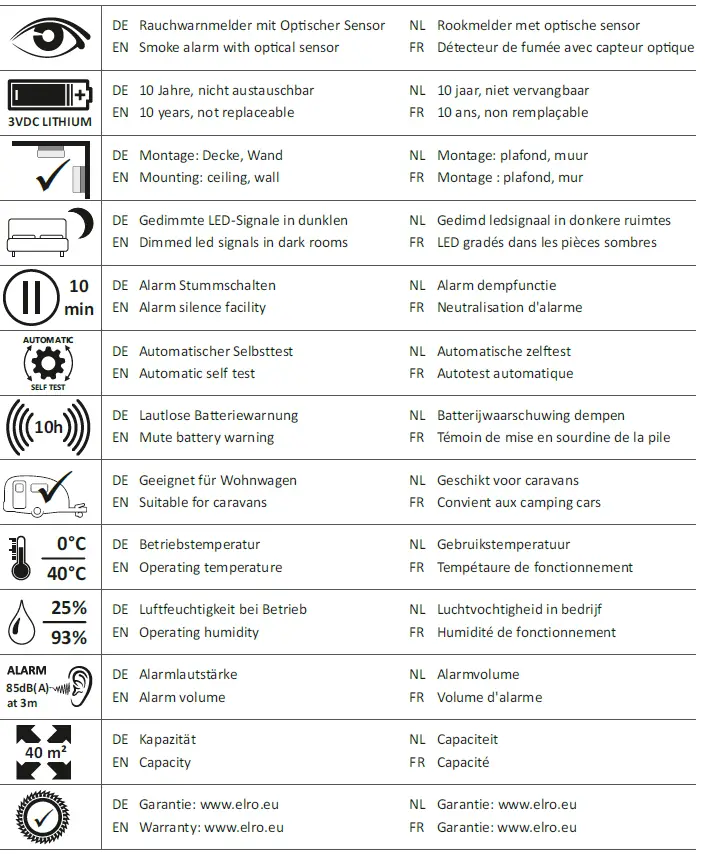

Symbols

Recycling and disposal: The WEEE symbol means that this product and batteries must be disposed of separately from other household waste. When it reaches its end of life, take it to a designated waste collection on point in your area to guarantee safe disposal or recycling. Protect the environment human health and natural resources!
Read the manual before use and store it in a safe place for future use and maintenance. Download Declara on of Performance (DoP) at www.elro.eu

Warnings:

To prevent injury, this apparatus must be securely attached to the ceiling in accordance with the installed on instructions.
Batteries shall not be exposed to excessive heat such as sunshine and ﬁre.
Batteries life me shortens without monthly test.
Keep away from air conditoning/ven la on.
Do not paint or cover the device.
Consult local regulations.
Troubleshoot: False alarm is often caused by dust or steam. In case of doubt: Leave the building and take ac on! Additional mounting instructions:
Corridor max width 3m: Max 15m between 2 alarms. Max. 7,5m to front side and alarms at edges/crossings of corridors.
Galleries: Length and width >2m and >16m², additional alarms below gallery. Par al roof slopes: Flat ceiling ≤1m wide, consider as the roof slope. Flat ceiling >1m wide, consider as ﬂat ceiling.
