Instruc

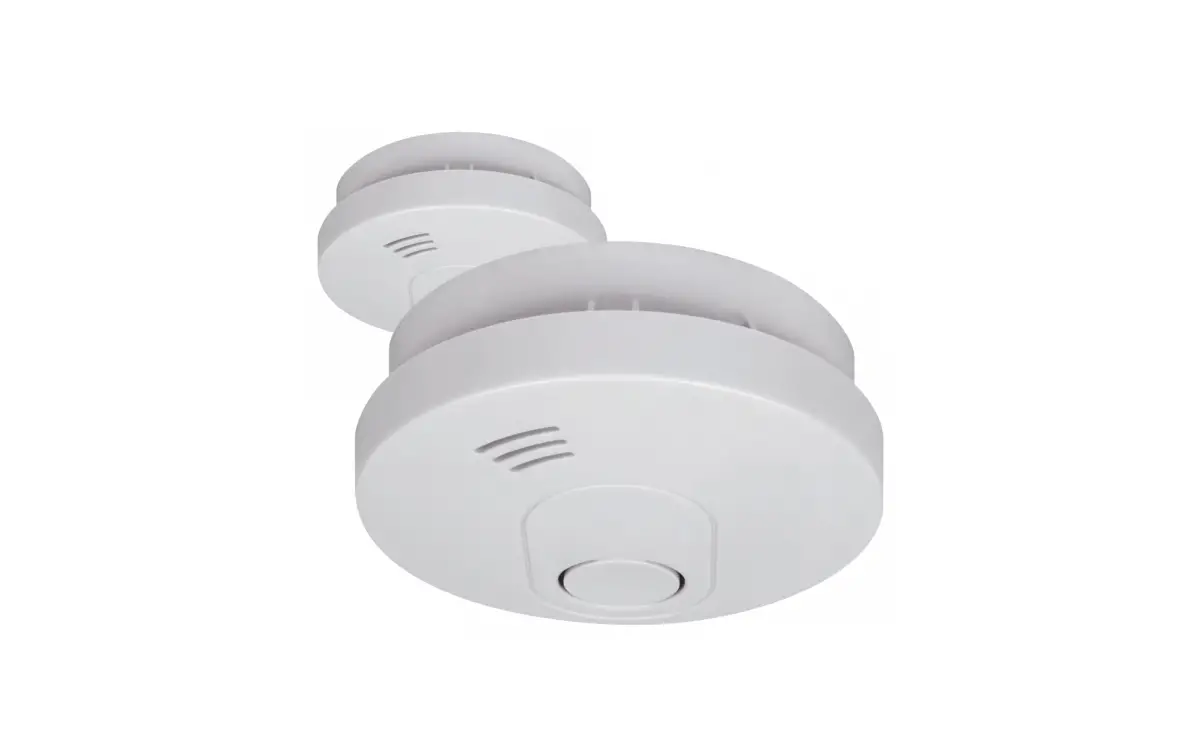

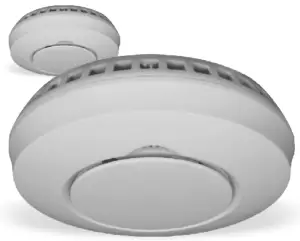

Smoke alarm
Heat defenseless connected
Frequency: 868MHz.
EU – QUALITY
FZ5002R
Home is not a place, it’s a feeling
INTENDED USE: FIRE SAFETY
ESSENTIAL CHARACTERISTICS: PASSED
Nominal aca, Response delay (response and Performance under fire condiaeliability – Tolerance to supply voltage – Durability of operaeliability and response delay, temperature
resistance, vibraesistance, humidity resistance, corrosion resistance, electrical stability.
2 years, replaceable (included)Operating temperature
Operating temperature
Operating humidity
Optical sensor
Alarm volume
Pause/Hush function
Capacity
1= Niedriger Batterie-Alarm
2= Alarm Stummschalten
Mounting type ceiling
Guarantee www.euro.eu
– Symbols: Recycling and disposal: The WEEE symbol (a) means that this product and batteries must be disposed of separately from other household waste. When it reaches its end of life, take it to a designated waste collection point in your area to guarantee safe disposal or recycling. Protect the environment, human health, and natural resources! Read the manual (b) before use and store it in a safe place for future use and maintenance. Download (c) Declaration of Performance (DoP). Hereby, ELRO Europe declares that the radio equipment type FZ5002R is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www. euro.EU compliance Warnings: To prevent injury, this apparatus must be securely attached to the ceiling in accordance with the installation instructions. Batteries shall not be exposed to excessive heat such as sunshine and fire. Battery lifetime shortens without monthly test. Keep away from air conditioning/ventilation. Do not paint or cover the alarm. Consult local regulations. Troubleshooting: False alarm is often caused by dust or steam. In case of doubt: Leave the building and take action! Additional mounting instructions: Corridor max width 3m: Max 15m between 2 alarms. Max. 7,5m to front side and alarms at edges/crossings of corridors. Galleries: Length and width >2m and >16m², additional alarms below gallery. Partial roof slopes: Flat ceiling ≤1m wide, consider as the roof slope. Flat ceiling >1m wide, consider as flat ceiling.

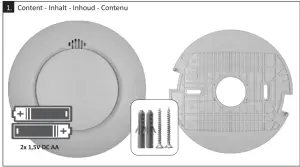

1. Content

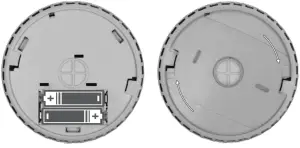

2. Activate

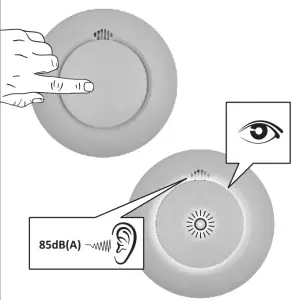

3. Testing
4. Connect

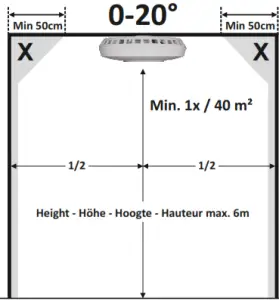

Rooms

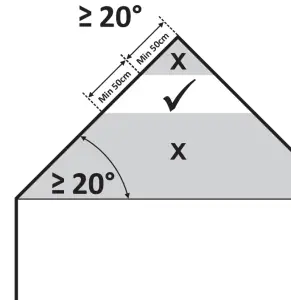

Roof

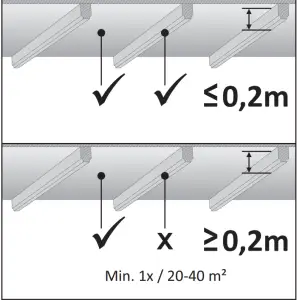

Beams

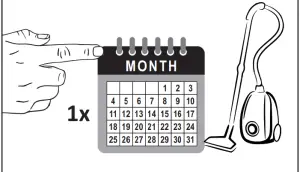

6. Test & clean
Test not okay, replace the alarm

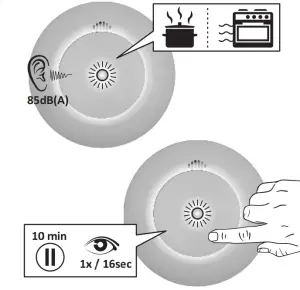

7. Hush

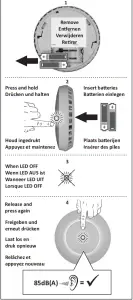

Clear code
Low battery alert? Replace bakery and test! (see 2 and 3). Mute warning for 10 hours: press the test button.
0905
DoP: FZ5002R-01
20 FZ5002R
Fire Safety14604:2005 + AC:2008
Manufacturer
Sitwell Electronics CO., Limited
No.666 Qingfeng Road, Jiangbei District,
Ningbo, Zhejiang Province, China 315034
Importer:
ELRO Europe | www.elro.eu
Postbus 9607 – Box E800
1006 GC Amsterdam The Netherlands
