Instruc

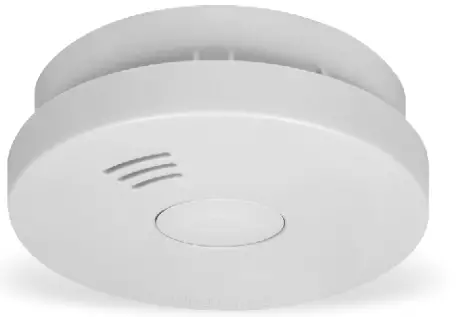

SMOKE ALARM
0786 DoP: FS9010-01
18 FS9010 EN 14604:2005 + AC:2008 Fire Safety
Document nr.: FS9010_MN | Revision nr. : V8 Revision date: 05-07-2021
- Firstly – Zuerst – Als Eerste – Premier Follow instruct ensure proper install tented use: Fire detect warning for household or similar resident applicable regular be consulted.
INTENDED USE: FIRE SAFETY
ESSENTIAL CHARACTERISTICS: PASSED
Nominal candy, Response delay (response performance under fire condiaeliability – Tolerance to supply voltage – Durability of operaeliability and response delay, temperature resistance, Vibra resistance, humidity resistance, corrosion resistance, electrical stability

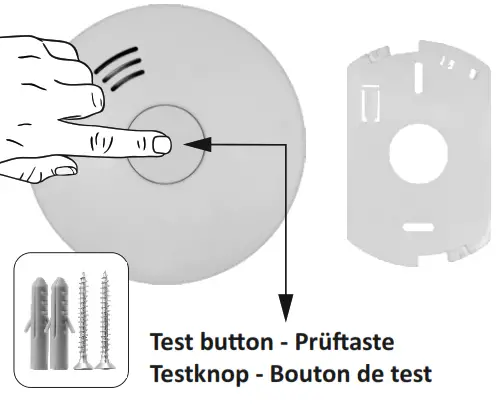

- Content

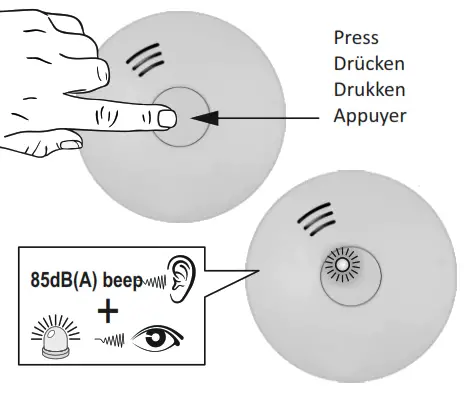

Activate before use! Press and hold test button until up, then release immediately. - Testing

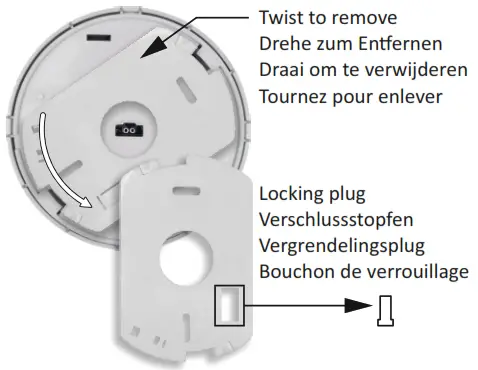

- Mounting plate

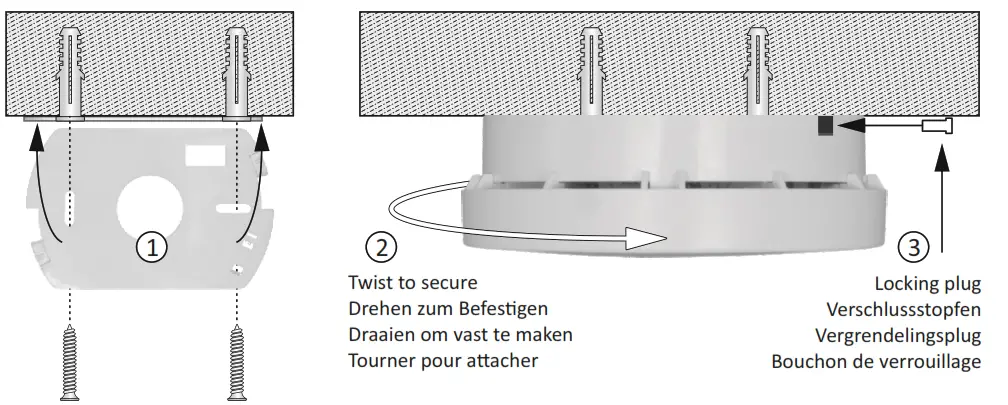

- Ceiling mounting

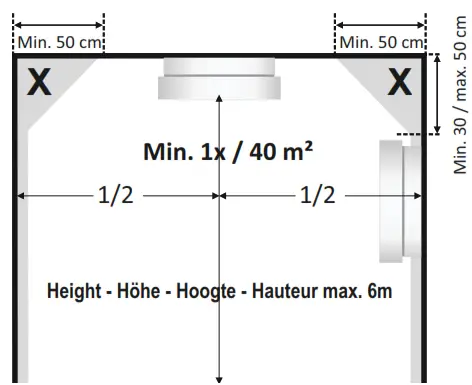

- Rooms

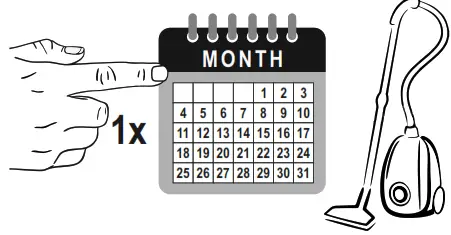

- est & clean

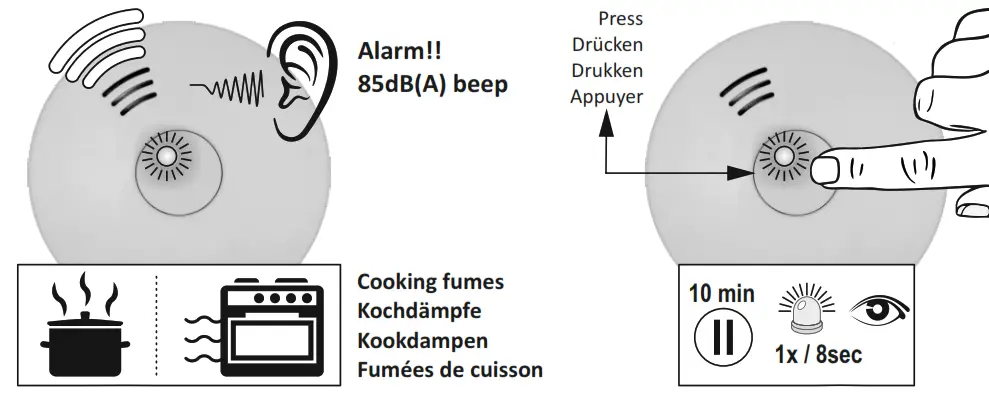

- Alarm silence

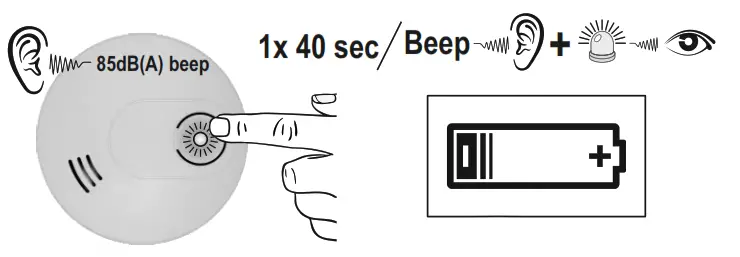

- Low battery
Activate before use! Press and hold test button until up, then release immediately.
Low baery warning silence: Press Stummschaltung Baeriewarnung : Drücken Lege- aerijwaarschuwing dempen: Drukken Avert de baerie faible silence: Appuyer
Low battery alert?
Replace Smoke alarm device!
 | 10 years, not replaceable |
 | Operating temperature |
 | Operating humidity |
 | Optical sensor |
 | Alarm volume |
 | Pause/Hush function |
| Capacity |
 | Leisure accommodation vehicle |
 | DE 1 = Niedriger Batterie-Alarm DE 2 = Alarm Stummschalten |
 | NL 1 = Lege batterij alarm NL 2=Alarm dempfunctie |
 | Mounting: ceiling, wall |
 | Guarantee www.elro.eu |
Overview LED & acoustic signaling
| EN Operating mode | LED signal (flash) | Acoustic signal (beep) | Description mode |
| Normal | 1 x per 40 seconds | None | Device is functioning properly |
| Test | 1 x per second (3 x), pause of 1,5 seconds | 1 x per seconds (3 x), pause of 1,5 seconds | Device is being tested |
| Alarm | 1 x per second (3 x), pause of 1,5 seconds | 1 x per seconds (3 x), pause of 1,5 seconds | Device has detected smoke |
| Alarm silence | 1 x per 8 seconds | None | Alarm signal is muted |
| Low battery | 1 x per 40 seconds(simultaneously with a beep) | 1 x per 40 seconds (simultaneously with flash) | Battery is running low |
| Low battery warning silence | None | None | Low battery warning is muted |
| Fault warning | 1 x per 40 seconds(alternating with a beep)” | 1 x per 40 seconds (alternating with flash)” | Device is not functioning properly |
Symbols:
Recycling and disposal: The WEEE symbol means that this product and batteries must be disposed of separately from other household waste. When it reaches its end of life, take it to a designated waste ollecpoint in your area to guarantee safe disposal or recycling. Protect the environment, human health, and natural resources! Read the manual before use and store it in a safe place for future use and maintenance. Download Declaration Performance (DoP) at www. euro. EU
Warnings:
- To prevent injury, this apparatus must be securely attached to the ceiling in accordance with the nstallainstruc
- Baeries shall not be exposed to excessive heat such as sunshine and fire.
- Baery lifeshortens without monthly test.
- Keep away from air Condi/ven
- Do not paint or cover device.
- Consult local regula
Troubleshooting False alarm is one caused by dust or steam. In case of doubt: Leave the building and take acAddimouninstrucCorridor max width 3m: Max 15m between 2 alarms. Max. 7,5m to front side and alarms at edges/crossings of corridors. Galleries: Length and width >2m and >16m², ddialarms below gallery. Parrot slopes: Flat ceiling ≤1m wide, consider as roof slope. Flat ceiling >1m wide, consider as flat ceiling.
