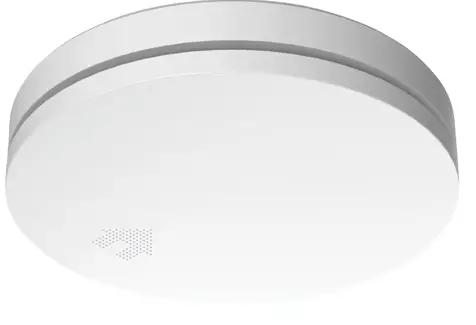

ELRO FS4610 Smoke Alarm
INTENDED USE: FIRE SAFETY
ESSENTIAL CHARACTERISTICS: PASSED
OVERVIEW
Information
- FS4610 19
- FS4610 DoP 001
- 1116 Fire Safety
- EN 14604:2005 + AC:2008
Manufacturer:
Siterwell Electronics CO., Limited No.666 Qingfeng Road, Jiangbei District, Ningbo, Zhejiang Province, China 315034
Importer
ELRO Europe
www.elro.eu
Postbus 9607 – Box E800
1006 GC Amsterdam The Netherlands

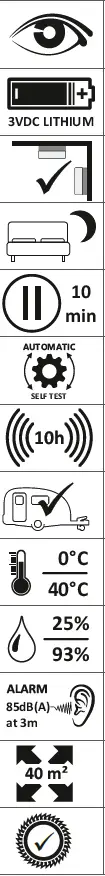

SYMBOLS
- Smoke alarm with op
- 10 years, not replaceable.
- Mounting: ceiling, wall
- Dimmed led signals in dark rooms
- Alarm silence facility
- Automatic self test
- Mute battery warning
- Suitable for caravans
- Operating temperature
- Operating humidity
- Alarm volume
- Capacity
- Warranty: www.elro.eu
This smoke alarm is equipped with a self-test mechanism. At least once a month at a random moment, the device automatic sensor and the siren. During a successful test, the detector will beep and blink briefly. If problems are detected, the detector switches to error mode. Replace the device immediately if the error message occurs!

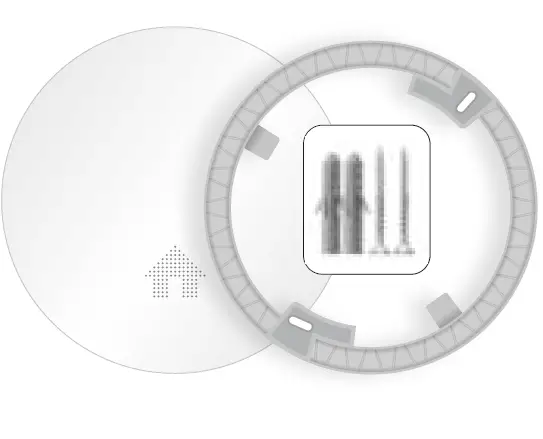

Content

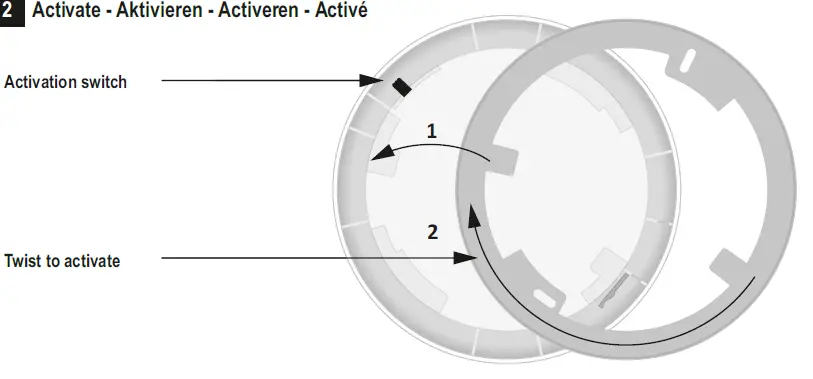

Activate

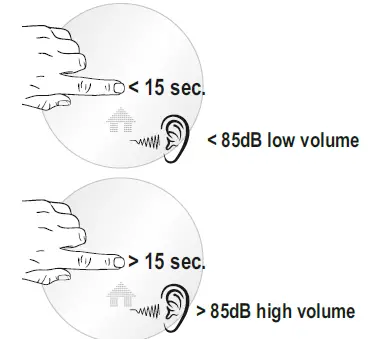

Testing

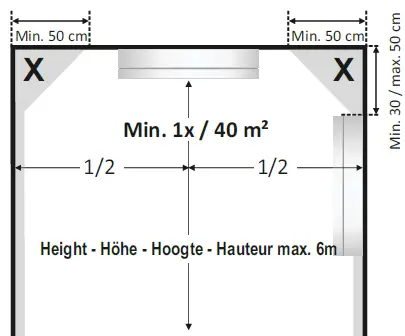

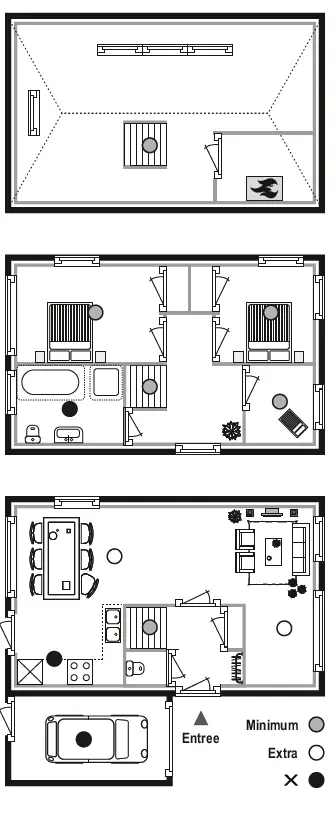

Rooms
Ceiling/Wall mounting

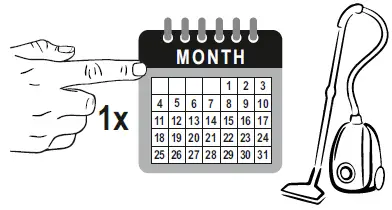

Test & clean
Test not okay, replace smoke alarm

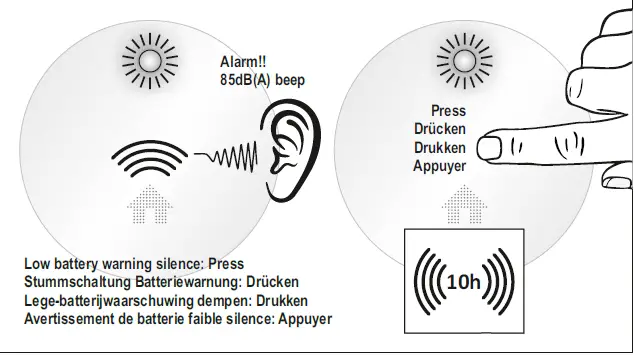

Alarm silence
Low battery
Overview LED & acoustic signalling
| Operating mode | Visual signal (flash) | Acoustic signal (beep) | Description mode |
| Normal | 1 x per 40 second | None | Device is func oning properly |
| Self test | 1 x | 1 x | Device func ons correctly |
| Manual test | 3 x | 3 x | Device func ons correctly |
| Alarm | 1 x per second (3 x) / pause of 1,5 seconds | 1 x per seconds (3 x) / pause of 1,5 seconds | Device is detec ng smoke |
| Alarm silence | 1 x per 8 seconds | None | Smoke alarm signal is muted |
| Low ba ery warning | 1 x per 40 seconds | 1 x per 40 seconds | Ba ery is running low |
| Low ba ery warning silence | None | None | Low ba ery warning is muted |
| Sensor fault warning | 1 x per 40 seconds | 1 x per 40 seconds | Sensor is not func oning properly |
| Buzzer fault warning | 2 x per 40 seconds | None | Buzzer is not func oning properly |
Symbols
- Recycling and disposal: The WEEE symbol means that this product and batteries must be disposed separately from other household waste.
- When it reaches its end of life, take it to a designated waste collec on point in your area to guarantee a safe disposal or recycling. Protect the environment, human health and natural resources!
- Read the manual before use and store it in a safe place for future use and maintenance. Download Declara on of Performance (DoP) at www.elro.eu.
