Document nr.: FS801011_Manual
Revision: V2
SMOKE ALARM
Compact design
FS8010
Home is not a place, it’s a feeling

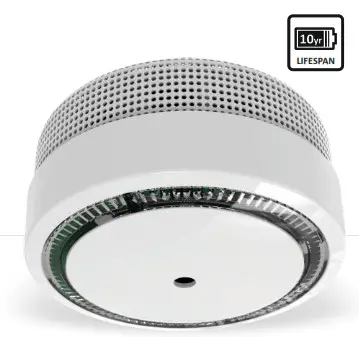

FS8010 Smoke Alarm
Firstly – Zuerst – Als eerste – Premie
Follow instruco ensure proper installatended use: Fire detece warning for household or similar residen applicaal regula be consulted.
INTENDED USE: FIRE SAFETY ESSENTIAL CHARACTERISTICS: PASSED
Nominal acaondi, Response delay (response erformance under fire condiaeliability – Tolerance to supply voltage – Durability of operaeliability and response delay, temperature resistance, vibra resistance, humidity resistance, corrosion resistance, electrical stability
 | 10 year, not replaceable |
 | Operating temperature |
 | Operating humidity |
 | Optical sensor |
 | Alarm volume |
 | Capacity |
 | Alarm silence facility |
 | Suitable for recreational vehicle |
 | Visit www.elro.eu |
 | Mounting type: ceiling |
 | Low battery alert |
Manufacturer:
Siterwell Electronics CO., Limited
No.666 Qingfeng Road, Jiangbei District,
Ningbo, Zhejiang Province, China 315034
Importer
ELRO Europe | www.elro.eu
Postbus 9607 – Box E800
1006 GC Amsterdam The Netherlands

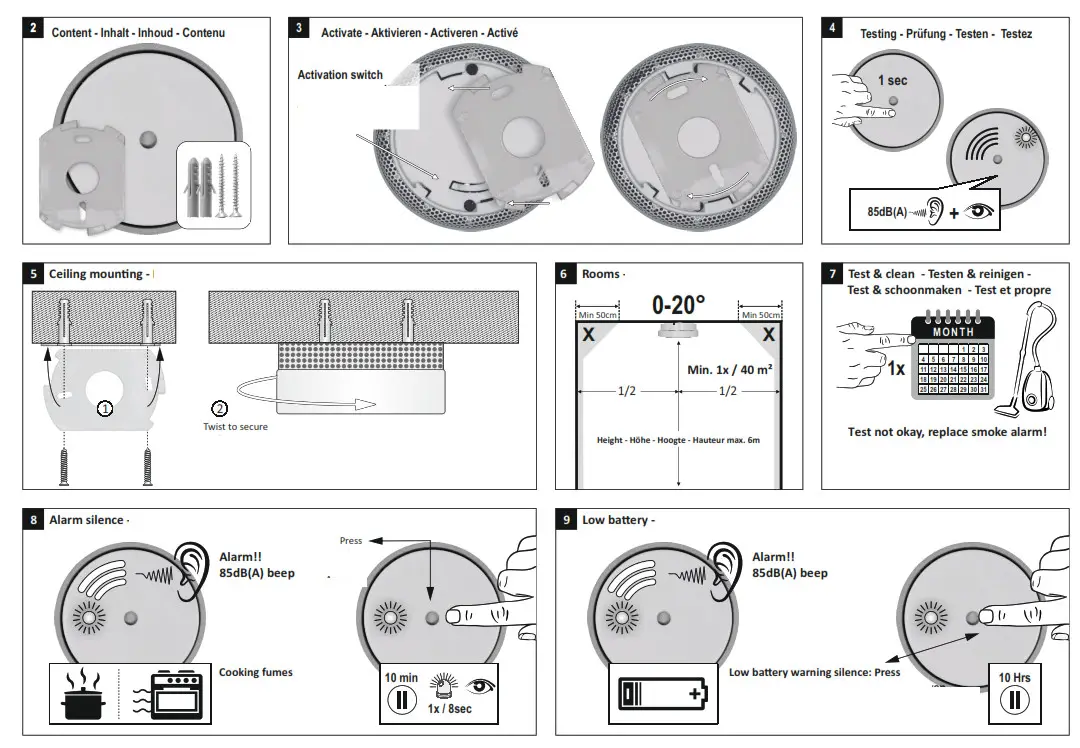

Overview LED & acoustic signalling
| Operating mode | LED signal (flash) | Acoustic signal (beep) | Description mode |
| Normal | 1 x per 40 seconds | None | Device is functioning properly |
| Test | 1 x per second (3 x), pause of 1,5 seconds | 1 x per seconds (3 x), pause of 1,5 seconds | Device is being tested |
| Alarm | 1 x per second (3 x), pause of 1,5 seconds | 1 x per seconds (3 x), pause of 1,5 seconds | Device has detected smoke |
| Alarm silence | 1 x per 8 seconds | None | Alarm signal is muted |
| Low battery | 1 x per 40 seconds(simultaneously with beep) | 1 x per 40 seconds (simultaneously with flash) | Battery is running low |
| Low battery warning silence | 1 x per 40 seconds | None | Low battery warning is muted |
| Fault warning | 1 x per 40 seconds(alternating with beep)” | 1 x per 40 seconds (alternating with flash)” | Device is not functioning properly |
Symbols:
Recycling and disposal: The WEEE symbol means that this product and baeries must be disposed separately from other household waste. When it reaches its end of life, take it to a designated waste collecpoint in your area to guarantee a safe disposal or recycling. Protect the environment, human health and natural resources!
Read the manual before use and store it in a safe place for future use and maintenance.
Download Declaraof Performance (DoP) at www.elro.eu.
Download Warnings:
- To prevent injury, this apparatus must be securely aached to the ceiling in accordance with the installainstruc
- Baeries shall not be exposed to excessive heat such as sunshine and fire.
- Baery lifeshortens without monthly test.
- Keep away from air condi/ven
- Do not paint or cover device.
- Consult local regula

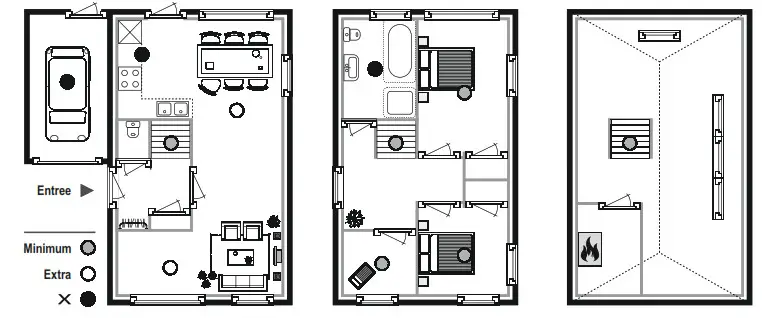

Troubleshoo False alarm is oen caused by dust or steam. In case of doubt: Leave the building and take acAddimouninstrucCorridor max width 3m: Max 15m between 2 alarms. Max. 7,5m to front side and alarms at edges/crossings of corridors. Galleries: Length and width >2m and >16m², addialarms below gallery. Parroof slopes: Flat ceiling ≤1m wide, consider as roof slope. Flat ceiling >1m wide, consider as flat ceiling.
0333
DoP: FS8010-01 18 FS8010
EN 14604:2005 + AC:2008 Fire Safety
