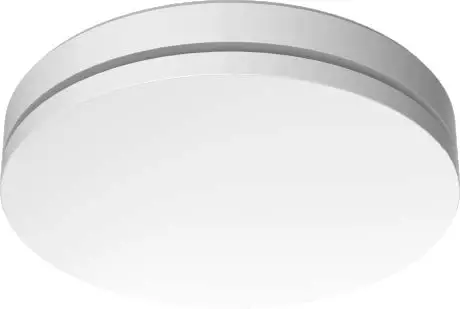

ELRO FS4610 Ultra Thin Smoke Detector With a 10-Year Battery
INTENDED USE: FIRE SAFETY
ESSENTIAL CHARACTERISTICS: PASSED
Nominal activation conditions/ Sensitivity, Response delay (response me) and Performance under fire condition – Operational reliability – Tolerance to supply voltage – Durability of operational reliability and response delay, temperature resistance, vibraration resistance, humidity resistance, corrosion resistance, electrical stability
This smoke alarm is equipped with a self-test mechanism. At least once a month at a random moment, the device automatically checks the functionality of the sensor and the siren. During a successful test, the detector will beep and blink briefly. If problems are detected, the detector switches to error mode. Replace the device immediately if the error message occurs!
Overview LED & acous c signalling
| Operating mode | Visual signal (flash) | Acoustic signal (beep) | Description mode |
| Normal | 1 x per 40 second | None | Device is functioning properly |
| Self test | 1 x | 1 x | Device functions correctly |
| Manual test | 3 x | 3 x | Device functions correctly |
| Alarm | 1 x per second (3 x) / pause of 1,5 seconds | 1 x per seconds (3 x) / pause of 1,5 seconds | Device is detecting smoke |

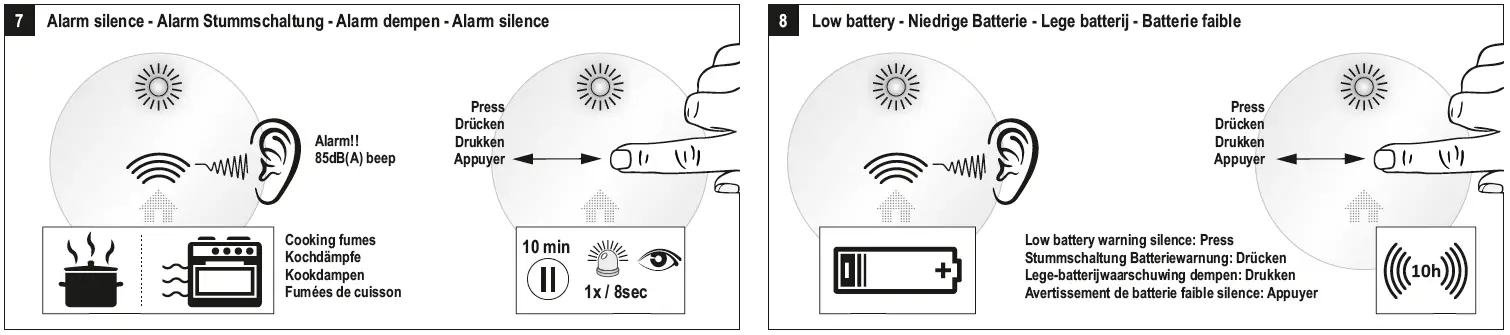

| Alarm silence | 1 x per 8 seconds | None | Smoke alarm signal is muted |
| Low battery warning | 1 x per 40 seconds | 1 x per 40 seconds | Battery is running low |
| Low battery warning silence | None | None | Low battery warning is muted |
| Sensor fault warning | 1 x per 40 seconds | 1 x per 40 seconds | Sensor is not functioning properly |
| Buzzer fault warning | 2 x per 40 seconds | None | Buzzer is not functioning properly |
Warnings:
- To prevent injury, this apparatus must be securely attached to the ceiling in accordance with the installation instructions.
- Batteries shall not be exposed to excessive heat such as sunshine and fire.
- Battery life shortens without monthly tests.
- Keep away from air conditioning/ventilation.
- Do not paint or cover the device.
- Consult local regulations.
Troubleshooting: False alarm is often caused by dust or steam. In case of doubt: Leave the building and take ac on!

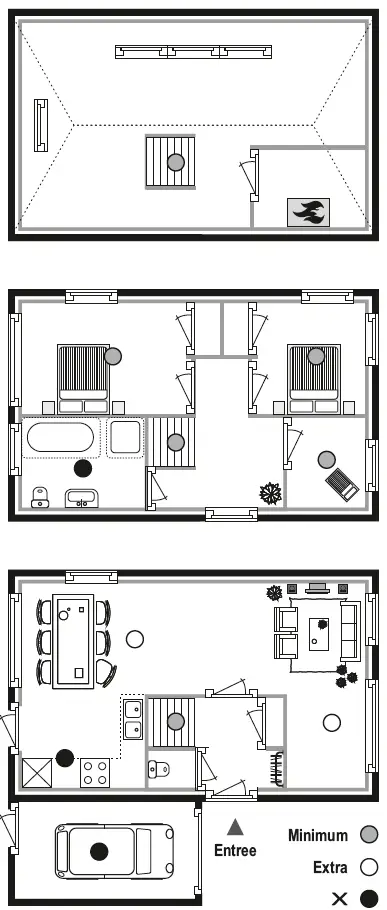

Additional mounting instructions: Corridor max width 3m: Max 15m between 2 alarms. Max. 7,5m to front side and alarms at edges/crossings of corridors. Galleries: Length and width >2m and >16m², additional alarms below gallery.
Partial roof slopes: Flat ceiling ≤1m wide, consider as the roof slope. Flat ceiling >1m wide, consider as flat ceiling.
