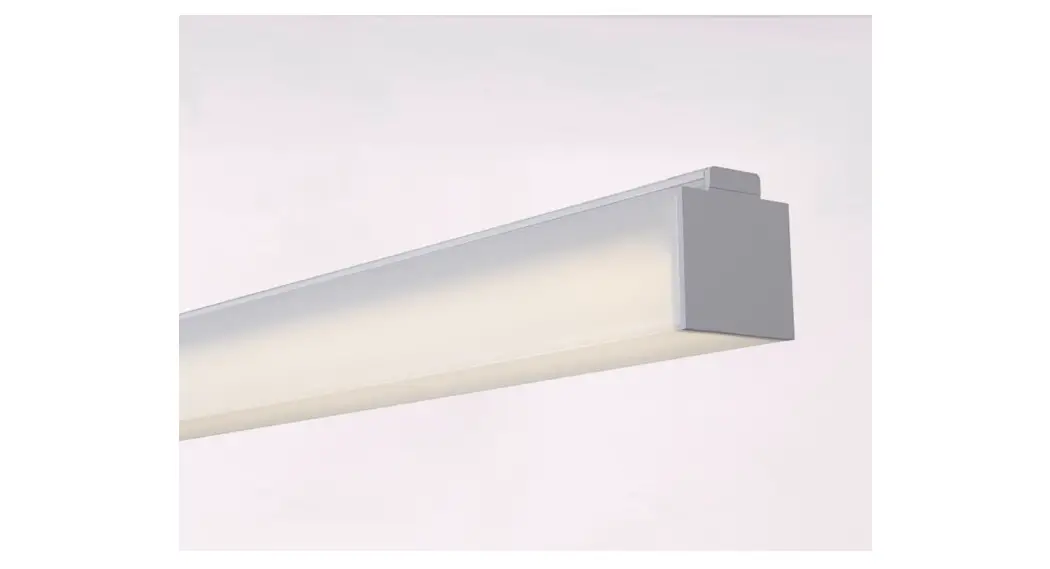

Lightstudio Sq-wt-1200-dir[2]-3k-dali-cs, Sq-mb-2000-dir[3]-4k-nd-wsp-em Tridonic, Osram, Vossloh Schwabe, Samsung Light Line Square User Guide

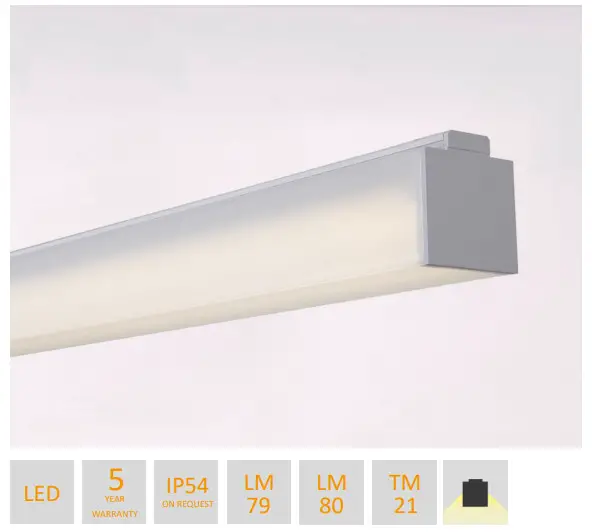

Specifications

LED Module: Tridonic | Osram | Vossloh Schwabe | Samsung
Lumen Maintenance & Life Expectancy: L80 B10 >50,000h
Lumen Output Range: 1100 – 4800lm/m
Profile Dimensions: W90mm x H100mm
Protection Rate: IP20 | IP54 on request
CRI: Ra80 | Ra90 on request
Colour Temperature: 3000K | 4000K | 27-57K Tunable White
Colour Stability: 3 Step MacAdam
Distribution: Direct
Diffuser: Ice
Dimming: Non-dim | DALI | 0-10V | Switch-dim
Warranty: 5 Years | Extended on request
Features: Mitered Corners | No visible fixings | Removable gear plates | Socket End Caps to prevent light leakage | Independent test reports

How to Specify

Follow the steps below to specify your requirements:

1. Select Profile & Colour
   SQ—## (Colour Suffix)
   SQ—CC (Custom Colour)
2. Select length
   Specify in mm
3. Select distribution
   Direct    (DIR)
4. Select Kelvin & CRI
   3000K 80Ra (3K)
   4000K 80Ra (4K)
5. Select-control
   Non Dim (ND)
   DALI (DALI)
   1-10V (10V)
   Switch (SW)
6. Select installation
   Ceiling Surface (CS)
   Wall Surface (WS)
   Rod Suspension (RSP)
   Wire Suspension (WSP)
7. Select extras
   Emergency (EM)
   DALI Sensor (DS)
   LED Downlights (DL)
   LED Spotlights (SL)

Specification Examples:

SQ-WT-1200-DIR[2]-3K-DALI-CS
SQ-MB-2000-DIR[3]-4K-ND-WSP-EM

Lumen Maintenance & Life ExpectancySpecification Examples: SQ-WT-1200-DIR[2]-3K-DALI-CS SQ-MB-2000-DIR[3]-4K-ND-WSP-EM

• All LED modules are selected from within 3 MacAdams.
• Independent LM79, LM80 and TM21 test reports are available on request.
• Independent photometric files are available on request.
• L80 B10 >50,000h

Lumen Output Suffix

Colour Options

Custom colours and anodized finishes on request

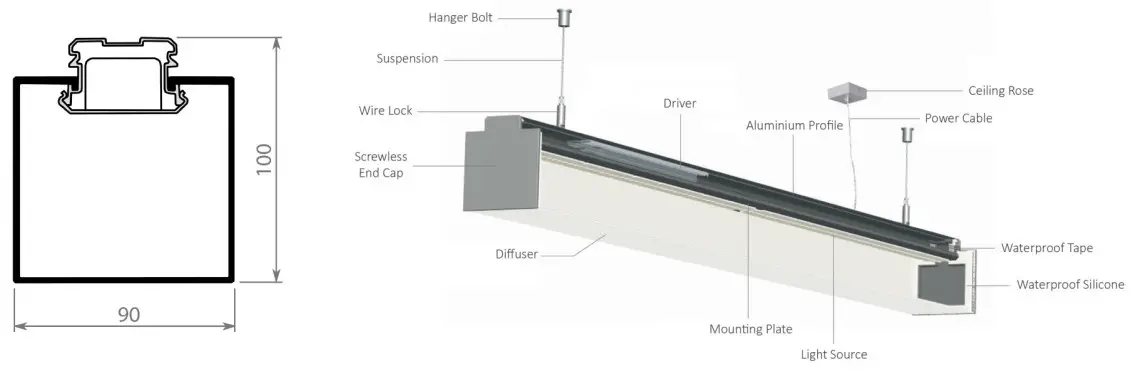

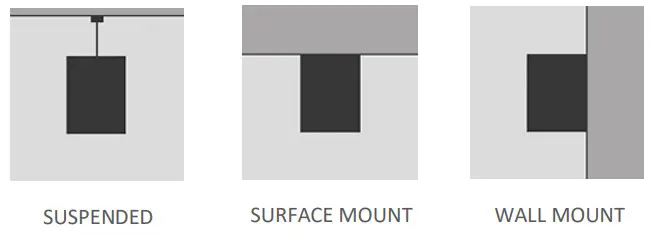

Mounting OptionsDimensions & Construction
