Fetco Lgd-10 1.0 Gallon Sight Gauge Luxus Thermal Dispenser Instruction Manual

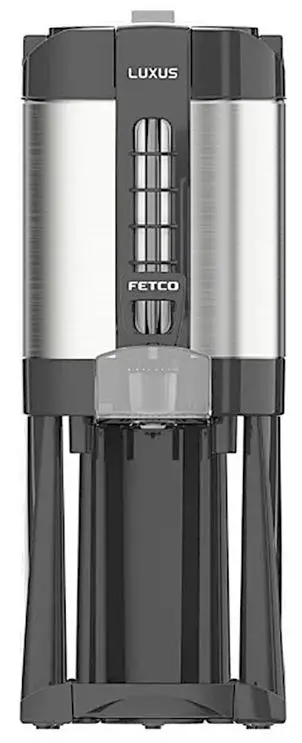

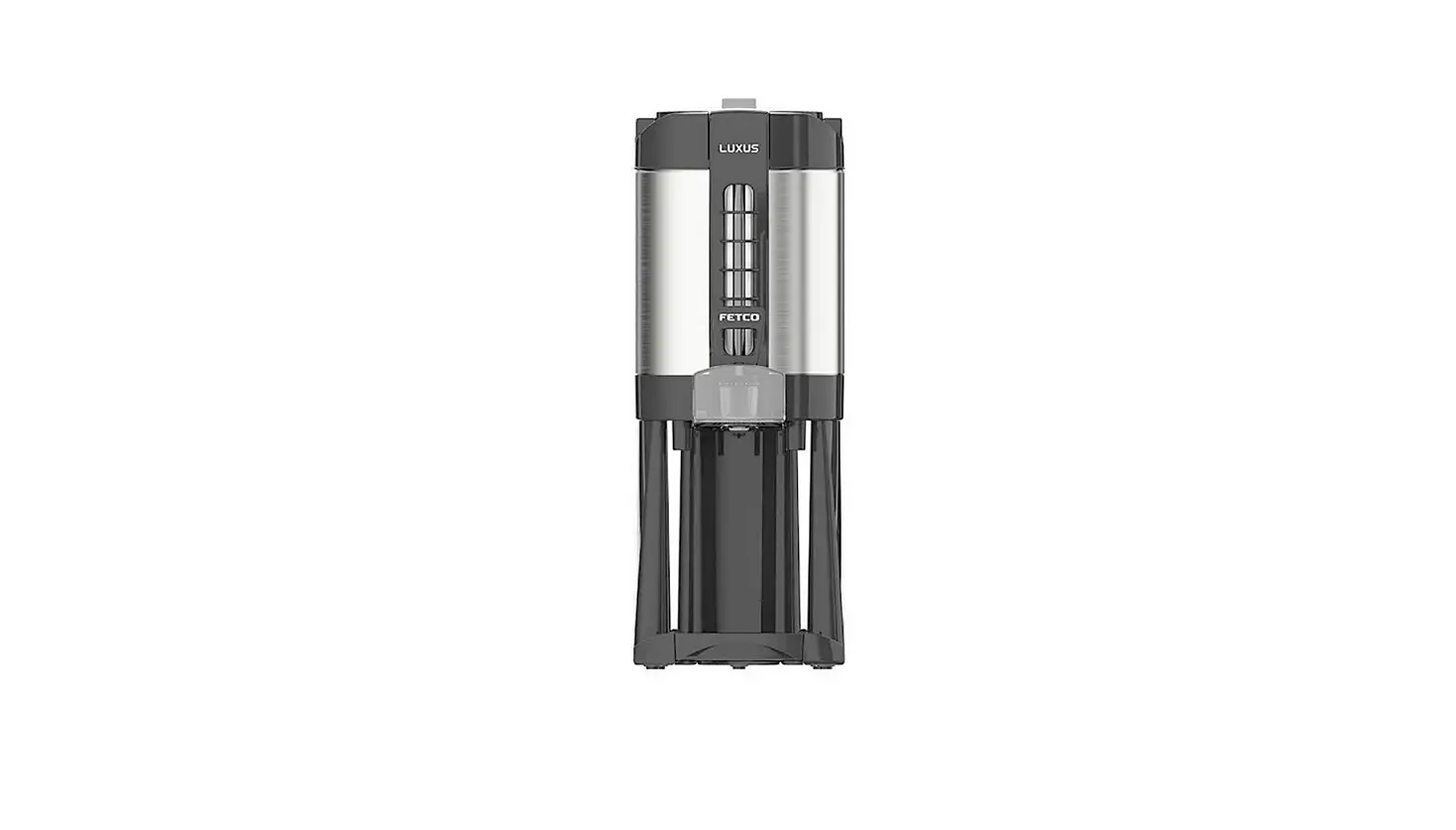

FETCO LGD-10 1.0 Gallon Sight Gauge LUXUS Thermal Dispenser

Product Information

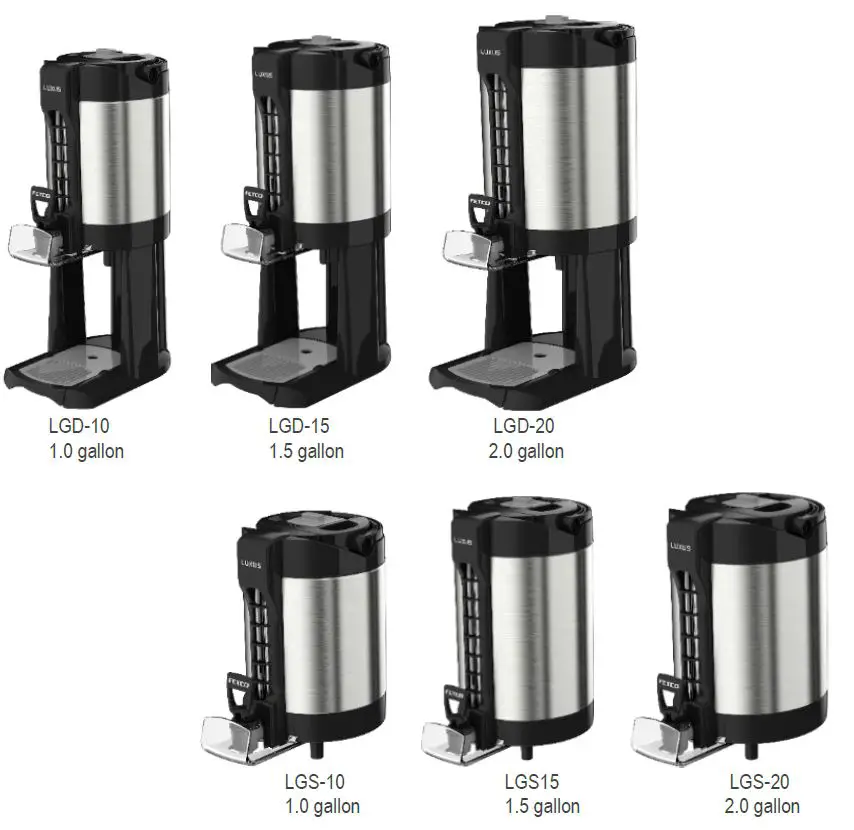

The Fetco LGD/LGS Luxus Dispenser is a commercial beverage dispenser available in three sizes: 1.0 gallon, 1.5 gallons, and 2.0 gallons. It features a sight tube and faucet for easy dispensing. The dispenser comes with several replaceable parts including the top cover, handle, cover funnel, flip-lid, cover cup, bottom cover, neck gasket, complete faucet, faucet O-ring, faucet bushing, complete faucet UPR asbly, faucet seat cup, handle, and faucet lock.

Product Usage Instructions

• Daily Maintenance: Empty all coffee or tea, remove and clean the brewer’s brew basket and funnel with a detergent solution and rinse. Allow it to air dry. Wash the drip
  tray and other plastic parts with dish detergent. Avoid using abrasives. To sanitize the dispenser before filling, brew a batch of water only (no coffee) into the dispenser and allow it to rest for 10 minutes. Drain and close the faucet.
• Weekly Maintenance: Use any commercial beverage urn cleaner to clean the inside of the dispenser. We recommend URNEX. Follow the cleaner manufacturer’s instructions. Always thoroughly rinse the brew basket and dispenser after cleaning.
• Accessing Sight Tube and Faucet: To access the sight tube, remove the cover and unscrew the top cap. Press the new sight tube over the bottom fitting O-rings when replacing. Replace the sight tube cover by inserting the base, then the top prongs, and push down. Note that the sight tube cover must be kept in place during operation.
• Removing Drip Tray: Press the latch at the back down and pull the tray out. Twist and pull the faucet forward to remove it.
• Contact Information: For any queries, you can contact Fetco through their website www.fetco.com or call them at (800) 338-2699 (US & Canada). You can also reach them via email at [email protected] or fax at (847) 719-3001.

IMPORTANT SAFEGUARDS

• To prevent overflows, ensure dispenser is completely empty before brewing.
• Always open the flip-lid on the funnel for filling of the dispenser.
• Do not use bleach or cleaners containing chlorides.
• Use only non-metallic brushes and cleaning pads.
• Use only the handle to lift or carry the dispenser.
• Do not use the faucet guard to pull or lift the dispenser.

MODELS

FEATURES

• Stainless steel vacuum insulated liner
• Proven heat retention without power
• Nonelectrical construction: cannot scorch
• Portable and beautiful styling: Matches other FETCO equipment
• FETCO simplified brew-through lid design
• New, larger faucet
• Removable and washable drip tray
• Sight tube, with protective guard
• Fits most brewers, servers fit all L Series FETCO Stands
• Many accessories and spare parts are interchangeable

CLEANING AND MAINTENANCE

Do not submerge the dispenser or place in dishwasher.

Daily:

• Empty all coffee or tea, remove and clean the brewers brew basket and funnel with detergent solution and rinse. Allow to air dry
• Wash the drip tray and other plastic parts with dish detergent. Avoid abrasives.
• To sanitize the dispenser before filling, brew a batch of water only (no coffee) into the dispenser and allow it to rest for 10 minutes. Drain and close faucet.
• This is beneficial because it will also pre-heat the dispenser

Weekly, or as needed:

• Use any commercial beverage urn cleaner to clean the inside of the dispenser. We recommend URNEX. Follow the cleaner manufacturer’s instructions. Always thoroughly rinse the brew basket and dispenser after cleaning.
• To access the faucet and sight tube for cleaning: Follow the diagrams!
• Pull the sight tube cover at top pull forward slightly and lift.
• Remove the faucet guard. Push down the faucet lock. Twist and pull the faucet forward. Remove the faucet upper assembly and inspect the seat cup for wear.
• Clean or replace if necessary

Youtube video for how to disassemble and clean faucet upper assembly by Tomlinson®

https://www.youtube.com/watch?v=XL6jpdkMAk0 QR CODE

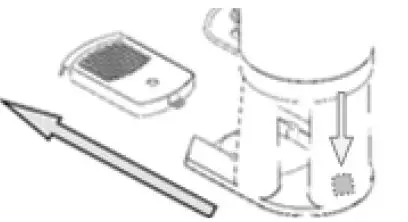

REMOVING THE DRIP TRAY
Press the latch at the back down-Pull tray out Twist and pull the faucet forward

Access the sight tube by removing the cover and unscrewing the top cap.
Press the new sight tube over the bottom fitting O-rings when replacing.
Replace the sight tube cover by inserting the base, then the top prongs, and push down. NOTE: Sight tube cover must be kept in place during operation

ACCESSING SIGHT TUBE AND FAUCET

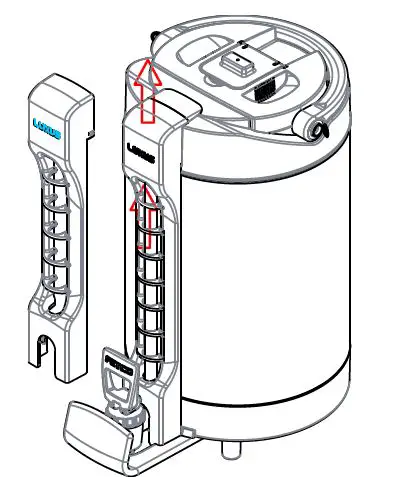

Grip sight tube cover at top, pull and lift.

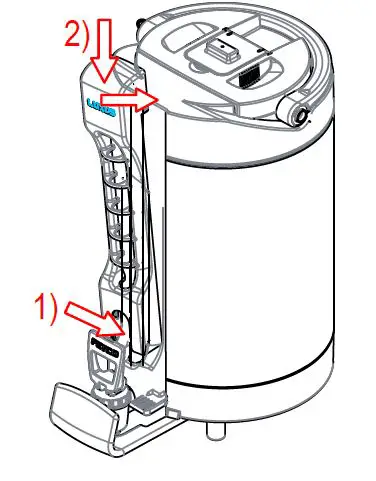

REINSTALL SIGHT TUBE COVER

1. Push base forward and down.
2. Push too forward and slide auard down to lock.

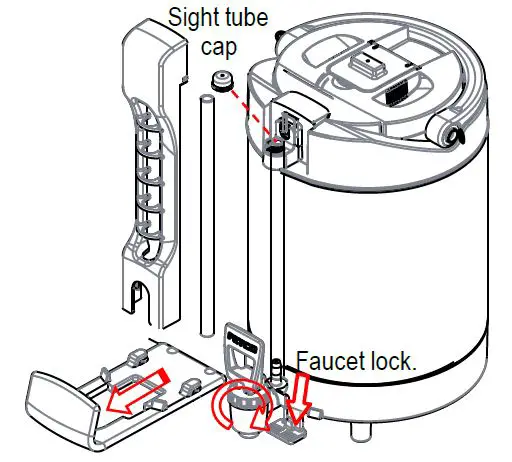

ACCESSING THE FAUCET & SIGHT TUBE:

• Remove the sight tube cover. Pull the faucet guard up and forward to remove it. Push down the faucet lock- twist the faucet and pull it off.
• To access the sight tube: remove the sight tube cap. Reinstall sight tube on barbed fitting on two O-rings (wet O-rings to assist)
• Replace the faucet by pushing onto the tube and twisting. Secure by pushing the faucet lock up and reinstalling the sight tube cover

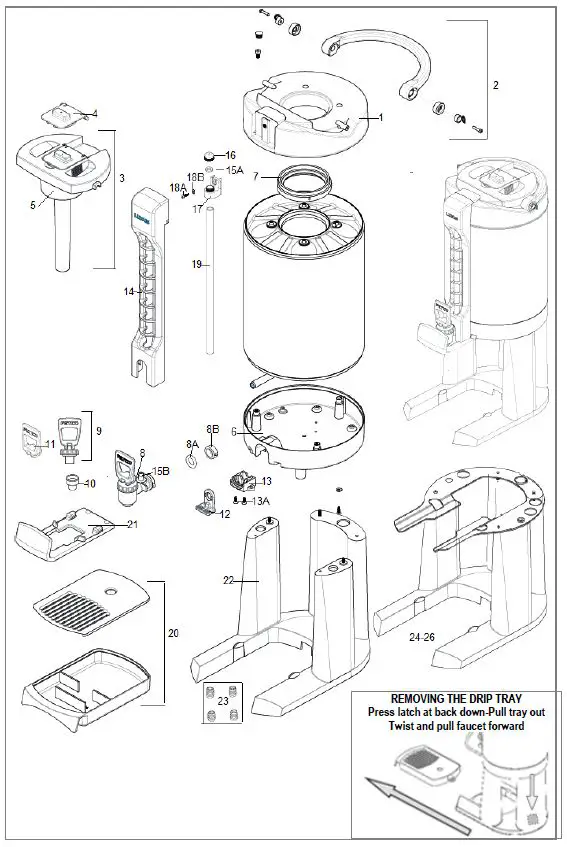

FETCO LGD & LGS LUXUS DISPENSER MASTER REPLACEMENT PARTS LIST

• 26* – Stand Assy L4S (15 & 20) Triple *(NOT SHOWN) A15200000 A15200000

Contact Information
FETCO® Food Equipment Technologies Company 600 Rose Road
Lake Zurich IL 60047-1560 USA
©2018-2020 Food Equipment Technologies Company
fetco.com
Internet: www.fetco.com
Phone: (800) 338-2699 (US & Canada)
(847)719-3000
Fax: (847) 719-3001
Email: [email protected]
[email protected] P182 February 2020
