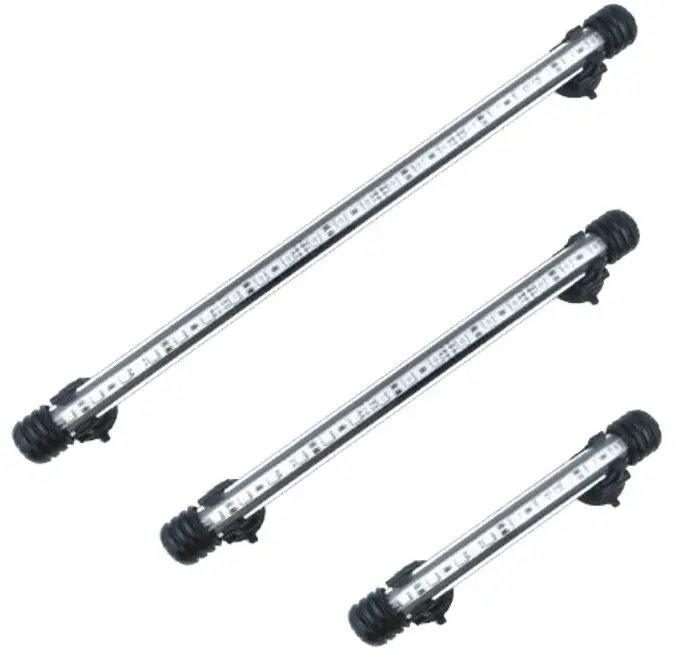

Submersible Aquarium Light
Instruction Manual
User Manual
Dear Customer
Thank you for purchasing LVY TECH Aquarium Lights. Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Incorrect operation may result in product damage. Should you have any questions or need any support, please contact us at [email protected].

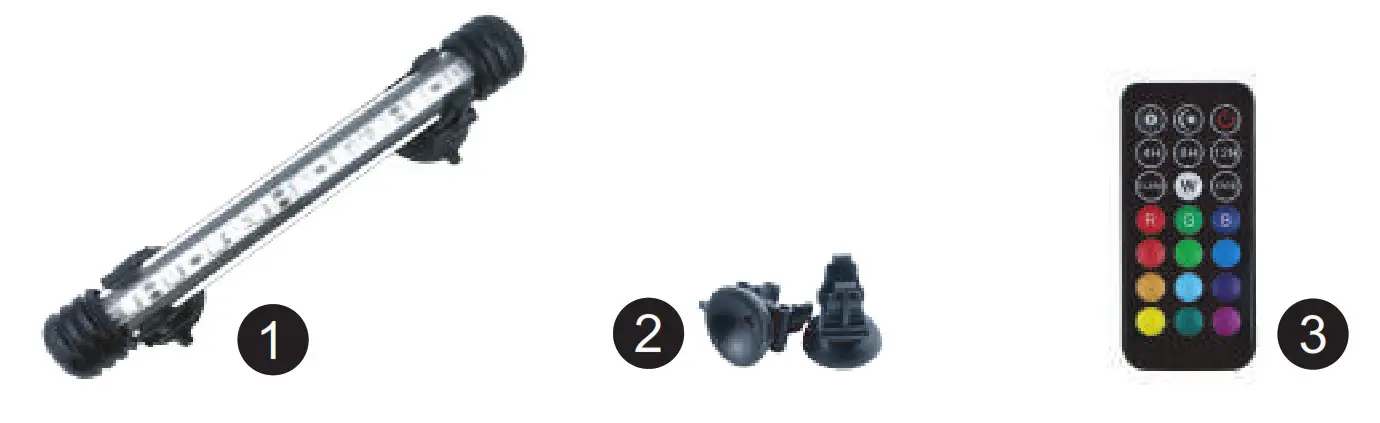

Package Include
- Lamp
- Suction Cups
- Remote Controller
Timer Instructions
- Timing: Set the light on for 4 hours, 8 hours or 12 hours per day starting from opening time, turn off for the rest of the time.
- Sunrise/Sunset Modes: Add 30-minute fade in and 30 -minute fade out modes to timer mode (timer on for 30 minutes and brightness gradient from 10% to 100%, and timer to light for 30 minutes from 100% to 0%).
- Note: If you cut off the power or press the button, the timer mode will be quit and you should reset it.
- Brightness/Speed: There are 5 gears to adjust the brightness or speed.
- Switch Modes/Turn ON&OFF: Click for switch modes, long press for turn on/off.

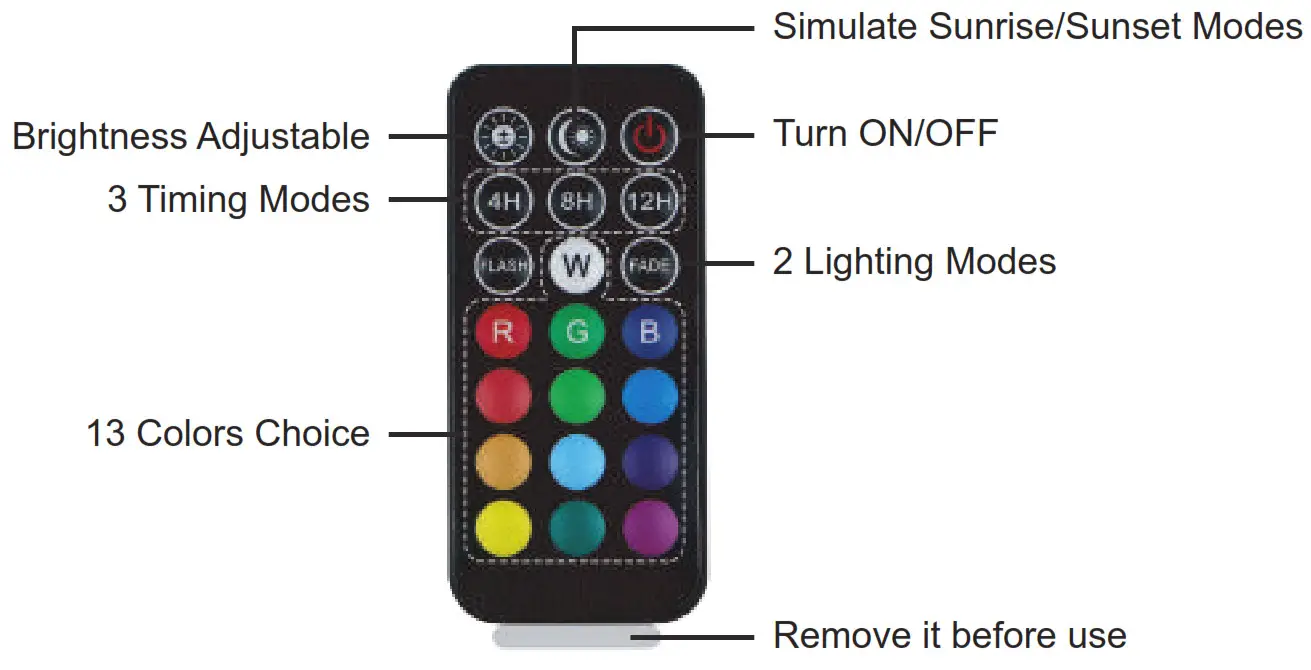

Wireless Remote Controller
Troubleshooting Guide
If the controller can not control the light, please refer to the following suggestions:
1. Please remove the plastic spacer first;
2. Please aim at the receiver and ensure not be obscured when controlling the light;
3. Please replace the battery of the controller and try again.
If you can’t solve the problem, please contact us at [email protected].
Description
This product is use to offer light for fish and aquatic plants.
Light Technical Parameters
| Model | RGB-19T | RGB-29T | RGB-39T |
| LED Qty | 9 | 15 | 21 |
| LED Type | RGB 5050 | RGB 5050 | RGB 5050 |
| Wattage | 2.3W | 4.6W | 6.3W |
| Fits for Fish Tank Size | 10”-16” | 14”-20” | 18”-24” |
| Working Temperature | 32°F-104°F | 32°F-104°F | 32°F-104°F |
Operating Instructions
- Opening the box, take out the light and adapter;
- Check the light is good;
- Install the suction cups on the tube;
- Connect the light to the adapter;
- Plug the adapter in the socket.
Safety Instructions
- The indoor environment is recommended. If used in an outdoor environment, please adopt anti-waterproof measures for the transformer.
- Working voltage must be in compliance with the indicating voltage.
- For your safety, please cut off the power before installing or replacing the product.
- When the product is not working properly (twinkle, dead), please check the contact or transformer is good.
- When the acrylic tube rupture and wire breakage, etc, please stop using and replace the lamp immediately.
- The light belongs to the fragile items, please do not hit or beat.
- When using the light, mild hot is normally. 8. This product is not a toy, please keep it away from children.
Customer Service
Friendly Customer Service
30 Days Free Return
12 Months Warranty
