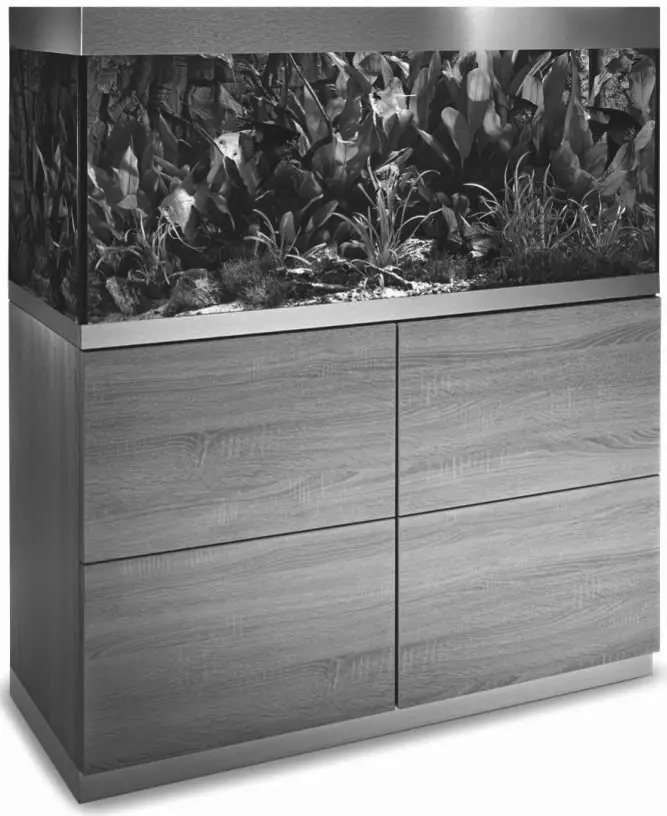

Highline Aquarium
125, 175, 200, 300, 300 room divider, 400, 600
Instruction Manual
125 Highline Aquariums
Highline
| 125 | 175 | 200 | 300 | 300 room divider | 400 | 600 | |
 | 125 | 175 | 200 | 300 | 300 | 400 | 580 |
 | a = 500 b = 1570 c = 500 | a = 500 b =1570 c = 700 | a = 500 b = 1250 c = 900 | a = 500 b = 1320 c = 1150 | a = 500 b = 1320 c = 1150 | a = 500 b = 1390 c = 1400 | a = 600 b = 1420 c = 1600 |
 | 27 | 33.5 | 43.5 | 55.5 | 55.5 | 91 | 115 |
 | 44 | 52 | 80 | 90 | 92 | 105 | 118 |
 | 196 | 26.5 | 343.5 | 467.5 | 469.5 | 637 | 790 |
 |  |
 |  |
 |  |
 |  |
 |  |
Safety information
WARNING
Due to the high weight of the filled and decorated aquarium together with the cabinet, the floor and/or ceiling could collapse.
- The only place on a floor that can carry the total weight.
- Has the load-bearing capacity of the floor been checked by a structural engineer?
- Check the possibility of using load distribution panels.
CAUTION
Due to the high weight of the aquarium and the cabinet, crushing of limbs or spinal injuries is possible.
- Use suitable lifting equipment (e.g. special load handles).
- Have the aquarium and cabinet been carried by several persons to spread the load and protect against spinal injuries?
- Protect limbs from crushing.
- Do not transport the aquarium when it is filled.
NOTE
The floor of the aquarium and the hole cut-outs must be clean and free of foreign particles.
- Clean thoroughly with water only.
NOTE
Check that the aquarium is not leaking before setting it up.
- Fill the aquarium with water and check for leaks.
- Eliminate any leaks at connections or hoses.
- Do not set up a leaking aquarium.
NOTE
When cleaning your aquarium, observe the following:
- Do not use any toxic or chemical substances.
- Do not damage the glass seals, e.g. when cleaning with a razor blade.
Spare parts
The use of original parts from OASE ensures the continued safe and reliable operation of the unit.
Please visit our website for spare parts drawings and spare parts.
www.oase-livingwater.com/sparepartsia
OASE GmbH
Postfach 2069 • 48469 Hörstel
Tecklenburger Straße 161 • 48477 Hörstel
Germany
www.oase.com
[email protected]
Hotline: +49 5454 93 39 49 20
48265/08-21
