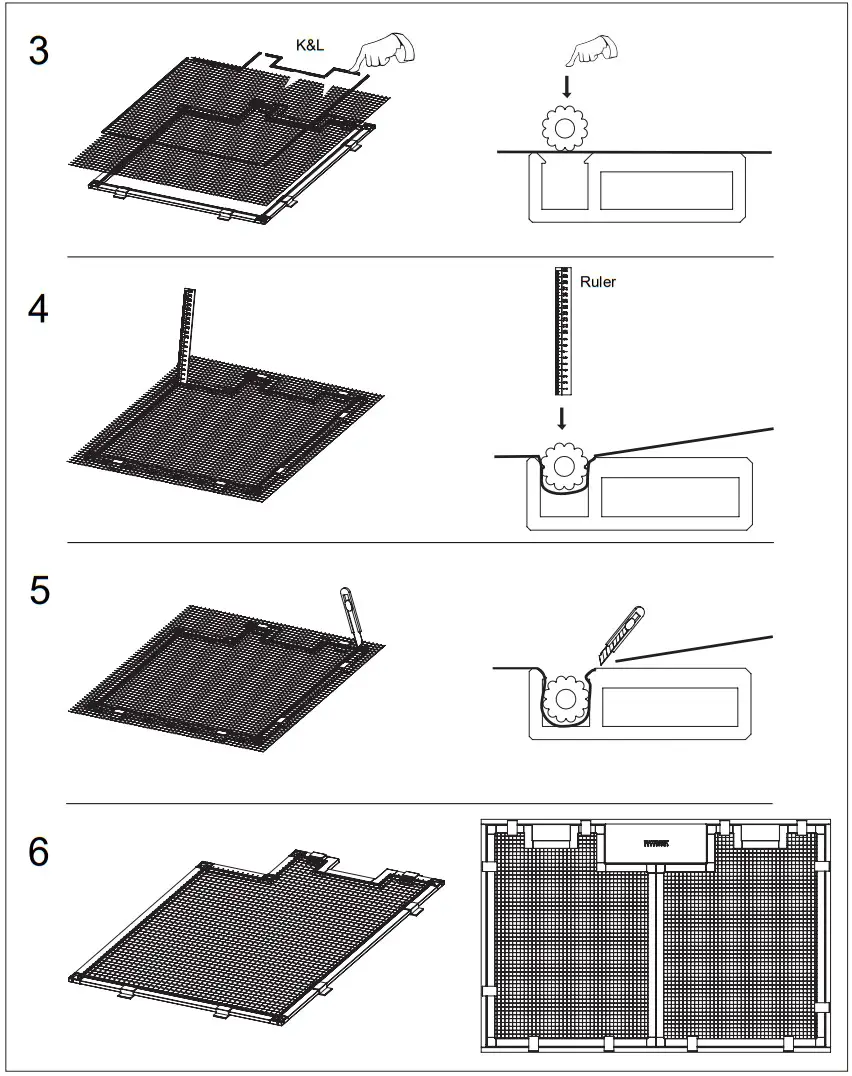

Mesh Lid Assembly Manual
MT REEF/RDX 100.3/130.4
REEF 100.3 Aquariums 100 Gallon Fish Tank

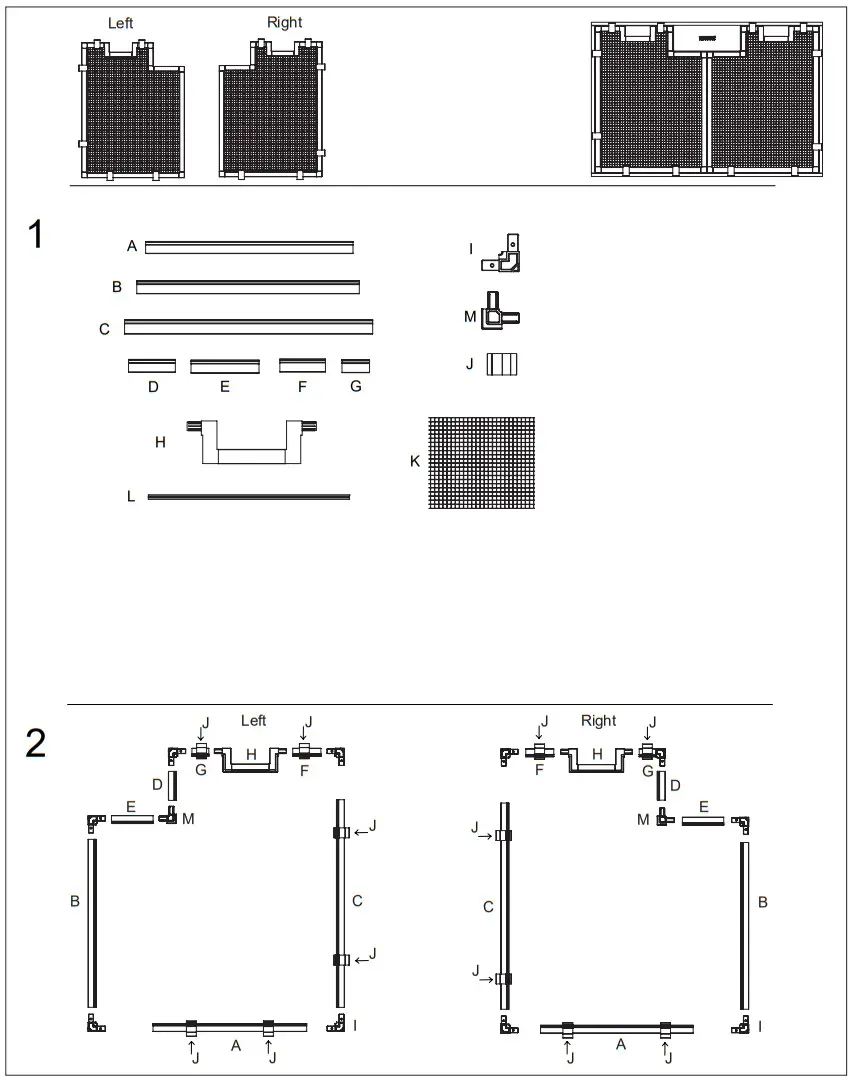

| CODE | PART | Qty |
| A | Aluminum Frame — A | 2 |
| B | Aluminum Frame — B | 2 |
| C | Aluminum Frame — C | 2 |
| D | Aluminum Frame — D | 2 |
| E | Aluminum Frame — E | 2 |
| F | Aluminum Frame — F | 2 |
| G | Aluminum Frame —G | 2 |
| H | LED Light Mount Cutout | 2 |
| I | Frame Corners | 10 |
| J | Hanging Clips | 12 |
| K | Clear Mesh Netting | 2 |
| L | Mesh Spline | 2 |
| M | Frame Inner Corners | 2 |
| MT REEF/RDX 100.3 | MT REEF/RDX 130.4 | |
| A | 15.3″(387.5mm)*2 | 21.2″(537.5mm)*2 |
| B | 16.7″(423mm)*2 | 16.7″(423mm)*2 |
| C | 20.6″(523mm)*2 | 20.6″(523mm)*2 |
| D | 2.9″(73mm)*2 | 2.9″(73mm)*2 |
| E | 4.1″(105mm)*2 | 4.1″(105mm)*2 |
| F | 2.8″(71mm)*2 | 6.9″(175mm)*2 |
| G | 1.7″(42.5mm)*2 | 3.5″(88.5mm)*2 |
