Red Sea REEFER logo 1Red Sea REEFER logo

Red Sea REEFER 170 G2 Black Aquarium System170 G2 / 200 G2
Aquarium & Cabinet Assembly Manual

170 G2 Black Aquarium System

Resource & Support Center: www.redseafish.com/support/Red Sea REEFER 170 G2 Black Aquarium System - qr codehttps://www.redseafish.com/support/

Water Managment

Red Sea REEFER 170 G2 Black Aquarium System - overviewCabinet

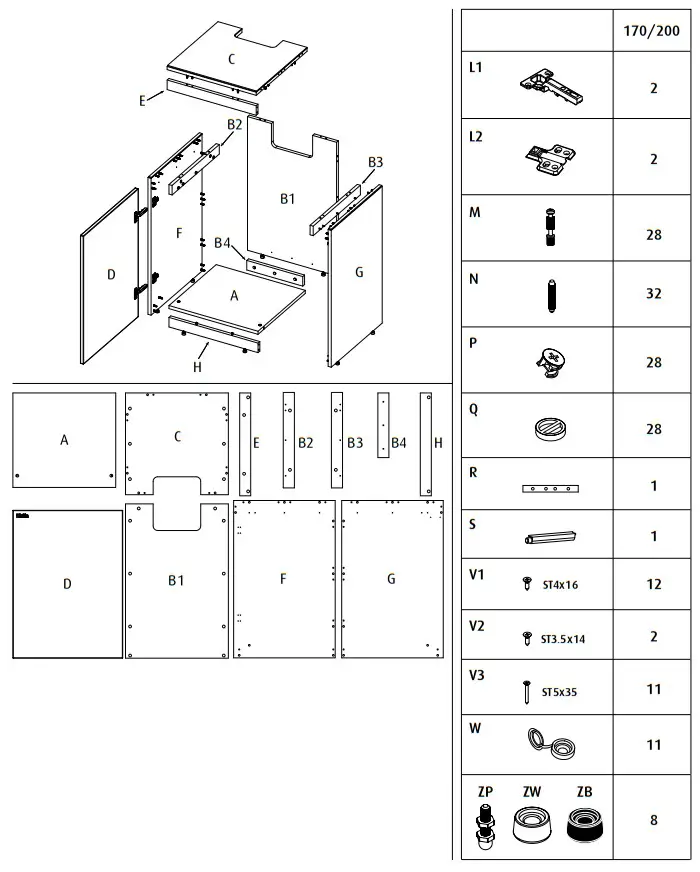

Red Sea REEFER 170 G2 Black Aquarium System - Cabinet

170 G2200 G2
LabelPart DescriptionBLACKWHITEBLACKWHITE
ACabinet Bottom52726276728
B1Cabinet Rear7674B7674B
B2Cabinet Side Top Support Left490462-L7680LB-G2
B3Cabinet Side Top Support Right490462-R7680RB-G2
B4Cabinet Rear Bottom Support6132B6132B
CCabinet Top (Located under the glass tank)489962767162
DCabinet Door 605275B5275W5275B5275W
ECabinet Front Upper7676B7676B
FCabinet Side Left490062-B490062-WB7679B-G27679WB-G2
GCabinet Side Right490162-B490162-WB7678B-G27678WB-G2
HCabinet Sockel7673B7673WB7673B7673WB

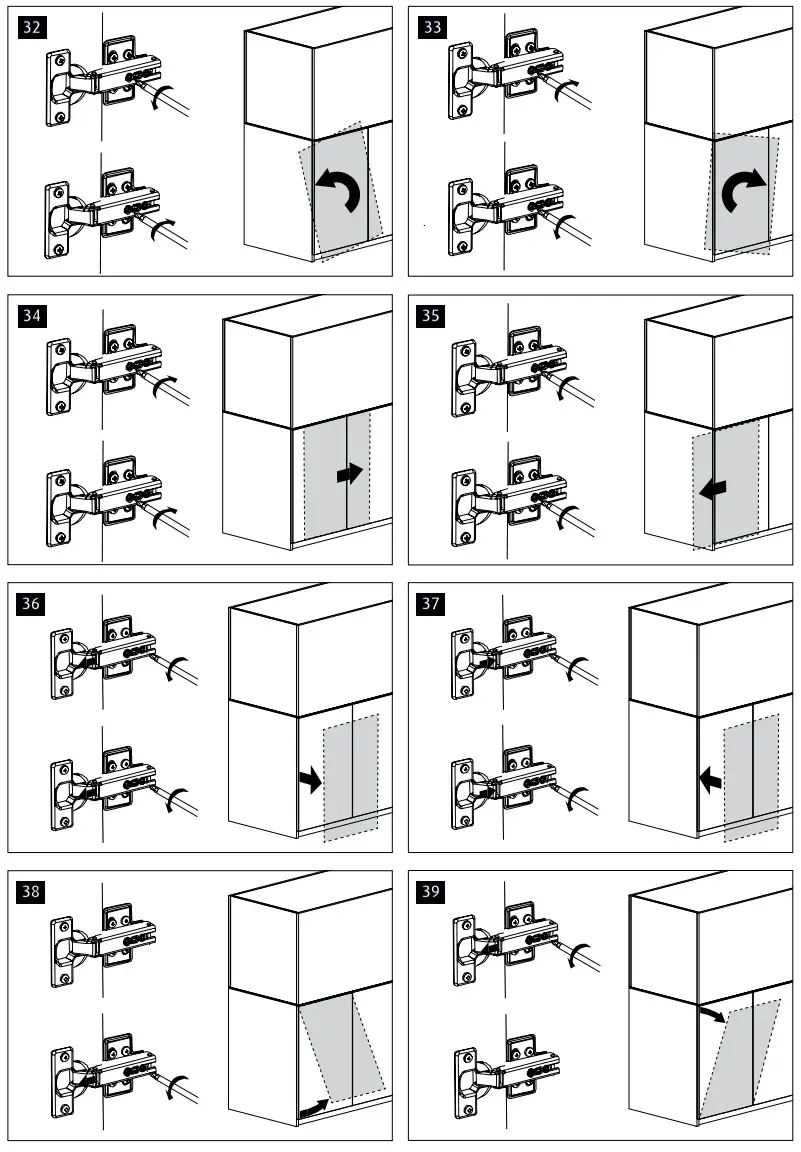

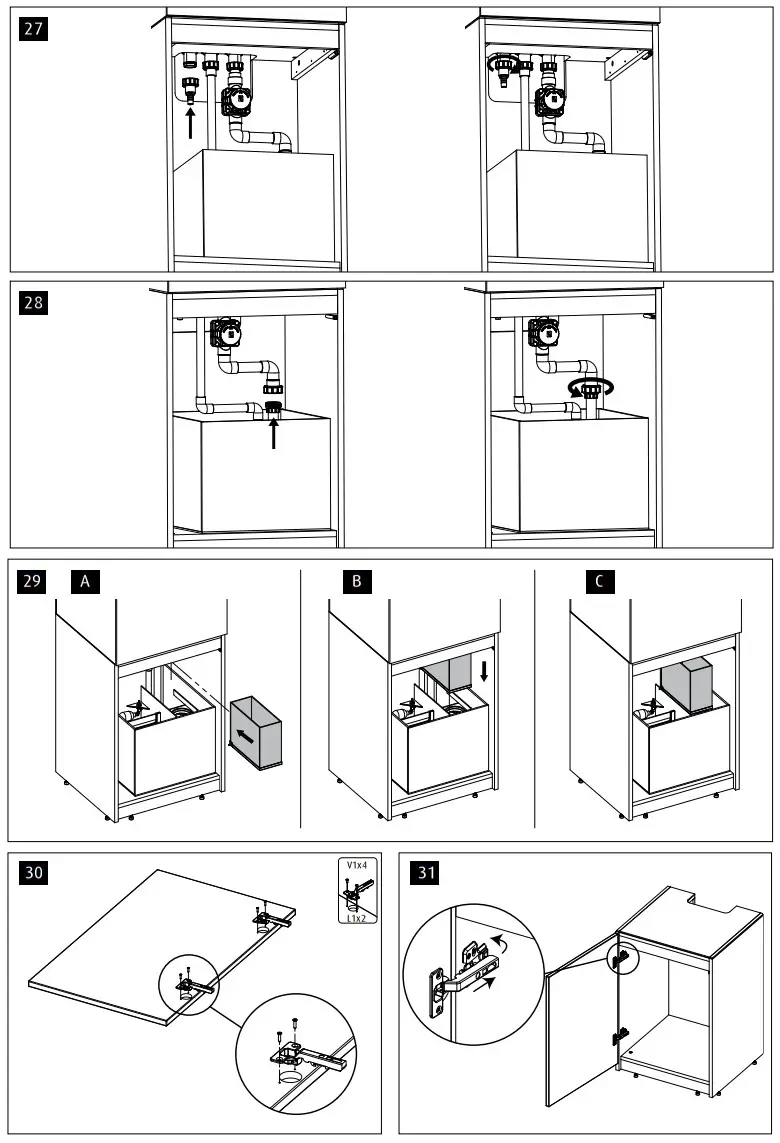

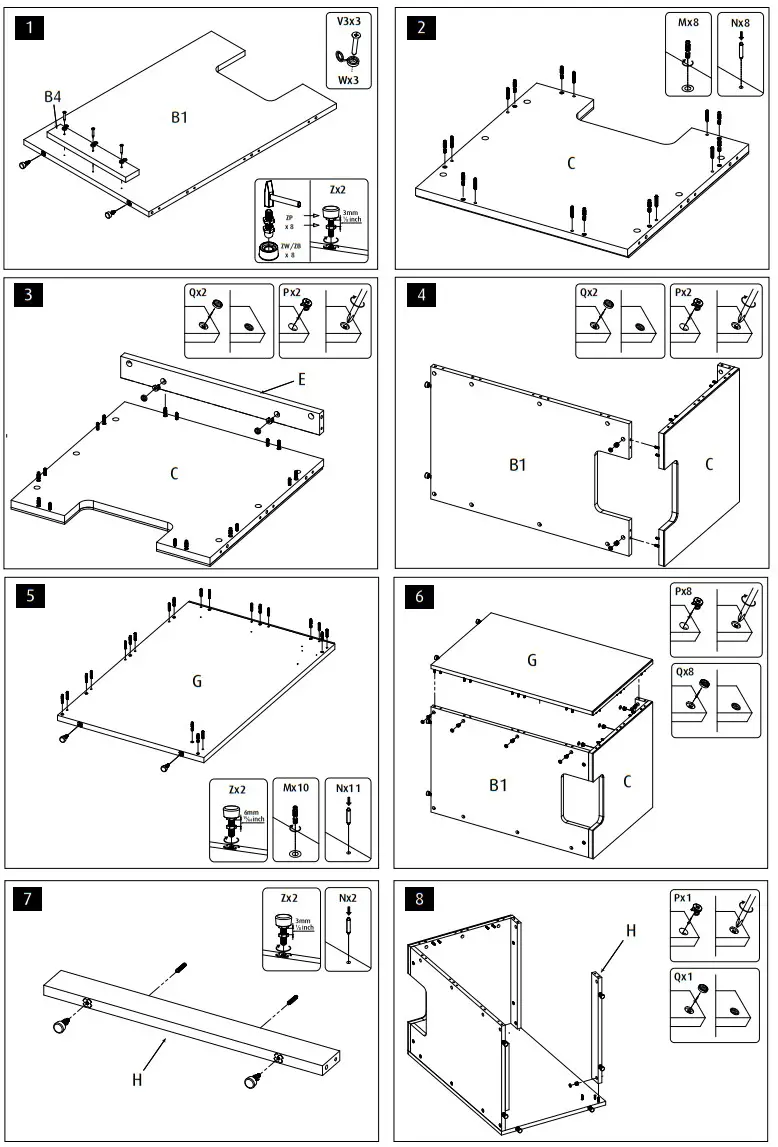

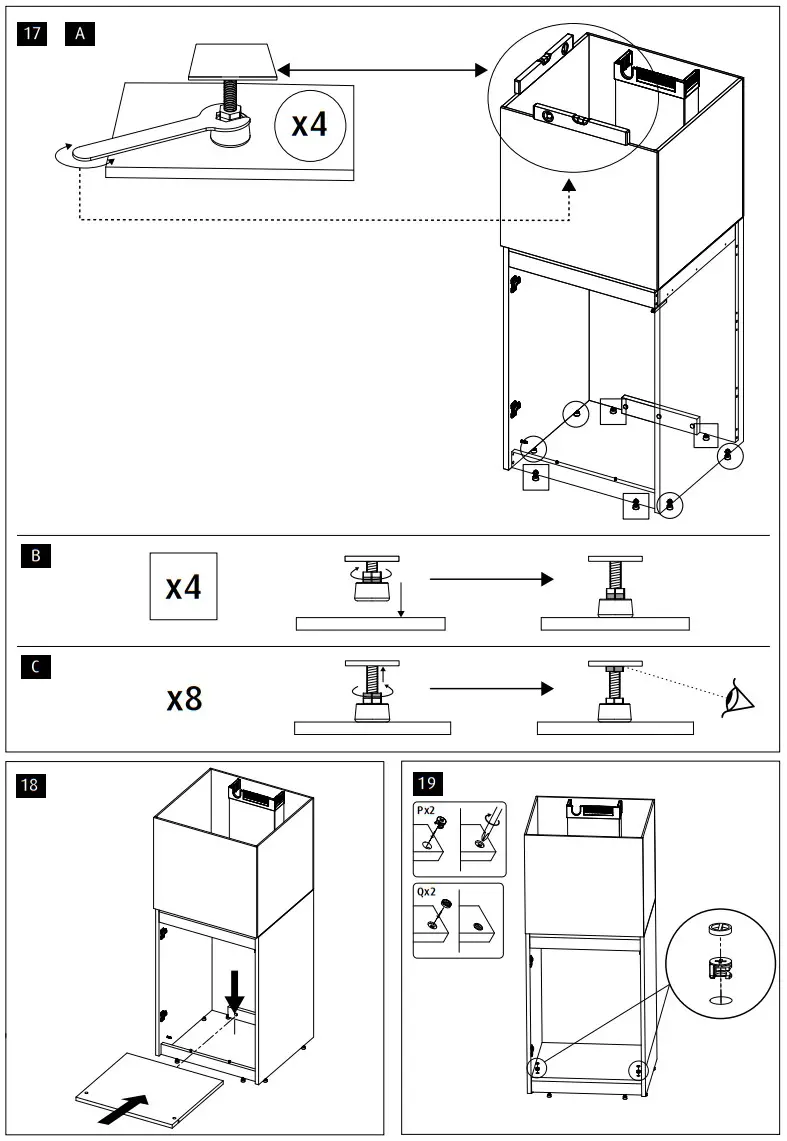

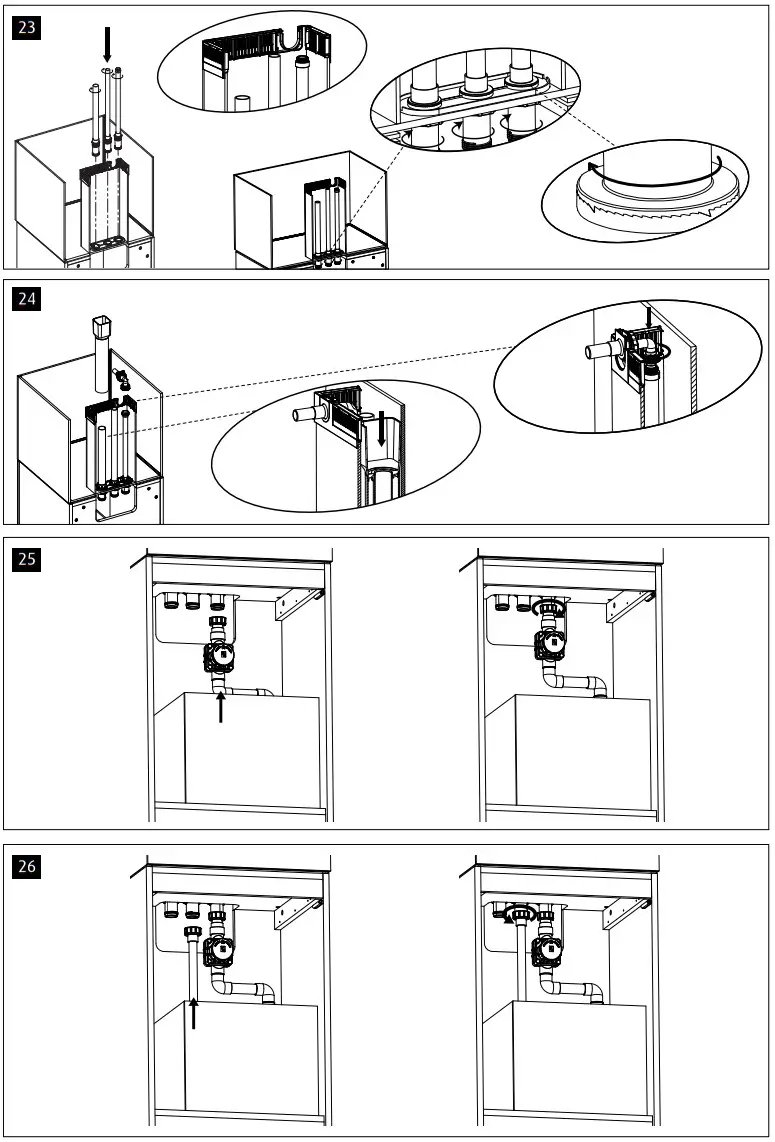

Red Sea REEFER 170 G2 Black Aquarium System - figure 1Red Sea REEFER 170 G2 Black Aquarium System - figure 2Red Sea REEFER 170 G2 Black Aquarium System - figure 3Red Sea REEFER 170 G2 Black Aquarium System - figure 4Red Sea REEFER 170 G2 Black Aquarium System - figure 5Red Sea REEFER 170 G2 Black Aquarium System - figure 6Red Sea REEFER 170 G2 Black Aquarium System - figure 7

MAINTENANCE

Red Sea REEFER 170 G2 Black Aquarium System - figure 8
