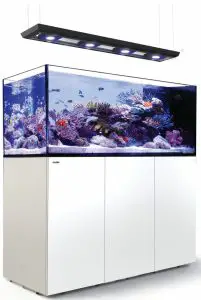

Red Sea REEFER Peninsula 650 Aquarium & Cabinet Instructions

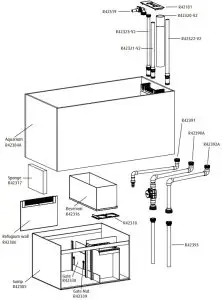

Aquarium Water Management System

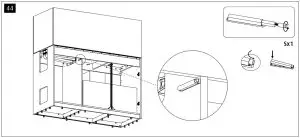

Cabinet

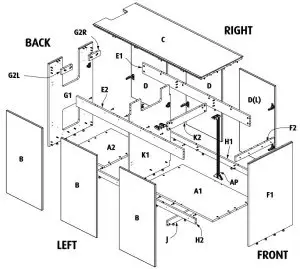

| P650 | Black | White | Part Description |
| A1 | 6511A-B | 6511A-B | Cabinet Bottom Sump |
| A2 | 6512A-B | 6512A-B | Cabinet Bottom Chiller |

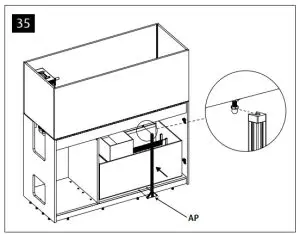

| AP | 6531 | 6531 | Reefer Cabinet front support |
| B | R42407A | R42408A | Cabinet Side Panel |

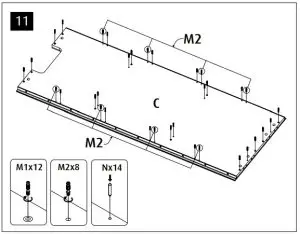

| C | 6510A-B | 6510A-B | Cabinet Top (Located under the glass tank) |

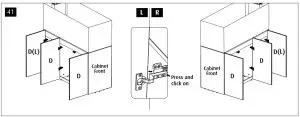

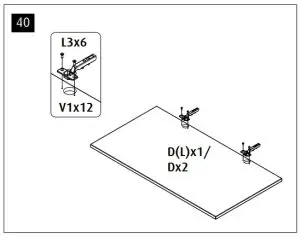

| D | R42405 | R42406 | Cabinet Door |

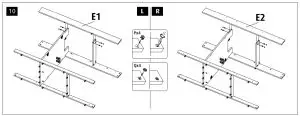

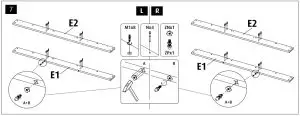

| E1 | 6516A-B | 6516A-B | Cabinet “Door Side” Upper |
| E2 | 6516A-1B | 6516A-1B | Cabinet “Fixed Side” Upper |

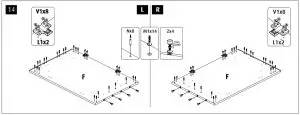

| F1 | 6437A-B | 6437A-WB | Cabinet Front |
| P650 | Black | White | Part Description |

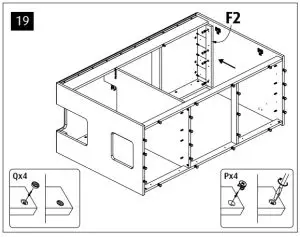

| F2 | 6522B | 6522B | Cabinet Front Top Support |

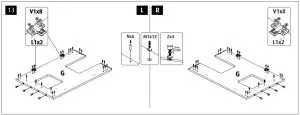

| G1 | 6436A-B | 6436A-WB | Cabinet Rear |

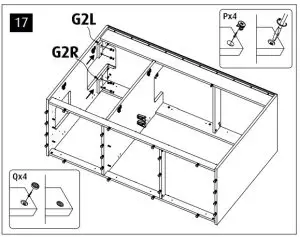

| G2R | 6523R-B | 6523R-B | Cabinet Rear Top Right Support |
| G2L | 6523L-B | 6523L-B | Cabinet Rear Top Left Support |

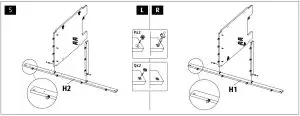

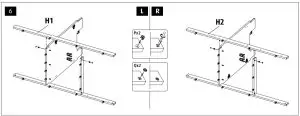

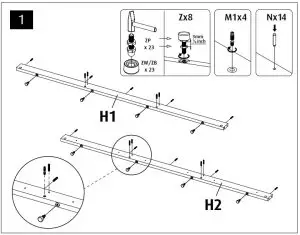

| H1 | 6517A-B | 6517A-B | Cabinet “Door Side” Lower |
| H2 | 6518A-B | 6518A-B | Cabinet “Fixed Side” Lower |

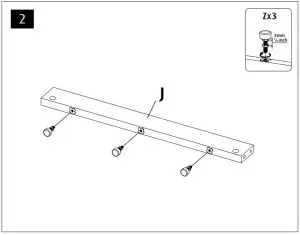

| J | 6514A-B | 6514A-B | Cabinet Base Support |

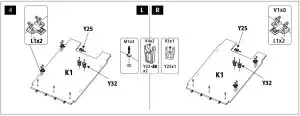

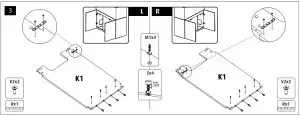

| K1 | 6513A-B | 6513A-B | Cabinet Internal Wall |

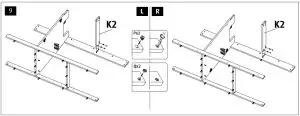

| K2 | 6515B | 6515B | Cabinet Top Internal Support |

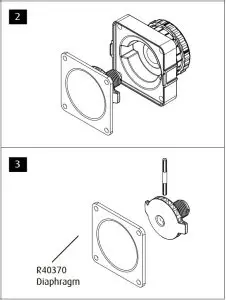

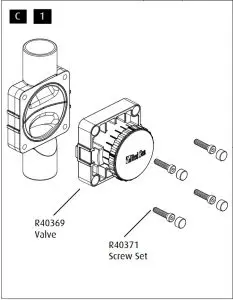

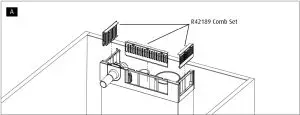

Maintenance
