Aquarium Cabinet
PB 1818/2416/3216
Cabinet Assembly Manual
PB 1818 Aquarium Cabinet
MY WATERBOX
Tank Model ……………….. Tank Lot # ………………..
Cabinet Model ……………….. Cabinet Lot #………..
Purchase Date ………………..
Sellers …………………………….
Address ………………………….
TEL/Mobile …………………..
PB 1818
| Code | Name | QTY | Spare | |
 | C1201(White) C1202(Black) | Leveling Foot | 8 | 2 |
 | C1001 | Door Hinge | 3 | |
 | C1401(White) C1402(Black) C1403(Aspen) | PVC Sticker | 36 | 10 |
 | C1101 | Rebound Kit | 1 | |
 | C1301 | Furniture Connect Bolt | 8 | 5 |
 | C1301 | 36 | 5 | |
 | C1301 | 36 | 5 |

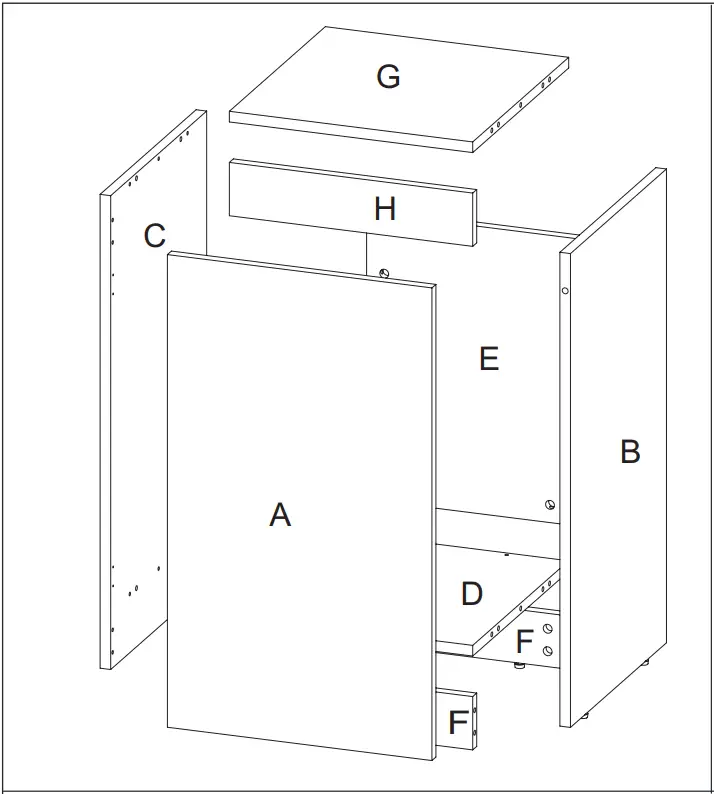

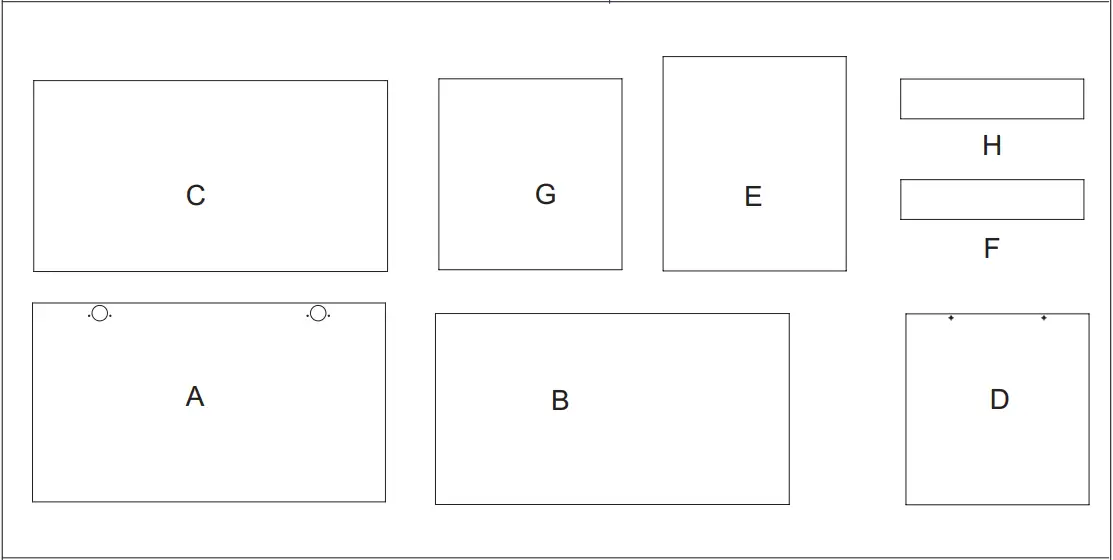

| S/N | Name | QTY |
| A | Cabinet Door | 1 |
| B | Cabinet Side Right | 1 |
| C | Cabinet Side Left | 1 |
| D | Cabinet Bottom | 1 |
| E | Cabinet Rear | 1 |
| F | Cabinet Front Lower | 2 |
| G | Cabinet Top | 1 |
| H | Cabinet Front Upper | 1 |
 |  |
 | |
CABINET PB 2416
| Code | Name | QTY | Spare | |
| C1201(White) C1202(Black) | Leveling Foot | 8 | 2 |
| C1001 | Door Hinge | 3 | |
| C1401(White) C1402(Black) C1403(Aspen) | PVC Sticker | 36 | 10 |
| C1101 | Rebound Kit | 1 | |
| C1301 | Furniture Connect Bolt | 8 | 5 |
| C1301 | 36 | 5 | |
| C1301 | 36 | 5 |
| S/N | Name | QTY |
| A | Cabinet Door | 1 |
| B | Cabinet Side Right | 1 |
| C | Cabinet Side Left | 1 |
| D | Cabinet Bottom | 1 |
| E | Cabinet Rear | 1 |
| F | Cabinet Front Lower | 2 |
| G | Cabinet Top | 1 |
| H | Cabinet Front Upper | 1 |
 |  |
 | |
CABINET PB 3216
| Code | Name | QTY | Spare | |
| C1201(White) C1202(Black) | Leveling Foot | 11 | 2 |
| C1001 | Door Hinge | 6 | |
| C1401(White) C1402(Black) C1403(Aspen) | PVC Sticker | 40 | 10 |
| C1101 | Rebound Kit | 2 | |
| C1301 | Furniture Connect Bolt | 8 | 5 |
| C1301 | 40 | 5 | |
| C1301 | 40 | 5 |

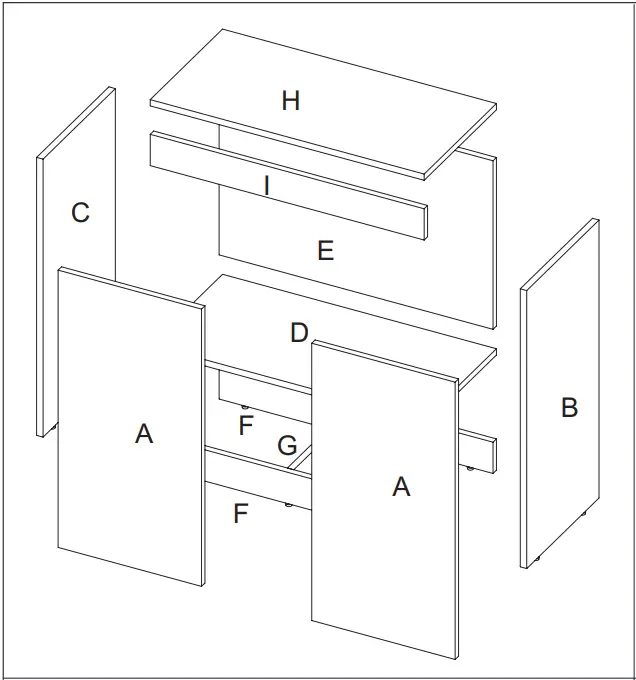

| S/N | Name | QTY |
| A | Cabinet Door | 2 |
| B | Cabinet Side Right | 1 |
| C | Cabinet Side Left | 1 |
| D | Cabinet Bottom | 1 |
| E | Cabinet Rear | 1 |
| F | Cabinet Front Lower | 2 |
| G | Cabinet Top | 1 |
| H | Cabinet Front Upper | 1 |
 |  |
 | |
WB-PB-7312
