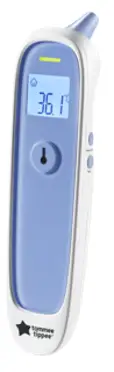

0499057 InEar Infrared Thermometer
Instruction Manual
0499057 InEar Infrared Thermometer
Here for you
Your baby may get a fever from time to time and keeping track of their temperature is important.
Our digital in-ear thermometer is quick, accurate and easy to use.
And that’s when you can count on us.
Questions?
For further information or support, please scan below to visit our consumer support page at tommeetippee.com
Or join the conversation
IMPORTANT WARNINGS
These instructions can also be found at tommeetippee.com
- This thermometer is not intended as a substitute for consultation with your doctor.
- Adult use only
- Keep out of reach of children when not in use
- Do not allow children to take their own temperature unattended.
- To avoid risk of choking from swallowing small parts or batteries please keep the device out of the reach of children and pets.
- The device should not be submerged into water or other liquids (not waterproof).
- The probe lens is the most delicate part of the thermometer. Use with care when cleaning the probe lens to avoid damage. See care and cleaning section.
- Do not use the thermometer if there are signs of damage to the lens or the thermometer itself. If damaged do not attempt to repair the product.
- No modification of this equipment is permitted.
- Intended for household use only.
- Do not use in direct sunlight
- If the thermometer is used according to the instructions, periodic re-adjustment is not required.
Cleaning and storage
The lens in the probe is the most delicate part of the thermometer.
When cleaning the lens, handle with care to avoid damage.
- Make sure the scanner lens is clean to ensure an accurate reading.
- Use a 70% alcohol swab or cotton wool moistened with 70% alcohol to gently wipe the lens clean.
- Allow the lens to fully dry for at least 1 minute.
- Never insert a sharp object into the scanner area or any other open surface on the thermometer, because this will cause damage and affect functionality.
- Keep the thermometer dry and away from any liquids and direct sunlight.
- The thermometer should be stored at temperature between -20°C to +50°C.

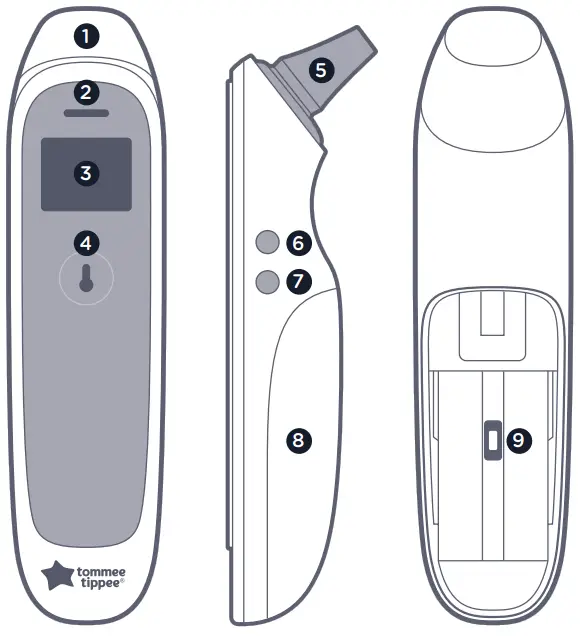

- Probe cover
- Light indicator
- LCD display
- Power button / Measure button
- Probe (take off the probe cover when measuring temperature)
- Memory / Mute button
- Mode button (Object temperature, ear temperature)
- Battery cover
- Unit switch button (°C/°F)
Functions

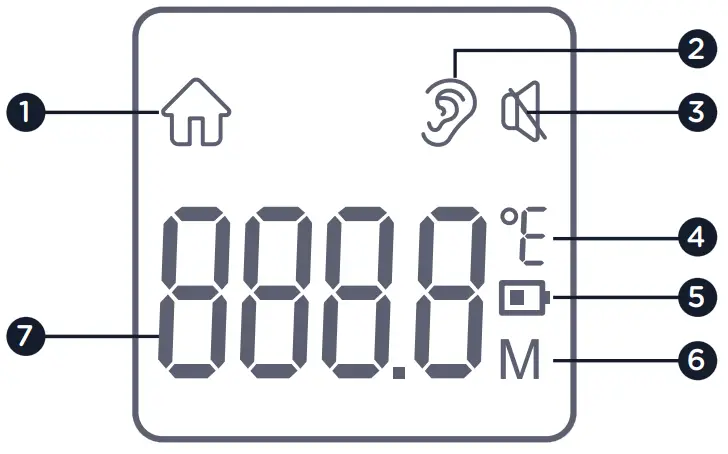

- Object temperature mode
- Ear temperature mode
- Mute/un-mute
- Temperature (°C/°F)
- Low battery
- Memory recall
- Temperature value
How to use – Ear Temperature Mode
 | ||

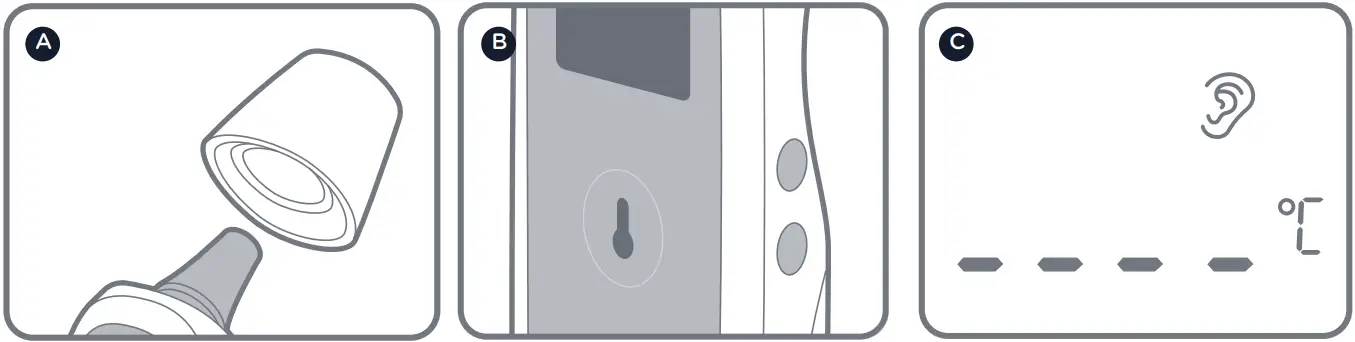

| A. Remove the probe cover | B. Switch the thermometer on by pressing the power button | C. The thermometer will automatically appear in ear mode |
 | ||
| D. Insert the temperature probe into a proper position in the ear canal. Gently pull baby’s ear upwards to straighten theear canal for an accurate reading. | E. Press the measure button to take the temperature | F. The reading will appear on the screen |
4. Tips for taking an accurate reading
- Child must be inside for 30 minutes before taking a measurement.
- The child and device must be in the same stable ambient (room) temperature for 30 minutes before operating.
- Always make sure the scanner lens is clean and undamaged.
- Child should not drink, eat or be physically active before/while taking the measurement.
- Remove hats and wait 10 minutes before taking a measurement.
- Don’t take a measurement during or immediately after nursing a baby.
- Wait at least 60mins after bathing to take a reading.
How to interpret your reading
Child (from 3 months+)
Memory function
The memory function is great if you want to look back on your last 20 readings, maybe to show a healthcare professional.

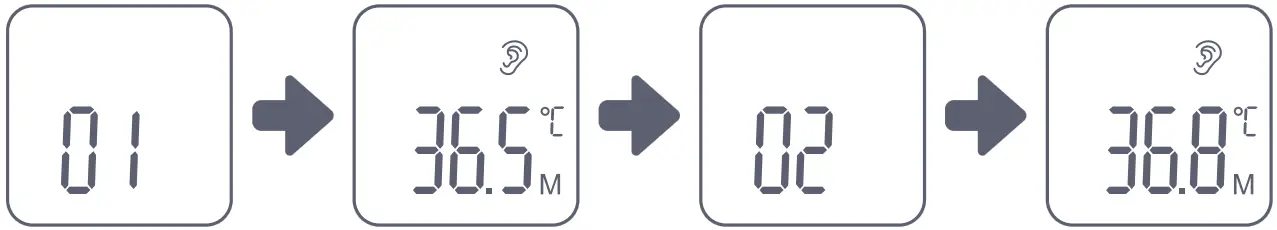

When the product is switched on, press the memory button. The screen will display “01” followed by the recorded reading. Press the memory button again to retrieve the second reading, and so on for the past 20 readings
How to use – Object Temperature Mode

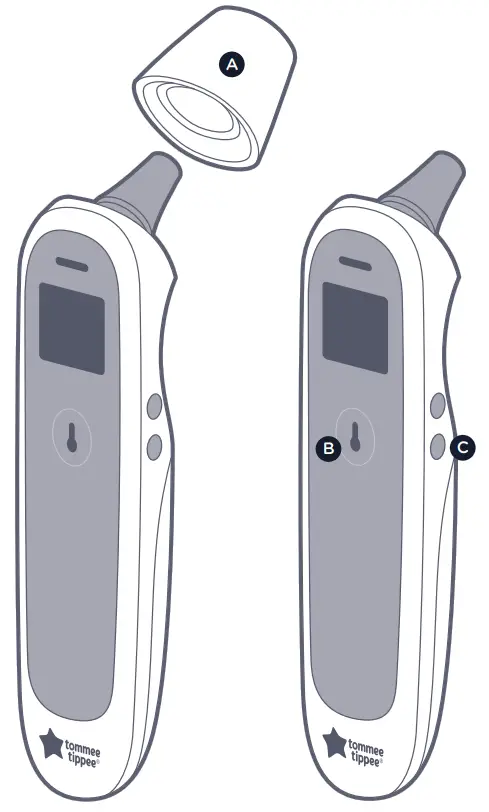

A. Remove the probe cover
B. Switch the thermometer on by pressing the power button
C. Switch to the object measurement mode by pressing the Mode button

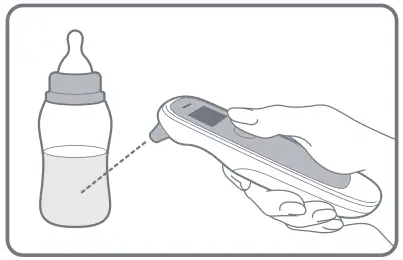

D. Point the Infrared sensor to the centre of the object 1-3 cm away, then press and release the Measure button. The object temperature will be displayed on the screen
Troubleshooting
 | The ambient temperature is higher than 40°C (104°F) or lower the 10°C (50°F). Gently pull baby’s ear upwards to straighten the ear canal for an accurate reading | A long beep, the incicator is red. |
 | An error occurs when the data is being read from or written to the memory, or the temperature correction is not complete. Press the measure button again and new measurement should be displayed on screen. | A long beep, the incicator is red. |
 | When the battery voltage is lower than 2.5V ± 0.1V, the low battery symbol will appear on the display. Please replace the batteries. | Silent. |
- How to mute – Whilst the product is on, press and hold the memory/mute button for approximately 3 seconds.
will appear on LCD display. - How to resume sound – Whilst the product is on, and the is displayed on the LCD display press and hold the memory/mute button for approximately 3 seconds. A beep will sound and the will disappear.
- Switching between °C/°F: Remove the battery cover, and toggle the °C/°F button in the battery compartment.
Replacing the batteries

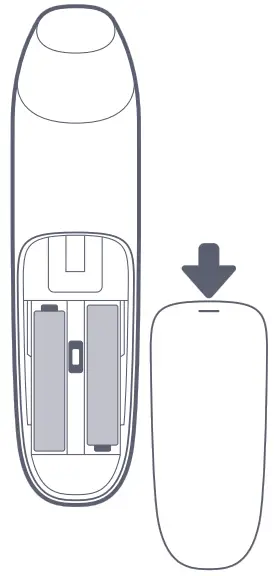

- Slide the battery cover off along the marked direction and take it off.
- Insert the two alkaline AAA batteries into the compartment according to the stated polarities.
• Make sure that the batteries are installed correctly.
• If the low-battery symbol is displayed on the screen, replace the batteries.
• Batteries of the same type should be used. Dispose the used batteries in accordance with the local environmental policies.
• The thermometer is supplied with batteries.
• Not suitable for rechargeable batteries.
FIND OUT HOW TO USE
SCAN QR CODE ON THE BACK OF THE PRODUCT
Product Specifications
Product Name: Infrared Thermometer
Product Model: JPD-FR302
Power Supply Mode: Internal power supply
Operating Voltage: DC 3V
Battery Model: AAA x 2
Operating Mode: Continuous operating
Display: Segment LCD
Measure time: About 1 second
Latency Time: About 3 seconds
Measuring Range: Ear mode:34.0°C–43.0°C (93.2°F–109.4°F)
Object mode:0.0°C–100.0°C (32.0°F–212.0°F)
Accuracy (Laboratory): Ear mode: ±0.2°C (36.0°C-39.0°C) ; ±0.3°C (34.0°C-36.0°C / 39.0°C~43.0°C);
Object mode: ±1.0°C/±2.0°F
Accuracy (Clinical): ±0.3°C (±0.6°F)
Measuring site: Ear canal
Reference body site: Armpit
Resolution: 0.1°C (0.1°F)
Mode of operation: Adjusted mode
Memory: 20 temperature readings
Low-battery Alert: The low-battery symbol is displayed if the power voltage is lower than 2.5 V±0.1V
Automatic Power-off: The thermometer automatically powers off if it is not used in 10±1 seconds.
Outer dimensions (mm): 155.5×37.3×39.1mm
Weight (g): Thermometer (with batteries): 94g
Manufacturing date: see the label
Service life: 2 years
Battery Life : Alkaline dry battery for around 20,000 measurements
Operating Environment:
Temperature: 10°C- 40°C (50°F–104°F)
Humidity: 15%–95% RH, non-condensing
Atmospheric pressure: 86–106 kPa
The infrared thermometer has been tested and conforms to the standard ASTM E1965-98. ASTM laboratory accuracy requirements in the display range of 96.8°F to102.2°F (36°C-39°C) for ear canal IR thermometers is ±0.4°F (±0.2°C). Note that for mercury-in-glass and electronic thermometers, the requirement per ASTM Standards E66786 and E1112-86 is ±0.2°F (±0.1°C).
Security Class
Type of protection against electric shock: internally powered equipment. Degree of protection against electric shock: Type BF applied part.
- Degree of protection against ingress of water: IP22
- Safety degree of using in flammable anesthetic gas blending with air, oxygen or nitrous oxide: Non-AP/APG
- No application parts of the thermometer prevents defibrillation charge effect.
- No application parts of the thermometer output signal.
- The thermometer is impermanent installed device.
Storage and Transportation:
The thermometer can be transported using general transportation tools. Severe vibration, shock, or rain must be avoided during transportation. The thermometer must be packaged and then stored in a well-ventilated room without corrosive gas. The ambient temperature must be between –20°C and +50°C (-4°F–122°F), the relative humidity must be 15%-95%R.H. (non-condensing), and the atmospheric pressure must be 50–106 kPa.
EMC Information-Guidance and Manufacture’s Declaration
CAUTION:
- The Infrared Thermometer JPD-FR302 needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided for in the ACCOMPANYING DOCUMENTS.
- Portable and mobile RF communications equipment can affect Infrared Thermometer JPD-FR302.
- The Infrared Thermometer JPD-FR302 should not be used adjacent to or stacked with other equipment.
Guidance and manufacturer´s declaration –
Electromagnetic emission for all equipment and systems The Infrared Thermometer JPD-FR302 is intended for use in the electromagnetic environment specified below. The customer or the user of the Infrared Thermometer JPD-FR302 should assure that it is used in such an environment.
| Emissions test | Compliance | Electromagnetic environment guidance |
| RF emissions CISPR 11 | Group 1 | The Infrared Thermometer JPD-FR302 uses RF energy only for its internal function. Therefore, its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment. |
| RF emissions CISPR 11 | Class B | The Infrared Thermometer JPD-FR302 is suitable for use in all establishments, including domestic establishments and those directly connected to the public low-voltage power supply network that supplies buildings used for domestic purposes. |
Guidance and manufacturer’s declaration – Electromagnetic immunity for all equipment and systems
The Infrared Thermometer JPD-FR302 is intended for use in the electromagnetic environment specified below. The customer or the user of the Infrared Thermometer JPDFR302 should assure that it is used in such an environment.
| Immunity test | IEC 60601 test level | Compliance level | Electromagnetic environment guidance |
| Electrostatic discharge (ESD) IEC 61000-4-2 | ±6 kV contact ±8 kV air | ±6 kV contact ±8 kV air | Floors should be wood, concrete or ceramic tile. If floors are covered with synthetic material, the relative humidity should be at least 30 %. |
| Power frequency (50/60 Hz) magnetic field IEC 61000-4-8 | 3 A/m | 3 A/m | Power frequency magnetic fields should be at levels characteristic of a typical location in a typical commercial or hospital environment. |
Guidance and manufacturer´s declaration –
Electromagnetic immunity for equipment and systems that are not life-supporting
The Infrared Thermometer JPD-FR302 is intended for use in the electromagnetic environment specified below. The customer or the user of the Infrared Thermometer JPDFR302 should assure that it is used in such an environment.
| Immunity test | IEC 60601 test level | Compliance level | Electromagnetic environment guidance |
| Radiated RF IEC 61000-4-3 | 3 V/m 80 MHz to 2.5 GHz | 3 V/m | Portable and mobile RF communications equipment should be used no closer to any part of the JPD-FR302, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter. Recommended separation distance  where p is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the recommended separation distance in metres (m).Field strengths from fixed RF transmitters, as determined by an Electromagnetic (a) site survey, a should be less than the compliance level in each frequency range (b). Interference mayoccur in the vicinity of equipment marked with the following symbol:  |
NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations.
Electromagnetic is affected by absorption and reflection from structures, objects and people.
a. Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and landmobile radios, amateur radio, AM and FM radio broadcastand TV broadcast cannot be predicted theoretically withaccuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the JPD-FR302 is used exceeds the applicable RF compliance level above, the JPD-FR302 should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the JPD-FR302.
b. Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.
Recommended separation distances between portable and mobile RF communications equipment and the EQUIPMENT or SYSTEM -for EQUIPMENT and SYSTEMS that are not LIFE-SUPPORTING
The Infrared Thermometer JPD-FR302 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Infrared Thermometer JPD-FR302 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the Infrared Thermometer JPD-FR302 as recommended below, according to the maximum output power of the communications equipment.
| Rated maximun output power of transmitter W | Separation distance according to frequency of transmitter m | |
80 MHz to 800 MHz | 800 MHz to 2.5 GHz | |
| 0.01 | 0.12 | 0.23 |
| 0.1 | 0.38 | 0.73 |
| 1 | 1.2 | 2.3 |
| 10 | 3.8 | 7.3 |
| 100 | 12 | 23 |
For transmitters rated at a maximum output power not listed above, the recommended separation distance d in metres (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.
NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations.
Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.
CAUTION.
BF type applied part.
IP22 Classification for water ingress and particulate matter.
Indicates this device is subject to the Waste Electrical and Electronic Equipment Directive in the European Union. To protect the environment dispose of useless device at appropriate collection sites according to national or local regulations.
Please read instructions.
Battery recycling.
Information on the Disposal of Waste Electrical and Electronic Equipment (WEEE)This symbol means that your product shall be disposed of separately from household waste in accordance with local laws and regulations. When this product is ready for disposal, take it to a collection point designated by local authorities. Separating and recycling of your product at the time of disposal will help conserve natural resources and ensure that the product is recycled in a manner that protects human health and the environment. Penalties may be applicable for the incorrect disposal of this product in accordance with national legislation.
Maufactured by: Shenzhen Jumper Medical Equipment Co., Ltd.
Address: D Building, No. 71, Xintian Road, Fuyong Street,
Baoan, Shenzhen, Guangdong, China
Distributed by: Mayborn (UK) Limited, Balliol Business Park,
Newcastle upon Tyne, NE12 8EW.
Mayborn France Sarl, 92100, France.
Mayborn USA Inc. CT 06901, USA.
MedPath GmbH
Mies-van-der-Rohe-Strasse 8, 80807 Munich, Germany.
Mayborn (UK) Ltd
Mayborn House, Balliol Business Park,
Newcastle Upon Tyne NE12 8EW
United Kingdom
EU Representative
Mayborn France Sarl, 56 Rue de paris,
Boulogne Billancourt, 92100
FranceMADE IN CHINA.
TOMMEE TIPPEE®. IN EAR™. Copyright © 2022.
All IP rights held by Mayborn (UK) Limited
and/or its affiliates.
Any questions?
Visit our website: tommeetippee.com
