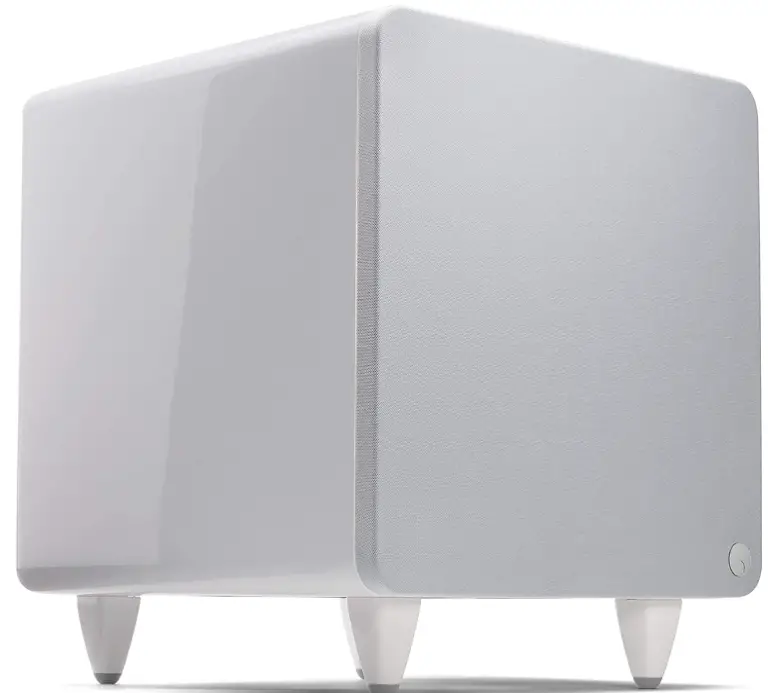

Cambridge Audio Minx X301 Subwoofer with Active Amplifier
Installation guide
This guide is designed to make installing and using this product as easy as possible. Information in this document has been carefully checked for accuracy at the time of printing; however, Cambridge Audio’s policy is one of continuous improvement, therefore design and specifications are subject to change without prior notice.
- Read all instructions
- Avoid damp
- Avoid direct sunlight
- Avoid extreme temperatures
- Avoid solvent-based cleaners
- Secure all cables

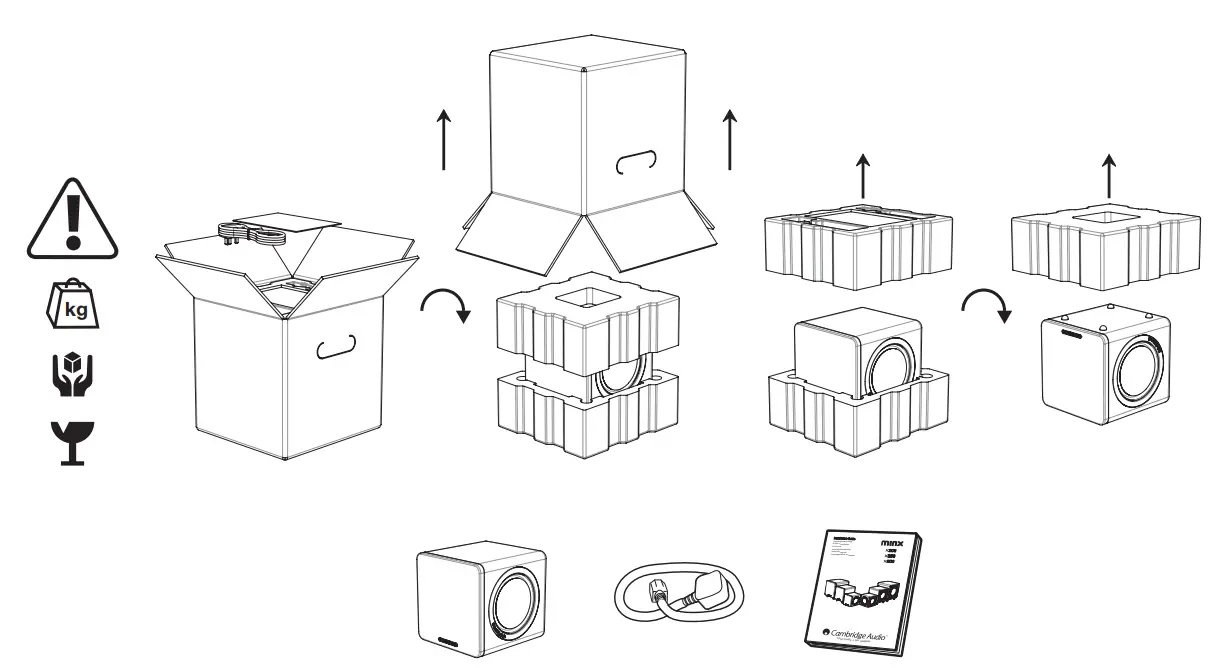

Unpacking
Follow the diagrams to unpack your subwoofer

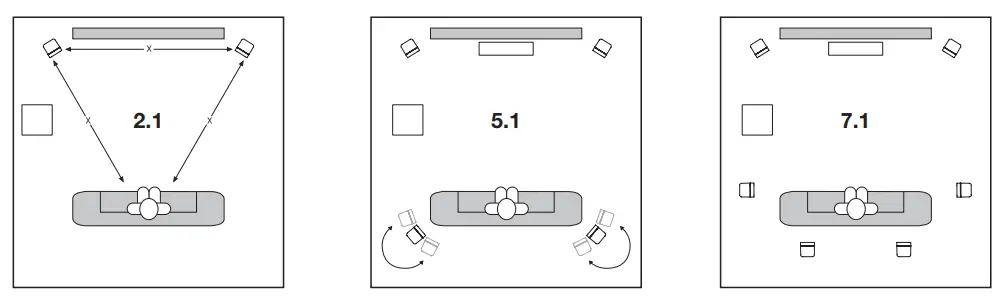

Positioning
Your subwoofer can be placed almost anywhere in the room as bass sound is largely non-directional.
Connections

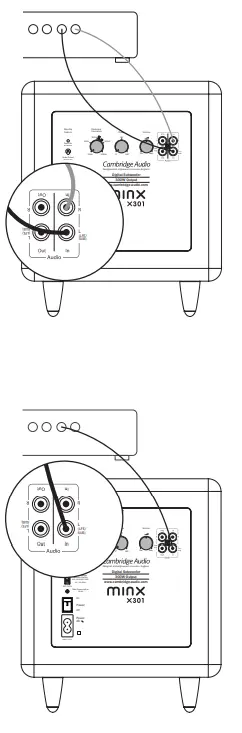

- Connect to left and right Line inputs if using with a 2-channel hi-fi system.
- Connect to the left (LFE/Sub) Line In socket if using an AV receiver or Amp with Sub out.

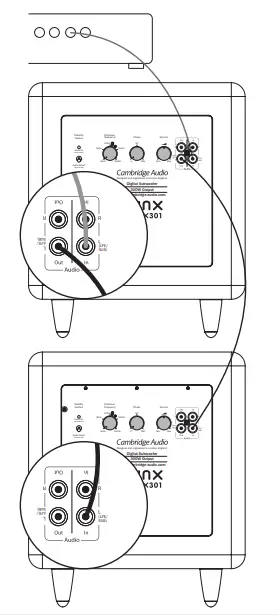

- To connect a second subwoofer use the Line out sockets.

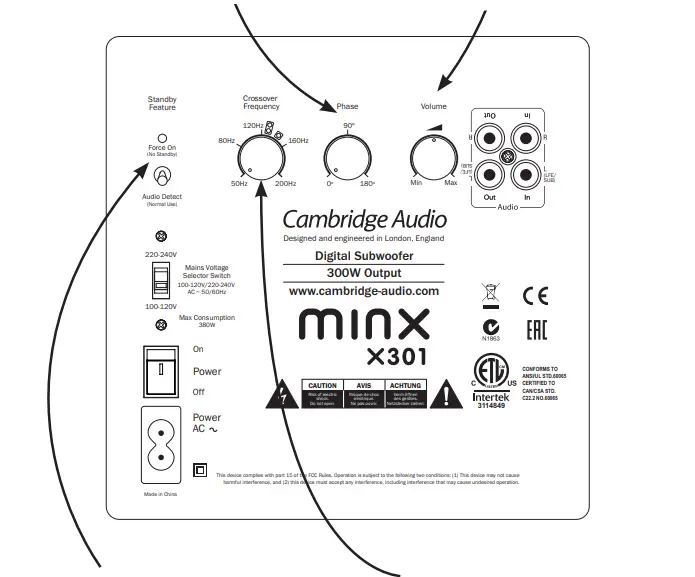

Controls
- Adjust Phase if using non Minx speakers (0 = normal).
- Set Volume to balance subwoofer output with Min 12 or Min 22 speakers by ear.
- Auto feature will switch your subwoofer on and off automatically by signal detection.
- Adjust Frequency to integrate subwoofer with Min 12 or Min 22 speakers.
Technical specifications
- Sensitivity (SPL):86dB (2.83 Vrms input)
- Frequency response:120Hz – 20kHz
- Impedance:8 Ohms compatible
- Power handling:15-50W Recommended
- Drivers:1 x 2.25”
- Speaker dimensions (H x W x D):78 x 78 x 85mm (3.1 x 3.1 x 3.3”)
- Weight 0.43Kg (0.95lbs)
Minx is a trademark of Cambridge Audio. All rights reserved.
© Copyright Audio Partnership Plc 2014
Cambridge Audio is a brand of Audio Partnership Plc.
Registered Office: Gallery Court, Hankey Place, London SE1 4BB, UK.
Registered in England No. 2953313
Part No. AP33169/2
www.cambridge-audio.com
FAQS
Is it magnetically shielded? Can it be placed next to a TV?
The X201 is not magnetically shielded but should not affect a TV unless it’s a CRT TV.
Why no picture on back connections and will this work w/ audioengine hd3 powered speakers? if so which connections?
We’ve never tested the X201 with this particular speaker set, so we can’t guarantee if it will or won’t work. However, I believe you can connect the X201 to the RCA output of the HD3. You’ll also want to make sure that your proposed powered speakers have a volume control for the safest experience.
Can this easily integrate into my existing speaker setup with my AVR?
These are powered subwoofers with line in and out. It has its own volume and crossover.
Is the cone material made of treated paper ……hopefuly it’s of mors advnced and better material.
The Cambridge web site says they are One piece aerospace grade aluminium cones.
Does it work with v220?
There is a voltage switch on the back so you can adjust it to use either 110 or 220. That being said, if you purchase the sub from a US seller, the warranty will only be valid in the US. So if you take it overseas you will need to send it back to the US for any warranty work.
is this active/powered or passive subwoofer? what’s the power wattage in rms? is it suitable for av receiver with 80 watts rms?
According to BH Photo Video: AC Input Power 110 to 240 VAC, 50 / 60 Hz
There should be a switch on the back panel. It does not switch automatically.
See also Crutchfields image of the back panel. You can confirm by yourself by searching for images of ‘Cambridge Audio Minx X201’
Does this subwoofer includes a cable in the package?
This is a powered subwoofer. It has direct rca line in and out.
This speaker works with the cambridge audio minx 600d stand?
It did not include an RCA cable. The only cable included was a power cable.
Does this support dual voltage (US and Europe)?
done know
Can I be 100% sure that the line out sockets send out full range? Identical to line in?
It has a switch behind it to change voltages.
What is the line in input impedance? (I am thinking about y-splitting the preamp out, instead of using the X201 line out)
The RCA output on the X201 will duplicate whatever is connected to the input. So if you hook up a second sub, you would just want to make sure that they both have all the same settings on the back.
Does it work with v220?
The impedance of the LFE/Sub input on the X201 is approximately 47k Ohms.
